China Powerful Manufacturer PTFE Bellows High Quality Food Grade Fluoroplastic Tube
- Category: >>>
- Supplier: Dongguan,Changbo,Metal,&,Plastic,Products,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
ITEM | DETAILS |

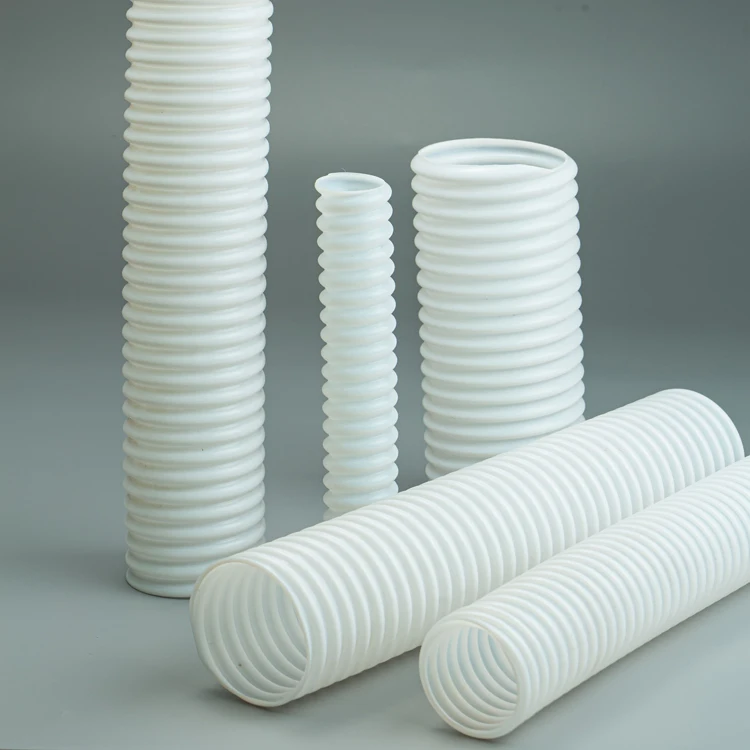

Product name | PTFE Bellows/Corrugated Pipe (Teflon Products) |
Material | Polytetrafluoroethylene (Virgin PTFE) |
Color | CLAER, SEMI-CLEAR, WHITE, BLACK, BLUE OR CUSTOMIZED. |
Working Temperature | -65°C to +260°C (-85°F to +500°F) |
Thermal conductivity | 0.24 W/m.K ASTM C177 |
CERTIFICATIONS | IATF16949, ISO14001, ISO45001、EURoHS |
Product features
——High / Low Temperature
Stability
——High Strength
——Non-toxic and Tasteless
——Non-Combustible
——Acidic and Alkali
Resistances
Specification | ID (mm) | OD (mm) | Specification | ID (mm) | OD (mm) |
6x8 | 6 | 8 | 19x22 | 19 | 22 |
8x10 | 8 | 10 | 20x23 | 20 | 23 |
10x12 | 10 | 12 | 25x28 | 25 | 28 |
12x14 | 12 | 14 | 32x36 | 32 | 36 |
13x15 | 13 | 15 | 38x42 | 38 | 42 |
15x17 | 15 | 17 | 47x51 | 47 | 51 |
15x18 | 15 | 18 | 60x64 | 60 | 64 |
16x18 | 16 | 18 | 77x82 | 77 | 82 |
16x19 | 16 | 19 | 98x102 | 98 | 102 |
Applications and Uses
PTFE bellows are used, for example, as compensating elements between engineered parts. The outstanding material properties allow bellows to be used increasingly in the medical and food sectors, as well as in general industry. Application Examples:
Compensator for expansion in pipe systems
Filling lines
Pumps and valves
Coating technology
Steel mills
Fitting industry
Filling lines
Pumps and valves
Coating technology
Steel mills
Fitting industry
PTFE Applications
Our products are widely used in:
Aerospace
Automotive
Chemical
Electrical insulation
Electronic communications
Environmental protection
Heat ex changer
Mechanical
Medical
Power engineering
Transformer
and other industrial fields
Automotive
Chemical
Electrical insulation
Electronic communications
Environmental protection
Heat ex changer
Mechanical
Medical
Power engineering
Transformer
and other industrial fields
Product Paramenters
Technical Data | ||||||
Name | PTFE | FEP | PFA | |||
Tensile Strength | 250 | 210 | 280 | |||
Extensibility | 350 | 300 | 300 | |||
Hardness | 55D | 55D | 55D | |||
Melting Point (°C) | 327 | 279 | 305 | |||
High Temperature (°C) | 260 | 200 | 260 | |||
Low Temperature (°C) | -65 | -200 | -200 | |||
Non Combustion Limit | Rated 94VO | Rated 94VO | Rated 94VO | |||
Water Uptake | <0.01 | <0.01 | <0.01 | |||
Weathering Resistance | Excellent | Excellent | Excellent | |||
Density | 2.1 | 2.1 | 2.1 | |||
1MHz Permittivity | 2.1 | 2.1 | 2.1 | |||
Dissipation Factor | 0.0002 | 0.0002 | 0.0002 | |||
Resistance to Organic | Excellent | Excellent | Excellent | |||
Elasticitv | Good | Good | Good | |||
Hot Selling
Company Profile
Dongguan Changbo
We founded in 2011, a high-tech enterprise, focusing on production, research and development of all kinds of Teflon products, such as PTFE tube / rod / heat shrink tube / sheet / films / CNC parts, PFA tube / rod / sheet /film, FEP tube / rod / sheet and etc. To meet the needs of the international market, we passed some certificate, such as IATF16949, ISO14001, ISO45001 and etc. All products are in line with ROHS, REACH standards, and meet food grade requirements.
OUR WORKSHOP
We have over 150 employees and have a large number of advanced & professional production equipment and testing instruments, All products are manufactured in modern standard workshops or dust-free workshops which are more than 10,000 square meters.
Office of the Ministry of Foreign Trade
Professional quality inspectors
Inner packing: plastic bags
Out packing: carton box
Wooden box for heavy order
Certifications
FAQ
Customer: Are you trading company or manufacturer??
WITFLON: We are professional PTFE product manufacturer with ISO9001, ISO14001 certificated, and all material are RoHS compliant.
Customer: Do you accept OEM?
WITFLON: Yes,we could print your logo if reach our MOQ.
Customer: How about your packing?
WITFLON: 3layer packing, Inner plastic bags, packed in carton box and wooden packang for heavy goods. Keep your good away from water.
Customer: What’s the delivery time?
WITFLON: 7-15 days for normal order.
Customer: What are your terms of payment?
WITFLON: T/T or L/C AT SIGHT
No matter where you are, we always have a way to deliver it to customers!
