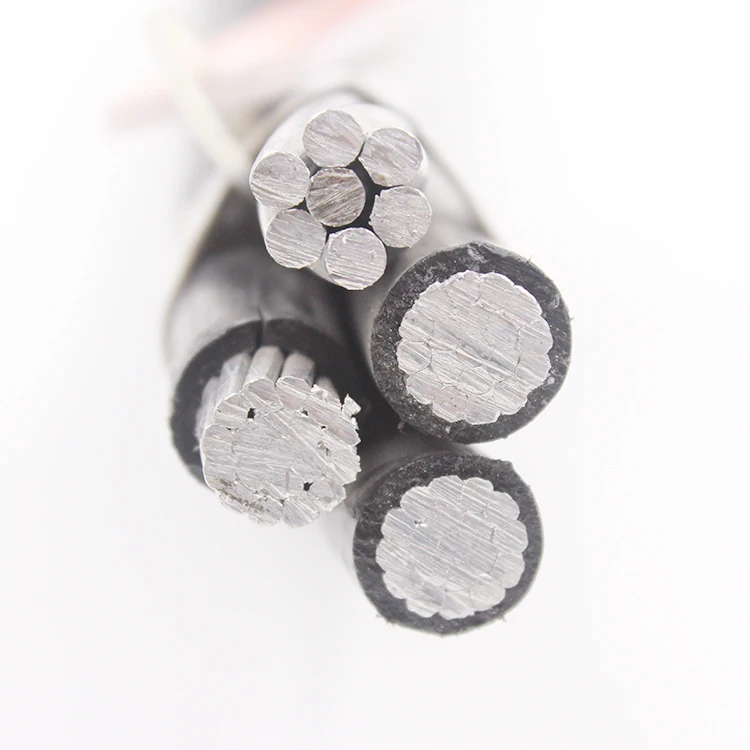

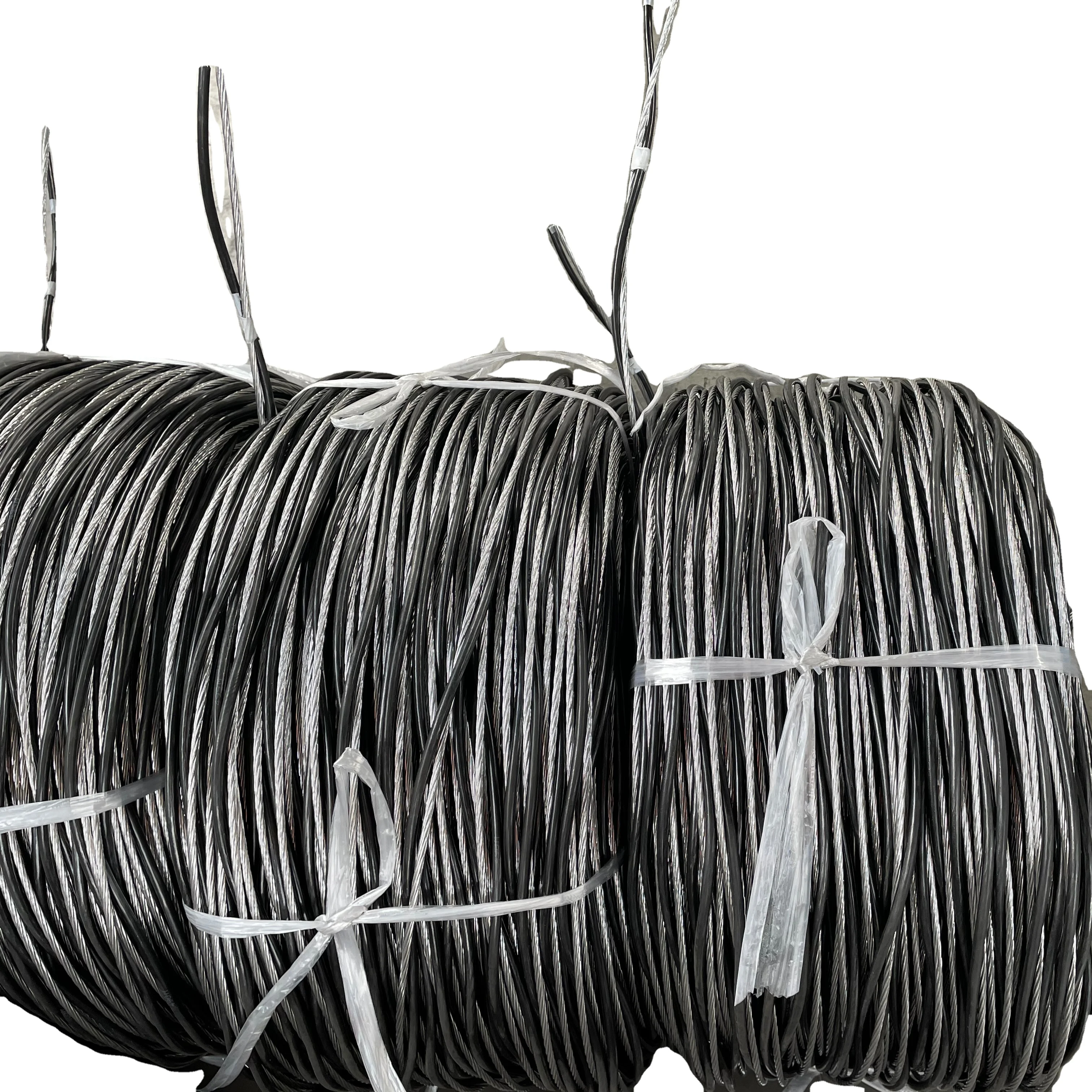

Low voltage Aluminum AWG triplex service drop abc cable Overhead Aerial Bundled Cable

 1.What is The Aerial Bundled Cable?

      Aerial Bundled Cables(also Aerial Bundled Conductors or simply ABC) are overhead power lines using several insulated phase conductors bundled tightly together,usually with a bare neutral conductor.This contrasts with the traditional practice of using uninsulated conductors separated by air gaps.This variation of overhead power lines utilizes the same principles are bundled conductors,expect that they are closer together to the point of touching but each conductor is surrounded by an insulating layer(except for the neutral line).

2.Applications

       Primarily used for overhead service drop applications,such as:street lighting.outdoor lighting and temporary service for construction.To be used at voltages of 600v phase-to-phase or less and at at conductor temperatures not to exceed 75℃ for polyethylene(PE) insulated conductors or 90℃ cross-linked polyethylene(XLPE) insulated conductors.

      Overhead insulated cable may be installed in the streets with dense trees close to the buildings,site of urban construction and lead to transformer.It is especially for an old city,which has densely buildings,densely population and narrow streets.

3.Rated voltage:

0.6/1kv or 6/10kv

4.Insulation material:

PE or XLPE or HDPE or  PVC or  as  the customer's demands;

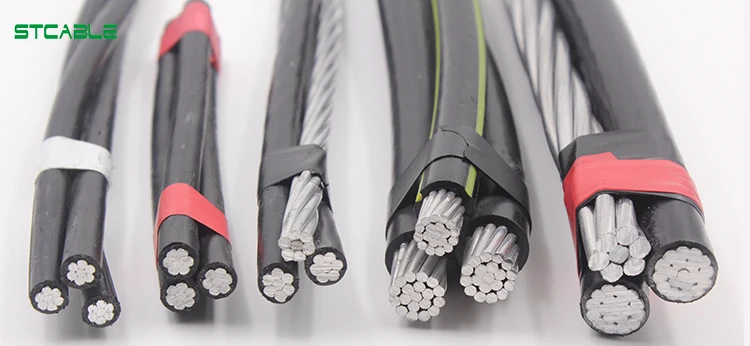

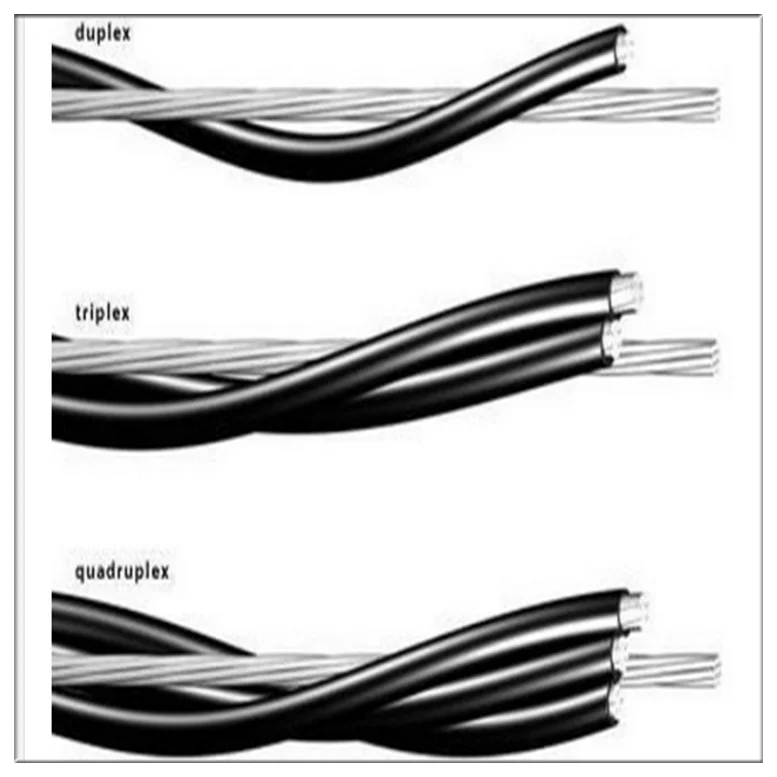

5.Types of ABC Cable:

Single Core

Two core(Duplex Service Drop)

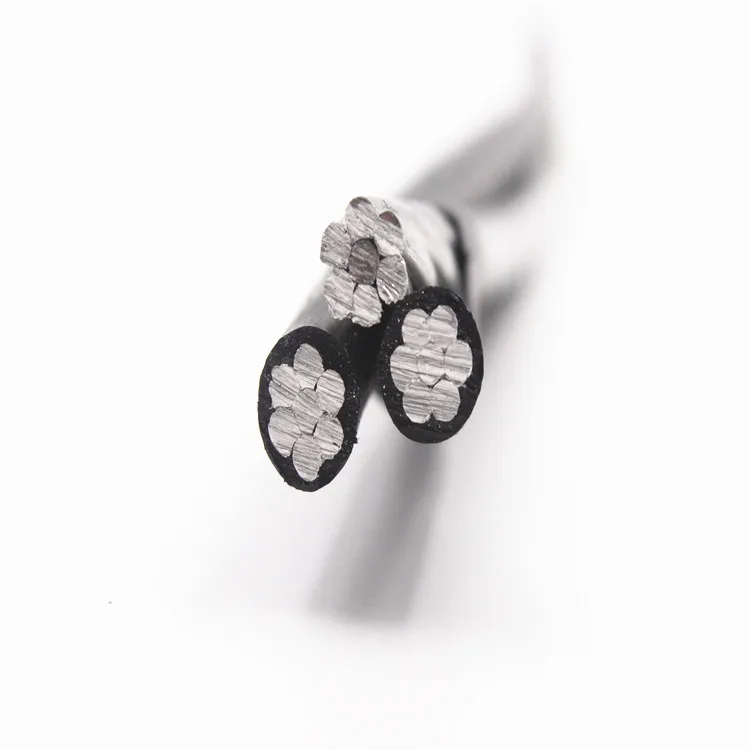

Three core(Triplex Service Drop)

Four core(Quadruplex Service Drop)

6.Conductor:

7.Service Drop Cable meets or exceeds the following specifications:

1).Aluminum Wire,1350-H19 for Electrical Purposes;

2).Aluminum Conductors,Concentric-Lay-Stranded;

3).Aluminum Conductor,Concentric-Lay-Stranded,Coated Steel Reinforced(ACSR);

4).Concentric-Lay-Stranded 6201-T81 Conductors;

5).Service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474;

8.Cable's Characteristics:

1).Max.admissible long time operating to conductor:

PVC or PE insulated should not exceed 70℃,XLPE insulated should not exceed 90℃;

2).Installing temperature should not be below -20℃;

3).Admissible bending radius:

When overall-diameter(D)is less than 25mm,it should be not less than 4D;

When overall-diameter(D) is 25mm or more,it should be not less than 6D;

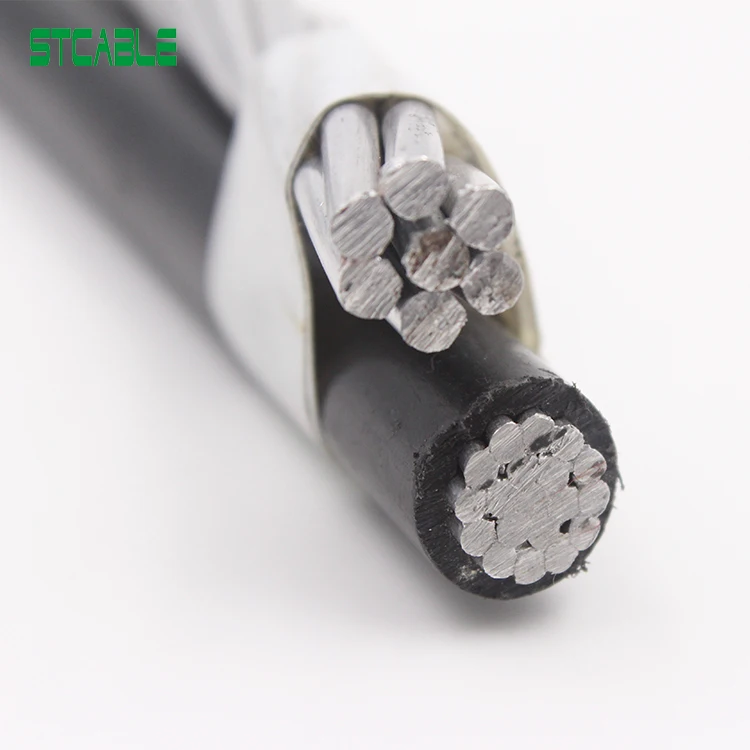

9.Cable Shape:

10.Attached Technical Parameter(see table 1):

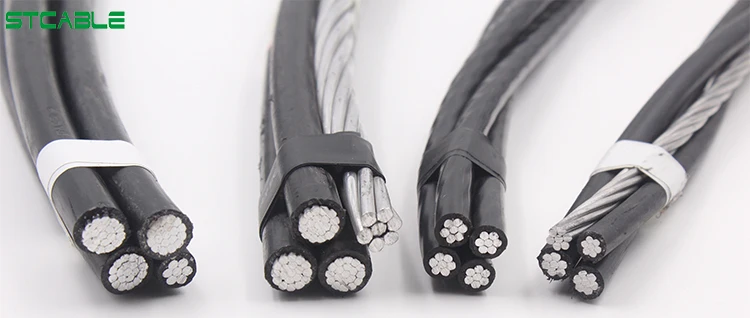

Quadruplex Service Drop

 Triplex Service Drop

Duplex Service Drop

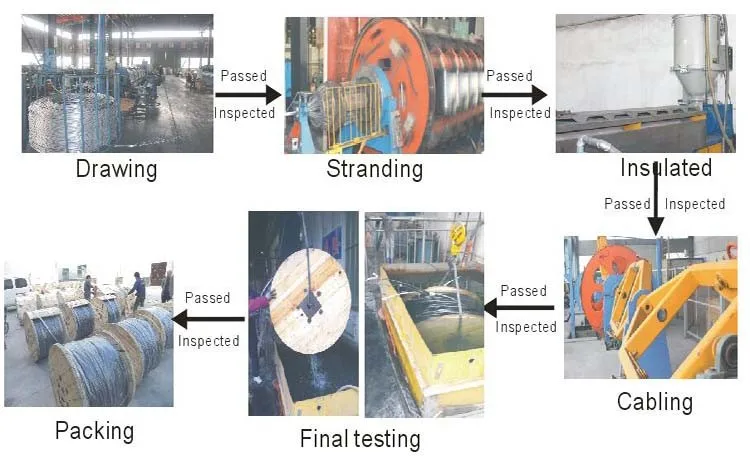

           Our production process can  ensure 100% inspect from the raw material to the finished products,otherwise we also includes the water testing,this is the  whole related product produce flow like this:

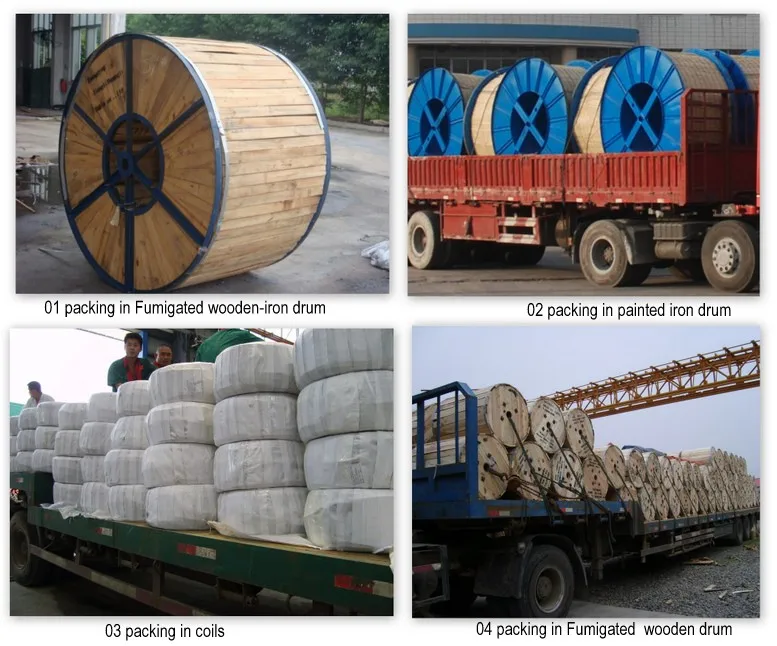

         For the Aerial Bundled Cable(ABC Cable) (aluminum or copper conductor material),we usually use the standard wooden drum to package as the belowing picture.We  also can design the different package types according to the customer's  requirements.

Zhengzhou Sitong Cable Co.Ltd. is founded by one of the most professional manufacturers.We specialize in producing and exporting all kinds of wires and cables.We have advanced tech-staff, advanced equipment and  30year's experience engineer.Welcome to visit  at any time.Since we were founded, we have been built favorable business relationship with many customers from all over the world.  We comply with the principle - “honest management,practical and pioneering spirit ,pursuit of excellence”.We are willing to collaborate with our friends all over the world and build brilliant future with the perfect quality of products and service.

Our company has single wire area,stranding area,extruding area,armouring area,cabling area,package area, and has its own laboratory.  There are 4 tubular stranding machines in our factory. All of these are seven strands of wire, can stranding the wire to left and right two directions. The range and speed of the strand wire are different. We have 4 extruded molding machines totally. The two is 90, one is 65 and the other is 120 .(Note : 90, 65, 120 means the diameter of the screw tube on the extruder. )Insulation thickness ranges from 1 mm to 4 mm.the color master batch of 2%-3%  XLPE PE.Process: The screw and insulation materials are squeezed together by the extruder. Next printed with the print machine or inkjet machine, then cooled through the sink, and eventually entangled on the axle directly.etc.

Laboratory:

DC bridge : dc resistance at 20℃, IEC 60228, ASTM ,BS

Section projector : test thickness , min thickness , average thickness

Aging test :hot elongation,test 15 minute

Tensile strength testing equipment :tensile strength and elongation

Quality is our top priority. We always regard quality control as our top priority. Strictly control the design, incoming material, incoming material, semi-finished product manufacturing and finished product inspection to ensure the product quality. Since its establishment, the company has adhered to scientific management, made great efforts to improve the work quality of all departments and links, continuously improved the overall quality of the enterprise, and established a good corporate image. Our company strictly controls the quality, especially the process control (Manufacturing), so that the unqualified raw materials will not be put into production, the unqualified products in process will not flow into the next process, and the unqualified products will not leave the factory. Strictly inspect the raw materials, work in process and finished products to ensure the products meet the standards and user requirements.

Zhengzhou Sitong cable company has been growing and becoming a stable foothold in the international market. At the same time, we have established cooperative relationship with many foreign distributors and developed a large number of end customers. Products are exported to Europe, America, Middle East, South America, Africa and other countries. Good faith management, welcome to cooperate.
