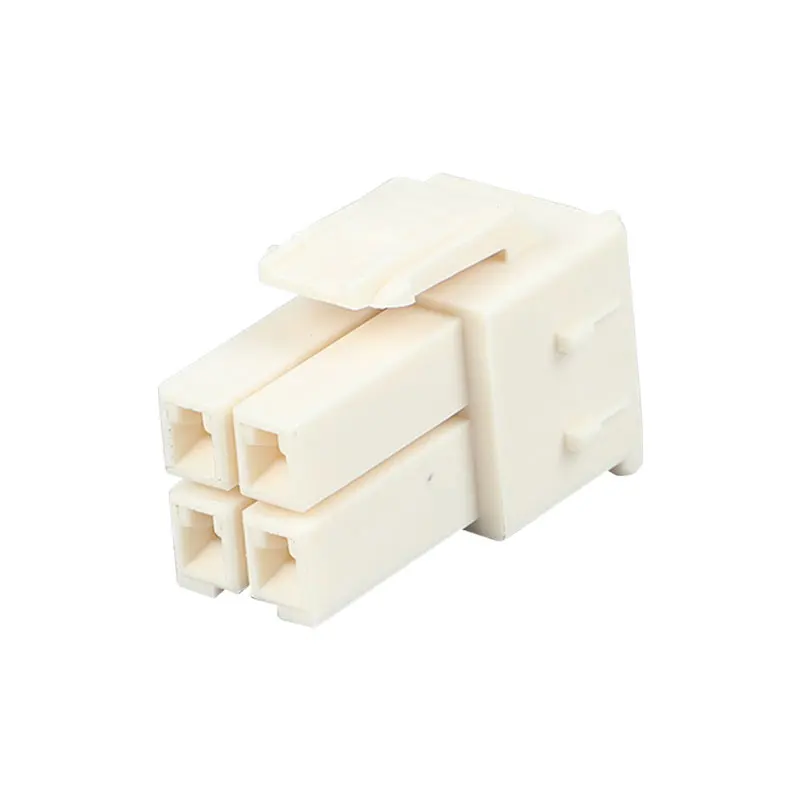

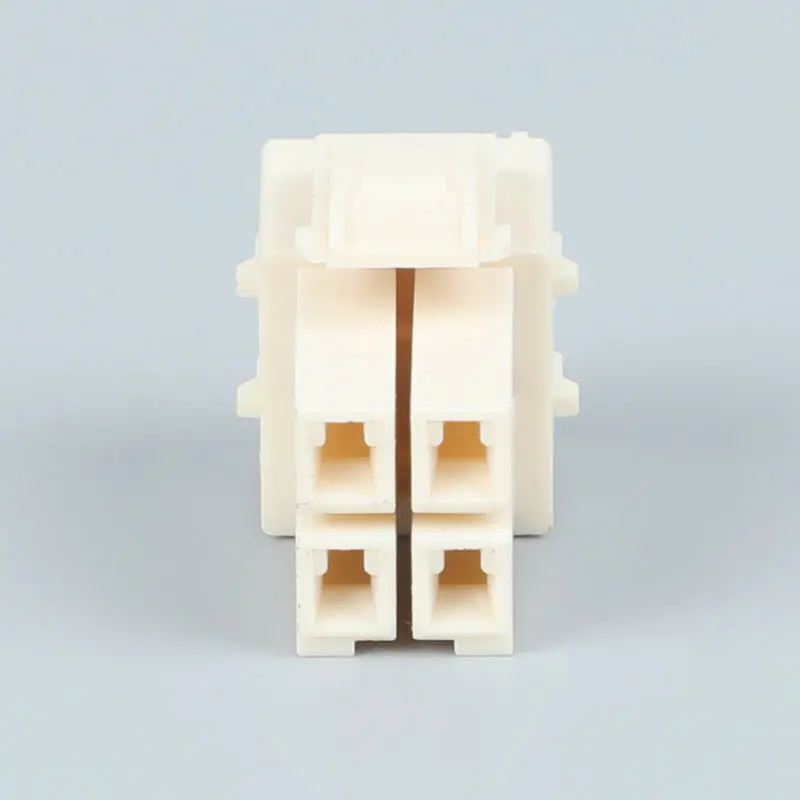

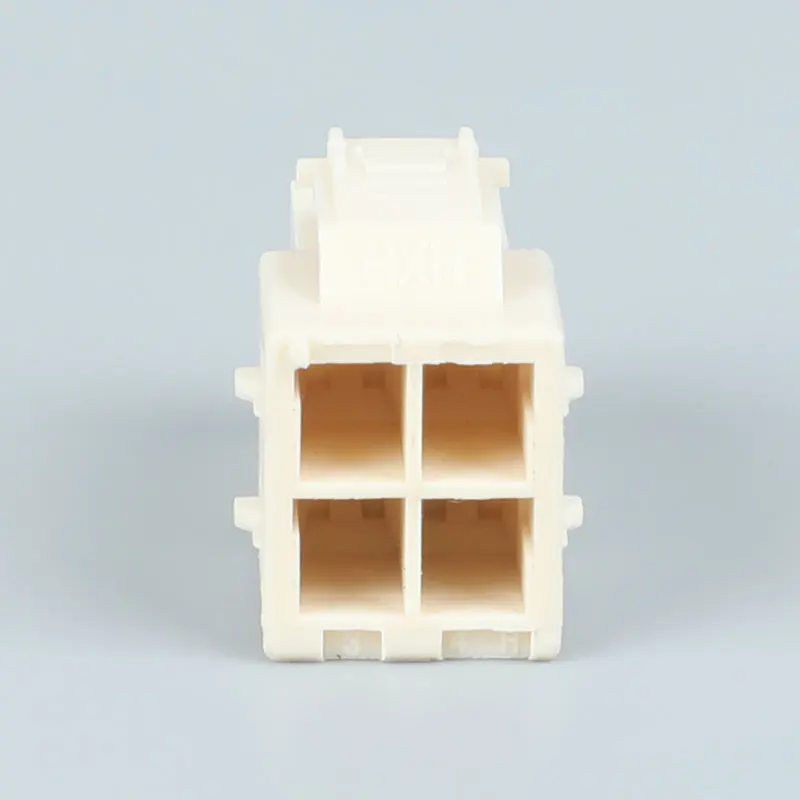

Alternative amp 177898 1 179463 177899 179464 1 177900 1 179465 177901 177902 3.96MM Ptich 2 3 4PIN connector

Product Type Features

* Rectangular Power Connector Type : Housing

* Connector & Housing Type : Plug

* Connector System : Wire-to-Wire

* Sealable : No

* Connector & Contact Terminates To : Wire & Cable


Configuration Features

* Number of Positions : 4

* Number of Power Positions : 0

* Number of Signal Positions : 0

* Number of Rows : 2


Electrical Characteristics

* Operating Voltage (VAC): 300


Contact Features

* Contact Retention Within Housing : Without

* Contact Type : Receptacle

* Contact Layout : Matrix


Termination Features

* Termination Method to Wire & Cable : Crimp

* Wire Type : Stranded

* Wire/Cable Type : Discrete Wire


Mechanical Attachment

* Connector Mounting Type : Cable Mount (Free-Hanging)


Housing Features

* Centerline (Pitch) : 3.96 mm [ .156 in ]

* Housing Color : Natural

* Housing Material : Nylon 6/6

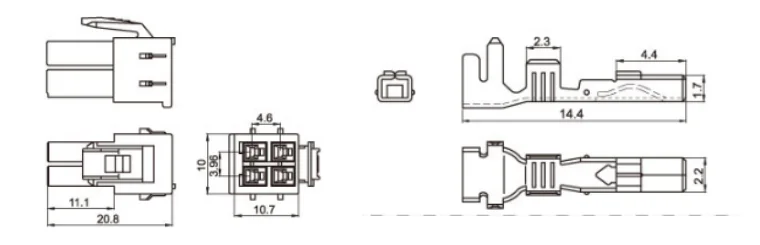

Dimensions

* Row-to-Row Spacing : 4.6 mm [ .181 in ]

* Height (mm): 20.6


Usage Conditions

* Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]


Operation/Application

* Circuit Application : Power & Signal


Identification Marking

* Circuit Identification Feature : With


Industry Standards

* UL Flammability Rating : UL 94V-0

* Glow Wire Rating : Standard Part - Not Glow Wire

* Agency/Standard : CSA

* VDE Tested : Yes


Packaging Features

* Packaging Method : Bag

* Packaging Quantity : 300


Other

* For Use With : Cap: 177908 or 179465, Contacts: 177914 or 177915, Double Lock Plate 177918-1, Header: 179840
