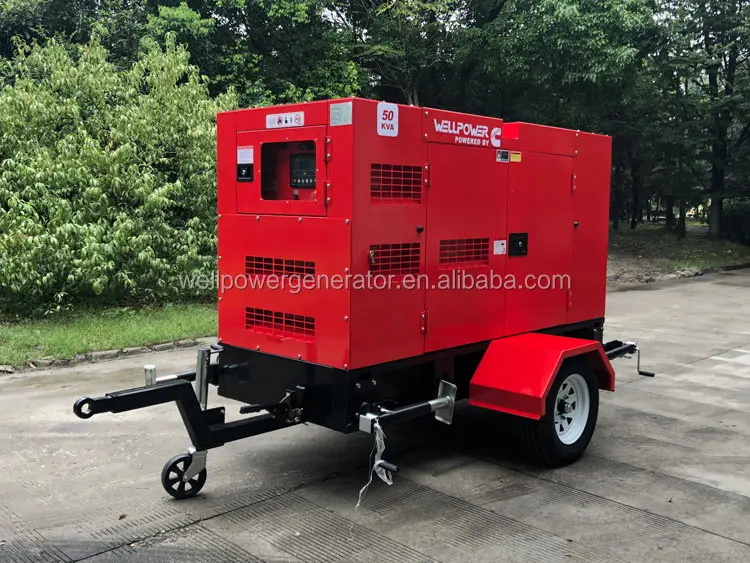

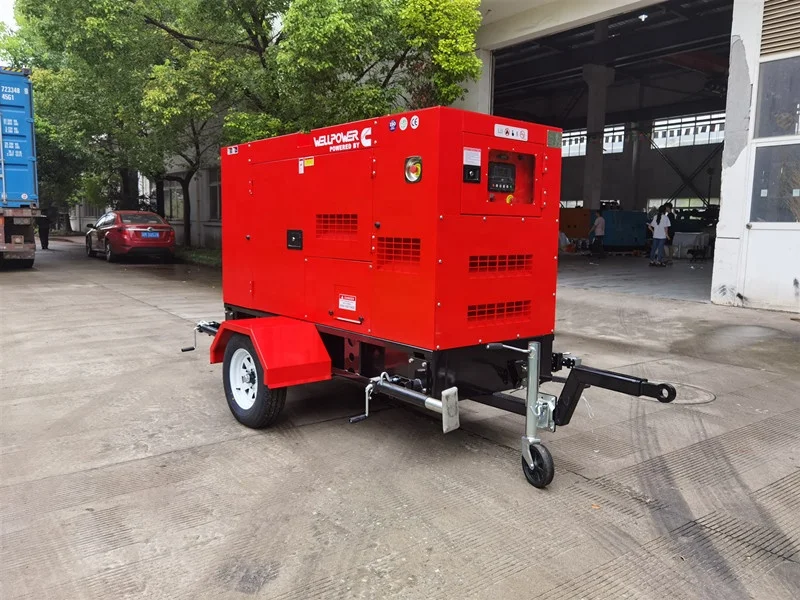

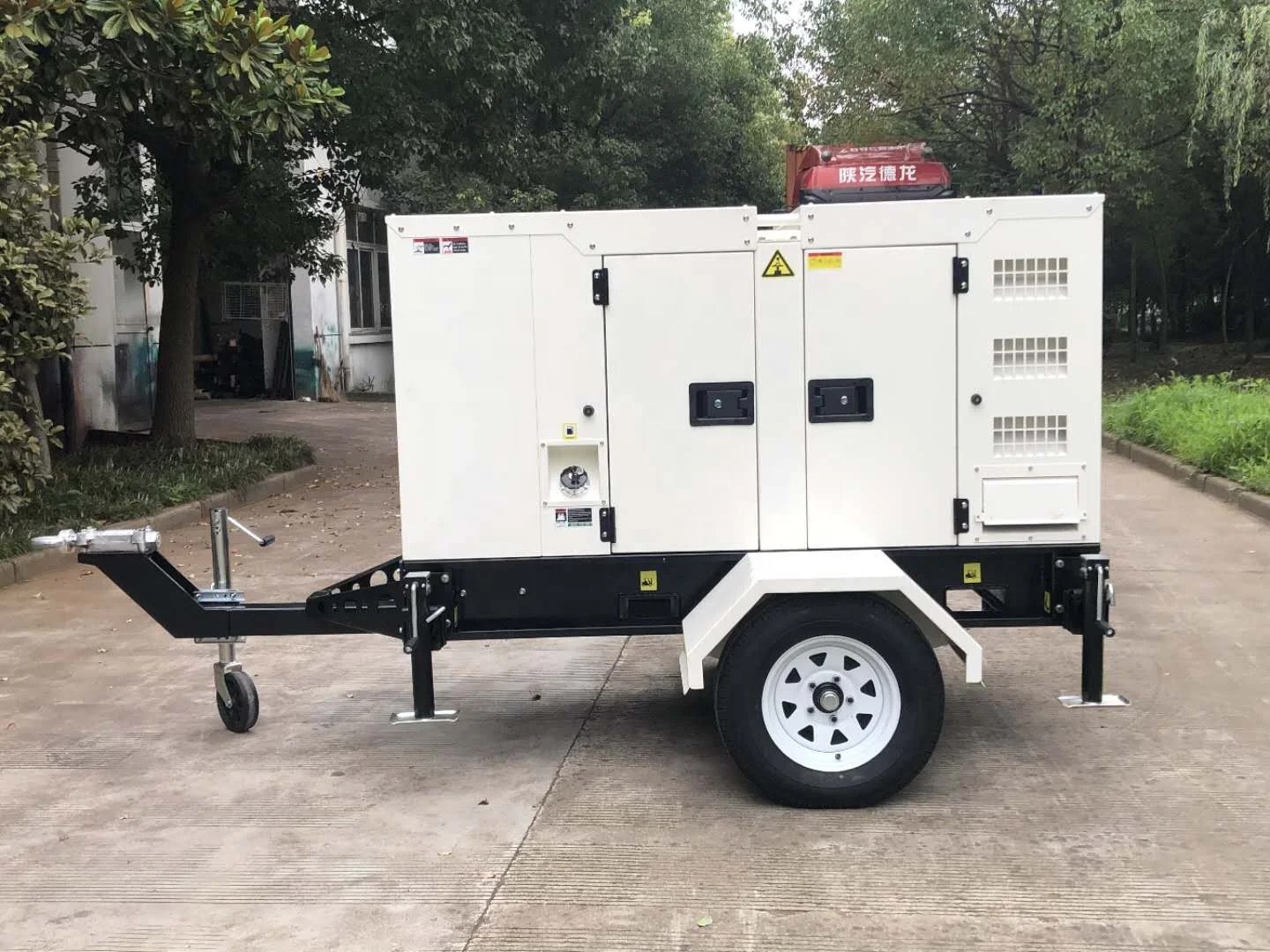

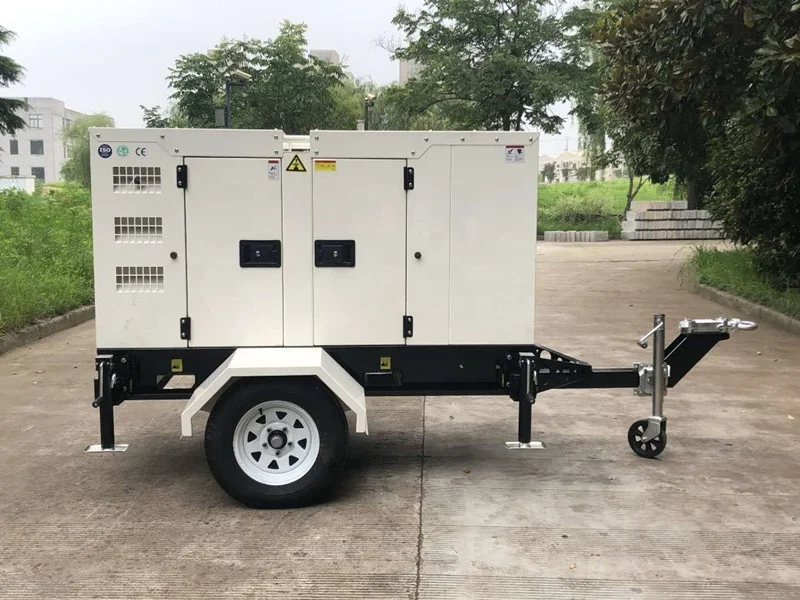

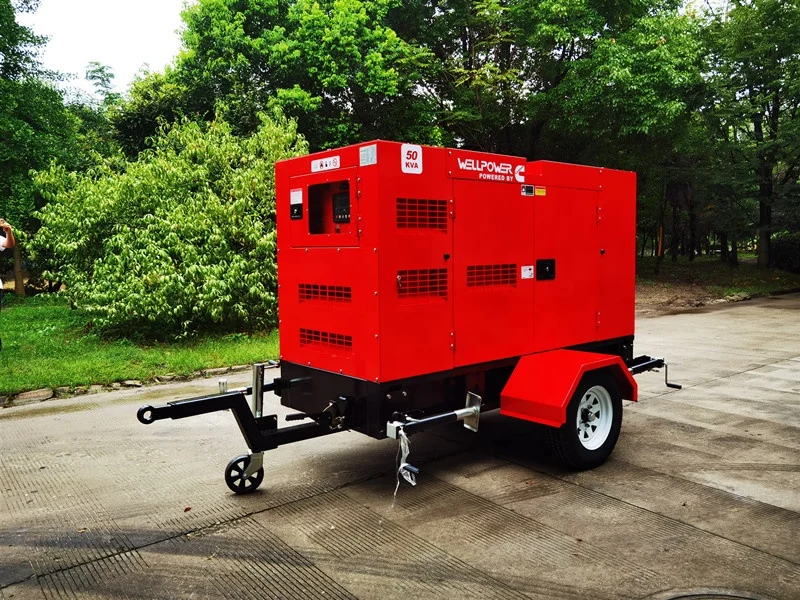

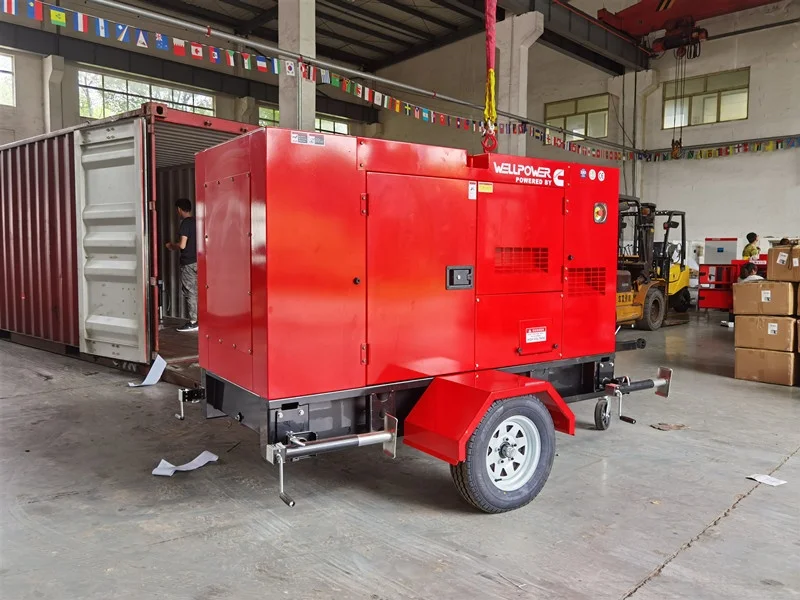

New trailer type 20kw home use water cooled diesel generator with Yangchai engine WP2.5D22E2

Product Overview

Description

Small home use 20kw water cooled diesel generator with Weichai(Yangchai series) engine WP2.5D22E2 for backup use.

Technical Specification

Model	Voltage	HZ	P.F (COS)	Standby power	Prime power	Net Weight
WP-YC20GF	400V/230V-3P	50	0.8	20 KW	18 KW	650 kg

Prime power

This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.

Standby power

This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.

General features:

n Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

n 24V DC start motor;

n Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;

n Equipped with industrial silencer and flexible exhaust hose;

n Designed to Comply with ISO8528/GB2820;

n Powered by Yangchai engine, Wellpower alternator and DeepSea/ComAp/SmartGen control panel



Engine Spec

Engine Model	WP2.5D22E2
Engine manufacturer	Yangchai
Number of Cylinders	4 cylinders in line
Cycle	4 stroke
Aspiration	Natural
Bore×Stroke	85mm x92mm
Displacement	2.49 L
Prime Power	20 KW
Standby Power	22 KW
Steady speed droop	≤1%
Governor	Electronic/Mechanical
Fuel Consumption	245 g/kw.h
Starter Motor	DC24V,
Alternator	DC24V



Alternator Spec

Alternator Model	WP184F
Prime power	22 KW
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23
Phase	Three phases



Control Panel

Model	SmartGen/ComAp/Deepsea
The control module gives digital readouts of:	Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run.
The control module has indicators for failure information:	Over speed / under speed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure
Automatic shutdown occurs under:	Low engine oil pressure; High engine water temperature; Over speed/ under speed; Failure to start after three attempts



Standard Accessories

Standard Accessories	Open Type	Silent Type
Sound-proof & Weather-proof Canopy	N/A	√
Daily base fuel tank. 8 hours capacity	N/A	√
Single-bearing generator again drops	√	√
Intelligent LED display control panel	√	√
Speed governor	√	√
Electric start and 24v charger	√	√
Standard air filter, oil filter, fuel filter	√	√
Cooling water tank	√	√
High-efficient silencer	√	√
Exhaust elbow	√	√
Storage battery	√	√
Steel base-frame against vibration	√	√
Soft pipe for fuel and handle for lube going-out	√	√
Operation& Maintenance manual	√	√



About us

Jiangsu Wellpower generator Co.,Ltd has passed ISO9001-2008 and CE.

Wellpower generator company mainly produces and sells Diesel Generators, inland diesel generators from 3-3000KVA, marine power emergent diesel generators from 12-500KW, and kinds of imported diesel generators, movable power station, sound-proof, multi-pieces connection, remote monitoring, generators with ATS, and gas generators. We persostently insist in high standard of product quality and lay on strict requirements on it, according to the policy of real price for survival and good quality for development.

Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to cantact us.
