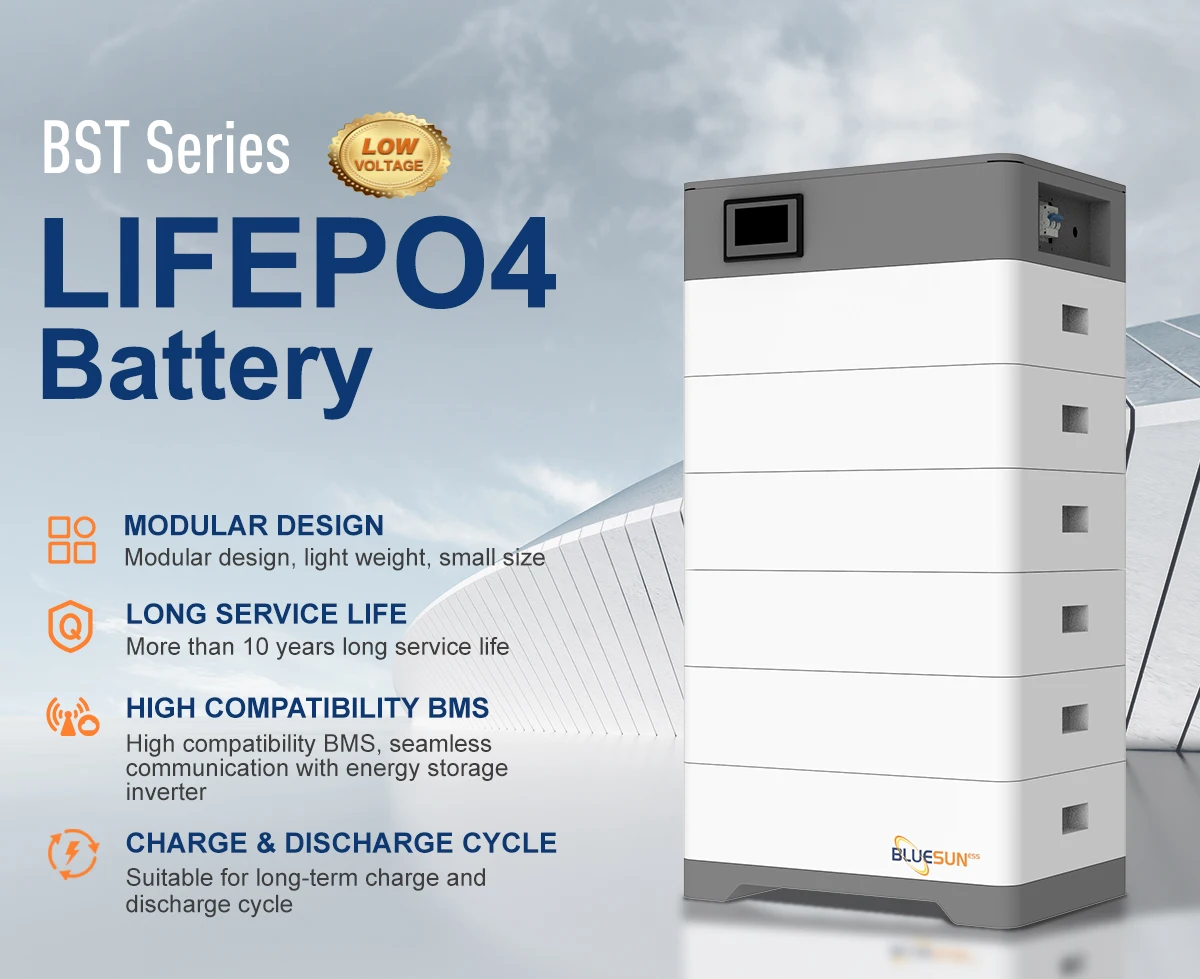

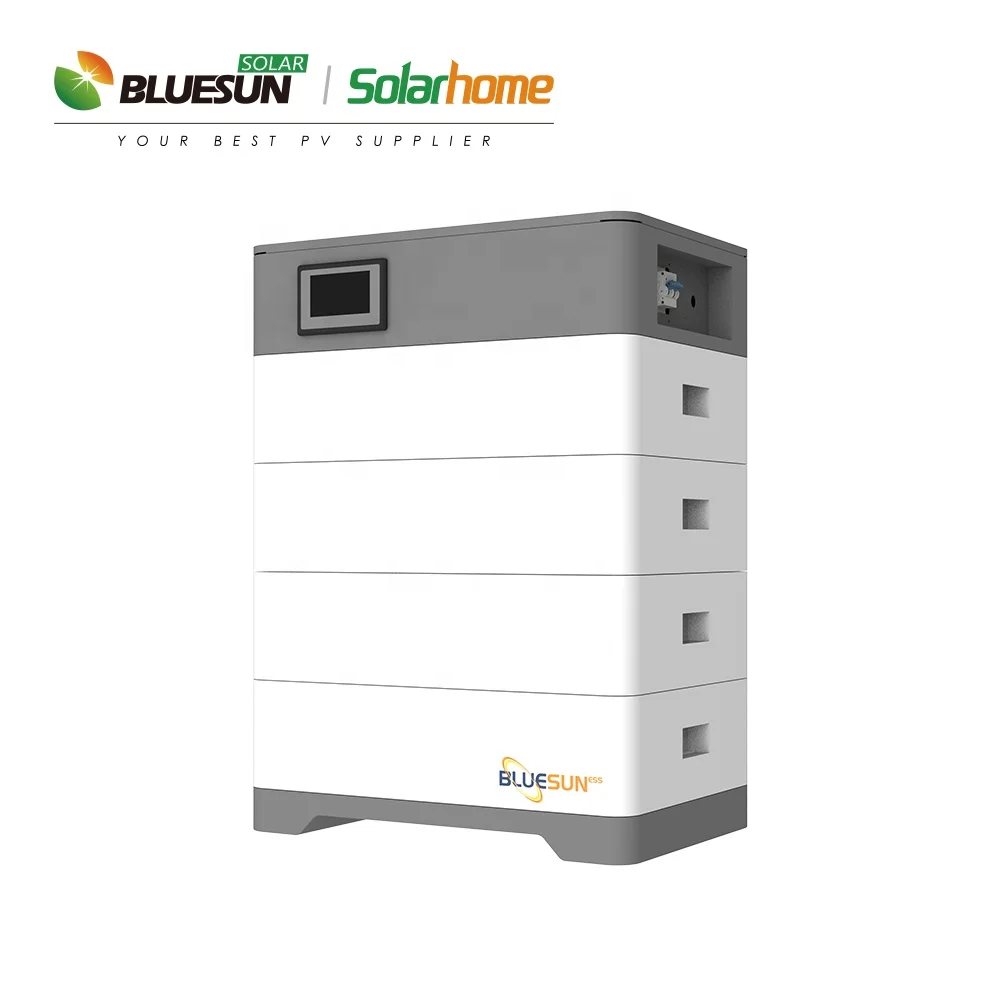

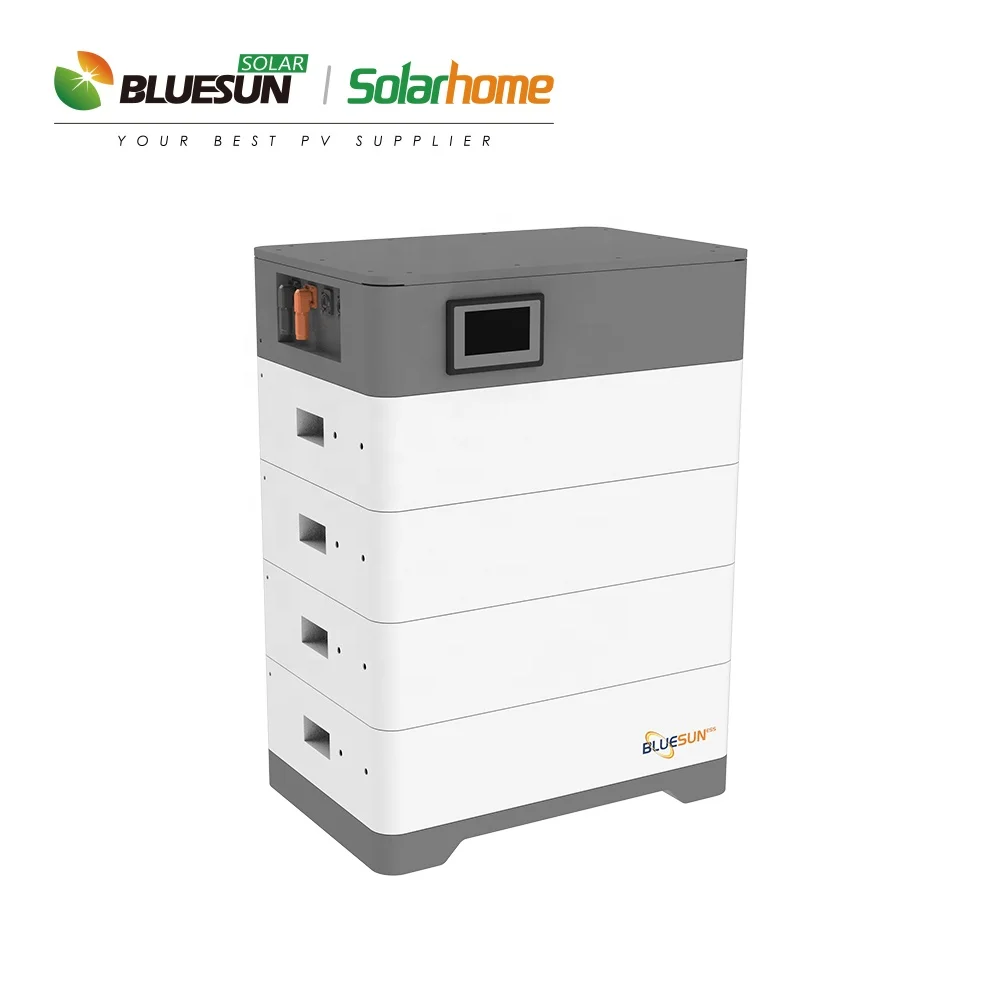

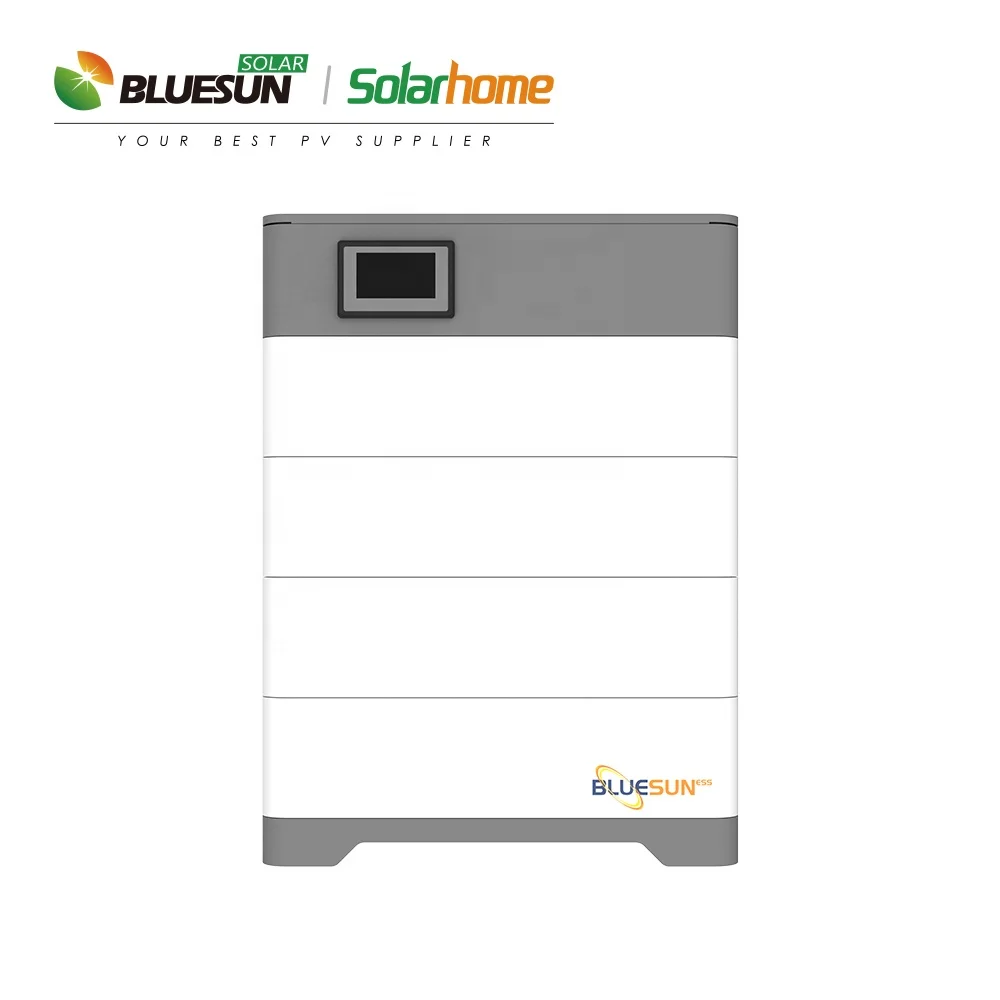

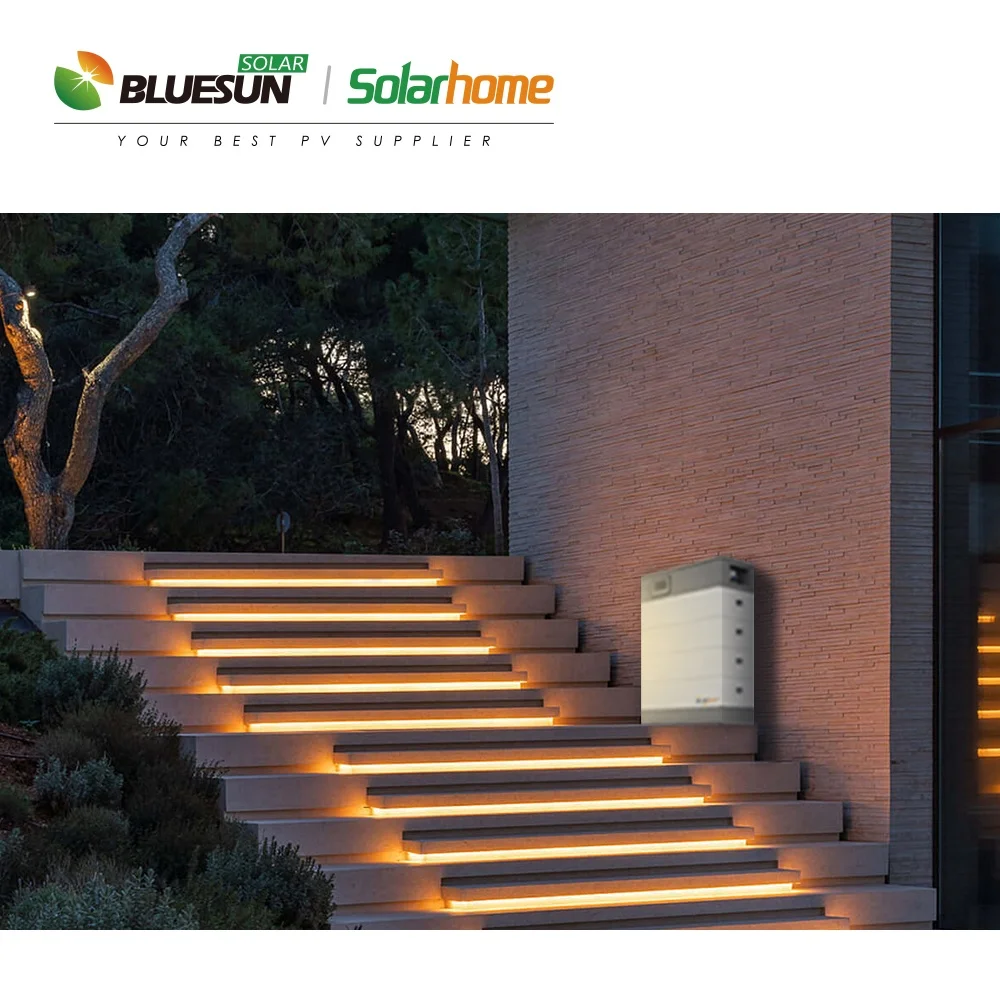

BLUESUN SOLARE BATTERIE DEEP CYCLE 51.2V SOLAR BATTERY 48V LIPO BATTERY FOR UPS SOLAR ENERGY STORAGE
- Category: >>>
- Supplier: Bluesun Solar Parts Co. Ltd.
Share on (1600658015751):
Product Overview
Description
Product Description
Product Parameters
MODEL | BST-5.0LV | BST-10.0LV | BST-15.0LV | BST-20.0LV | BST-25.0LV | BST-30.0LV | ||||||
Battery Type | LiFeP04(LFP) | |||||||||||
Nominal Voltage(V) | 51.2V | |||||||||||
Nominal Capacity(KWH) | 5.42KWH | 10.85KWH | 16.28KWH | 21.7KWH | 27.13KWH | 32.56KWH | ||||||
Usable Capadcity(KWH) | 4.87KWH | 9.76KWH | 14.65KWH | 19.53KWH | 24.41 KWH | 29.30KWH | ||||||
Design Life | 10+Years （25 ℃/77F) | |||||||||||
Physical | ||||||||||||
Dimension(mm) | 600*400*385 | 600*400*534 | 600*400*683 | 600*400*832 | 600*400*981 | 600*400*1130 | ||||||
Weight (kg) | 80 | 125 | 170 | 215 | 260 | 305 | ||||||
ELECTRICAL | ||||||||||||
Cycle Life | >6000. 25°C | |||||||||||
Discharge Voltage(V) | 40-48 | |||||||||||
Charge Voltage(V) | 56 -58.4 | |||||||||||
Charge/Discharge Current(A) | 83 (Recommended) 100A(Max) | |||||||||||
Internal Resistance | ≤30mΩ | |||||||||||
BMS | ||||||||||||
Power Consumption | <2W (Work) < 100mW(Sleep) | |||||||||||
Monitoring Parameters | System voltage, current, cell voltage,cell temperature, module temperature | |||||||||||
SOC | Intelligent algorithm | |||||||||||
Communication | CAN/RS-485/RS-232 | |||||||||||
OPERATION | ||||||||||||
Operating Temperature Range | -10℃-50℃ | |||||||||||
Transport or Storage Temperate Range | -20℃-45℃ | |||||||||||
Humidity | 15% - 85% (No Condensing) | |||||||||||
WARRANTY | ||||||||||||
Product Warranty | 5 Years | |||||||||||
Performance Warranty | 10 Years | |||||||||||

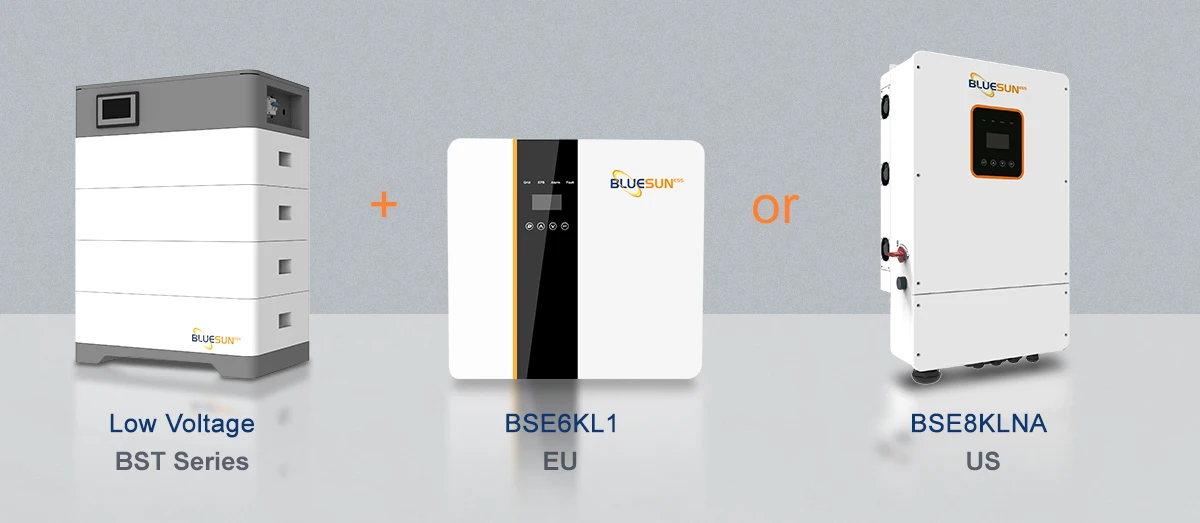

Matching Inverter
High compatibility BMS, seamless communication with energy storage inverter.

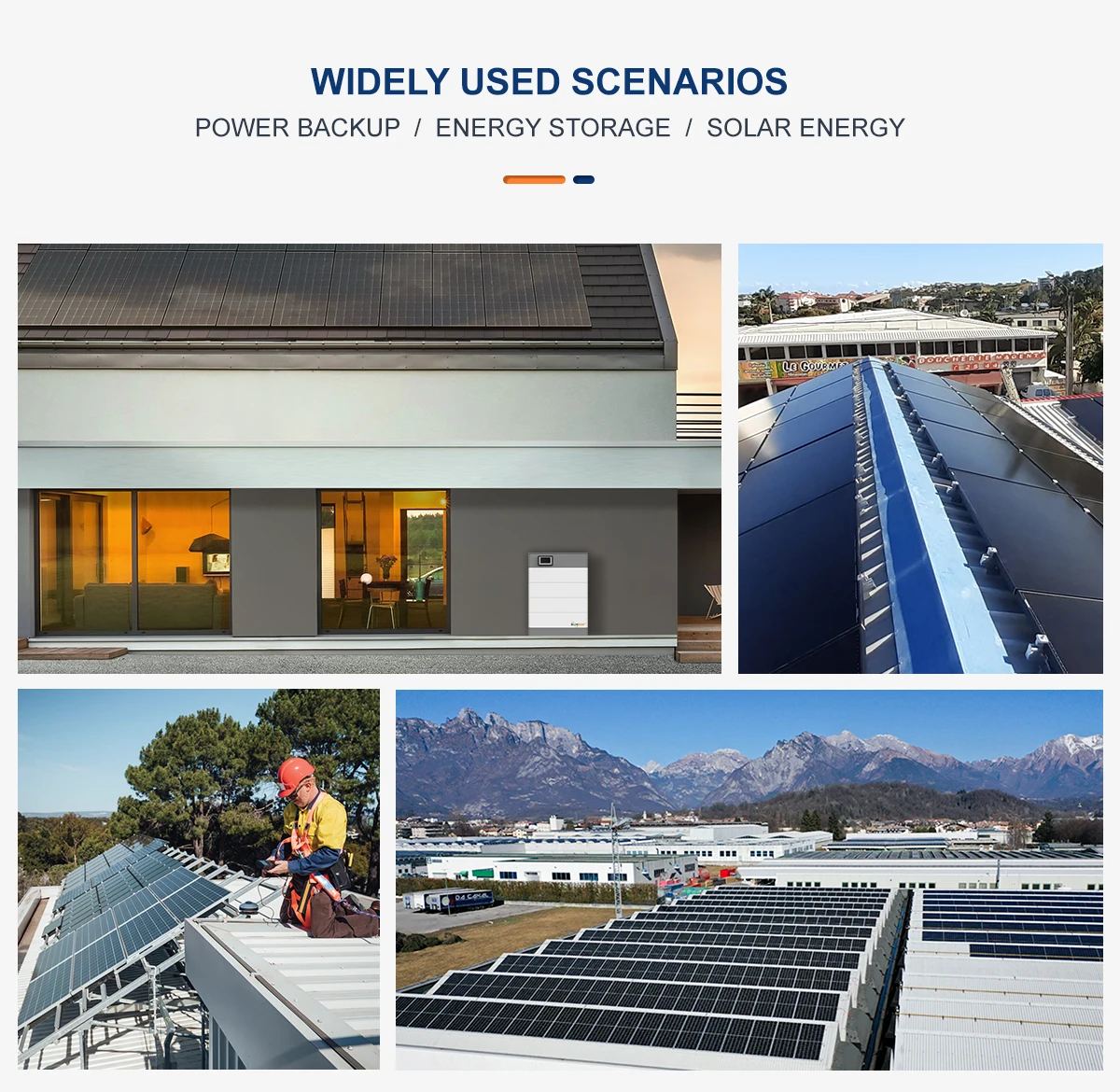

Project

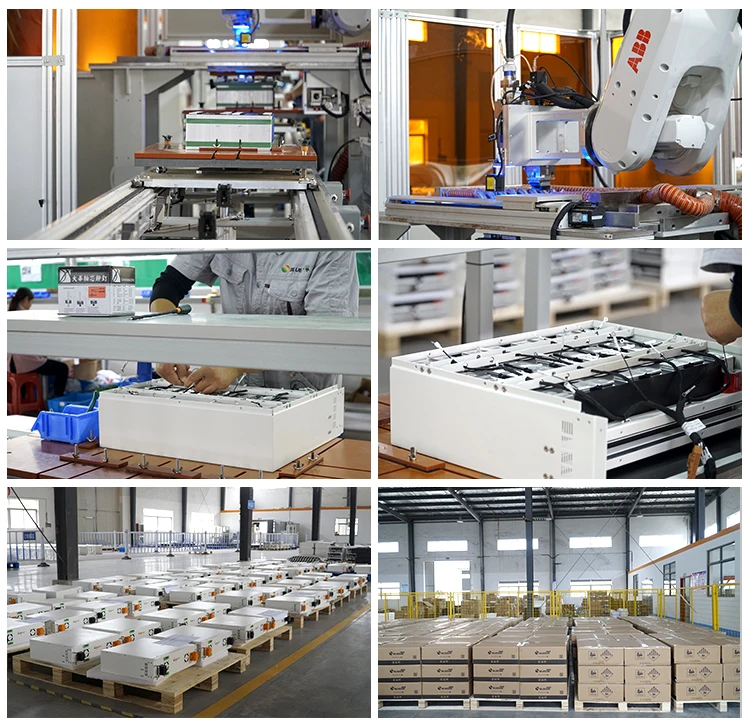

Our Factory
Our Company
Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.
Feedback from our customers，if you want to know more information,please feel free to contact us,thanks!
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
