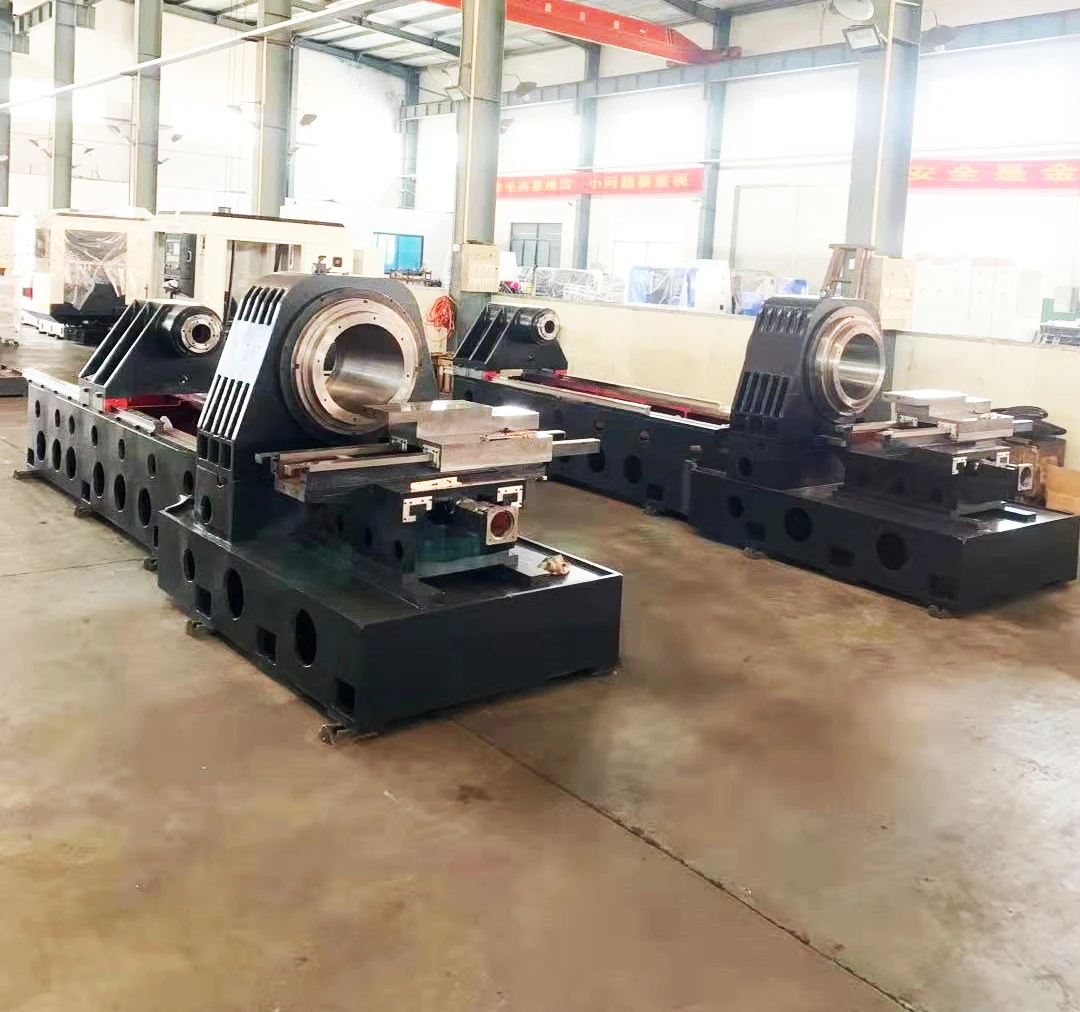

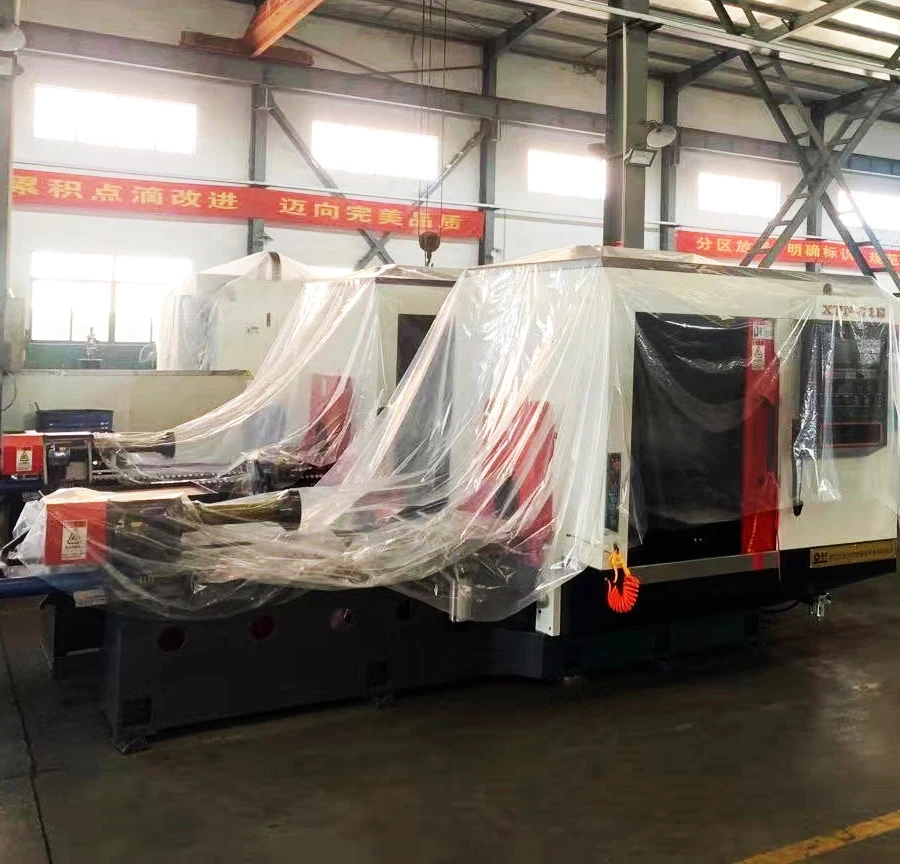

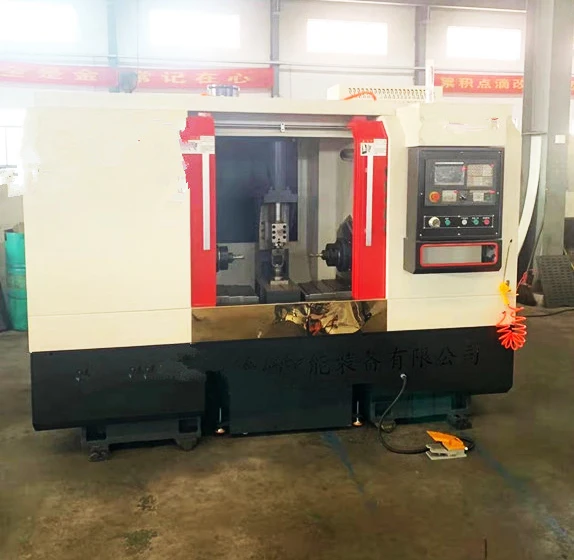

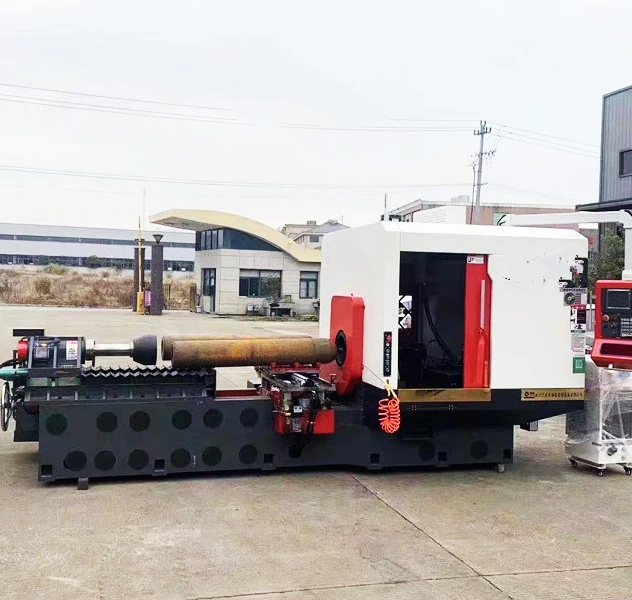

CNG Seamless Cylinder Gas Cylinder Neck Threaded Screw Machine
- Category: >>>
- Supplier: Wuxi Hansheng Pressure Vessel Industrial Co. Ltd.
Share on (1600658027466):
Product Overview
Description
Product Overview
No | Item | Data | |
1 | Diameter range | φ141mm--φ356mm | |
2 | Length range | 300mm-2000mm | |
3 | Main motor power | 5.5KW converter motor | |
4 | Converter motor | z-axis : 10M/MIN | X Stroke:10M/MIN |
5 | Tool holder | horizontal structure | |
6 | Range of spindle speeds | 100-1000r/min |

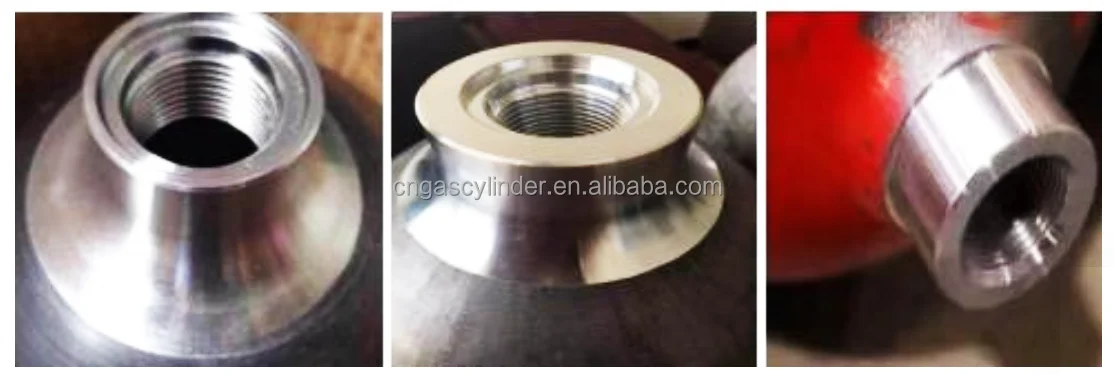

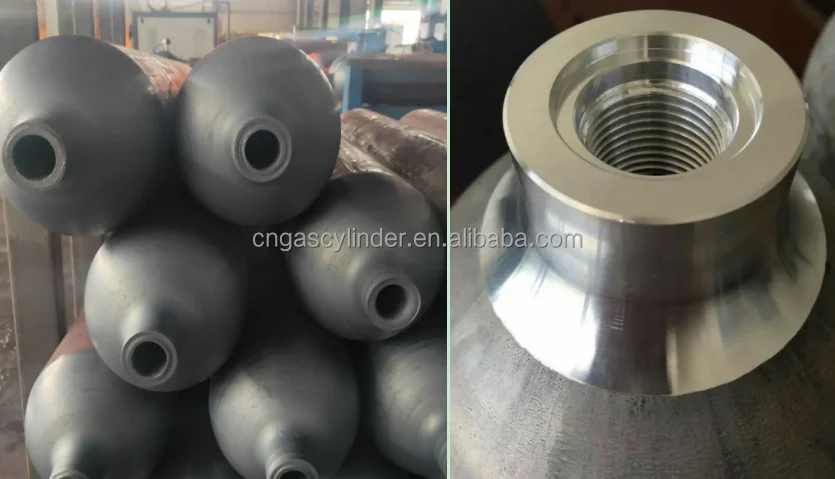

Machine processing ：
Step 1.
Radial facing, cylindrical turning---finish the end face by the outer circular knife and turning of outer chamfer
Step 2.
Inside hole--adopts lathe processing of inner hole of inner hole cutter
Step 3.
Threading --adopts thread tool
Application
Machine Application

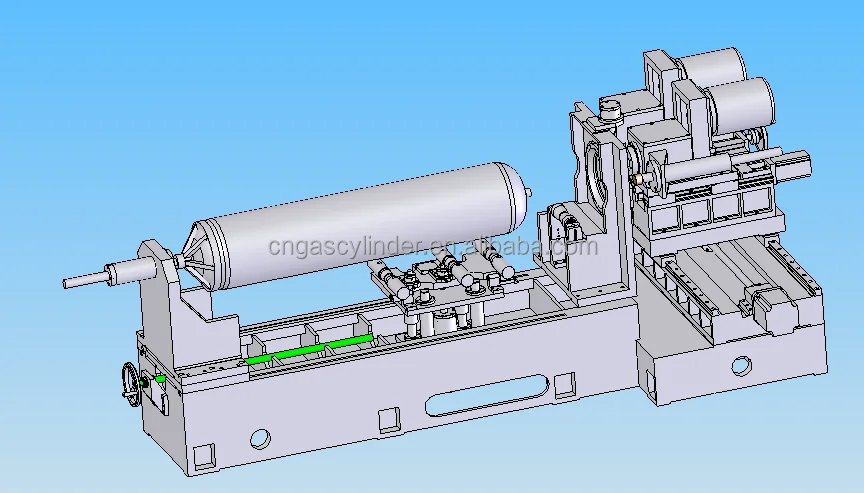

Seamless cylinder Tube neck drilling machine is suitable for bore of cylinder bottleneck, and processing of radial facing, inside-hole, cylindrical turning as well as threading, which are realized by NC programming. Single station device is adopted for input and output materials (semi-automatic); The work piece clamping adopts the front top bowl positioning.

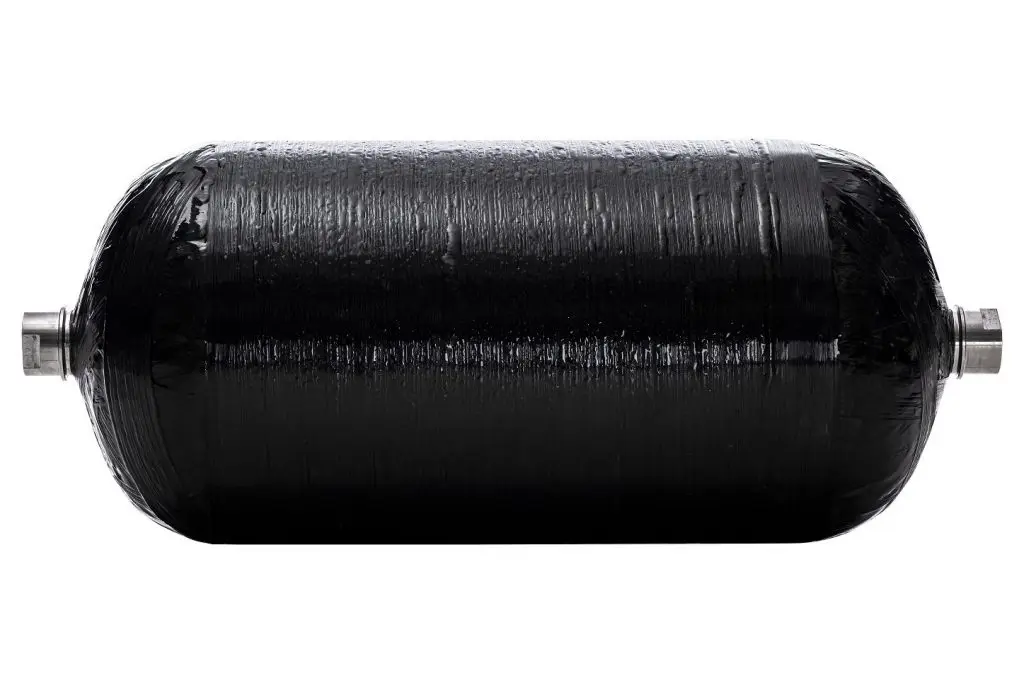

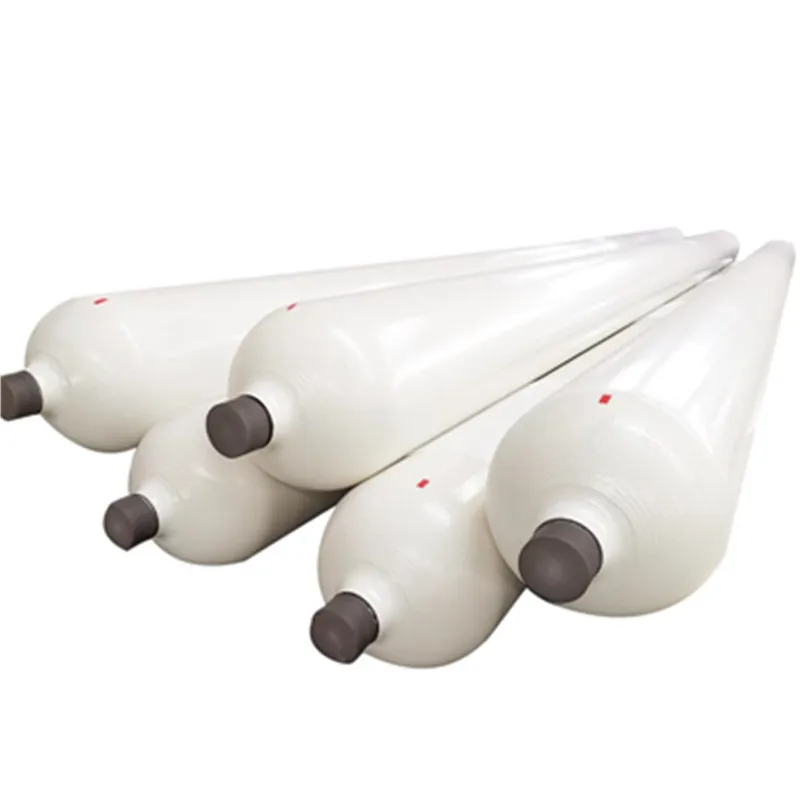

CNG CYLINDER TYPE1
CNG CYLINDER TYPE2
CNG CYLINDER TYPE3
CNG CYLINDER TYPE4

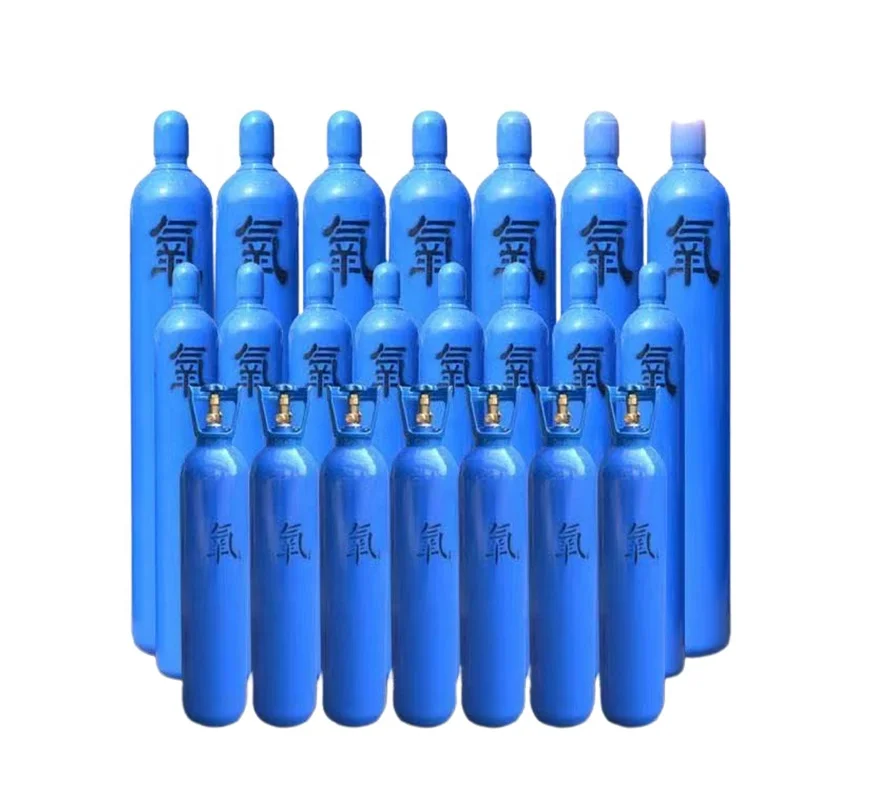

OXYGEN GAS CYLINDER
CNG LONG TUBE TRAILER
PRODUCT SPECIFICATIONS

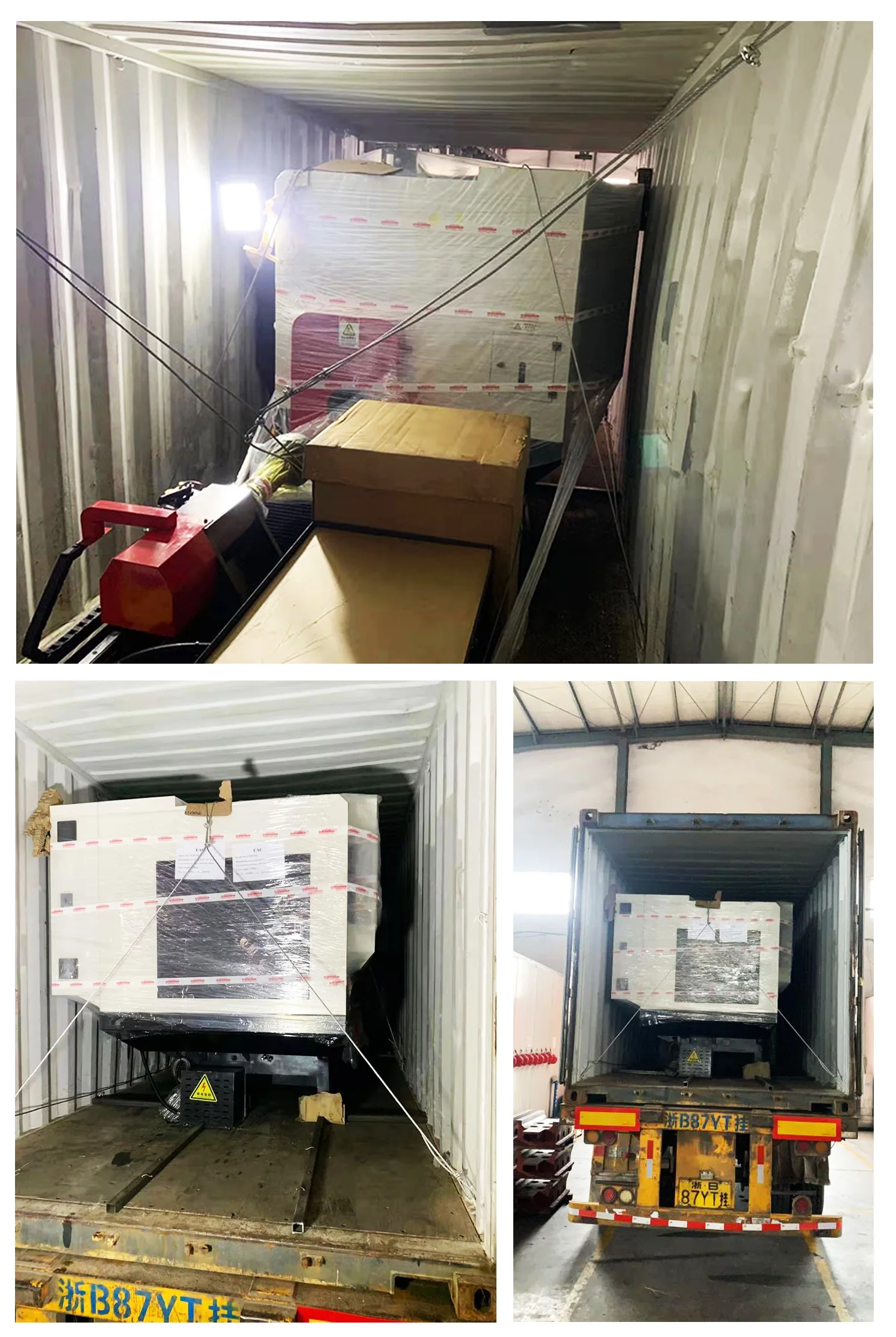

Packing & Delivery
Company Profile
We are professional manufacturer of CNG/LPG/LNG cylinders manufacturing machine for over 30 years. our machines have been exported to Russia, Ukraine,USA,UK,Turkey, Australia, Kenya,Egypt, India etc... For more information, please feel free to visit our website： //www.longtermspinning.com
Exhibition
Certifications
FAQ
Q: Are you a manufacturer or a trader?
A: Manufacturer
Q: Can the machine be customized?
A: Can be customized according to customer needs
Q: Is it possible to provide on-site installation and how about after-sales service?
A: Yes, we provide after-sales service and installation training services. The site service, such as installation and commission fee will be charged daily: USD100/day/person, the accomodation, food and transportation in Turkey should be at customers plus the return trip air tickets.
A: Manufacturer
Q: Can the machine be customized?
A: Can be customized according to customer needs
Q: Is it possible to provide on-site installation and how about after-sales service?
A: Yes, we provide after-sales service and installation training services. The site service, such as installation and commission fee will be charged daily: USD100/day/person, the accomodation, food and transportation in Turkey should be at customers plus the return trip air tickets.
Q: Can third-party testing services be provided?
A:Yes BV, SGS, CE are all available
A:Yes BV, SGS, CE are all available
