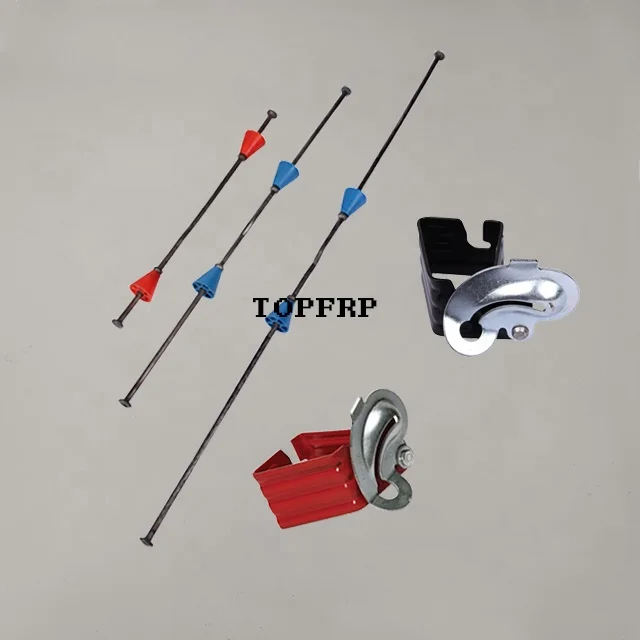

China Supplier Concrete Formwork Plywood Form Snap Tie

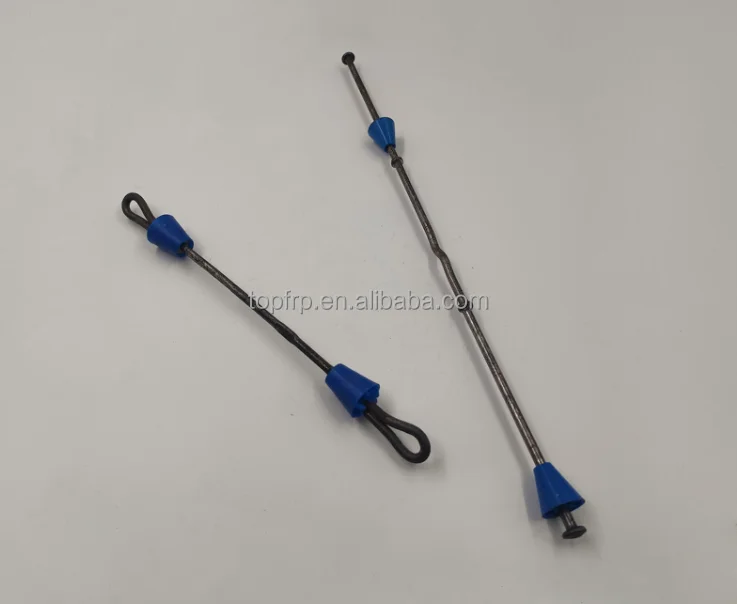

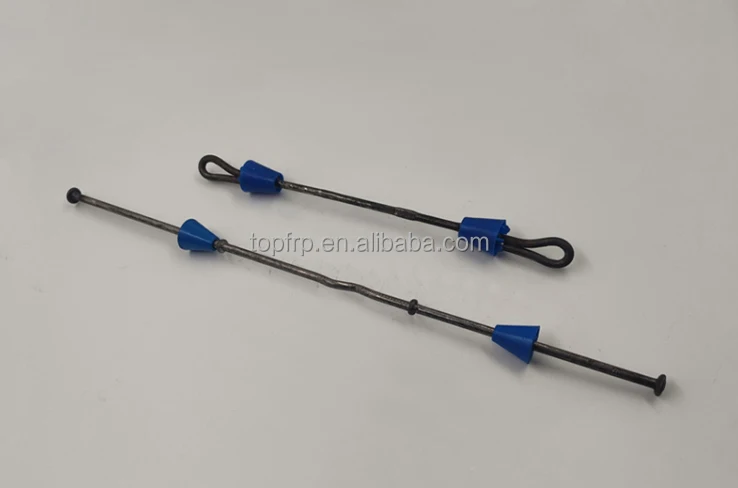

Snap Ties are manufactured with integral heads, both metal washer and plastic cone are available. Snap Tie is designed to easily tie concrete plywood forming systems. Each Tie incorporates an anti-turn device in order to properly break after use.

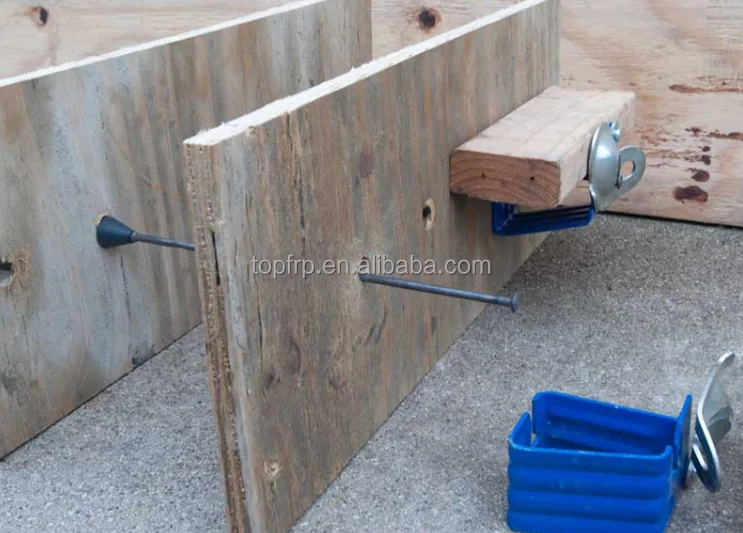

Snap tie and wedge together used to hold the wood panel then to form a concrete wall for poured in place concrete, after the concrete is cured the snap tie ends can be snapped off and the wedges can be easily removed to strip the forms.
Item | Wall thickness | Safe working load | Weight |
4-3/4'' short end snap tie | 6'' | 2250lbs | 0.093kg |
8'' | 2250lbs | 0.103kg | |
10'' | 2250lbs | 0.113kg | |
12'' | 2250lbs | 0.123kg | |
14'' | 2250lbs | 0.133kg | |
16'' | 2250lbs | 0.143kg | |
18'' | 2250lbs | 0.153kg | |
24'' | 2250lbs | 0.183kg |
Item | Wall thickness | Safe working load | Weight |
8-1/4'' long end snap tie | 6'' | 2250lbs | 0.128kg |
8'' | 2250lbs | 0.138kg | |
10'' | 2250lbs | 0.148kg | |
12'' | 2250lbs | 0.158kg | |
14'' | 2250lbs | 0.168kg | |
16'' | 2250lbs | 0.178kg | |
18'' | 2250lbs | 0.188kg | |
24'' | 2250lbs | 0.218kg |

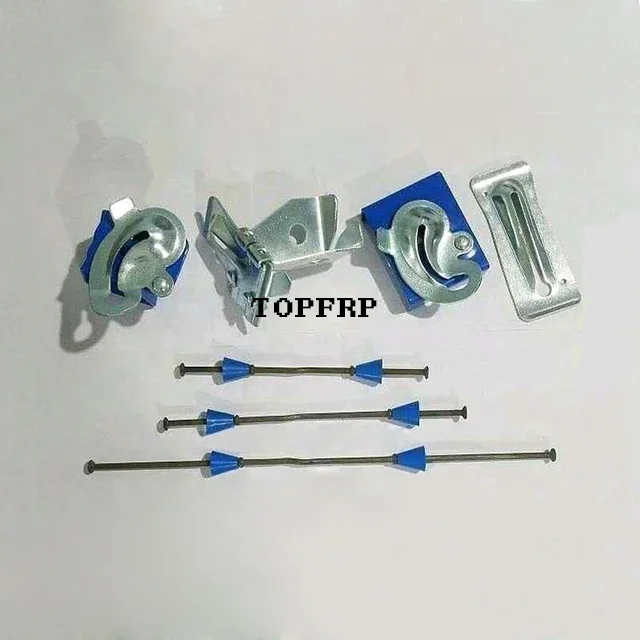

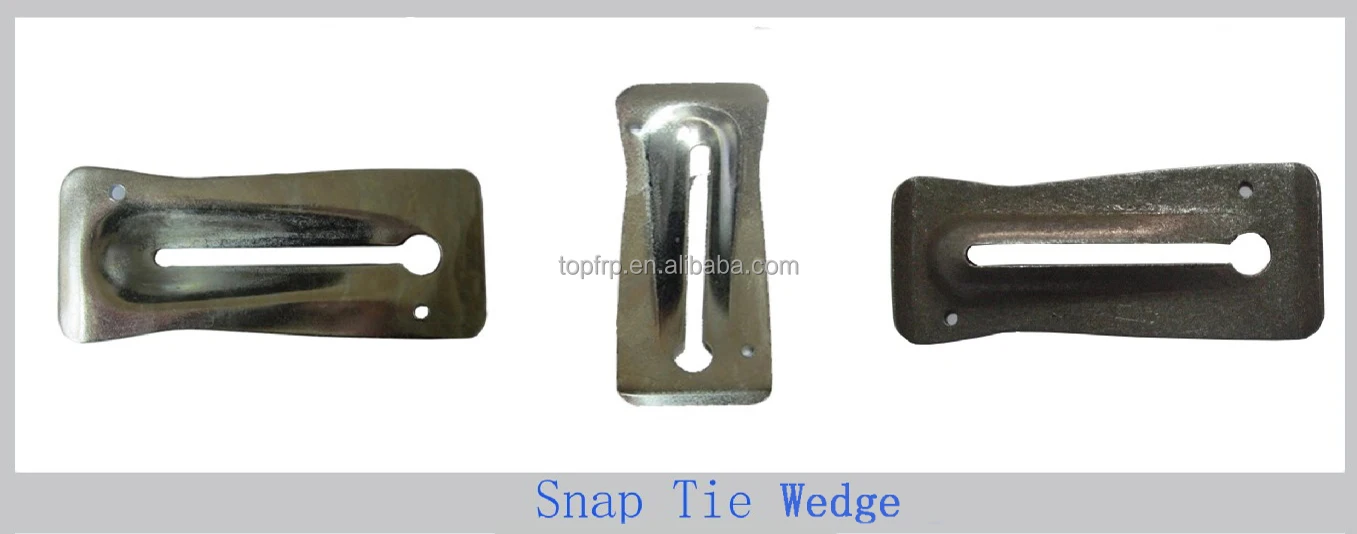

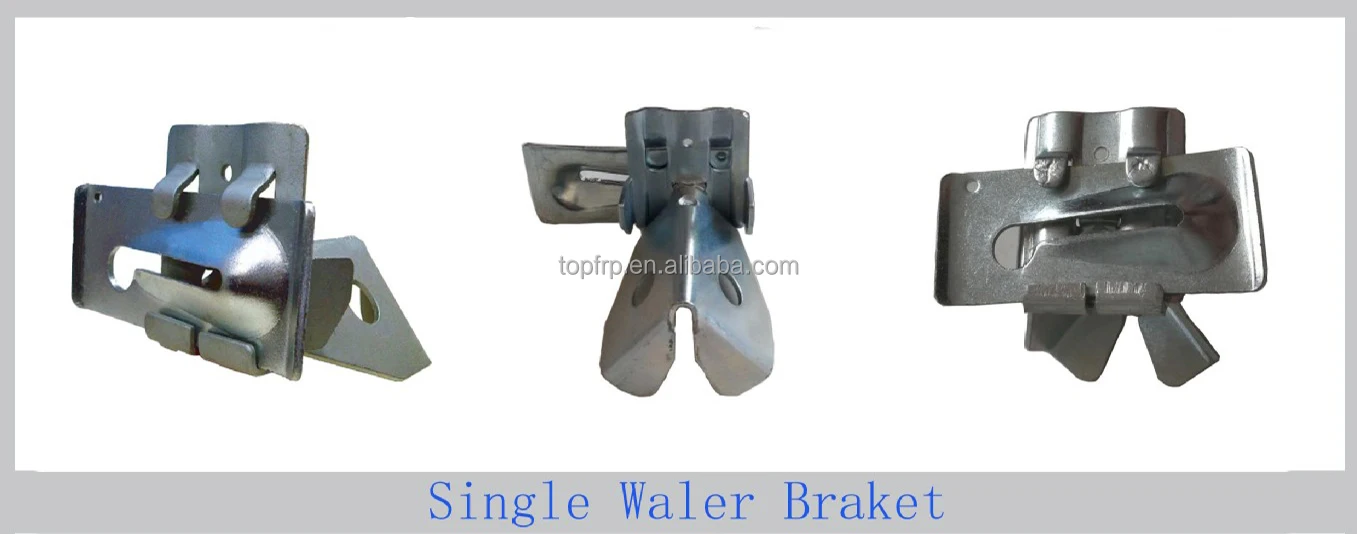

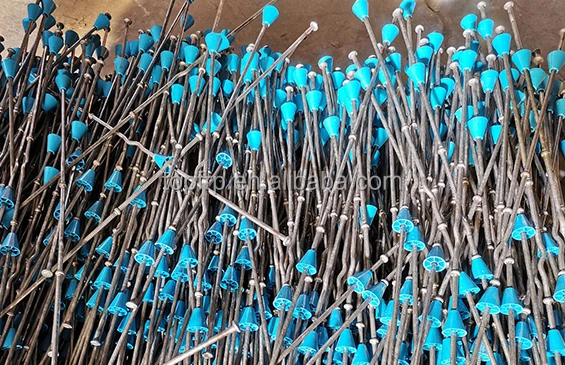

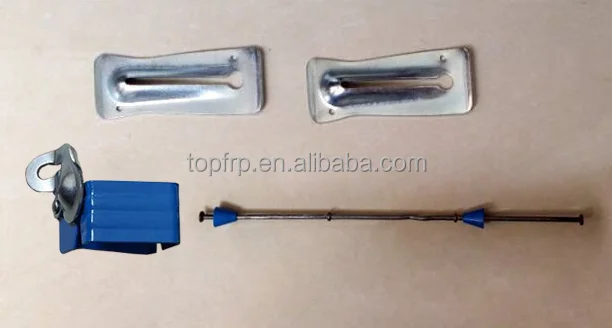

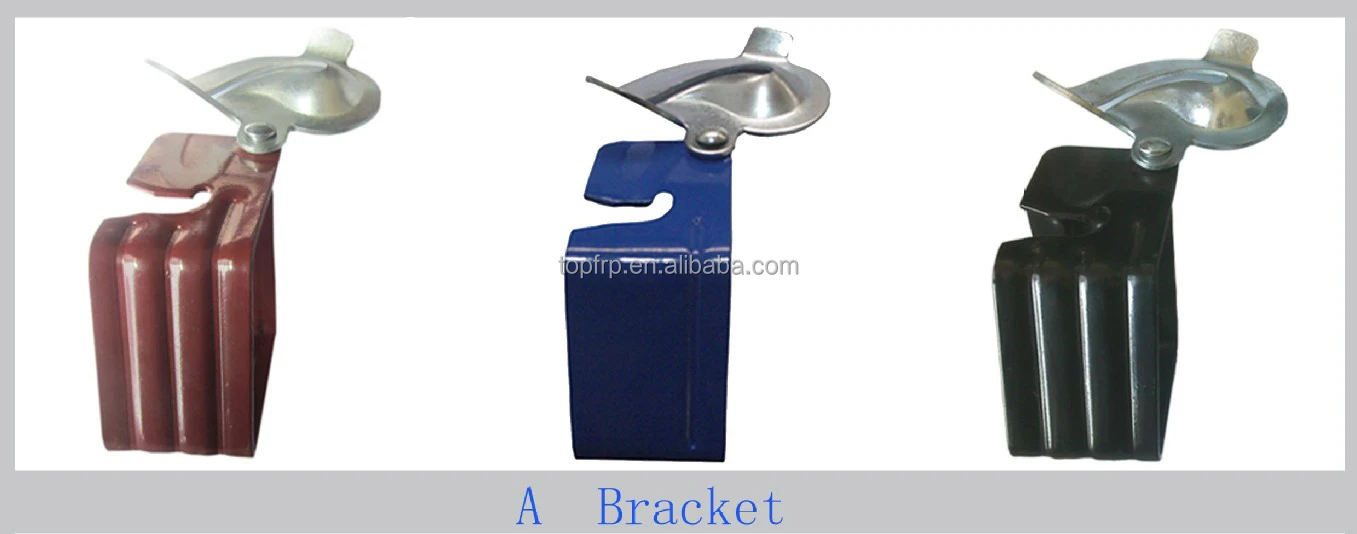

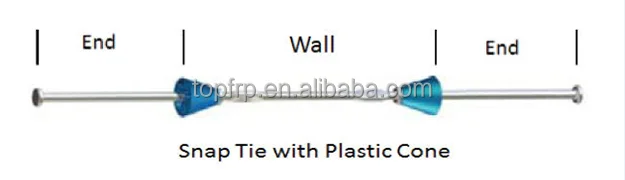

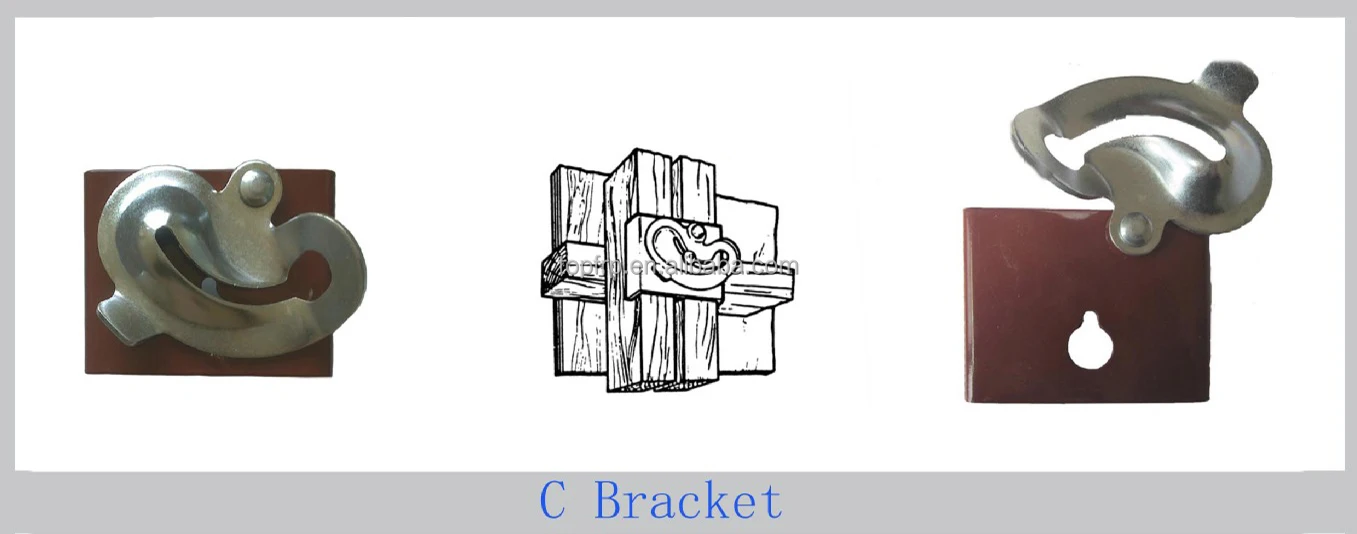

Plastic Cone Snap Ties are recommended, and customized sizes are available. Except the snap ties, we also supply snap tie wedge and A & C brackets.

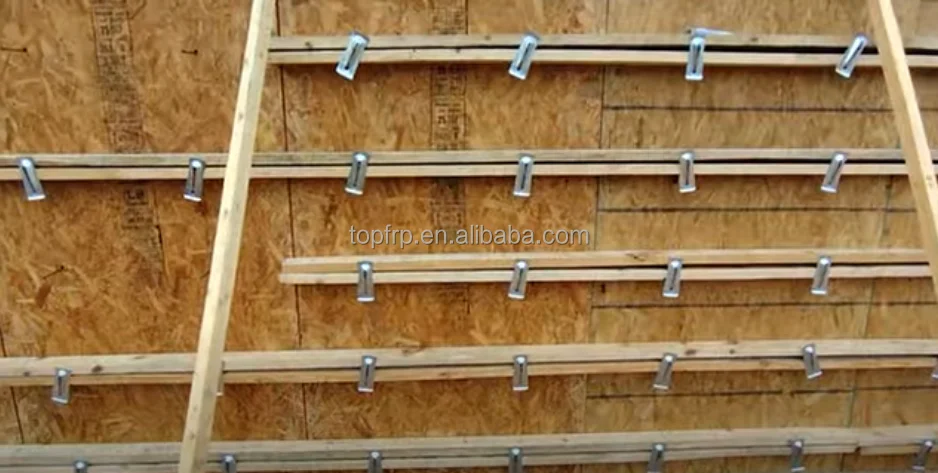

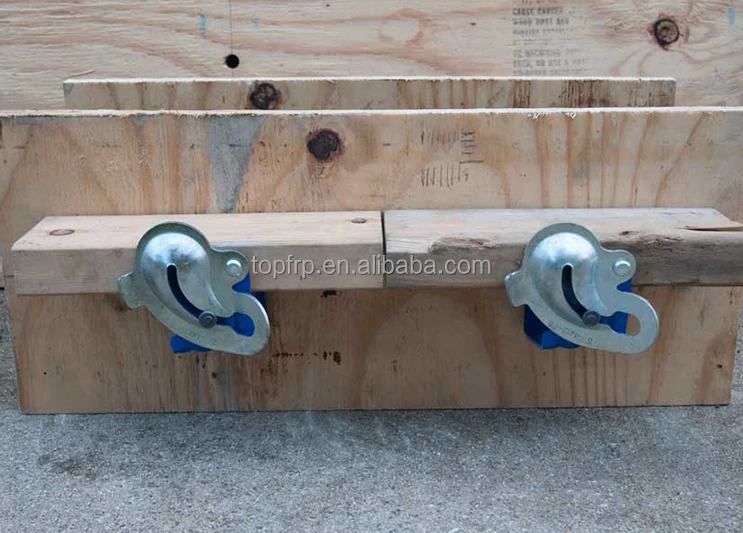

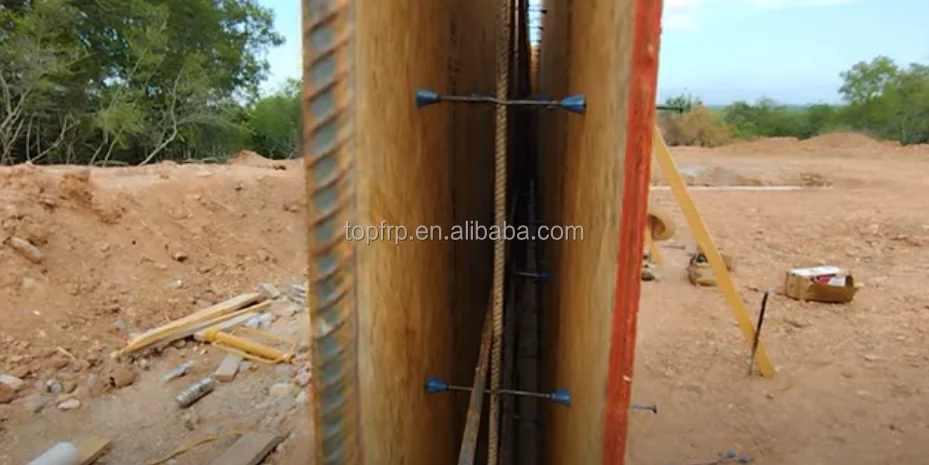

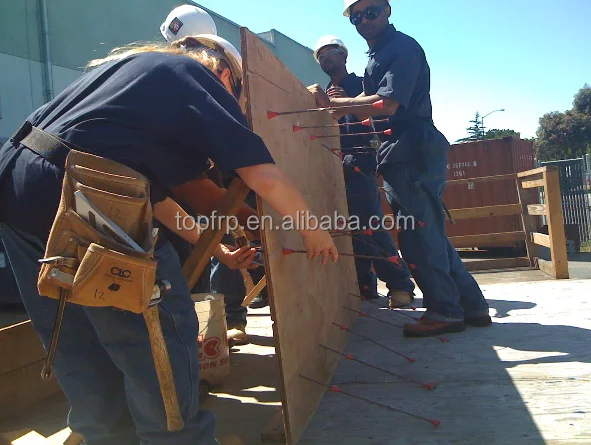

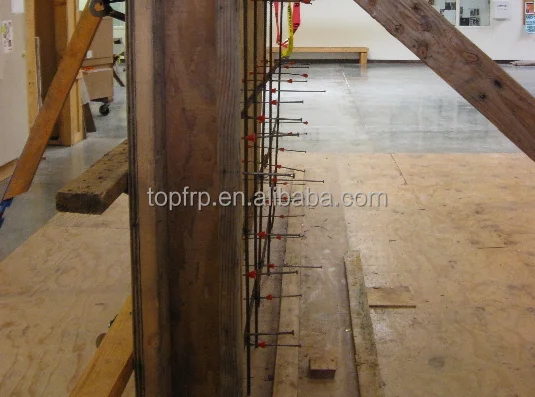

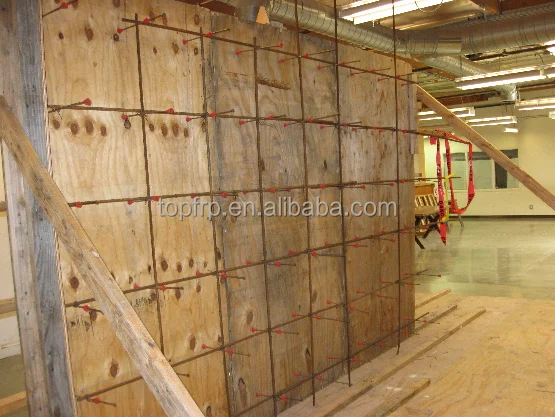

----------------------------Application Examples of Snap Ties---------------------------
Company Information
Top Industry provide you with the most professional products and services
Henan Top Industry Technology Co., Ltd. is located in Longyuan Lake International Plaza,Shanyang District, Jiaozuo City, Henan Province.With 10 pultrusion production lines and several sets of hydropress,the company is devoted into the design and production of molded profiles,pultruded profiles and hand lay-up products of fiber reinforced plastic.
Main products include FRP grating,pultruded FRP profiles,FRP cable trays,FRP tubes,FRP support beams,hand lay-up FRP products and other insulating products.and we accept customized products according to customer requirements.
The products have been sold all over China and exported to North America, Western Europe, Japan, Southeast Asia and other countries®ions.
------------------------------------Customer's Visiting-------------------------------------
Australian Customer
UK Customer
South Africa's Customer
Contact Person
Any questions for formwork snap ties, please contact us at any time. | ||||||
