Custom Wear resistant SISIC Silicone Carbide Sandblasting Nozzles SIC burner nozzle For Sand Blasting Machines
- Category: >>>
- Supplier: Shandong Zhijing New Material Co. Ltd.
Share on (1600658250828):
Product Overview
Description
Products Description
Silicone Carbide SISIC Sandblasting Nozzles
Reaction sintered sandblasting silicon carbide nozzle have high hardness and severe wear resistance and other characteristics.This kind of wear resistance product can be used to make sandblasting silicon carbide nozzle,water sand cutting nozzle and coal nozzle for steel mills,thermal power plants and other industries,its service life is 5-10 times that of ordinary materials.There are many kinds of ceramic materials used as nozzles,and commonly used are alumina,silicon carbide ceramics,etc.Alumina ceramic nozzles have mature production technology and lower price,but due to their low hardness,their wear resistance and erosion resistance are poor,so the alumina ceramic nozzles often used in occasions where the sand blasting load is not large.The service life of silicon carbide ceramics is 3 to 5 times that of alumina ceramics,due to the high hardness, corrosion resistance and high temperature strength of silicon carbide ceramics,makes silicon carbide ceramics widely used in many directions,such as refractories, seals, nozzles and so on.
Characteristics Silicone Carbide SISIC Sandblasting Nozzles：
1、The silicon carbide ceramic nozzle adopts dry bag CIP molding process, with high density (>3.15g/cm3), Vickers hardness above
23GPa, and excellent wear resistance.
2、Silicon carbide ceramic nozzles can be drilled and grooved, and the inner and outer diameters and end faces are finished
(including curved surfaces), and the processing accuracy is 0.01mm.
3、Silicon carbide ceramic nozzles are subjected to strict density, size, and surface fluorescence penetration testing.
4、 The service life of silicon carbide ceramic nozzles can reach 600-800 hours, which is more than twice as long as that of cemented carbide nozzles
23GPa, and excellent wear resistance.
2、Silicon carbide ceramic nozzles can be drilled and grooved, and the inner and outer diameters and end faces are finished
(including curved surfaces), and the processing accuracy is 0.01mm.
3、Silicon carbide ceramic nozzles are subjected to strict density, size, and surface fluorescence penetration testing.
4、 The service life of silicon carbide ceramic nozzles can reach 600-800 hours, which is more than twice as long as that of cemented carbide nozzles
Material Performance
Item | Unit | Data | ||||||
RBSIC（SISIC） | NBSIC | SSIC | RSIC | |||||
SiC content | % | 85 | 80 | 99 | 98.5 | |||
Free Silicon content | % | 15 | 0 | 0 | 0 | |||
Max service temperature | ℃ | 1380 | 1550 | 1600 | 1650 | |||
Density | g/cm3 | 3.02 | 2.72 | 3.10 | 2.60-2.74 | |||
Open porosity | % | 0 | 12 | 0 | 15 | |||
Bending strength 20℃ | Mpa | 250 | 160 | 380 | 100 | |||
1200°C | Mpa | 280 | 180 | 400 | 120 | |||
Modulus of elasticity 20°C | Gpa | 330 | 220 | 420 | 240 | |||
1200°C | Gpa | 300 | / | / | 200 | |||
Thermal conductivity 1200℃ | W/m.k | 45 | 15 | 74 | 10 | |||
Coefficient of thermal expansion | K-1x10-6 | 4.5 | 5.0 | 4.1 | 4.8 | |||
HV | kg/mm2 | 2500 | 2500 | 2800 | / | |||
Details Images

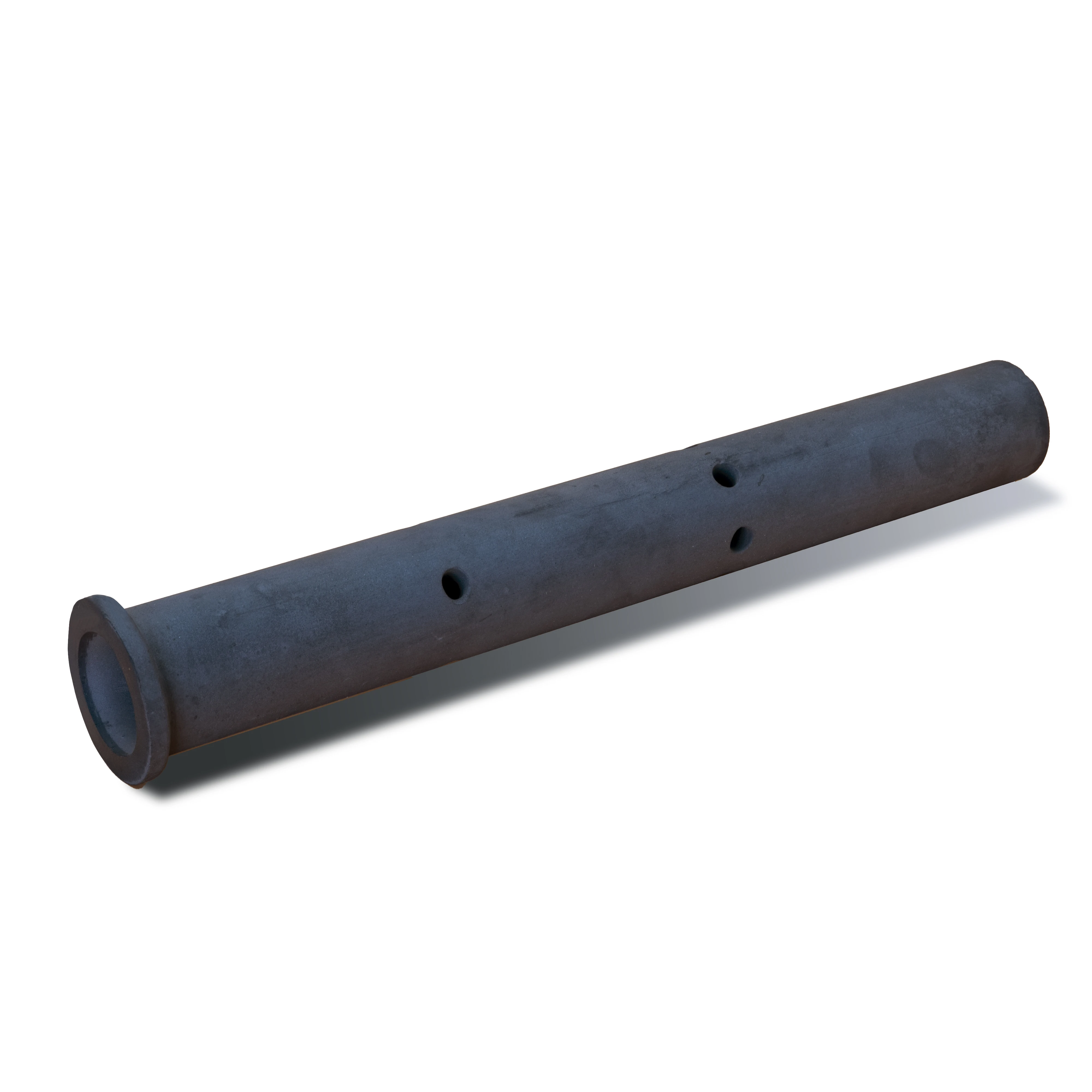

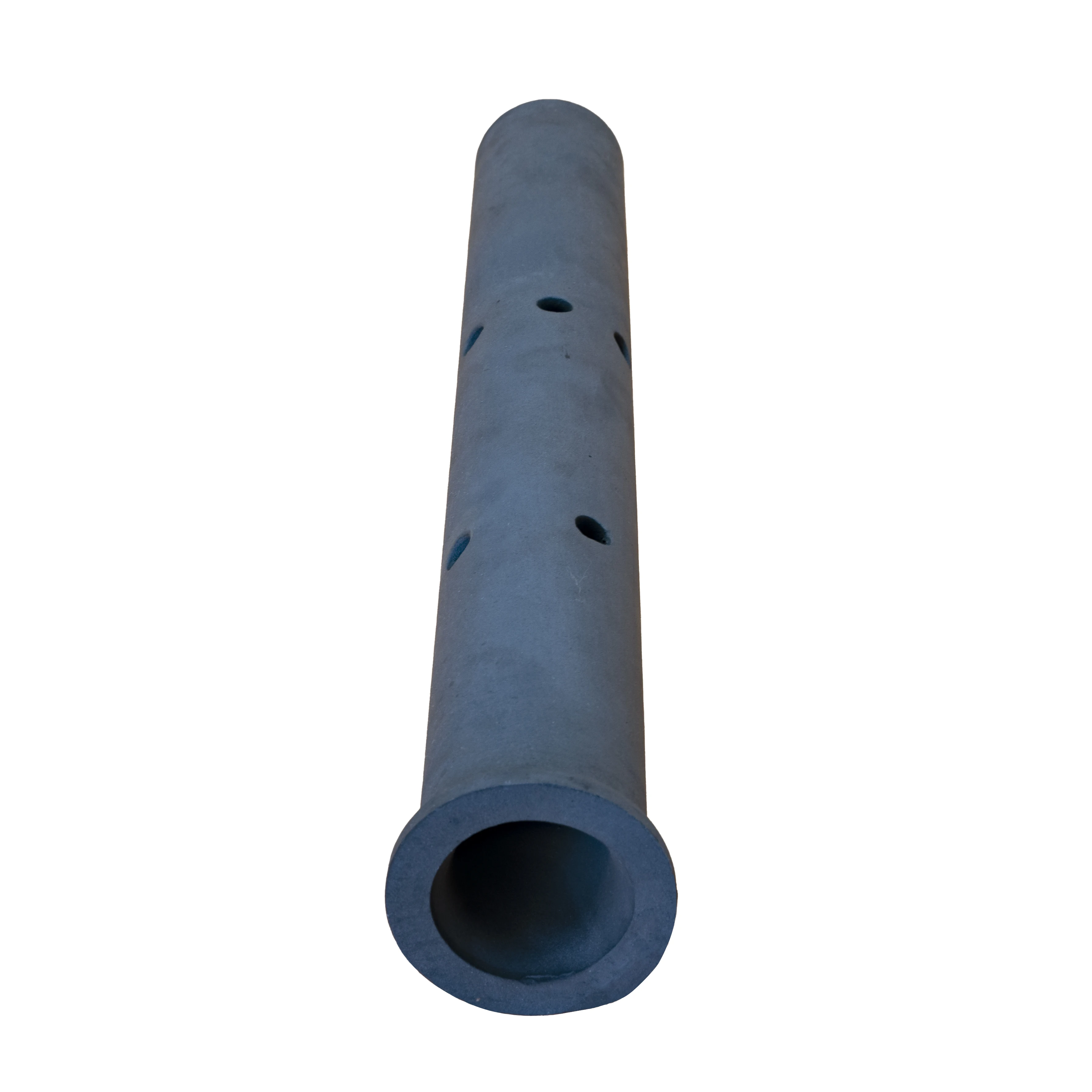

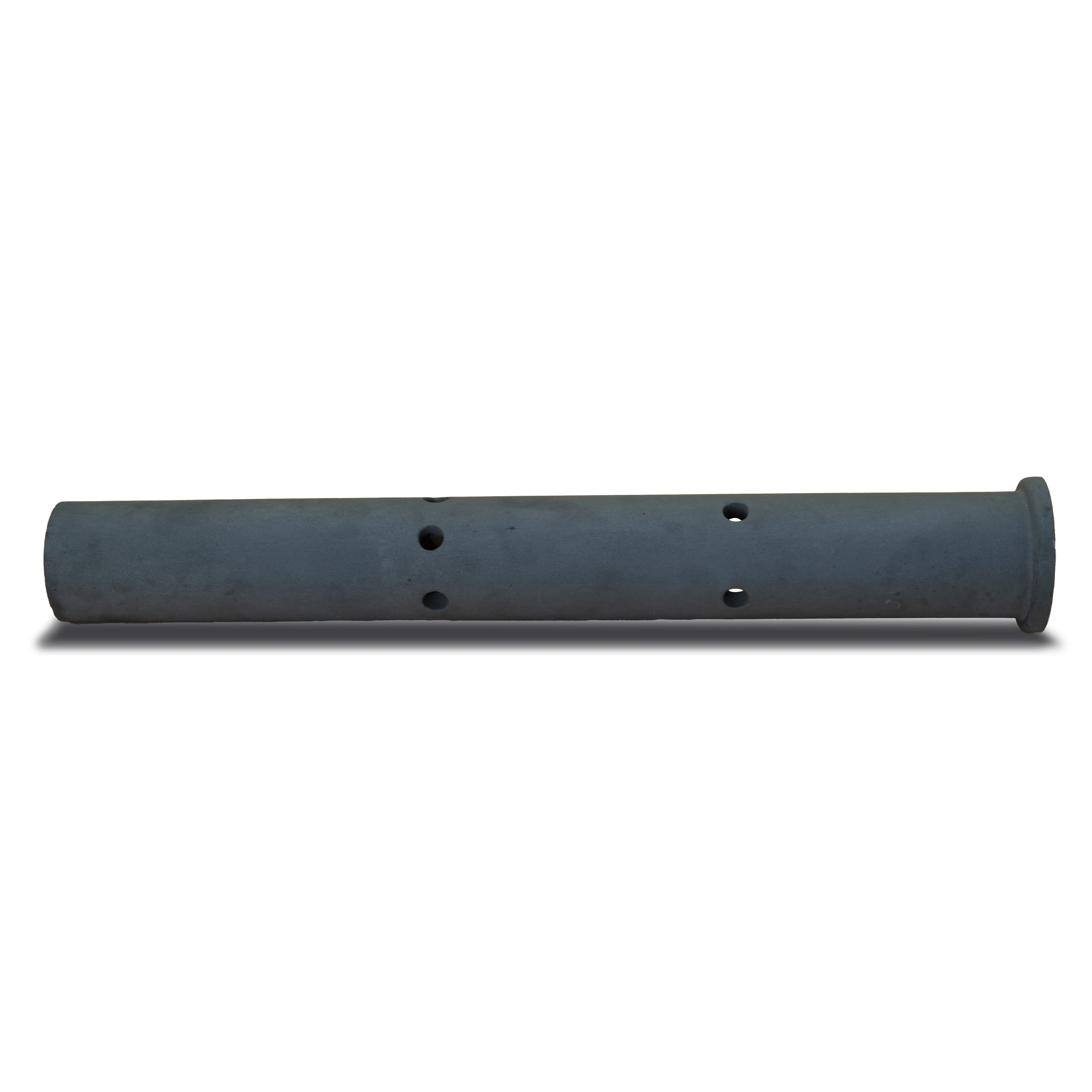

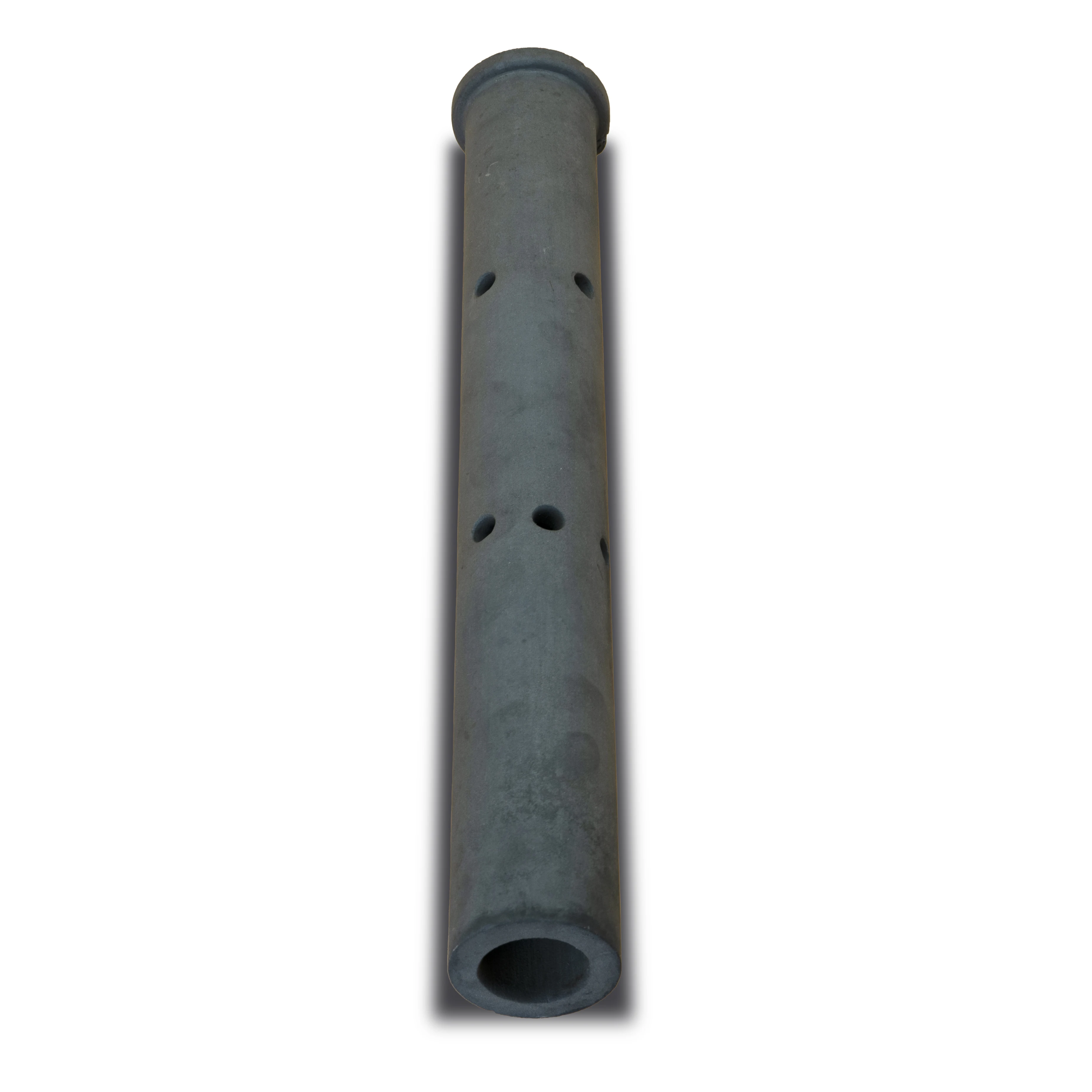

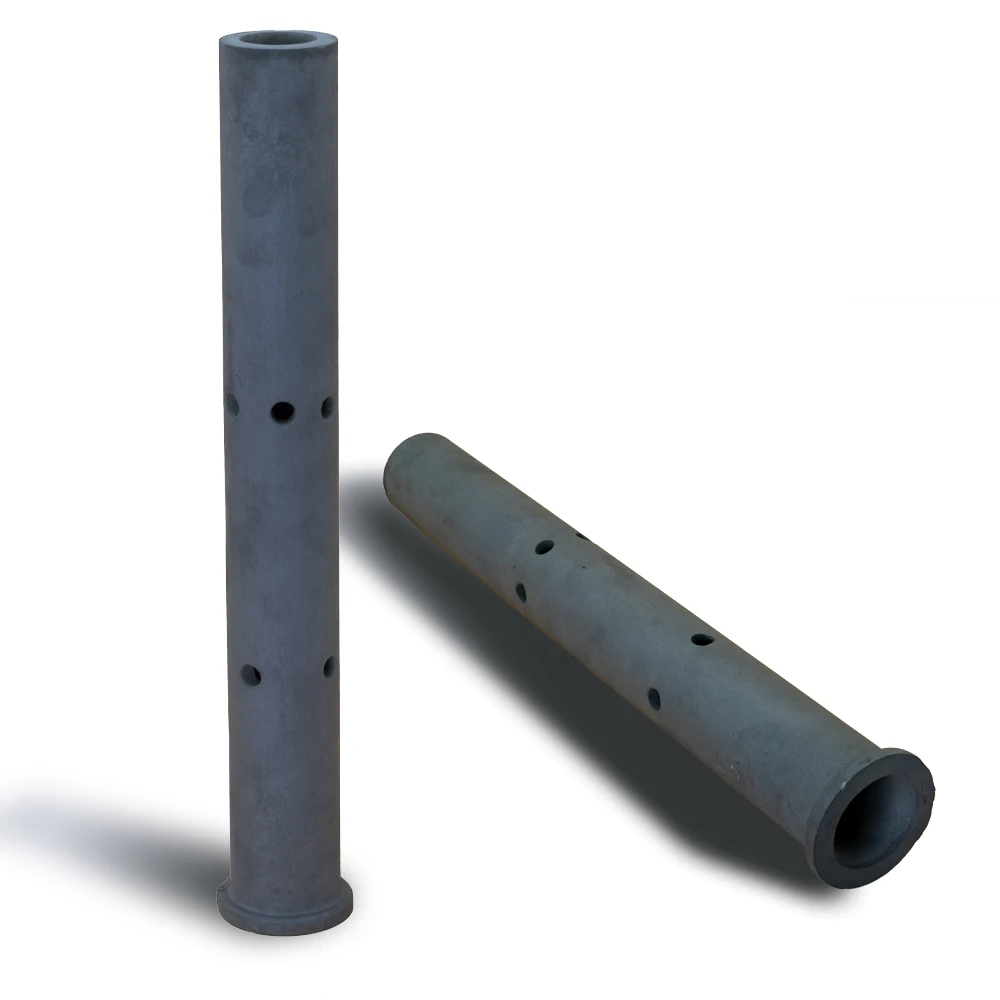

The silicon carbide sandblasting nozzle is made of isostatic pressing and pressureless sintering with excellent performance. Drill holes and grooves can be processed according to requirements, and the inner and outer diameters and end faces can be finished (including curved surfaces) to meet the design requirements of users.
Reaction sintered sandblasting silicon carbide nozzle made of silicon carbide ceramic material,improves the wear resistance and erosion resistance of nozzle product,prolongs the service life of the nozzle,reduces the number of maintenance and replacement of the nozzle,and improves the safety and stability of supporting equipment system operation,reduces operating intensity,saves equipment repair costs.
Company Profile
Packaging & Shipping
Shipping details
1.Professional car transport to various ports in China, then loaded by a professional shipping company.
2.Both FOB and CIF can be operated flexibly.
3. Competitive sea freight and short transit time
2.Both FOB and CIF can be operated flexibly.
3. Competitive sea freight and short transit time
Package details
1. 5-50 pieces in a wooden box (fully enclosed, safe, and secure)
2. 800kg~1000kg /wooden box.
3. Anti-collision protection such as foam board
The 4.3-layer wood composite panel is sturdy, impact resistant, drop resistant
2. 800kg~1000kg /wooden box.
3. Anti-collision protection such as foam board
The 4.3-layer wood composite panel is sturdy, impact resistant, drop resistant
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: Samples free or not?
A: Yes, Samples in free charge.
Q3. Can you produce according to the samples or drawings?
A: Yes.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery for 3 times.
Q5. After-sales service
A: If you find any broken products in mass quantity, we will produce again or compensate money directly and offer discount in next order.
We can sign the quality agreement when order confirmed. So we must make sure quality for you.
A: We are factory.
Q2: Samples free or not?
A: Yes, Samples in free charge.
Q3. Can you produce according to the samples or drawings?
A: Yes.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery for 3 times.
Q5. After-sales service
A: If you find any broken products in mass quantity, we will produce again or compensate money directly and offer discount in next order.
We can sign the quality agreement when order confirmed. So we must make sure quality for you.
