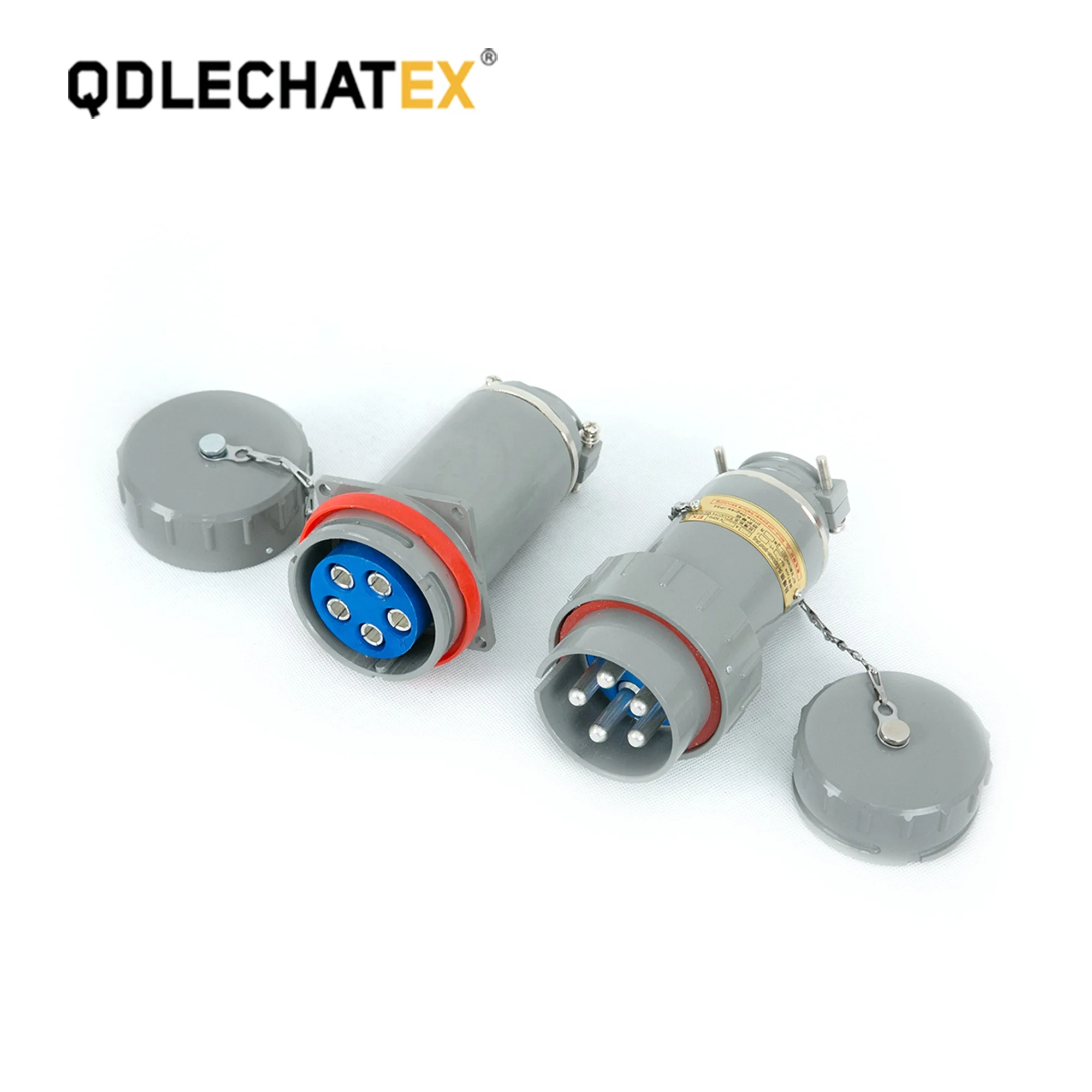

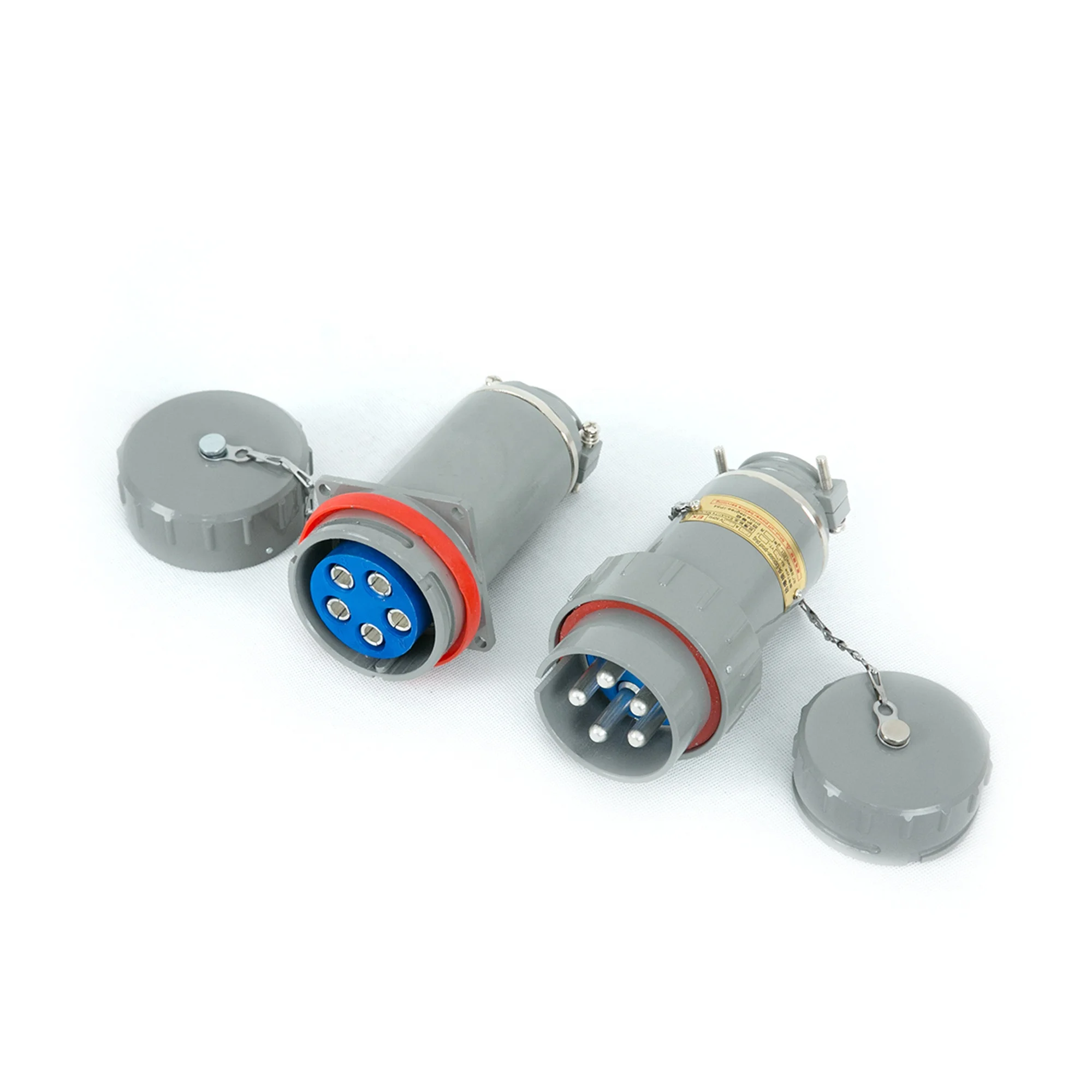

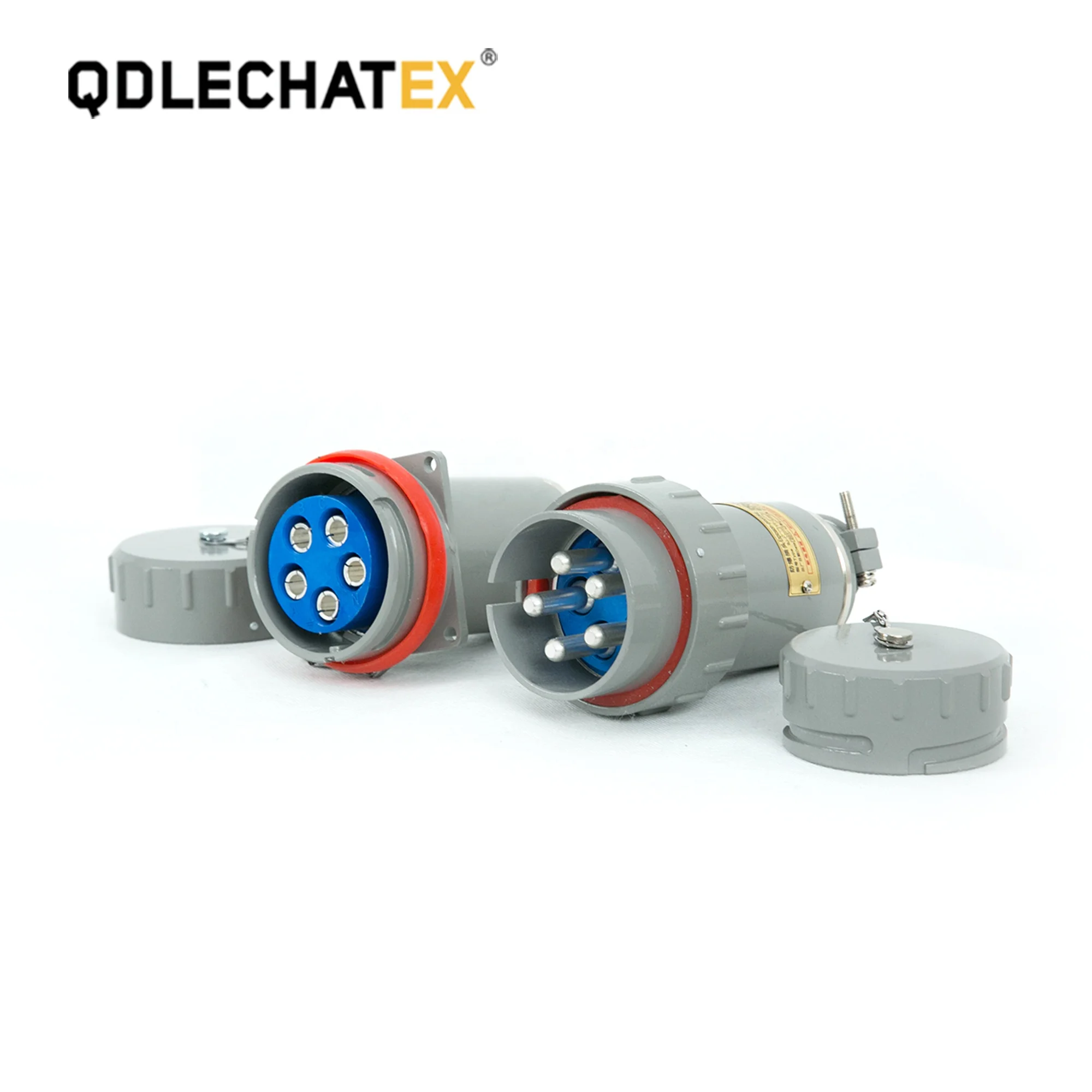

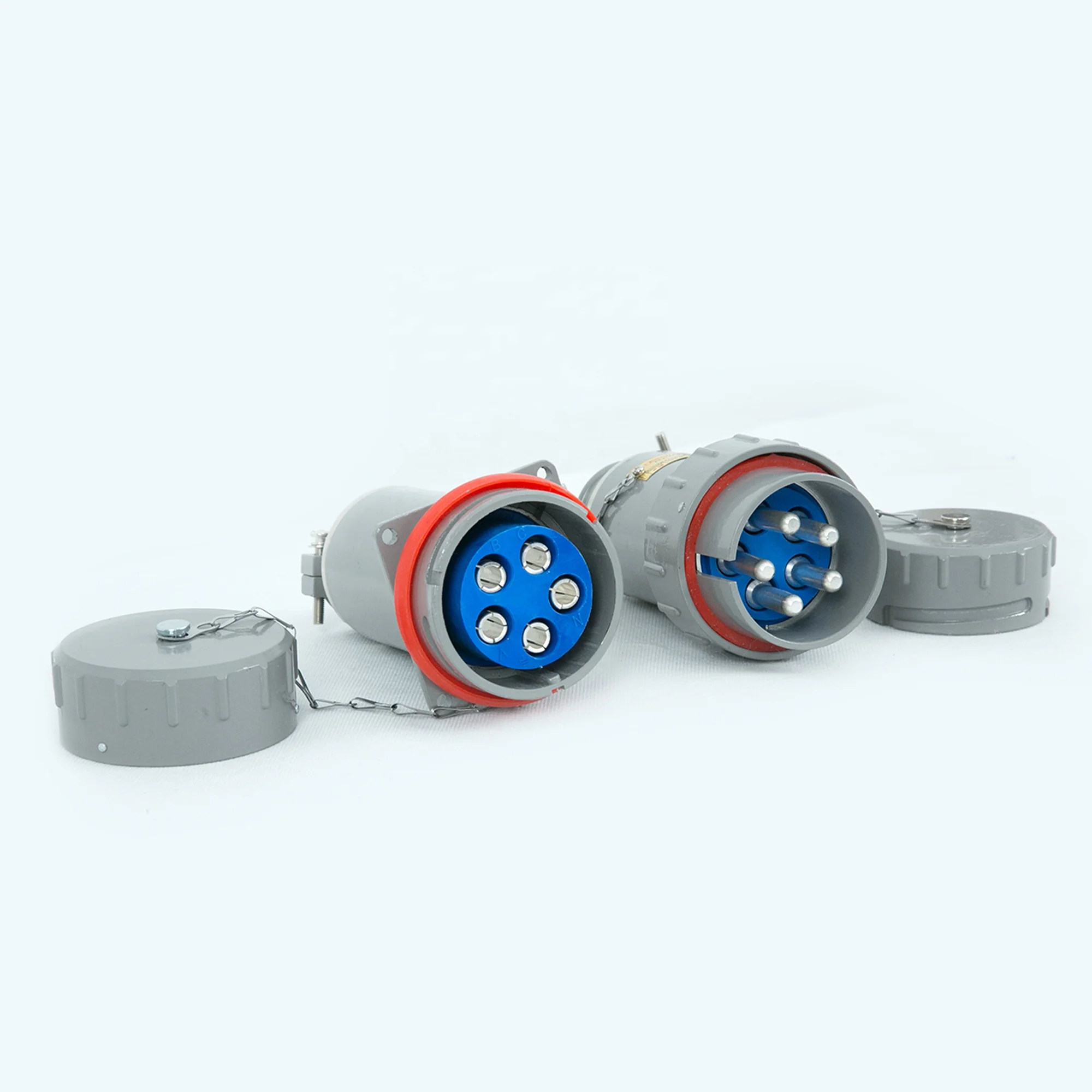

Ex 300A YT YZ 5 Non sparking three phase five pole 5pin explosion proof connector
- Category: >>>
- Supplier: Qingdao Lechatex Technology Co. Ltd.
Share on (1600658298473):
Product Overview
Description
PRODUCT DESCRIPTION
QDLECHATEX 15A,25A,32A,60A YT/GZ-YZ series single-phase three core non sparking electrical connector, apply to oil exploration,drilling,lighting circuit,mobilt power distribution room,cable and cable connection with,has reliable contact,easy assembly and disassembly,sealing performance and good insulation,shockproof,dusproof rainproof,etc..
The connector comprises a plug and socket is composed of two parts,wherein the plug for mobile(YT),socket has three forms: 1.the panel fixed type(GZ), 2.mobile(YZ), 3.oblique type fixed socket (XGZ). Connection plug and socket for the bayonet,fast connection,contact wire terminal crimping,crimping.contact with elastic ring gear support localization,after instalied before the demolition of the structure,the contact sliver plug,shell is made of casting aluminum alloy.
Product size table
| L1≈ | L2≈ | L3≈ | L4≈ | D1 | D2 | D3 | Φd ± 0.07 | Φd 1 | Φd 2 | P | Q ± 0.2 | |
| 16A | 130 | 55 | 132 | 8 | Φ49 | Φ33 | Φ35 | 13 | 3 | 4.5 | 42.5 | 34 |
| 25A | 144 | 64 | 142 | 18 | Φ61 | Φ42 | Φ51 | 15.6 | 3.5 | 4.5 | 51 | 42 |
| 32A / 60A | 153 | 72 | 145 | 22 | Φ64 | Φ48 | Φ51 | 18 | 5.5 | 4.5 | 56 | 47.5 |
| 100A | 166 | 85 | 173 | 30 | Φ79 | Φ61 | Φ65 | 24 | 7 | 5.5 | 70 | 60 |
| 150A | 177 | 92 | 188 | 32 | Φ84 | Φ65 | Φ70 | 27 | 8.5 | 5.5 | 75 | 64 |
| 200A | 195 | 100 | 199 | 32 | Φ90 | Φ71 | Φ73.5 | 30 | 10 | 5.5 | 80 | 70 |
| 300A | 200 | 100 | 199 | 42 | Φ90 | Φ71 | Φ73.5 | 34.5 | 12 | 5.5 | 80 | 70 |
