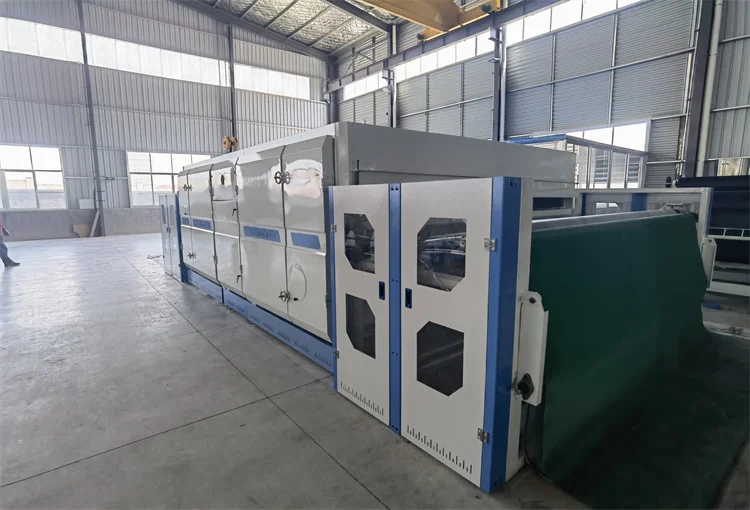

yuanquan Brand Non Woven Oven machine With three conveyor
- Category: >>>
- Supplier: Qingdao Yuanquan Machinery Co. Ltd.
Share on (1600658333372):
Product Overview
Description
Product Overview
Oven With single conveyor for Non Woven
This machine can produce non rubber cotton, silk like cotton, etc. This product is widely used in clothing, embroidery, bedding, furniture, tourism products, etc.
PRODUCT SPECIFICATIONS
Working Width | 3800mm | ||
Size of Main Oven Body | 5000*5000*2200mm | ||
Height of Heating Layer | Bottom layer 300mm; Middle layer 300mm; Upper layer 320mm | ||
Working Speed | 3-20m/min | ||
Weight（Kg） | About 8000 | ||
Conveyor belt (customized) | Teflon mesh belt | ||
Heating Mode | Natural gas heating or electric heating (130kW) | ||
Burner: with alarm control function | 200000 kcal | ||
Thermal insulation material | Internal thermal insulation material aluminum silicate rock wool board(100mm) | ||
Sealing Material | High temperature resistant silicone nitrile rubber strip seal | ||
Temperature control range in the oven box | ≤160-200℃ | ||
Power | Motor for Driving | 3*2.2kw=6.6kw (Frequency conversion control) | |
Motor for Fan | 1*4kw=4kw (Frequency conversion control) | ||
Heating Tube | 130kw | ||
Total power (approx.) | 10.6kw+130kw=140.6kw | ||

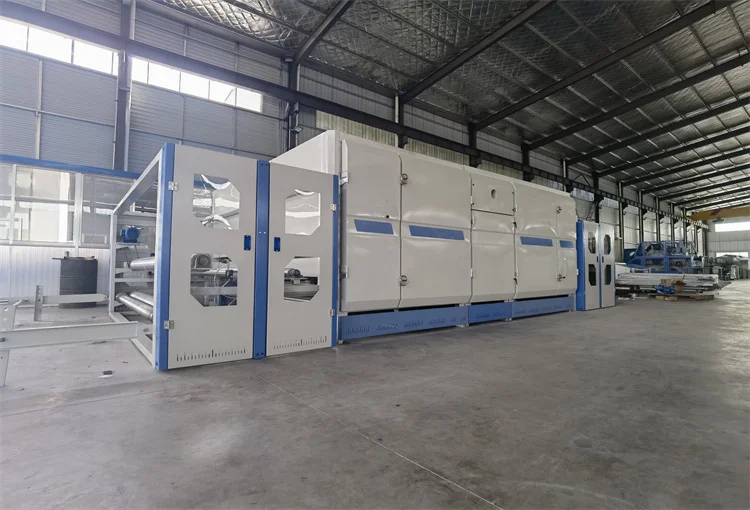

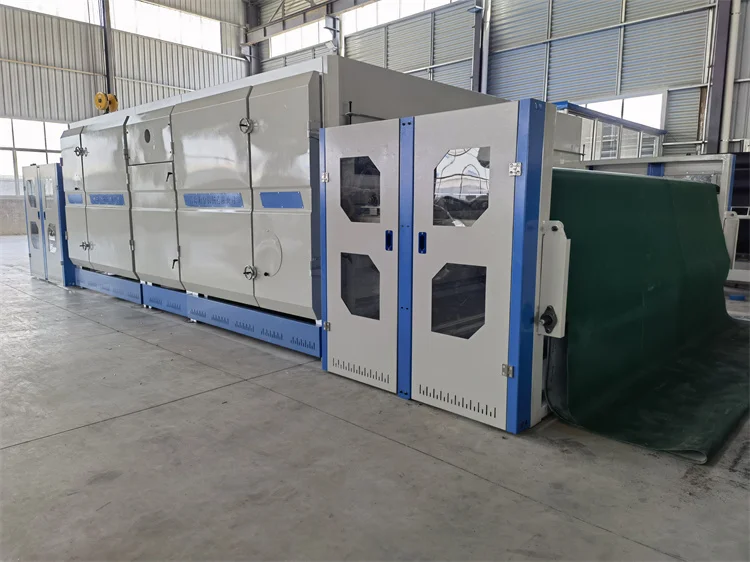

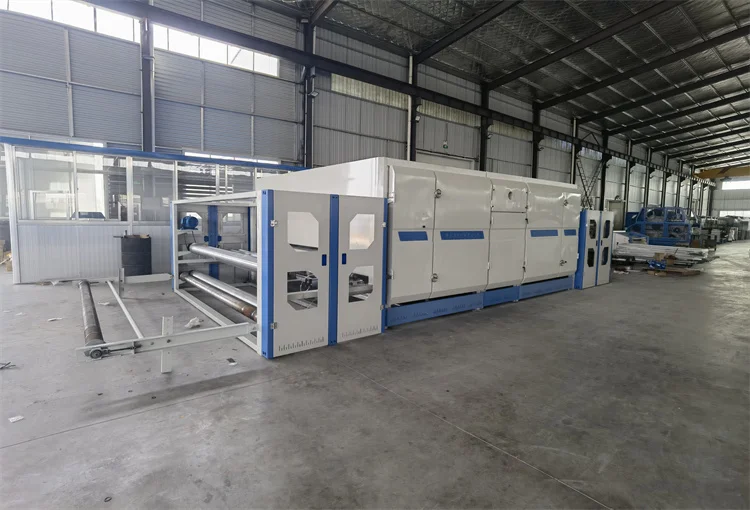

Product Display
Main Features
① Heating mode: one burner or electric heating, dual-purpose oven can be used.; The circulating fan penetrates the hot air through the air duct, blows it down and sucks it up; Achieve the maximum energy-saving effect.
③ The rack is welded with 120mm square pipe and connected with 120mm square pipe; Stable structure.
④ The transmission mesh roller adopts seamless steel pipe and chrome plating after fine grinding; The pressing roller is made of stainless steel.
⑤ Frame with front and rear access curtain; Each 1500mm long, effectively ensuring deviation correction and stable operation of the motor.
⑥ The three-layer mesh belt drives separately, and each main drive adopts frequency conversion control;
⑦ The bearing adopts domestic famous brand, Dongguan tr bearing (with shell) high temperature
⑧ Fine turning and grinding of drum shaft, static / dynamic balance by computer balancing machine, control and adjustment within 0.03-0.05mm.
⑨ The motor adopts red flag motor, and the reducer adopts Shengbang reducer, which is directly supplied by the manufacturer with quality assurance.
⑩ All transmission parts are treated with phosphating and rust prevention. The phosphating color is uniform and black, with strong adhesion and no fading.
③ The rack is welded with 120mm square pipe and connected with 120mm square pipe; Stable structure.
④ The transmission mesh roller adopts seamless steel pipe and chrome plating after fine grinding; The pressing roller is made of stainless steel.
⑤ Frame with front and rear access curtain; Each 1500mm long, effectively ensuring deviation correction and stable operation of the motor.
⑥ The three-layer mesh belt drives separately, and each main drive adopts frequency conversion control;
⑦ The bearing adopts domestic famous brand, Dongguan tr bearing (with shell) high temperature
⑧ Fine turning and grinding of drum shaft, static / dynamic balance by computer balancing machine, control and adjustment within 0.03-0.05mm.
⑨ The motor adopts red flag motor, and the reducer adopts Shengbang reducer, which is directly supplied by the manufacturer with quality assurance.
⑩ All transmission parts are treated with phosphating and rust prevention. The phosphating color is uniform and black, with strong adhesion and no fading.

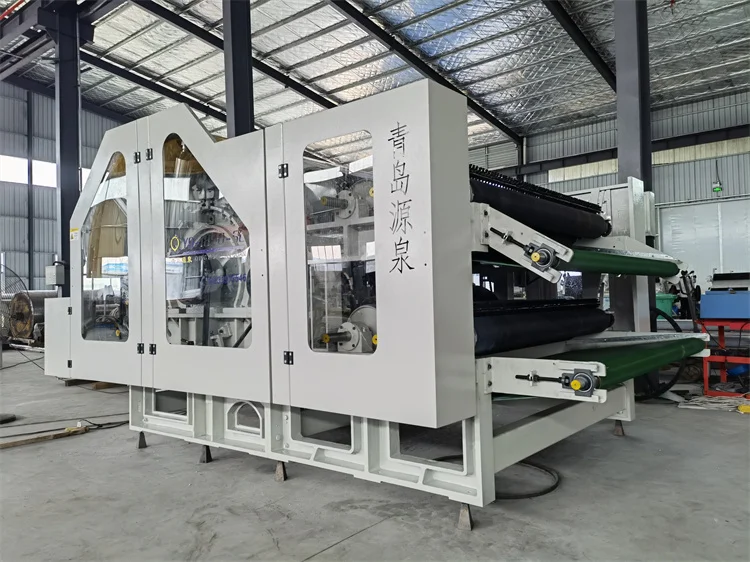

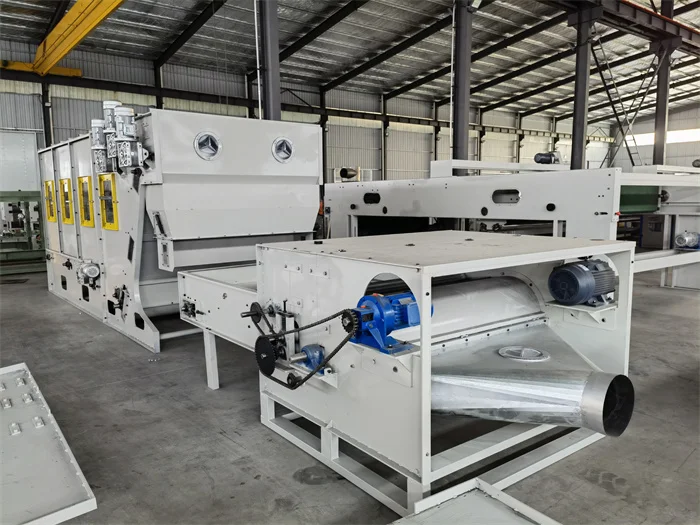

SIMILAR PRODUCTS

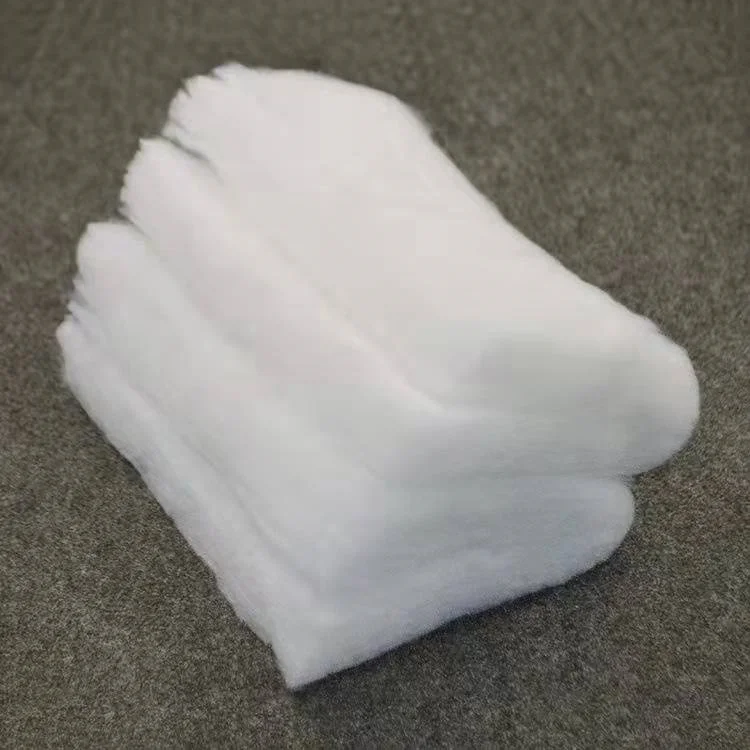

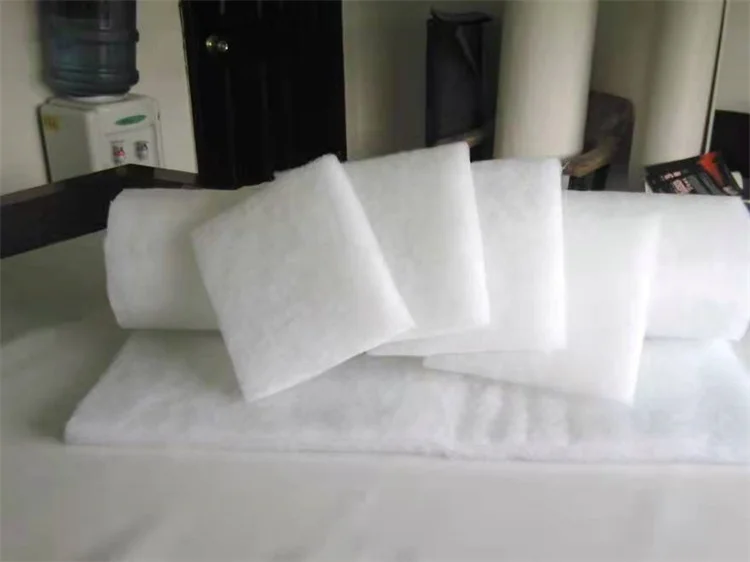

FINISHED PRODUCT PHOTO
Company Strength

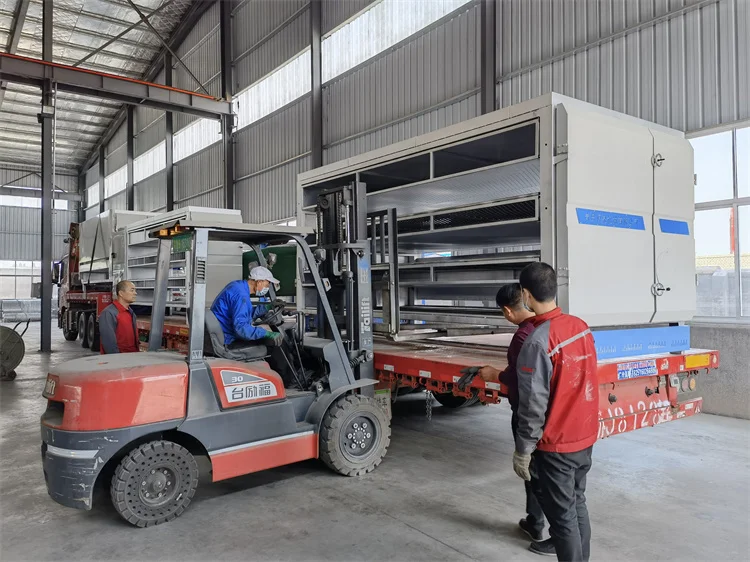

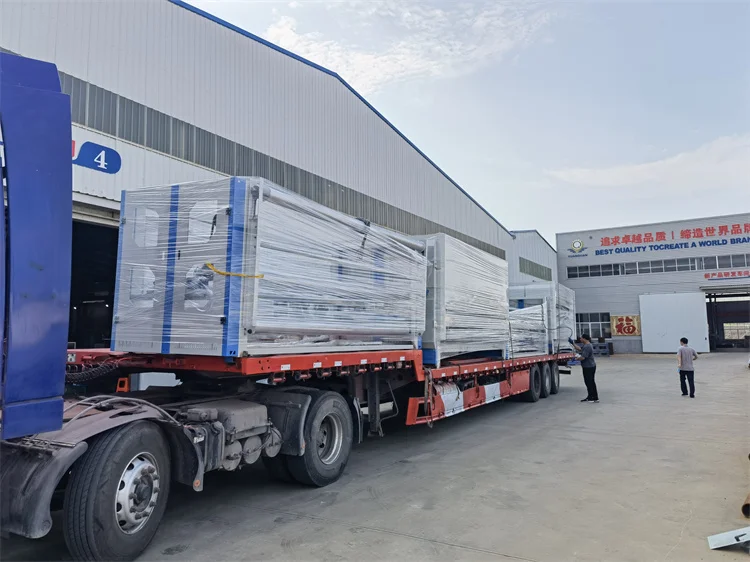

Packaging And Delivery

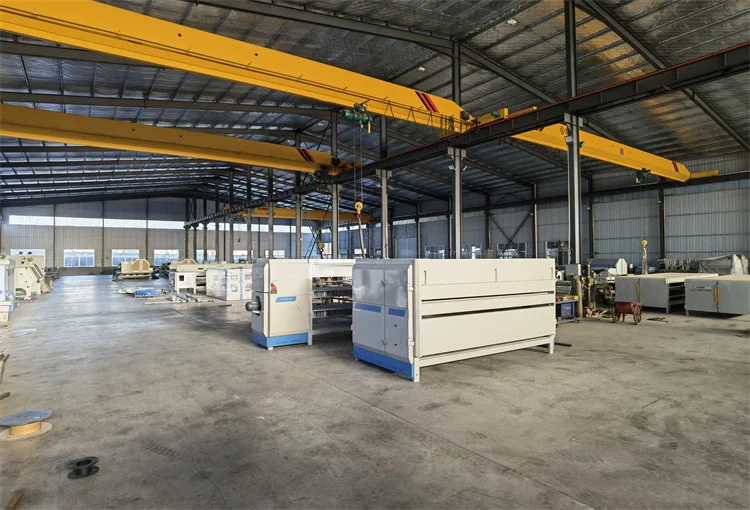

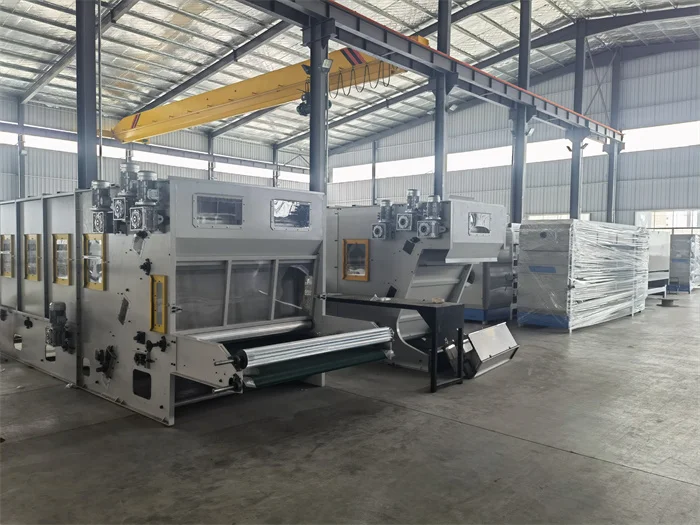

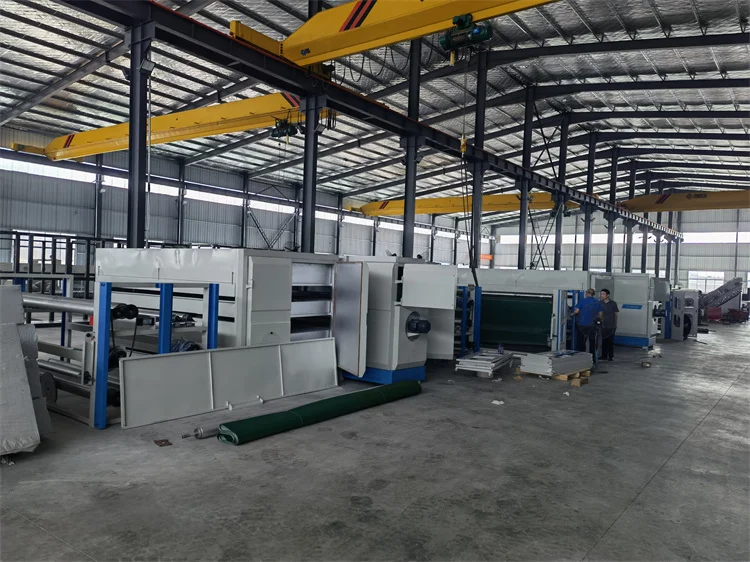

Production workshop
