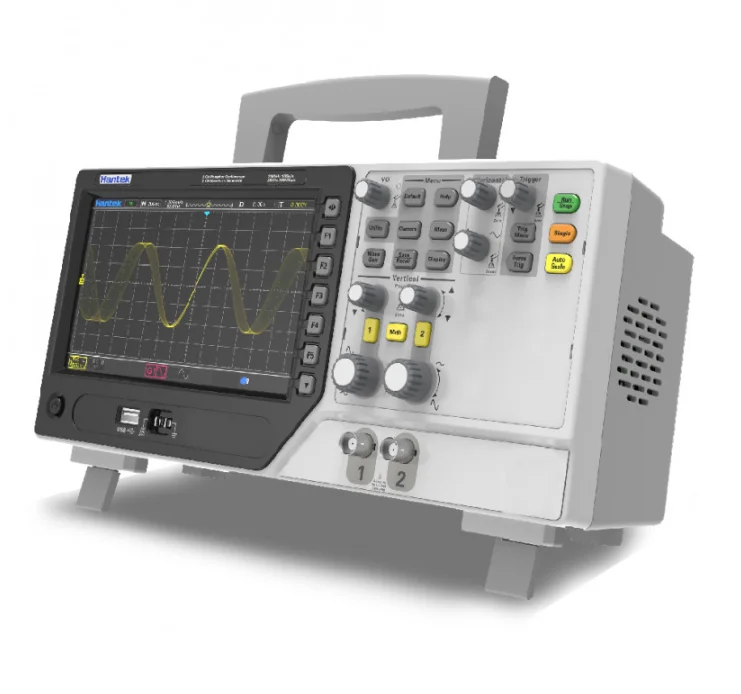

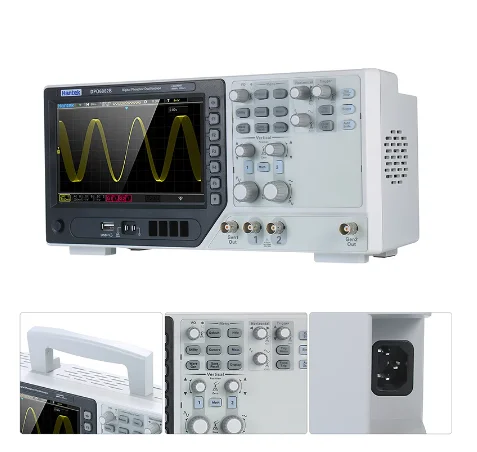

Dpo/mpo6000 Series Fluorescent Oscilloscope 2ch 2 Channel Oscilloscope 100mhz 200mhz Hantek DPO6202B
★Six in one oscilloscope:2 channels oscilloscope+16 channels logic analyzer+2 channels waveform generator+digital voltmeter+serial
protocol analyzer+FFT spectral analysis.
★60 000 wfms/s (dots display)/400,000 wfms/s (dots display quick acquisition mode) waveform capture rate.
★Segmented acquisition function,support to capture up to 80,000 sections. 256 grade color display.
★Up to 16 kinds of trigger functions, including 5 kinds of protocol triggers.Supply 5 serial decoding option.
★1 GSa/s real-time sample rate of the analog channels; 64 Mpts standardmemory depth.
★2-channe signal source,13 kinds of waveforms inside,4 sets of arbitrary waveforms,200M sample rate,8Kpts waveform length.
★1 GSa/s real-time sample rate of the digital channels.
★200 MHz, 100 MHz and 80 MHz analog channel bandwidth.
★Low base noise, 500uV/div to 10 V/div ultra-wide vertical dynamic range.
★7 inch WVGA capacitive touch screen,(800*480) TFT , with ultra-wide screen, vivid picture, lowpower consumption and long service
life.
★Auto measurement of 42 kinds of waveform parameters (with statistics).
★5 bits digital voltage meter and 6 bits hardware frequency indicator function.
★Bode diagram function(the oscilloscopes with signal source function can use).
★Multiple waveform math operation functions【MATH】.Event search function.
★Standard interfaces: USB Device, USB Host, LAN,Optional interfaces: HDMI ，UART
★Conform to LXI CORE 2011 DEVICE class instrument standards; enable quick,
economic and efficient creation and reconfiguration of test system.Supports remote command control.
