pet monofilament extruder line

Product Overview

Description

Plastic Monofilament Machine/PET/PP/PE/PBT Monofilament Machinery/Extruder/Extrusion Machine/Exruding Machine

Italy design type



I. Advantage of plastic monofilament machine/pet/pp/pbt monofilament machinery/extruder/extrusion machine/extruding machine:







-100% PET bottle materials for PET Filament



-Great Dehumidifying and Crystallizing System



-High quality PET Final Filament





II. Introduction of plastic monofilament machine/pet/pp/pbt monofilament machinery/extruder/extrusion machine/extruding machine::



1. Installation power: 120kw, real electricity consumption 70% of it.

2. Material: PET/PP/PE/PBT granual

3. Machine Dimension: 30*5*5m

4. Product Dimension: diameter: 0.07-4.0mm

5. Manpower: 2-3 persons required to operate whole plant



III. Production Process of plastic monofilament machine/pet/pp/pbt monofilament machinery/extruder/extrusion machine/extruding machine:



Material→ Dehumidifying and Crystallizing  → extruder → material filter → melt pump→ die head water cooling →the first seven  rollers haul off→ water heating oven → the second seven rollers haul off → heating oven → glazing  machine→ shaping machine→ the forth seven rollers haul off ---winding machine



 IV. Equipment List of plastic monofilament machine/pet/pp/pbt monofilament machinery/extruder/extrusion machine/extruding machine:

No	Machine name	Q'ty
1	Dehumidifying and Crystallizing Equipment	1 set
2	Single Screw Extruder	1 set
3	Automatic Screen Changer	1 set
4	Mold	1 set
5	Water Tank Cooling System	1 set
6	The first seven haul off machine	1 set
7	Water heating oven	1 set
8	the secend seven haul off machine	1 set
9	Glazing machine	1 set
10	Air oven	1 set
11	the third seven rollers haul off machine	1 set
12	winding machine	1 set

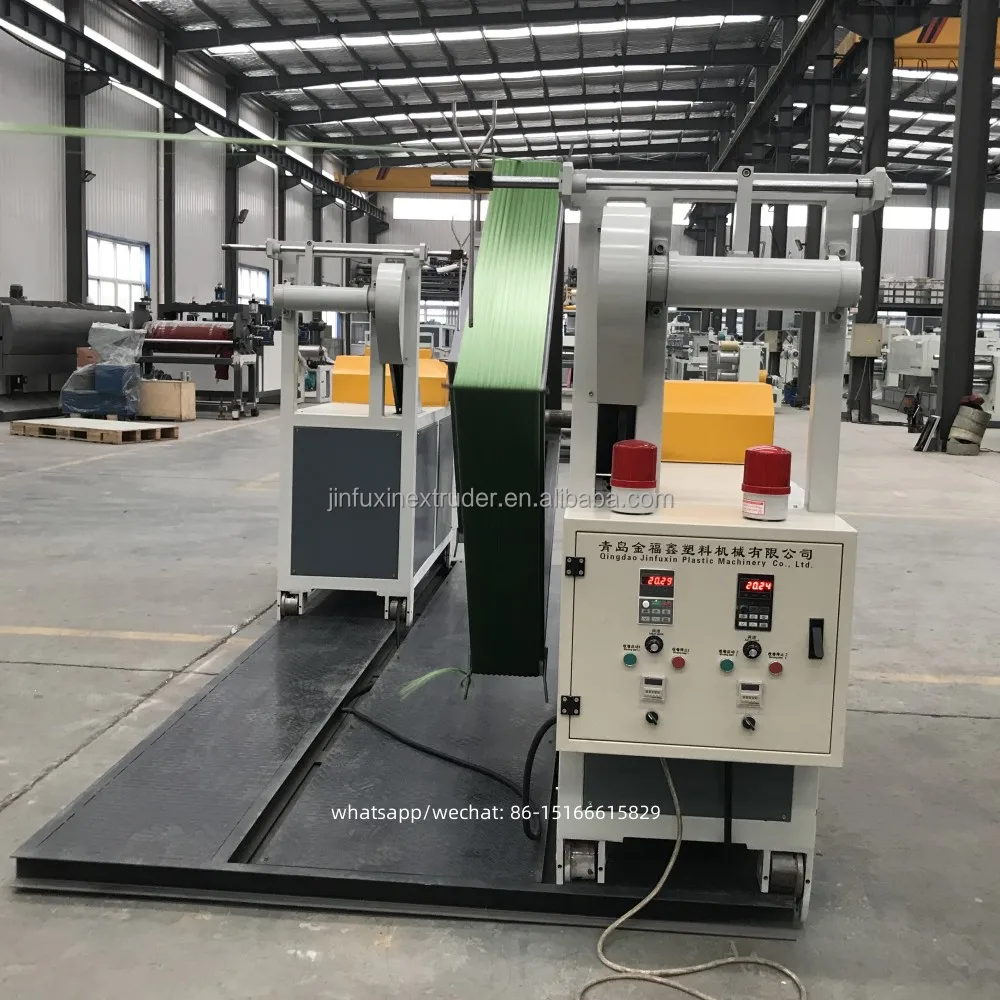

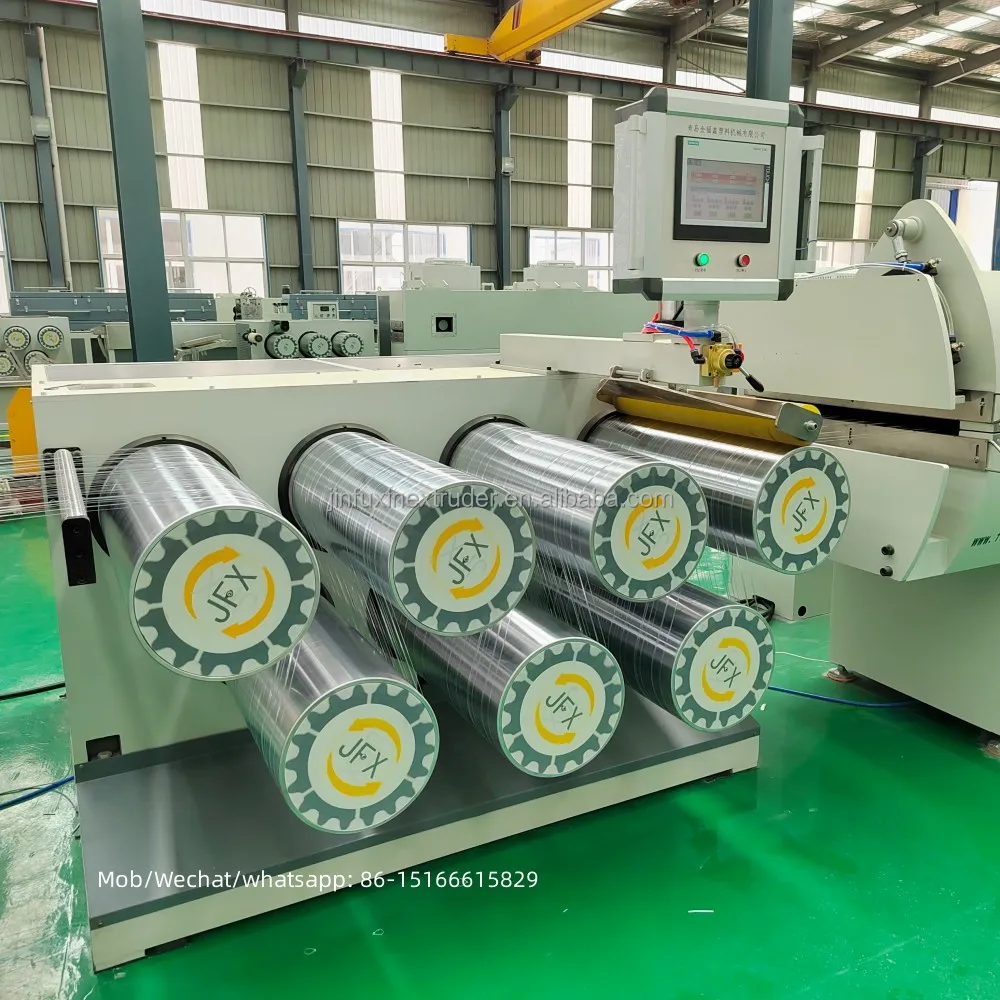

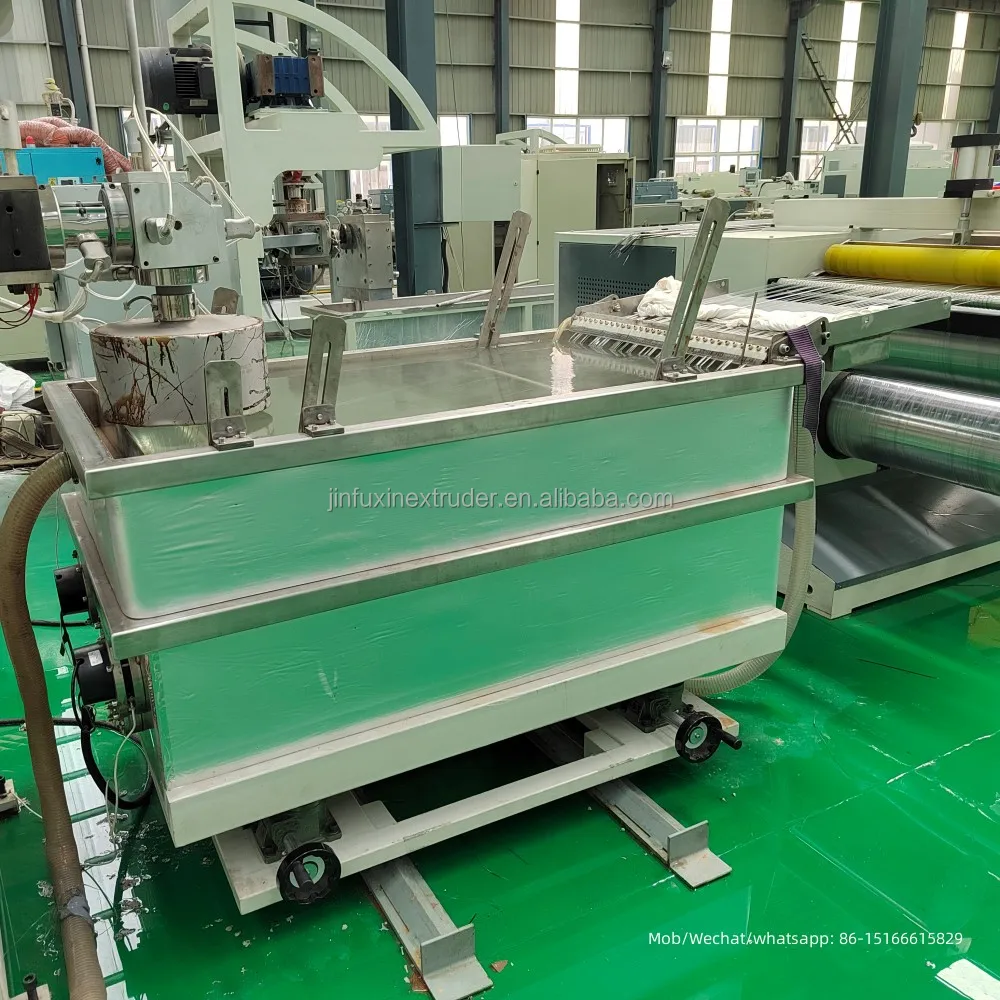

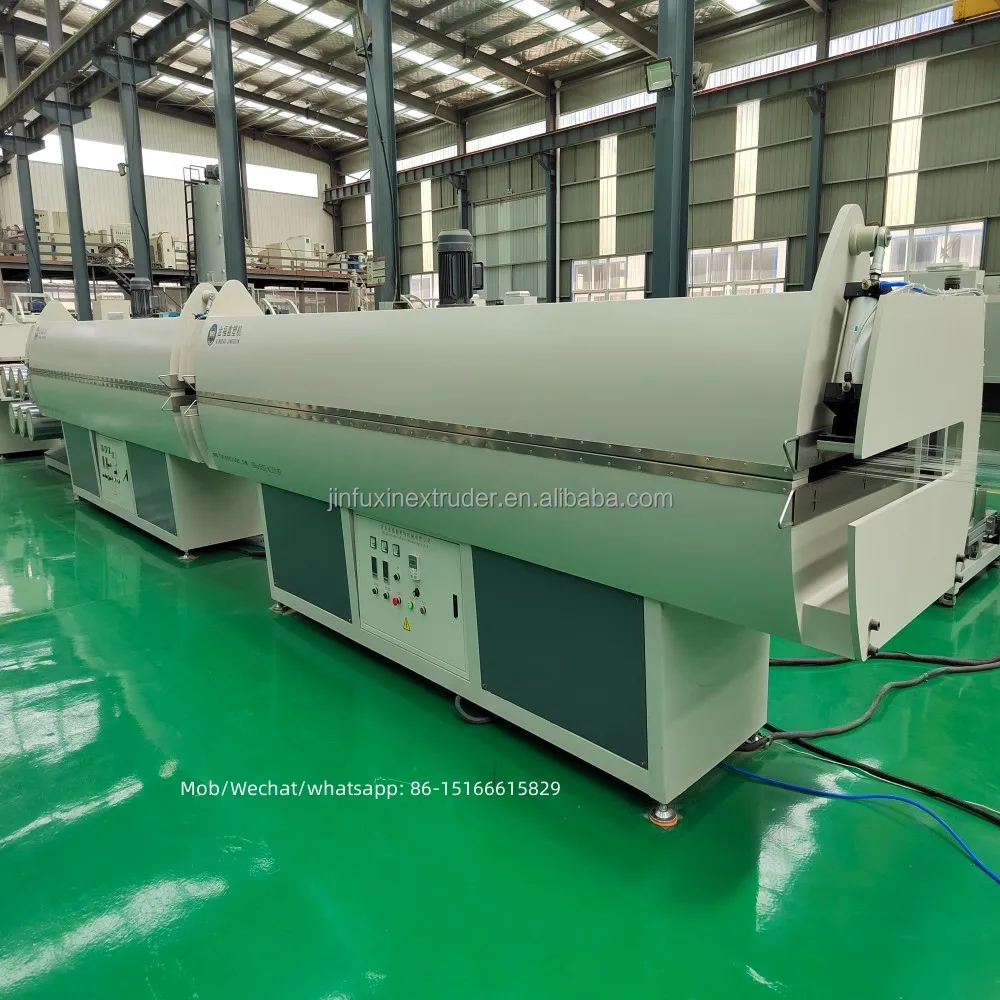

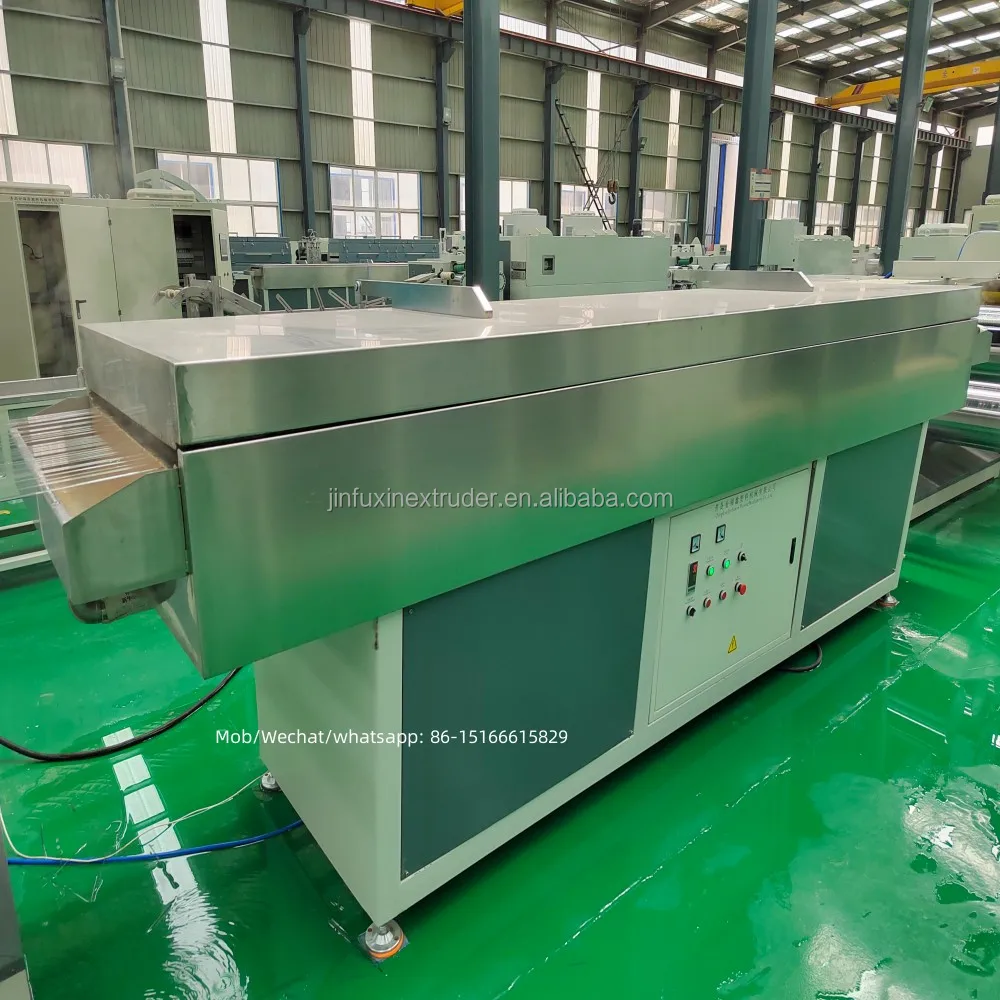

 V. Machine pictures of plastic monofilament machine/pet/pp/pbt monofilament machinery/extruder/extrusion machine/extruding machine:



















































 IV. Final Products of plastic monofilament machine/pet/pp/pbt monofilament machinery/extruder/extrusion machine/extruding machine:
