2.The Honeywell scan sensor keeps high speed data reading accurately .
3.supports LF HF UHF working mode .
4.speed is up to 200 times per second without any crash .
5.All products are tested for two-day aging and battery safety
6.Long last with 4300mAH Li-ion battery backup
7.NFC non-contact RFID reader
8.Support OEM/OCM
PRODUCT PARAMETERS |
High-endversion CPU | Cortex A-53 2.0 GHz Quad Core |
RAM+ROM | 4GB+64GB |
Expanded memory | MicroSD (TF) card expandable up to 128GBMicroSD (TF) card expandable up to 128GB |
Data collection | |
Camera | 8 million pixel color camera, support auto focus, flash |
Bar code collection (optional) | |
1D scan engine | Honeywell N4313 / UE966 / ZebraSE965UPC/EAN,Code128,Code39,Code93,Code11, |
Support 1D barcode type | Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5,Codabar, MSI, RSS , etc. |
2D scan engine | ZebraSE4710/SE2100/Honeywell6603/EM3090,PDF417,MicroPDF417,Composite,RSSLC-39,Datamatrix , QR code, Micro QR code, Aztec. |
Support 2D barcode type | MaxiCode ; Postal Codes: US PostNet , US Planet, UK Postal, Australian Postal,Japan Postal, Dutch Postal (KIX), etc. |
NFC ( optional) | |
Working frequency | 13.56MHz |
Protocol standard | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
Labeling Standards | M1 card (S50, S70), CPU card, NFC tag, etc. |
Read and write distance | 2-5cm |
Physical parameters | |
Overall size | 6.18(H)*2.87(W)*0.85(T)in |
Total Weight | 250g (including battery, different weights) |
Display | 4 inches, 480*800 resolution, 16.7M colors |
Touch screen | Industrial grade capacitive touch screen |
Battery capacity | Polymer lithium- ion battery 4300mAh.Standby time>300 hours.Working hours > 13hours (depending on usage and network environment).Charging time 2-3 hours(using the standard power adapter and data cable). |
Expansion slot 1 | SIM card slot, 1 Micro SD (TF) card slot maximum support 128GB |
Communication Interface | USB Type-C, support OTG function, support Pump Express Plus fast charge |
Audio | Microphone, earpiece, 1W speaker, support voice call |
Keyboard | 3 TP buttons + 5 side buttons + keyboard |
Sensor | Light sensor, distance sensor, gravity sensor, vibration motor |
Power Adapter | 100-240V, 50-60Hz, 0.29A; Output: 5V, 2A |
Non-contact collection (optional) | |
UHF | |
915MHZ | Support 1.2m ordinary tag reading.Support ISO18000-6C/EPC GEN2 |
Development environment | |
Operating system | Android P ( Android 9.0) supports GMS certification |
SDK | Software Development Kit |
Development language | Java |
Development tools | Eclipse/Android Studio |
1.How many days if I pay today ?
.......For sample order less than 20pcs ,we send out within 2 working days after get fund .For bulk order over 100pcs-200pcs ,about 3 to 5 working days .Over 500pcs ,we will discuss
2.What payment method do you accept ?
........We often accept payment by bank wire transfer (T/T) ,western union ,money gram ,alibaba trade assurance
For payment fund less than 800USD ,we will accept paypal
For goods credit customer,we also accept paying by credit card .
3.What is the after-sales service ?How will you do if goods have problem ?
......We will offer trouble shoot guide remotely first .The general problem is that user doesn’t know how to operate it .If it really has problem on hardware,we will second extra parts to repair it .Or user could send back to us for repair ,both side bear the shipping cost each way .
4.How much tariff should I pay ?
Generally the customs duty is 20-30% of the commercial invoice amount .
5.Does it scan solar panel ?
.....As long as there is barcode ,QR code ,upc code ,128code ,or RFID tag,LF,HF,HUF tag ,the scanner can collect the data .
6.How to scan to Excel ?
......You need to find app for uploading excel sheet and then install this app in our scanner .As long as it supports android 9.0 operating system ,they can work together .For example ,download office app in the scanner ,open the excel file,you could realize the function you need .
7.How does barcode scanner work ?
........The pda android barcode scanner ,for data collecting .Scan the barcode or UPC , QR code, 128 code ...The code number will be collected on the scanner screen .Then,it will upload the numbers to your PC management center
8.Is this scanner RDP compatible?
........As for RDP,as long as it has android version app ,it will be compatible with our scanner .But if it has only windows version, it can't work with our PDA scanner
9.barcode scanner capable of working weith SICON Warehousing module for SAGE 200 and able to read a GS1 data matrix
10.Does are scanners support WPA2/WPA security protocol?
......Yes ,support
11.What is your return policy?
.......If it doesn't affect secondary sales ,it can be returned .But you have to bear two-way shipping fee
Shenzhen Ruiyan Interconnection Technology Co.,Ltd provides
1.OEM service : we support silk print logo on device for order quantity over 200pcs .For color box design ,MOQ is 1000pcs .Customized logo on the software , MOQ is 200pcs .
2.ODM service ,and software secondary developement for customer : We offer free SDK for secondary developement .And support you to add any modules ,such as GS1 inventory management, SAGE200 finance management module .
The general shipping method is by DHL ,Fedex ,UPS ,TNT express .We can also send by railway ,by sea , DDP .It depends on customer's request

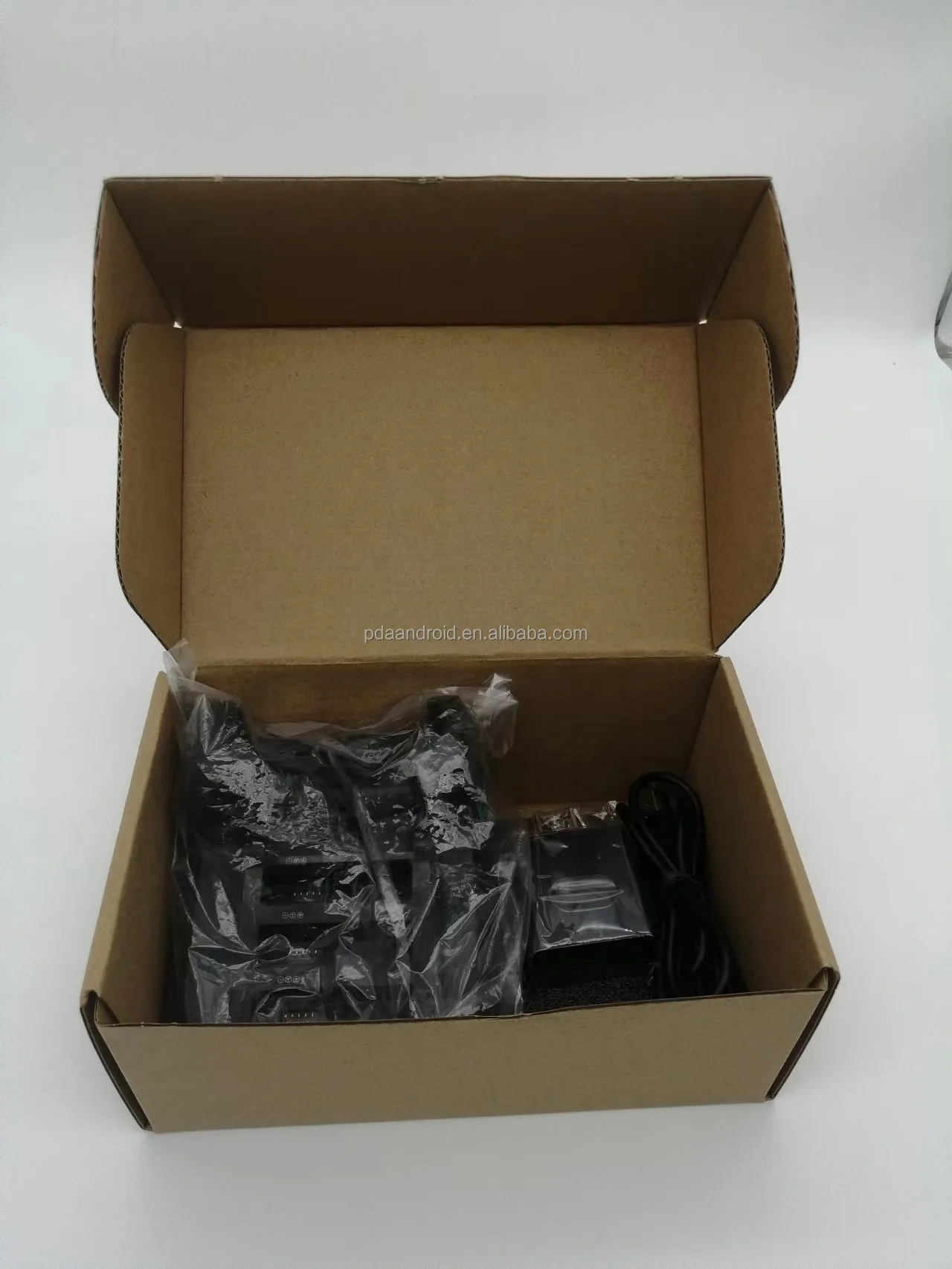

How to pack ?
Color box for each unit ,with PP foam to protect .
Unit gross weight :0.5KG
unit size : 19.5x12x8cm
20pcs per carton
cart gross weight :10KG
carton size : 40X22X40cm
