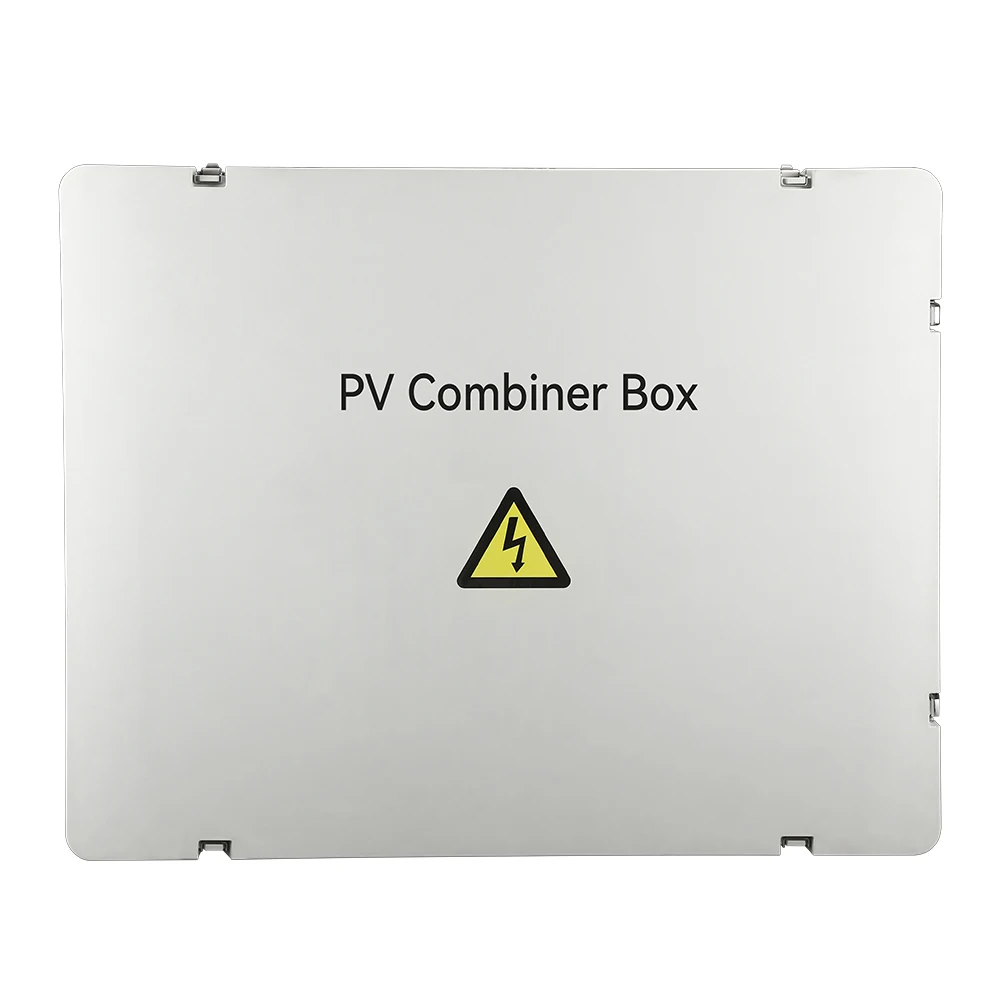

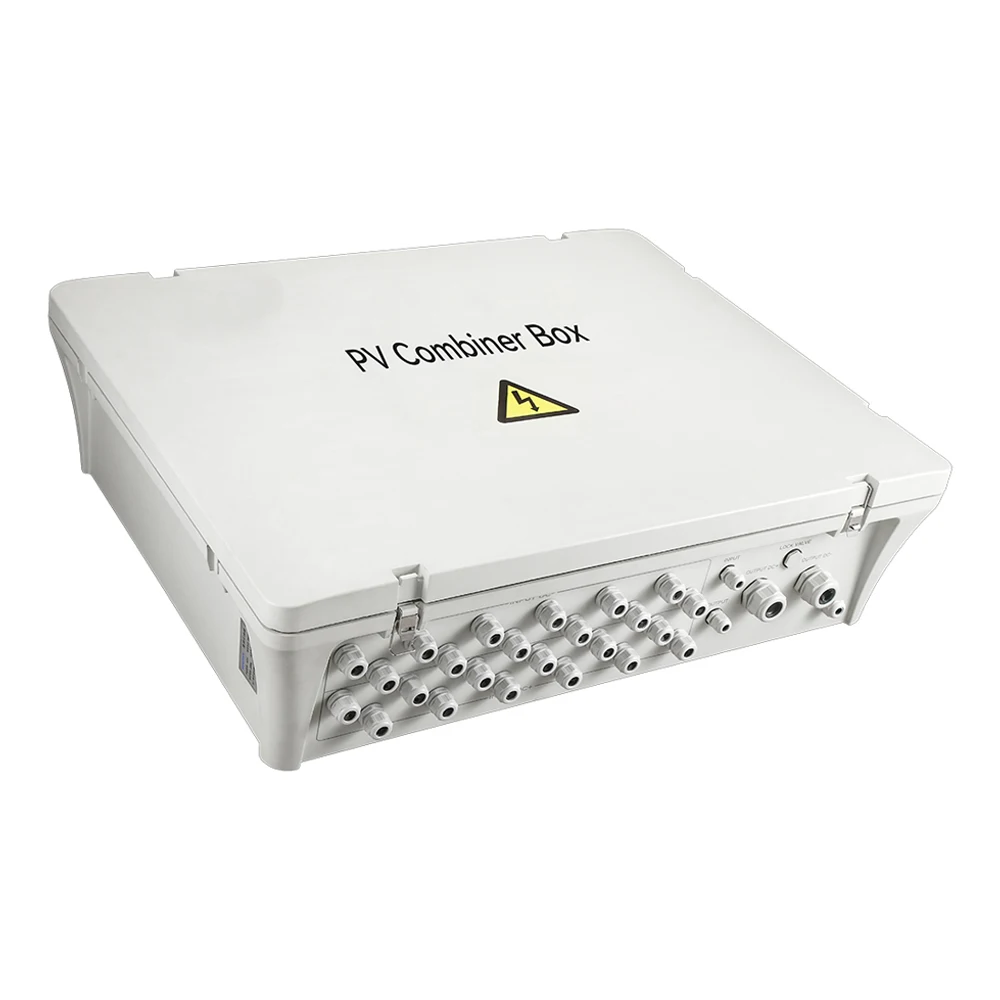

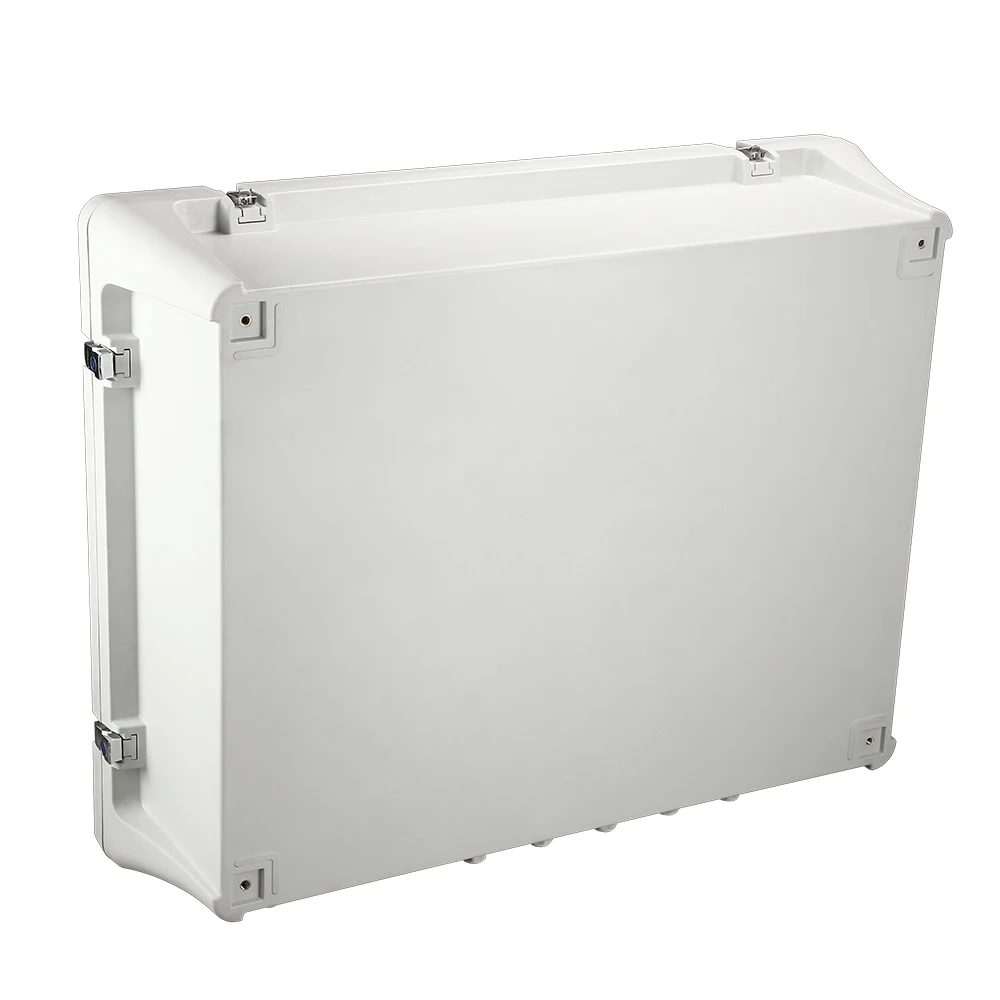

PV Array Combiner Box IP65 Waterproof Stainless Steel Power Distribution Box for Solar System
- Category: >>>
- Supplier: Goldbell Electric (shenzhen) Co. Ltd.
Share on (1600658499352):
Product Overview
Description
Products Description
High reliability
Use PV fuses.
Use PV surge protectors.
Use PV DC breaker or rotary isolation switch.
Technical Specifications for Photovoltaic Confluence EquipmentCGC/GF037:2014
Use PV surge protectors.
Use PV DC breaker or rotary isolation switch.
Technical Specifications for Photovoltaic Confluence EquipmentCGC/GF037:2014
Strong adaptability
lp65 protection, waterproof dust proof and UV resistant.
Strict high and low temperature testsuitable for a wide area.
The installation is simple,the system wiring is simplifiedand the wiring is convenient. The box is made of metal materials such as cold rolled steel plate.
Strict high and low temperature testsuitable for a wide area.
The installation is simple,the system wiring is simplifiedand the wiring is convenient. The box is made of metal materials such as cold rolled steel plate.
Product Parameters
Electrical parameters | ||
System maximum DC voltage | 1500 | |
Maximum input current per channe | 15A | |
Maximum number of input channels | 4/6/12 | |
Maximum output switching current | 100A | |
Number of inverter MPPT | N | |
Number of output channels | 1 | |
Lightning protection | ||
Test category | II pole protection | |
Nominal discharge current | 20kA | |
Maximum discharge current | 40kA | |
Voltage protection level | 3.8kV | |
Maximum continuous operating voltage | 1500V | |
Number of poles | 3P | |
Structural features | Pluggable module | |
System | ||
Protection level | IP65 | |
Output switch | DC circuit breaker(standard) DC rotary isolating switch (optional) | |
SMC4waterproofconnector | Standard | |
Photovoltaic DC fuse | Standard | |
Photovoltaic DC fuse | Standard | |
Monitoring module | Optional | |
Anti-reverse diode | Optional | |
Box material | Metal | |
Installation method | Wall-mounted | |
Operating temperature | -25℃~+55℃ | |
Altitude | 2000 meter | |
Allow relative humidity | 0~95%no condensation | |

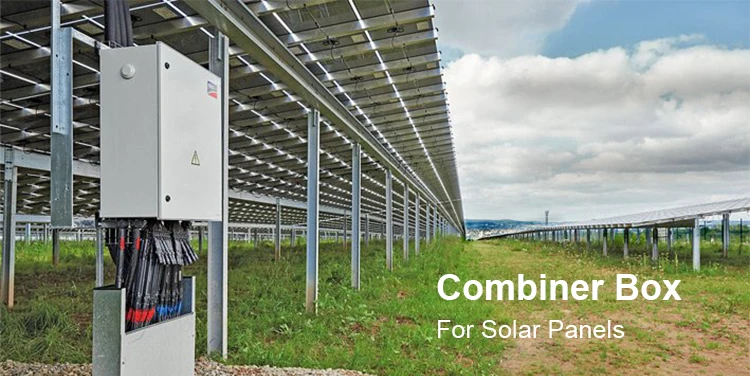

Cooperation Case
Certifications
Our company has passed ISO14001 environmental management system, ISO9001 quality management system and ISO45001 occupational health and safety management system certification.
All products have passed CE, CQC certification, excellent quality, safe and reliable.
All products have passed CE, CQC certification, excellent quality, safe and reliable.
