Construction Formwork Symons Concrete Wall Forms 8ft x 2ft Steel Ply Panel
- Category: Formwork >>>
- Supplier: Hebei,Trico,Trade,Co.,Ltd
Share on:
Product Overview
Description

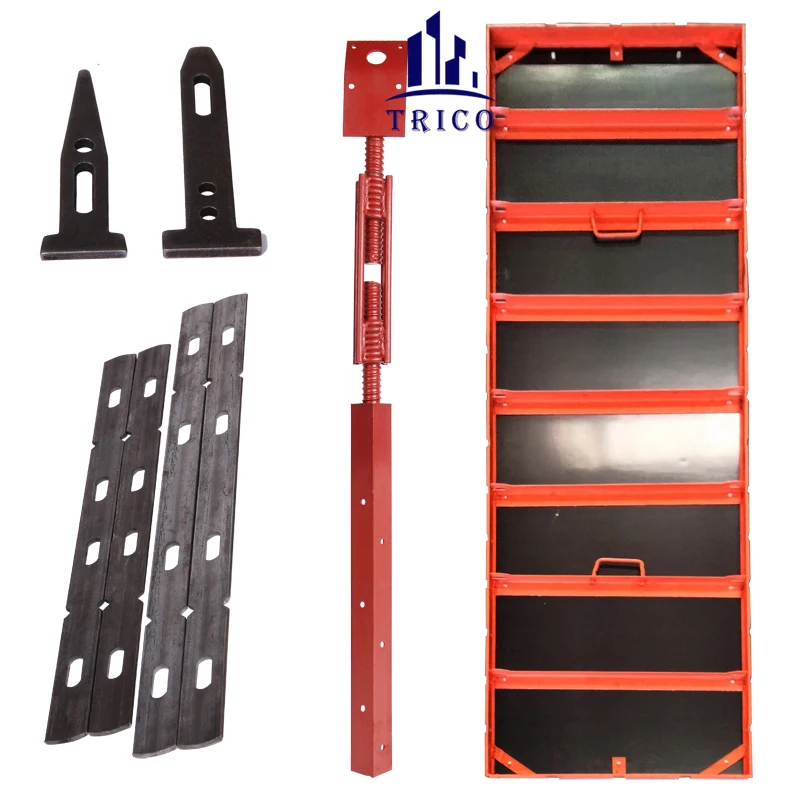

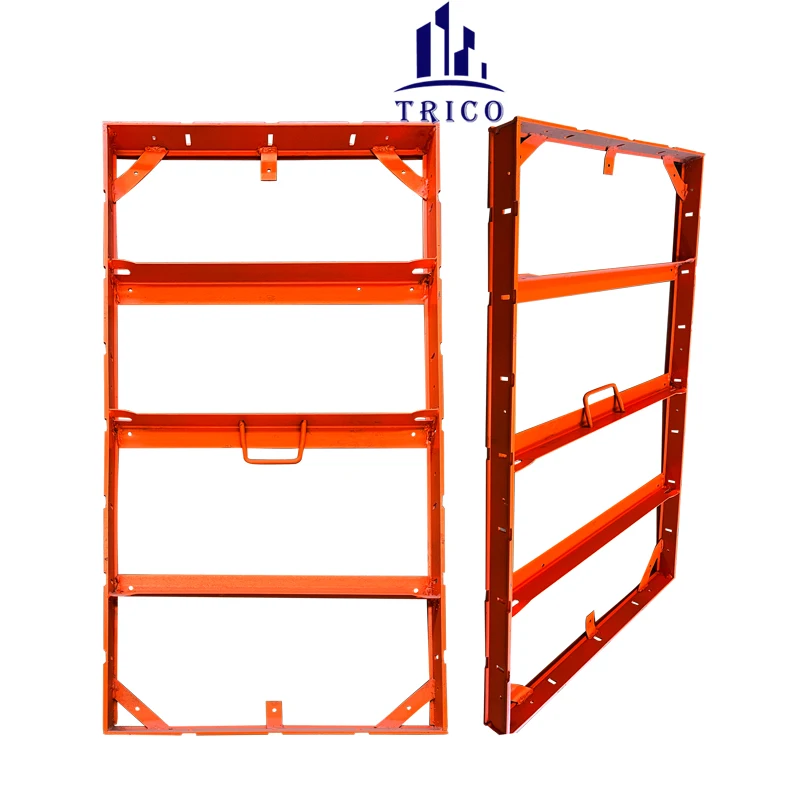

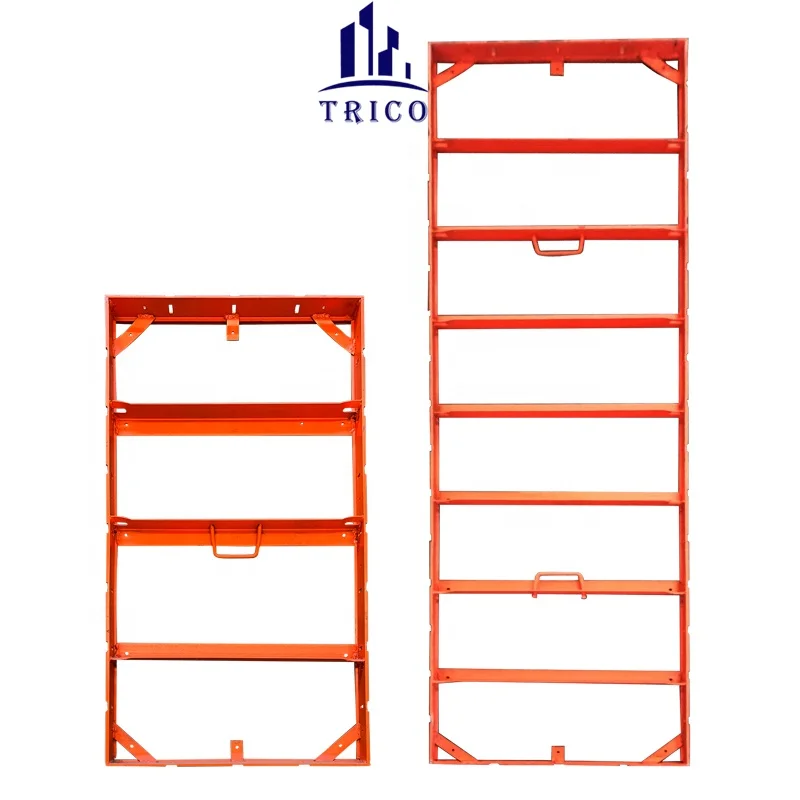

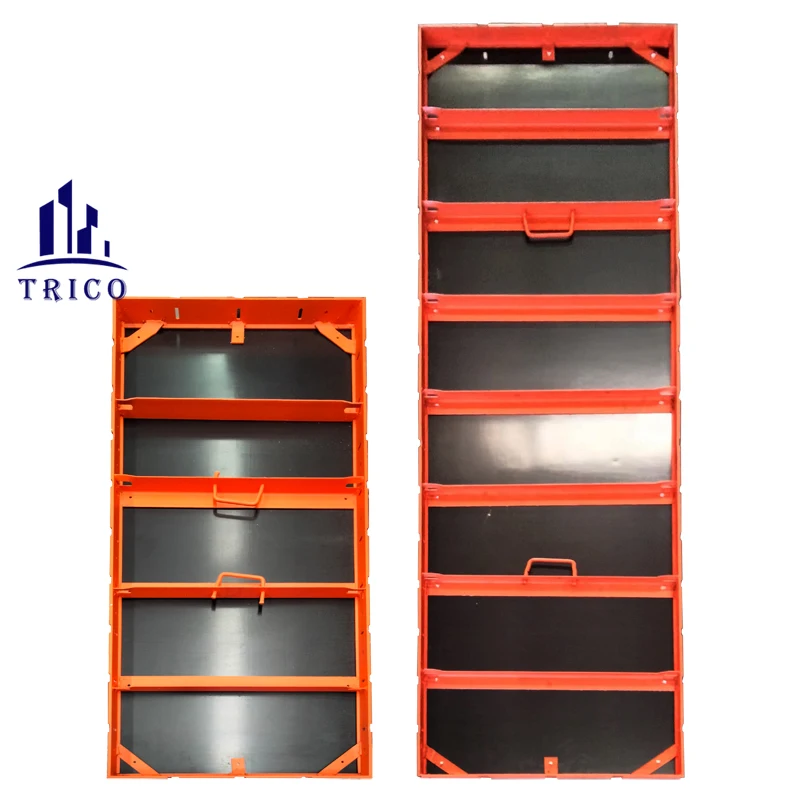

Construction Formwork Symons Concrete Wall Forms 8ft x 2ft Steel-Ply Panel

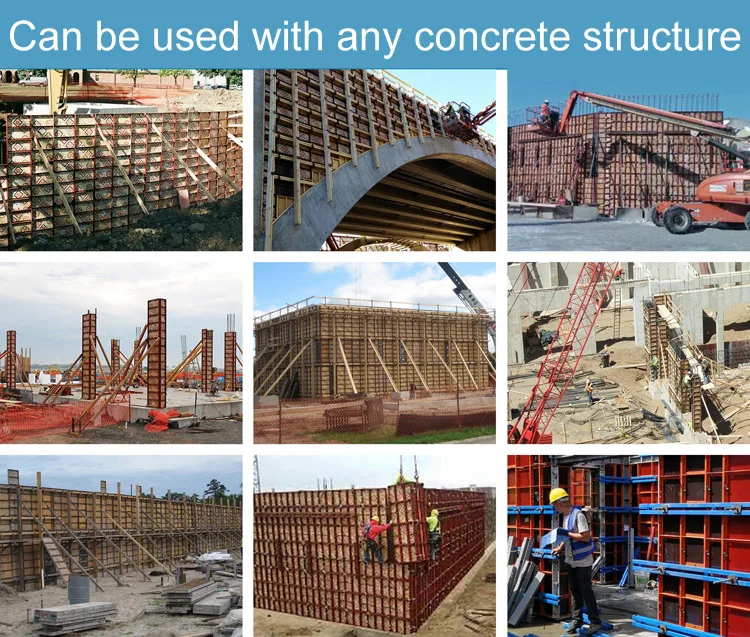

Steel-Ply is the most widely accepted, pre-engineered, modular formwork system in use today. It can be reused 200 times after timely replacement of plywood, and is compatible with all other industry standard formwork forming systems.It is designed for maximum versatility and can be used to form virtually any concrete structure.Steel-Ply specialty forms are used for Bulkhead Forming, Haunch Forming, Pilaster, Adjustable Pilaster Forms, and Culvert Forms.
| Steel Ply Forming System | |||||
| Product | Picture | Specification | Material | ||
Symons Formwork |  | 8"x8' 10"x8' 12"x8' 14"x8' 16"x8' 18"x8' 20"x8' 22"x8' 24"x8' | 8"x6' 10"x6' 12"x6' 14"x6' 16"x6' 18"x6' 20"x6' 22"x6' 24"x6' | 8"x4' 10"x4' 12"x4' 14"x4' 16"x4' 18"x4' 20"x4' 22"x4' 24"x4' | 45# Steel |
| Other Size Available | |||||
| Steel Ply Forming System Accessories | ||||
| Product | Picture | Specification | Material | Feature |
| X Flat Tie |  | Wall Tickness 6"-48" Other Sizes Support | Steel #45
| Ultimate Load 6000lbs |
| Wedge Bolt |  | Short Wedge Bolt | Steel #45 | Heat Treatment |
| Standard Wedge Bolt | ||||
| Long Wedge Bolt | ||||
| ADJ Wedge Bolt | ||||
| Ply Spacer |  | 3/4", 1-1/8" 6-12" | Carbon Steel | High Quality |
| Shore Clamp |  | 4*4, Painted | Carbon Steel | High Quality |
| One Piece Waler Clamp |  | 837g, Galvanized | Carbon Steel | High Quality |

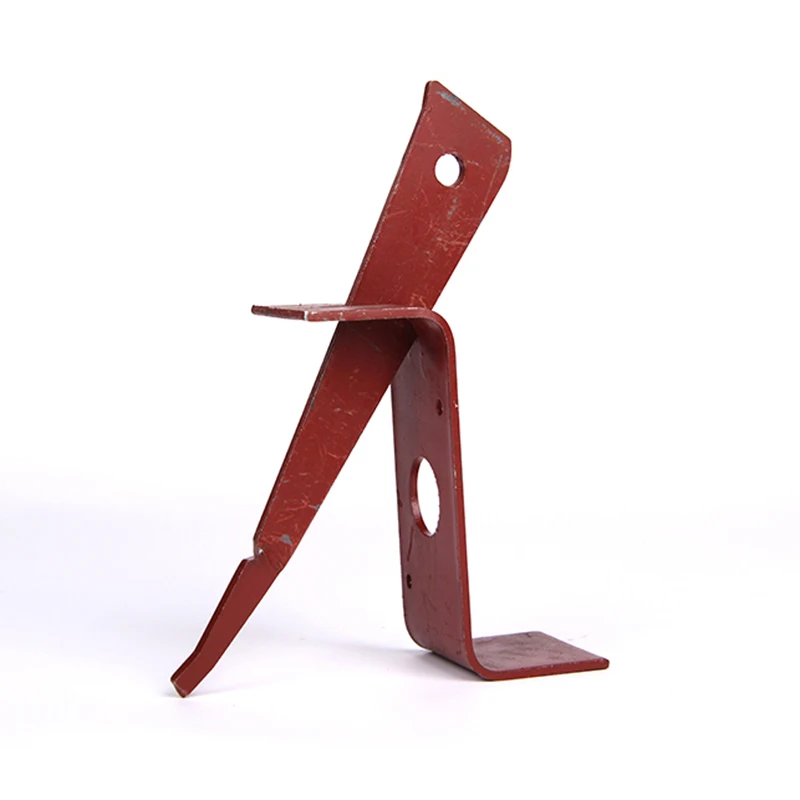

| Z Tie Holder |  | 325g, Red Painted | Carbon Steel | High Quality |

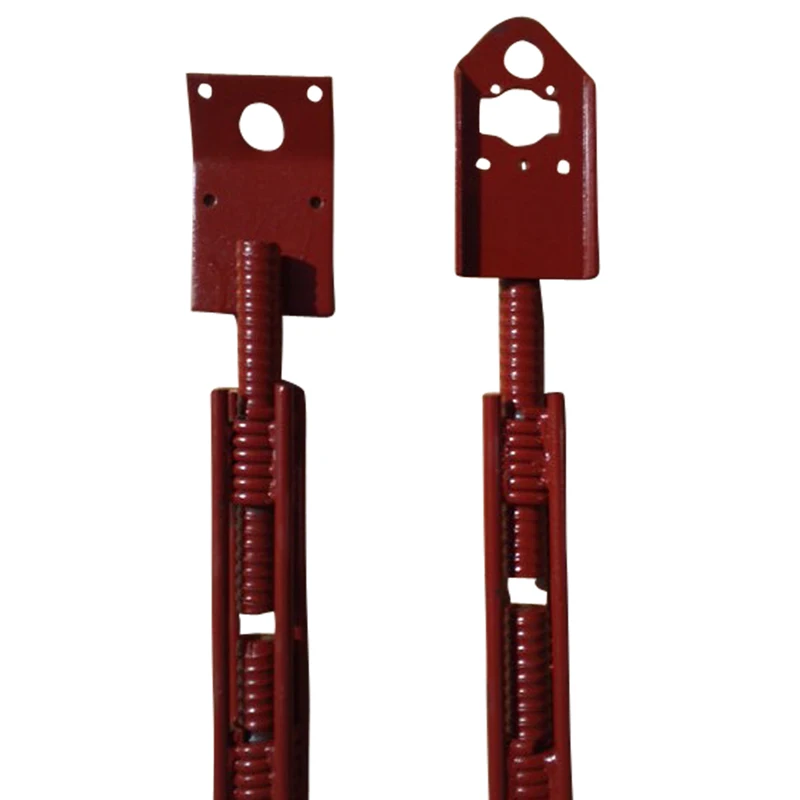

| Turnbuckle Aligner |  | 1.Standard Type /Heavy Duty Type 2. Bend Head/Flat Head
| Carbon Steel | Steel Angel /Four Steel Bar |
| Other Formwork System | Formwork Tie Rod System | |||
| Aluminum Formwork System | ||||
| Snap Tie System | ||||
Advantages:
• Designed to form both straight and radius walls
• No special tools required - just a hammer
• System may be handset or assembled into gangs
• Most popular concrete forming system in the America
Related Products
Hollow Plastic Formwork, which is made of PP, is designed to replace the traditional Plywood. The advantages are:
1. REUSE 80-100 time, no oil needed
2. 100% Waterproof
3. Can easily cut, nail and screw
4. Save at least 30% total cost
X Flat Tie System
X-Flat Ties are used with Wedge Bolts to space and secure modular concrete forms.
Snap Ties are manufactured with integral heads, and Metal or Plastic Form Spreaders. Snap Ties are designed to easily tie lumber forming systems. Snap Ties have a nominal 1" breakback. Long End, Short End, and Odd End Snap Ties are used with Wedge, A/C Brackets for plywood forming.
Our Services
- Formwork Tie Rod System
- Aluminium Formwork Wall Tie System
- Scaffolding System
- PP Hollow Plastic Formwork
- Steel Formwork Panel with Plywood Forming System
- Other Plastic Building Materials

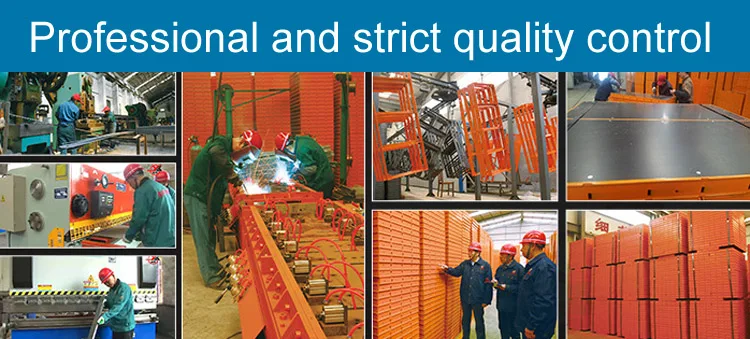

1. Quality: Strictly control the quality through three levels. First level, quality test on the producing line. Second level, quality test during warehousing. Third level, quality test before loading.
2. Timeliness: 24 hours online. Provide consulting and quotation services for customers all the time.
3. Veracity: Strictly follow the customer standard to ensure the tolerance range and meet customer's requirement.
4. Integrity: If the customer complains about the quality of the products, our company will actively cooperate with them to solve the problem. If it is the responsibility of our company, we will bear the corresponding responsibility and compensation.
5. Longevity: Establish good long-term relationship with customers.
