Heavy duty wire rope electric winch price electric winch 5 ton for sale

Heavy duty wire rope electric winch price electric winch 5 ton for sale

Category: Lifting, Pulling & Positioning >>>
Supplier: Xinxiang,Yueda,Crane,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

Description

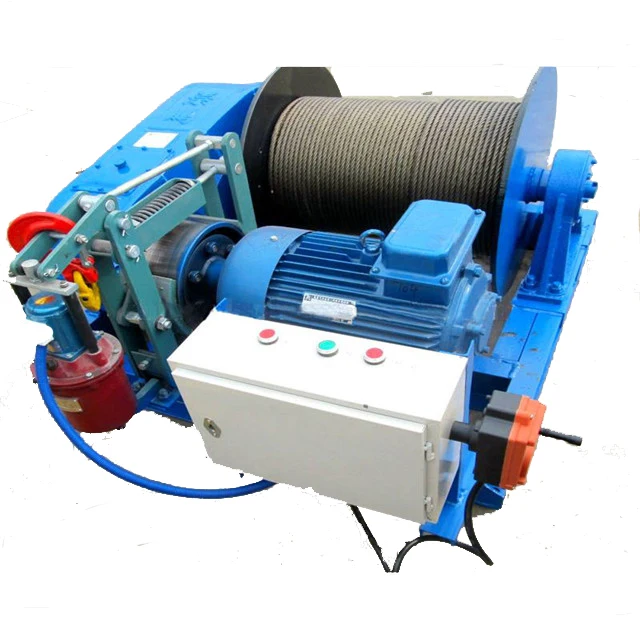

Electric winch, most of time, follow-operated by people on the ground, also can operate in the room, or operate with wireless type with far way, except exclusive-use, also can match-use with electric trolley and plain trolley, geared trolley, these trolleys with simple structure, light weight, easy to load and unload, can use like this forever, but also can be used temporarily.

JM slow electric winch lifting can lift heavy weight in the Construction Site and Port pier; it also can be used as traction power in installing of the factories and mines. It is not only can single use, but also can combined with other large-scale and complex machine.

Features

1.Top quality with competitive price.

2.Widely used in the hydropower station,double beam bridge crane and gantry crane and so on.

3.Easy to install and high quality.

4.Compact structure and reasonable design.

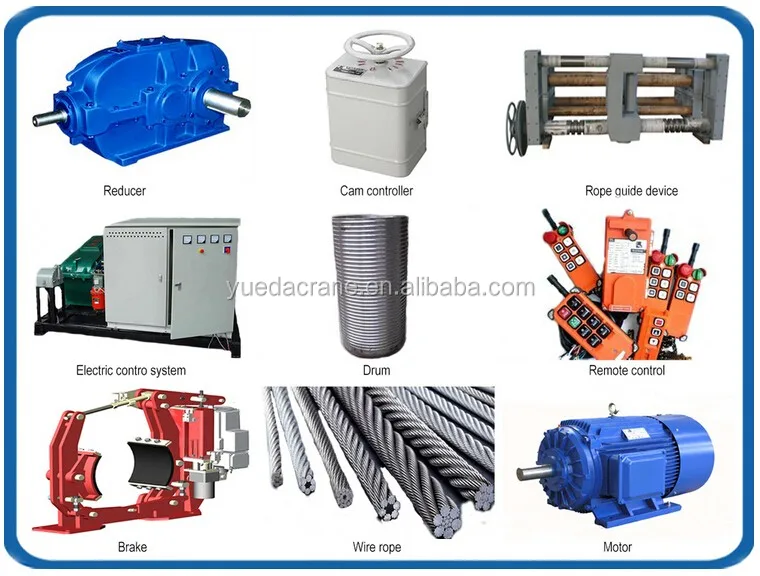

Component Parts

Safety Features

1.the load limiter
2. hoisting height limiter
3.falling depth stop
4.overspeed protection switch

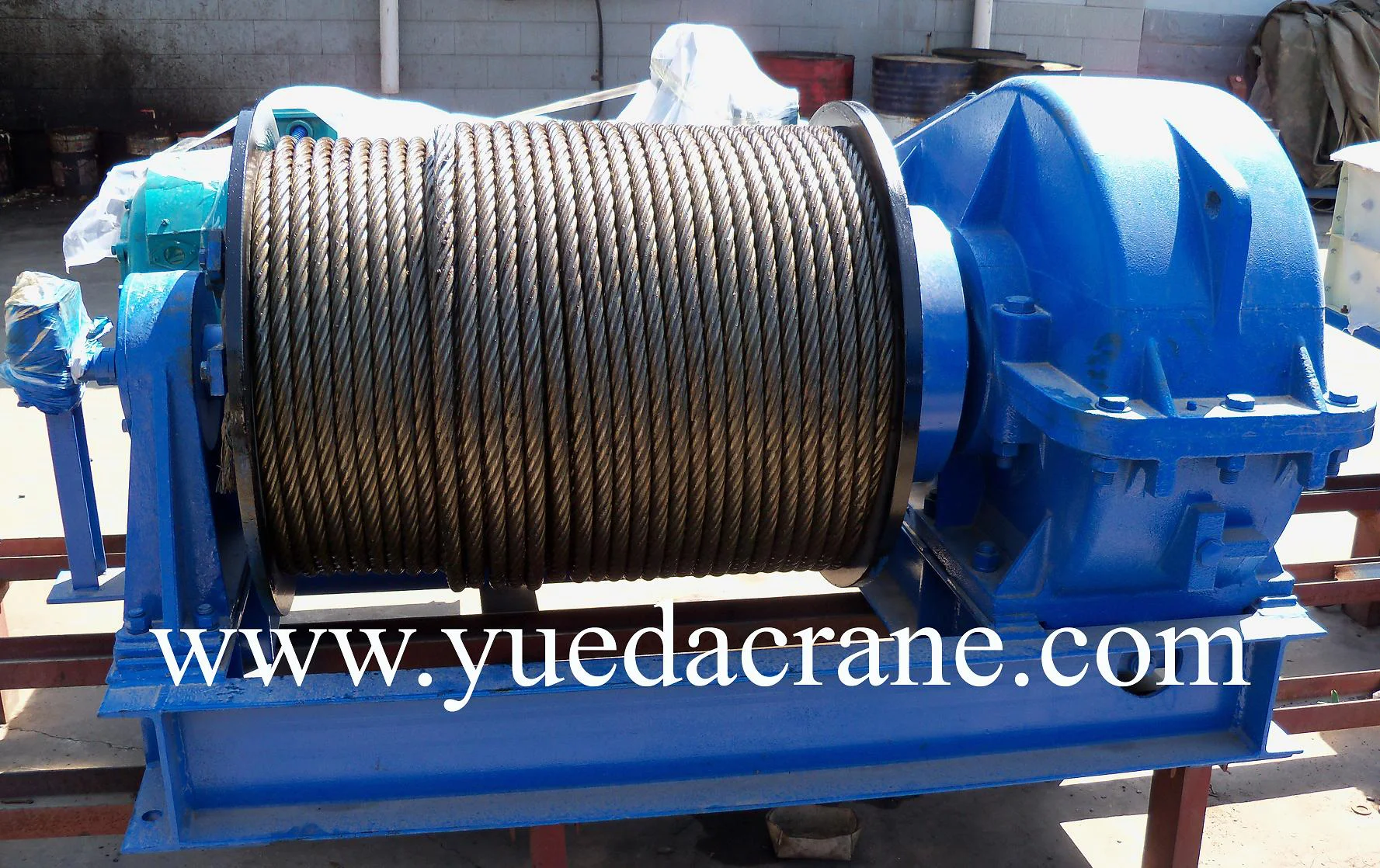

The rope drum of crane used portable electric winch:

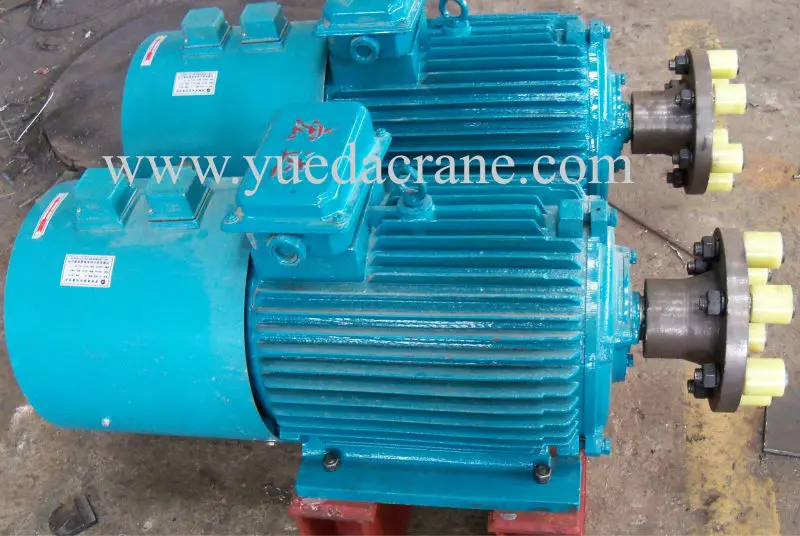

The driven motor of electric winch

The double brake system of winch:

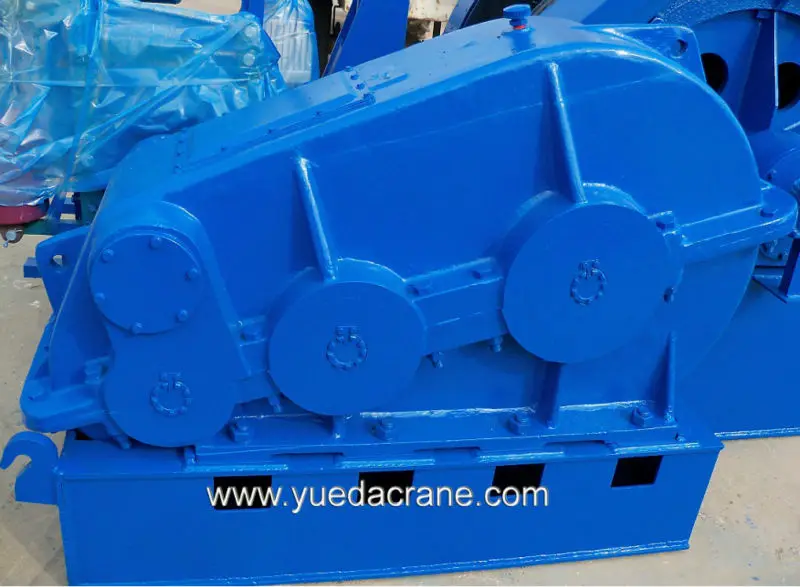

The speed reducer of winch:

The examination and test of winch :

Specification

Model	Speed of rope (m/min)	Max. rope length (m)	Rope diameter (mm)	Motor’s power (kw)
JM1T	15	100	Φ9.3	3
JM2T	16	150	Φ13	7.5
JM3.2T	9.5	150	Φ15.5	7.5
JM5T	10	270	Φ21.5	11
JM6T	9.5	270	Φ24	15
JM8T	8	250	Φ26	15
JM10T	8	170	Φ30	22
JM16T	10	500	Φ37	37
JM20T	10	600	Φ43	45
JM25T	9	700	Φ48	55
JM32T	9	700	Φ56	75
JM50T	9	800	Φ65	90
JM65T	10.5	3600	Φ64	160

Model	Speed of rope (m/min)	Max. rope length (m)	Rope diameter (mm)	Motor’s power (kw)
JK0.5	22	190	Φ7.7	3
JK1	22	100	Φ9.3	4
JK1.6	24	150	Φ12.5	5.5
JK2	24	150	Φ13	7.5
JK3.2	25	290	Φ15.5	15
JK3.2B	30	250	Φ15.5	22
JK5	30	300	Φ21.5	30
JK5B	25	210	Φ21.5	22
JK8	25	160	Φ26	45
JK10	30	300	Φ30	55

Company Profile

Xinxiang Yuedacrane Co.,Ltd was founded in 2009.There are more than 500 experienced engineers, technicians,workers and sales staff.As a company with rich practical experience,we committed to gantry crane, bridge crane, electric winch, electric hoist ,jib crane production and sales of more than ten years.To provide customers with the best solutions and services is our biggest goal.

Customer Case

Packing & Delivery

Packing details

1.Standard sea packaging suitable for long distance transportation.

2.The products are packed in strong wooden cases.

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 20-30 days . It is according to quantity and size.
Q: How can I get accurate quotation.
A: Please tell us the crane's Span, working condition , temperature, Load capacity , Lifting height, meterial and so on. The more
detailed the better.
Q: What is your terms of payment ?
A: 40% T/T in advance ,balance before shippment or L/C at sight.

Service

1) Pre-sale service:
Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sale service:
Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process
of export.
3) After-sale service:
14 months warranty from the date of B/L
One year quick-wear parts for free
Professional technicians provide installation, commissioning services
Technical advisory for any time
