Soft shell 1.3 ATA hyperbaric oxygen chamber for helping lose weight, beauty machine
- Category: Oxygen Jet >>>
- Supplier: Shanghai,Baobang,Medical,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

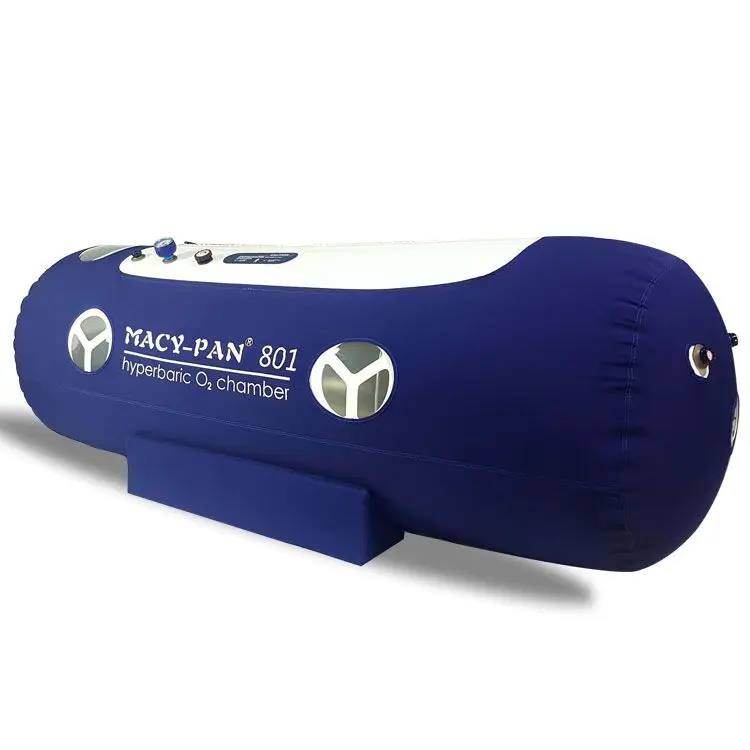

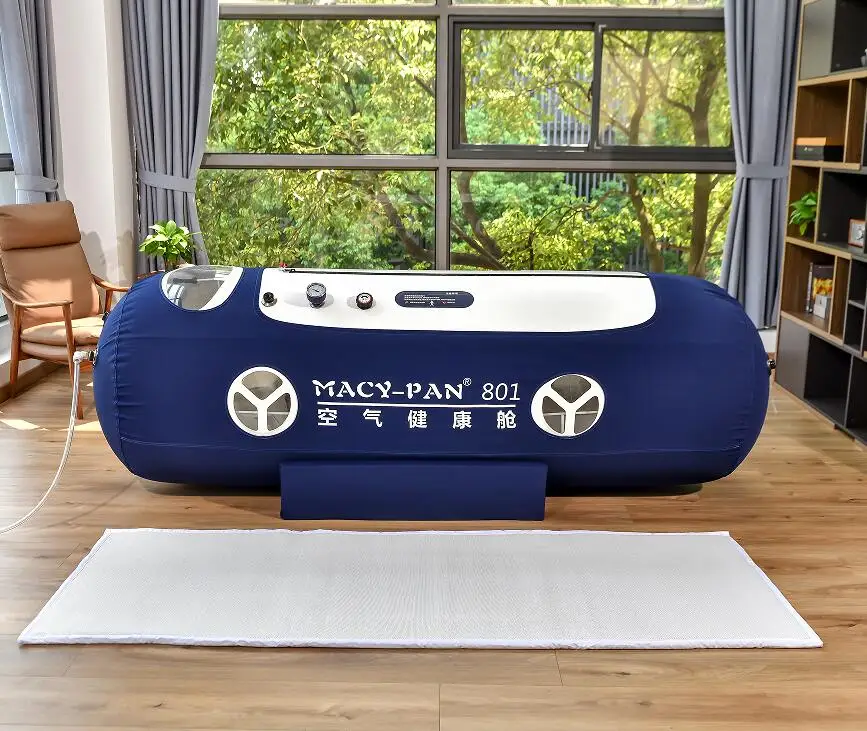

1.3ATA Portable Hyperbaric Oxygen Chamber

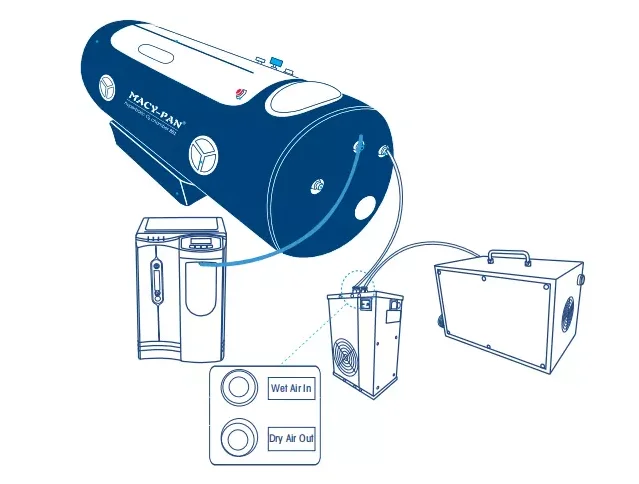

1.System Include:
Chamber capsule, Oil free air compressor, internal metal frame, mattress, muffler, internal pressure gauge, oxygen breathing headset, air&oxygen hose, spare air filters
2. Portable Hyperbaric Chamber description
Portable Hyperbaric Chambers deliver oxygen at a safe and effective 1.3 ATA. With external and internal gauges, it's easy to see what pressure the chamber is operating at. All of chambers have 3 emergency exits that can be controlled by the user inside the chamber to safely exit the chamber quickly. Our two efficient compressors deliver 120L of air per minute into the chamber.
All of our chambers are manufactured using the finest engineering. The chamber itself is made of medical grade thermoplastic polyurethane and the joints are heat welded to ensure the safety of the user in the chamber.
Detailed Images
High-strength TPU material
High-strength TPU material, thermoplastic polyurethane with a wide hardness range (60A-85D).
1.TPU plastic material has excellent wear resistance and is more than five times more resistant to natural rubber. It is one of the preferred materials for wear-resistant products.
2. TPU has good oxidation resistance; in general, TPU temperature resistance can reach 120 °C.
3. TPU has good water resistance under turbidity, and no obvious hydrolysis will occur within 1 to 2 years.
4. TPU has excellent biocompatibility, non-toxicity, no allergic reaction, no local irritation, no pyrogenicity.
YKK brand zipper
The chamber uses the Japanese imported YKK brand zipper, the zippers use Japan's precise technology, raw materials and management methods. after testing, the number of zippers can reach 10000 times. Double zipper design enhances airtightness and adds an extra layer of protection to the chamber.

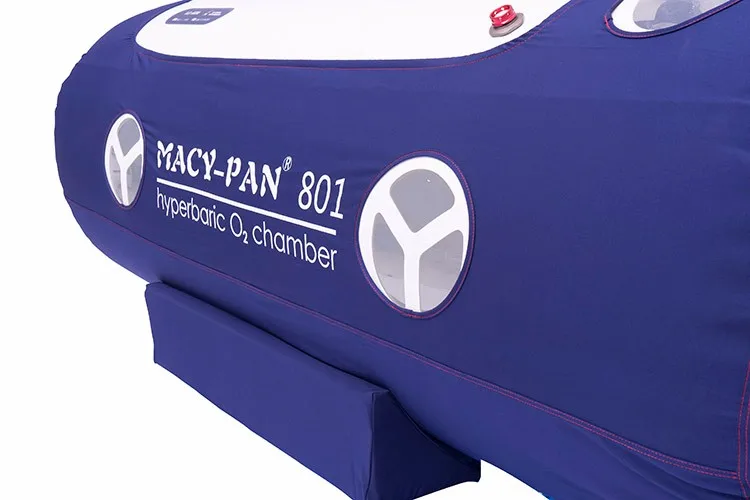

The anti-roller
The anti-roll sponge has excellent elasticity, good resilience and no deformation. The increase in anti-roll
ensures the stability of the chamber during operation.
There are two kinds of anti-roll lengths at the bottom of the chamber, one is 90cm in length and the other is 45cm, which meets the different needs of customers.

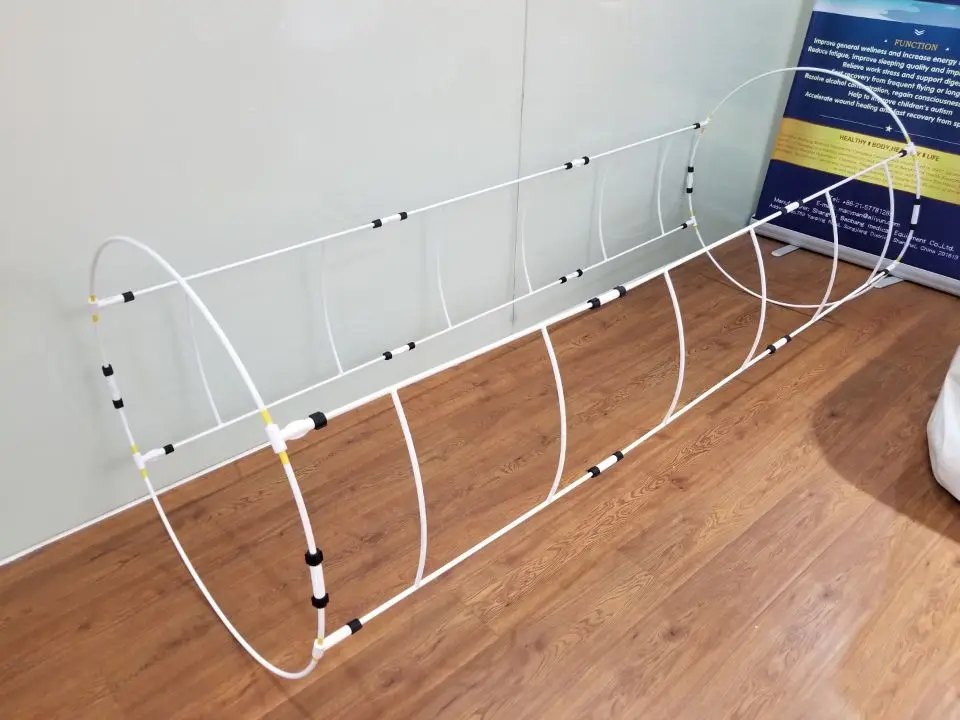

Metal Frame
MACY-PAN portable hyperbaric oxygen Chamber comes with an internal metal frame to support the chamber when not in use.
The frame pieces come with the chamber box, and are connected with high strength plastic connectors. We will send spare connectors.

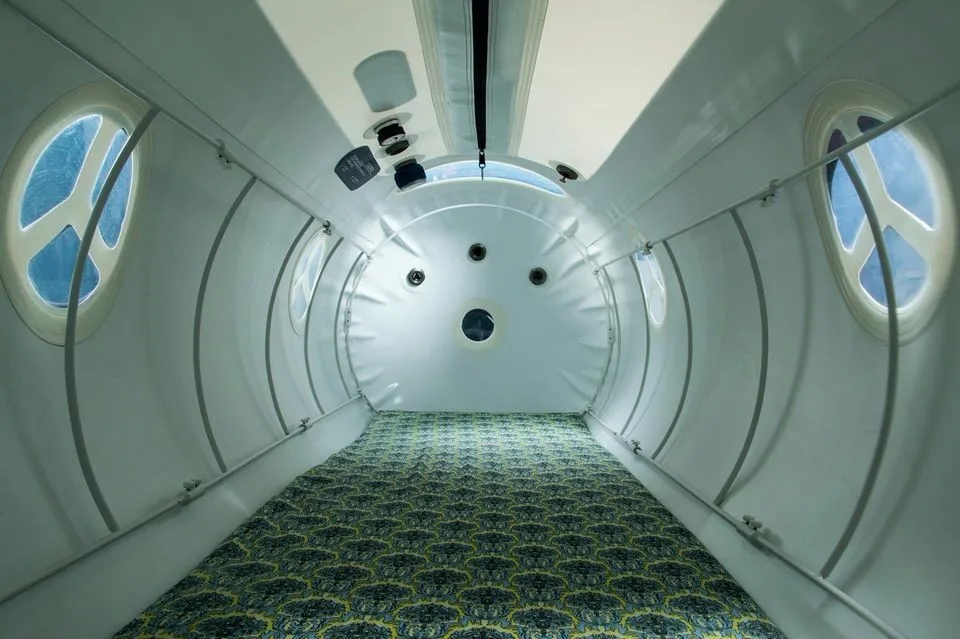

7 large viewing windows
There are 7 large viewing windows,people from inside can clearly see outside,vise versa.Effectively help patients with claustrophobia overcome fear.
Material: transparent TPU
Performance: high tensile strength, high transparency. Excellent wear resistance, excellent ozone resistance, high hardness, high strength, good elasticity, low temperature resistance, good oil resistance, chemical resistance and environmental resistance.
Sealing strip
Material: medical silicone
*Good sealing performance, high temperature and weather resistance, anti-aging and anti-strike, shockproof and waterproof, can fit all kinds of smooth surface materials
*Heat resistance: Silicone rubber has much better heat resistance than ordinary rubber, and can be used almost at 150 degrees without performance change.
*Anti-aging, corrosion resistant, very inert
* Good surface layer is not sticky. Good gas permeability
Silencer filter cotton
Material: The outer casing is made of ABS material grid. The inner core is activated carbon filter cotton + activated carbon fiber felt.
Performance:
* Effectively filter dust, odor and organic pollutants in the air;
*Large specific surface area, developed pores and high adsorption performance;
*Remove dust, paint mist, odor, and volatile organic solvent pollutants such as benzene and formaldehyde;
*can be made into filter bags, plate filters;

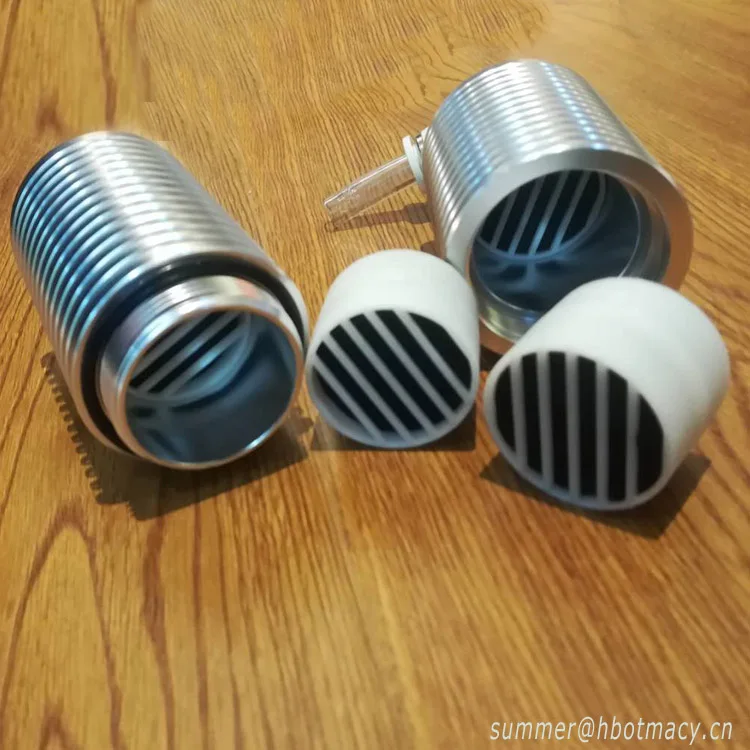

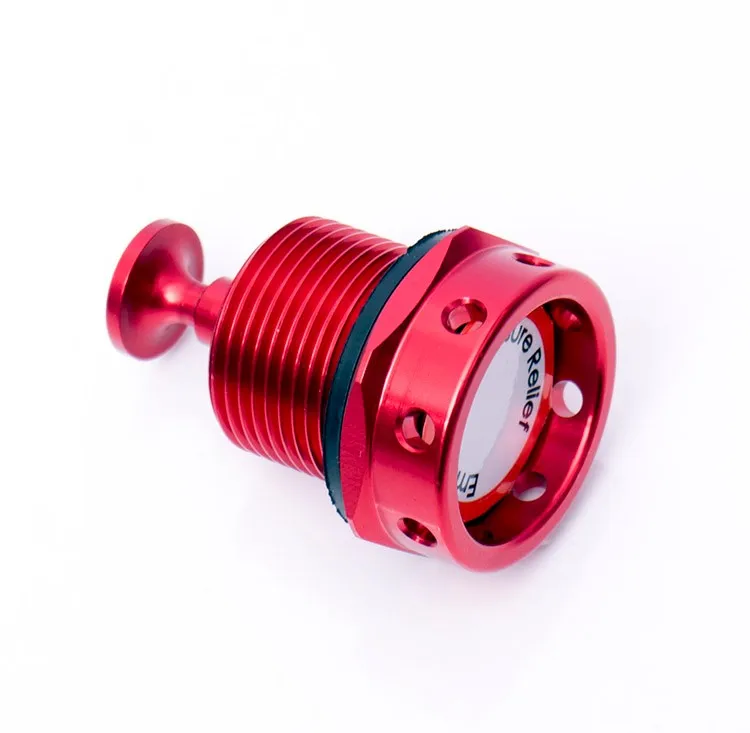

Automatic pressure Relief valve and Emergency pressure relief valve
Material: aluminum 6063 ,surface oxidation treatment
The automatic pressure valve is used as the pressure pilot valve of the main valve in the automatic control system. When the pressure in the chamber is higher than the constant value of the constant pressure valve, the valve port is opened until it is fully open, and the pressure in the chamber is balanced to increase the gas circulation in the chamber.
the design of Emergency air deflate valve,in case of emergency,the user can press this valve to depressurize the chamber quickly, then open the zipper s and get out in a short time.
Benefits

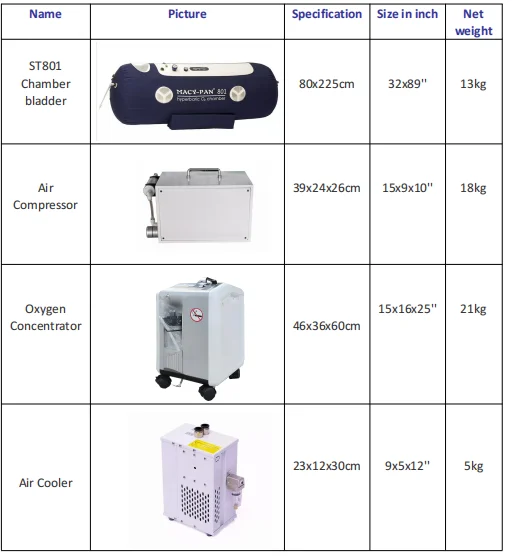

Packing & Delivery
Our Company
Shanghai Baobang Medical Equipment Co.,Ltd
Shanghai Baobang Medical Equipment Co.,Ltd is located in Shanghai, China and is specialized in manufacturing soft type and hard type hyperbaric chambers, as well as chamber for pets.
The company works under ISO13485, that represents the requiremetns for a comprehensive quality management system for the design and manufacture of this product.
With an experienced and professional team, we have exported our products to over 80 countries and regions all over the world, especially Japan, Australia and USA.Our products enjoy high reputation among our customers.
The basic business policy of the company has always meant a very high standard, reliable and high quality service.

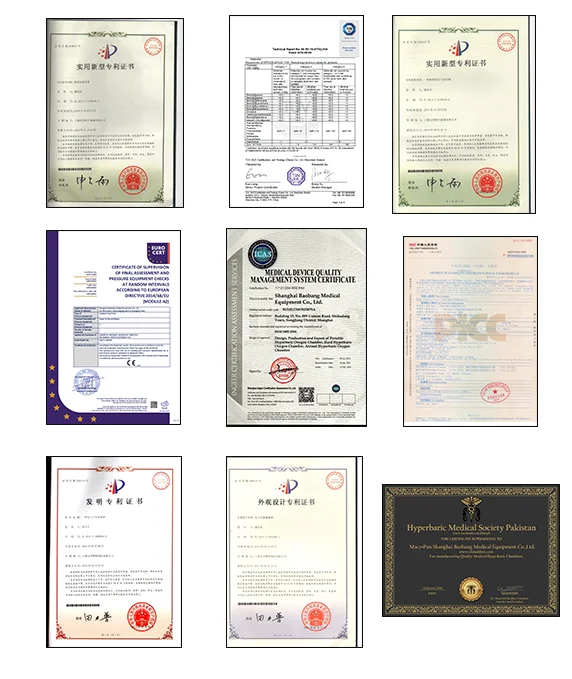

Certifications
Customer show
For children
For beauty and sport
FAQ
Q: During the treatment, is it necessary or recommended to use a mask for oxygen?
A:Whether you need to wear an oxygen mask depends on your purpose. If it is to treat the patient, it will definitely need more pure oxygen, and the effect will be better. If you only need to wear a mask for wellness and improve quality of life.
Q: Where is closest service?
A:After-sales service, you can find us directly, we provide online services. We will provide instructional videos to guide customers on how to solve problems and send necessary repair parts if needed.
Q: When ordering a set, is it possible to get a stronger oxygen concentrator, with max output of at least 10 lpm?
A: The chamber regular setting is 5L/min, can be upgraded to 10L/min
Q: And just to be sure: all your equipment is CE certified?
A: Yes, all CE APPROVED (non-medical) We have many customers in Europe, including the UK, Poland, Spain, Russia.
Q: How long is warranty on specific parts ?
A: The warranty is for one year. During the warranty period, if the chamber is damaged, we will send you a new one.
Q: If we will do a lease then we will need few of them. What is a cost of annual replaces per unit?
A:these things aren't expensive, if you want more i can send more to you along with the chamber package. After the warranty we can still supply you parts.
