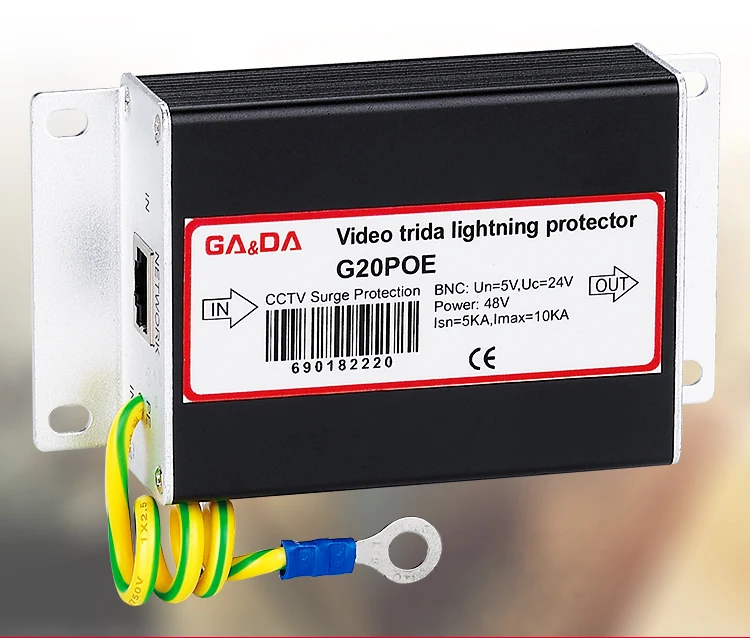

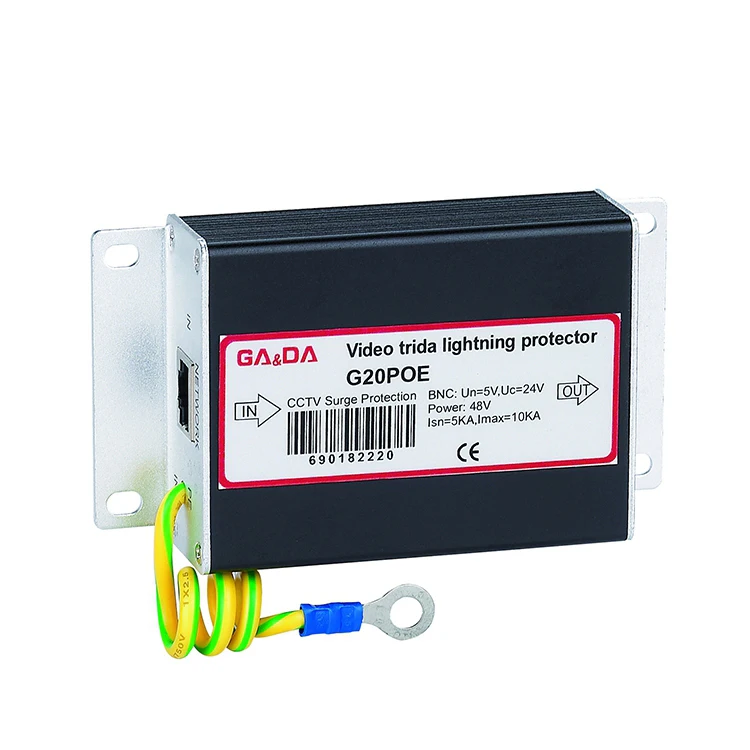

POE Ethernet Lightning Protection Device Power/Network Integrated Surge Protector
- Category: >>>
- Supplier: Gandian Lightning Protection Electric Co. Ltd.
Share on (1600658552192):
Product Overview
Description
Product Categories
| Professional surge protective device factory here now. OEM and ODM One-stop service Customized, happy send sample to you confirm quality |
Product Description
G20POE is suitable for lightning protections for over five types of Ethernet cable powered network devices, for the interface is installed between the lightning protection area of LPZ1-LPZ3, with two levels of protection function, ensure that the damage of over voltage and over current network equipment from lightning, industrial interference caused by lightning protection, wireless bridge, network cameras and other network equipment widely used in the power supply of the Ethernet cable.
Congratulations you found us a professional factory. Contact us directly: Contact Supplier About product details as follow: | |||
Product capability parameter | |||
Product model | G20POE | ||
Signal | Rated working voltage UN(DC)V | 5 | |
Maximum continuous working voltage Uc(Dc)v | 8 | ||
Nominal discharge current In(8/20)kA | 3 | ||
Maximum discharge current Imax(8/20)kA | 5 | ||
Impact protection voltage(1kV/us)F | Line-line | ≤60 | |
Line-ground | ≤500 | ||
Transmission speed | 100M bps | ||
Insertion loss | 0.5dB | ||
Protective line | 1,2,3,6 | ||
Power | Rated working voltage UN(DC)V | 48 | |
Maximum continuous working voltage Uc(Dc)v | 60 | ||
Nominal discharge current In(8/20)kA | 3 | ||
Maximum discharge current Imax(8/20)kA | 5 | ||
Voltage protection level Up V | Line-line | ≤60 | |
Line-ground | ≤500 | ||
Protective line | 4,5,7,8 | ||
Sheathing material | Aluminium alloy | ||
Almost all the parts of product are produced by our own work, better quality control, competitivly price, timely deliver. We are the factory! we are the source! | |||
lt is the product you are looking for, and click to send an inquiry!
As a factory supplier profit / Assurance for you | our products profit for you |
1. 100% Product quality protection | 1.Best design for you winner market |
2. 100% On-time shipment protection | 2.More than 10 years' manufacture for surge protector |
3. 100% Payment protection | 3 .more than 10+ years for export experience |
4.100% inspection before shipment | 4.All products passed CE,CB,Rohs,Tuv |
5. Most Popular "surge protector" factory | 5.One -stop service expariene more than 10+ years. |
Welcome to contact us for Inquiry & order | |
Certifications

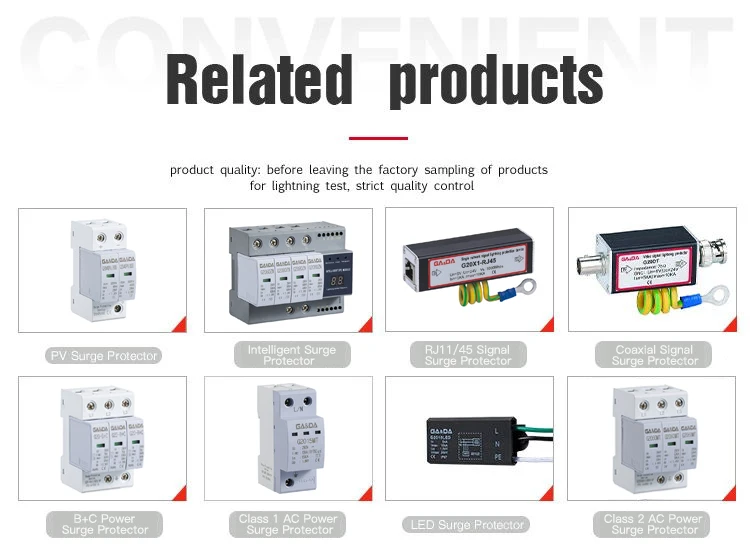

Related Products
Company Profile
FAQ
Q1: Selection of surge protector
Al: The grading of the surge protector (commonly known as lightning protection) Is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition.Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, the minimum requirement of GB50057 is 12.5 ka (10/350), and the second and third levels are installed between the 1-2 and 2-3 zones, mainly
to suppress the overvoltage.
Q2:Are you a lightning surge protectors factory or lightning surge protectors trading compan?
A2: We are lightning surge protectors manufacturer.
Q3: Warranty and return:
A3:1. lightning surge protectors products and accessories have been tested by 3 times before ship out.
2.We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q4: How can I get some lightning surge protectors samples?
A4: We are honored to offer you lightning surge protectors samples, pis contact our staff and leave detailed contact information, we promise to keep your information confidential.
Q5: Is sample available and free?
AS: Sample is avaible, but the sample cost should be pay by you.The cost of sample will be refund after further order.PV type Solar spd device surge arrester equipment 2pole pv spd
Q6:Do you accept customized order?
A6:Yes, we do.
Q7: What's the delievery time?
A7:It usually takes 7-15days after confirming payment, but specific time should be based on the order quantity.
