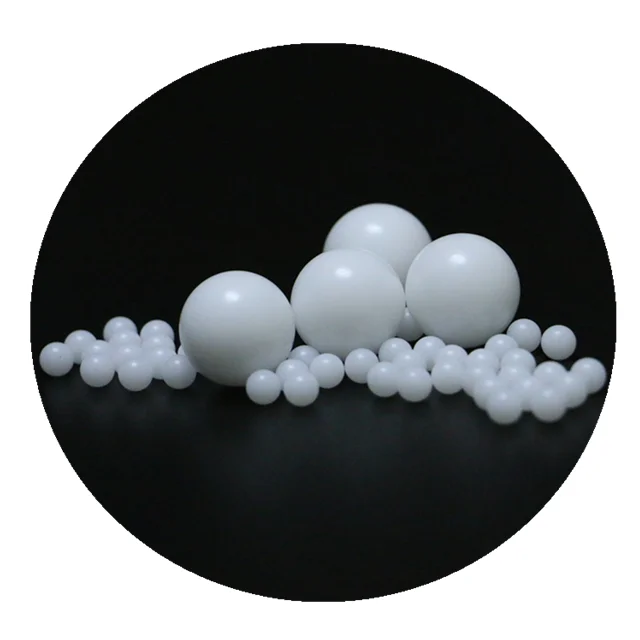

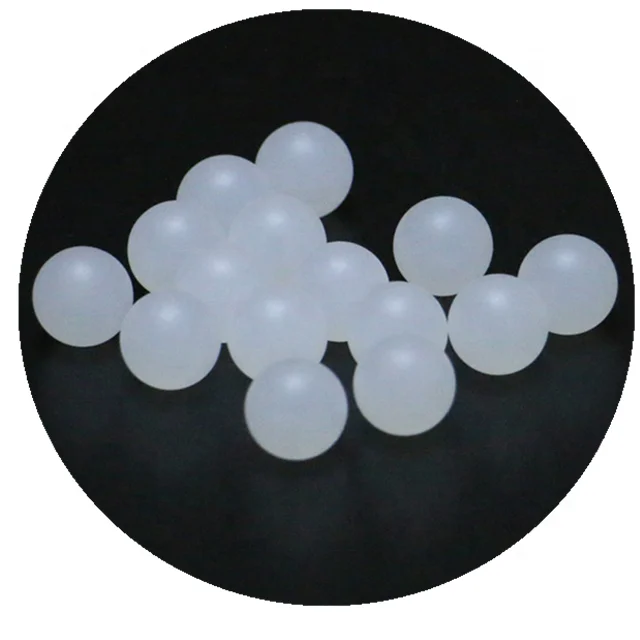

best selling 1.588mm 2mm 2.5mm 3mm 3.5mm 4.5mm 5mm 5.5mm 5.556mm small white plastic ball
- Category: >>>
- Supplier: Ningyang Xinxin Stainless Steel Ball Manufacture Co. Ltd.
Share on (1600658596060):
Product Overview
Description
Product Description
The size we can produce
0.8mm 1mm 1.2mm 1.3mm 1.4mm 1.5mm 1.588mm 2mm 2.381mm 2.5mm 2.8mm 3mm 3.175mm 3.969mm 4mm 4.5mm 4.763mm 5mm 6mm 6.35mm 7mm 8mm 8.731mm 9mm 9.85mm 10mm 11mm 11.1125mm 12mm 14mm 15mm 15.875mm 20mm 25mm 25.4mm 30mm 31.75mm 33.33mm 35mm 38.1mm 40mm 45mm ..........100mm
Product name | POM PP PA6 PTFE hard 20mm plastic ball 25mm |
Material | PP ball,POM ball,PA66 ball,PTFE ball |
Size | 0.8mm-100mm |
Tolerance | +/-0.0127mm, +/-0.0254mm, +/-0.0508mm, +/-0.127mm |

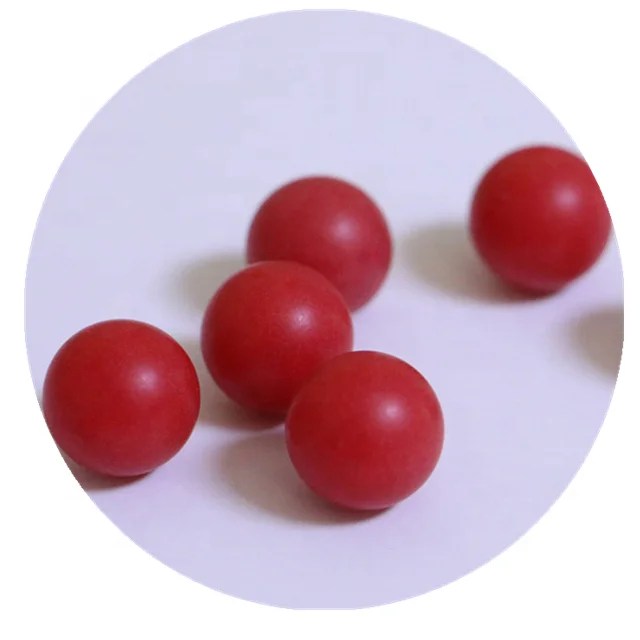

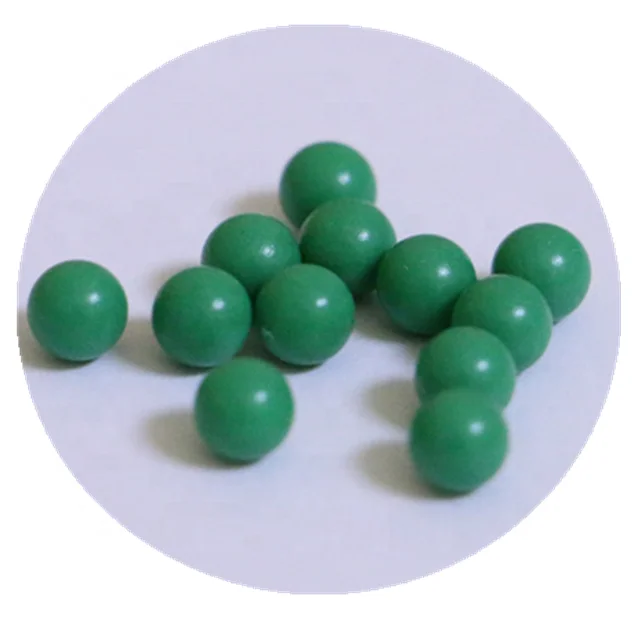

Color | white, black ,colorful |
Type | solid/hollow |

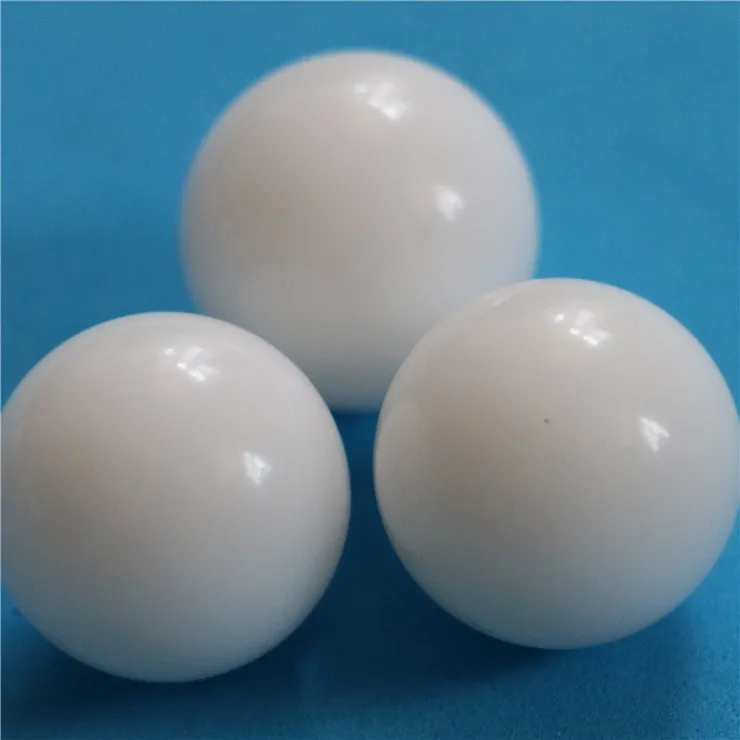

Delrin/POM Solid Plastic Ball
Delrin/POM Plastic Balls: Delrin is the name commonly used for the less commonly known polyoxymethylene (POM) acetal plastic. It
has high mechanical strength and rigidity, is tough and tolerant to repeated impacts and has a good long term fatigue endurance.
It has excellent resistance to petroleum based solvents, moisture and other neutral chemicals. Its has good electrical insulating
properties and self lubricates in use. It can be operated within a wide operating temperature range up to 150℃.
Note: There are many factors which may influence the performance of this product, temperature, chemical exposure etc. - always
test for your own application before selecting large quantities of this product.
has high mechanical strength and rigidity, is tough and tolerant to repeated impacts and has a good long term fatigue endurance.
It has excellent resistance to petroleum based solvents, moisture and other neutral chemicals. Its has good electrical insulating
properties and self lubricates in use. It can be operated within a wide operating temperature range up to 150℃.
Note: There are many factors which may influence the performance of this product, temperature, chemical exposure etc. - always
test for your own application before selecting large quantities of this product.
PP Polypropylene Plastic ball
Polypropylene is a light weight (floats in water), inexpensive thermoplastic capable of an endless array of light load
applications. It's tough and flexible with good chemical resistance as well as resistance to fatigue and impact. It can degrade
with long exposures to sunlight but UV absorbing additives or carbon black colorant can be added to improve resistance.
Polypropylene is common in medical or laboratory use as it can withstand heat in an autoclave. It's resistant to most solvents and
glues but can be joined with a two part epoxy or hot-glue gun with proper surface preparation. Polypropylene can be recycled and has a resin identification code of "5". Common uses include: packaging, reusable containers, automotive components, light load
bearings and ball valves.
applications. It's tough and flexible with good chemical resistance as well as resistance to fatigue and impact. It can degrade
with long exposures to sunlight but UV absorbing additives or carbon black colorant can be added to improve resistance.
Polypropylene is common in medical or laboratory use as it can withstand heat in an autoclave. It's resistant to most solvents and
glues but can be joined with a two part epoxy or hot-glue gun with proper surface preparation. Polypropylene can be recycled and has a resin identification code of "5". Common uses include: packaging, reusable containers, automotive components, light load
bearings and ball valves.
Nylon(PA, PA66) Plastic ball
Nylon, also known as Polyamide, has high tensile strength, good abrasion and impact resistance and is widely used in many domestic and industrial products. Having a higher melting temperature than other conventional plastics it can be used when added heat resistance is necessary. It offers good chemical resistance to common chemicals, alkalies, weak acids and is compatible with motor oil, transmission fluid, and methanol. Common uses include: screws, gears, knobs, and other low stress industrial applications formally made in metal.
PTFE (Polytetrafluoroethylene) Plastic Balls
Polytetrafluoroethylene is a high molecular weight compound consisting of carbon and fluorine. It is dense and has an extremely
low coefficient of friction. It has excellent dielectric and chemical resistant properties along with a much higher melting
temperature than most other conventional plastics making it ideal for high heat applications. However it is relatively soft and as a result has low mechanical properties compared to other industrial type plastic materials. Common uses include: non-stick
coatings, gears, slide plates, bearings and ball valves.
low coefficient of friction. It has excellent dielectric and chemical resistant properties along with a much higher melting
temperature than most other conventional plastics making it ideal for high heat applications. However it is relatively soft and as a result has low mechanical properties compared to other industrial type plastic materials. Common uses include: non-stick
coatings, gears, slide plates, bearings and ball valves.
Grade | Tolerance range of diameter(mm) | The tolerance range of roundness(mm) |
G0 | +/-0.0127 | 0.00635 |
G1 | +/-0.0254 | 0.0127 |
G2 | +/-0.0508 | 0.0254 |
G3 | +/-0.127 | 0.127 |
Product | PP plastic ball Polypropylene | POM plastic ball Delrin | PA66 Plastic ball Nylon | PTFE plastic ball Polytetrafluoro ethylene |
Size | 2mm-100mm | 0.8mm-100mm | 2.381mm-100mm | 1mm-80mm |
Material | Polypropylene balls | Delrin, POM balls | Nylon Balls | Teflon Balls-PTFE |
Grade | G0-G3 (±0.01-0.05mm) | G0-G3 (±0.01-0.05mm) | G0-G3 (±0.01-0.05mm) | G0-G3 (±0.01-0.05mm) |
Type | Solid/Hollow | Solid | Solid | Solid |
Density | Around: 0.85g/cm3 | Around:1.4g/cm3 | Around:1.1g/cm3 | Around: 2.15-2.26g/cm3 |
Feature | Has good resistance, chemical resistance, low density (density less than water), low water absorption, the highest melting point of the thermoplastic with excellent electrical insulator and low dielectric coefficient, often used for floating capacity requirements, withblood transfusion, level calibration indicator. It has a high resistance to chemical substances, such as acid, alkali, alcohol, many inorganic substances, salt solutions, solvents, gasoline, water, oil, grease, cleaning agents, fruit juices, milk and the like, but not resistant to aromatic carbon hydrogen compounds and chlorate. | it is similar to nylon, but slightly harder than nylon, slightly larger than the density recommended products applied to the required low water absorption | The nylon has preferably the alkali metal, to adapt to the neutral characteristics of petroleum products and all kinds of chemical products. | It have excellent chemical stability, resistance to corrosion, sealing, high lubricity non-tackiness, electrical insulation and good anti-aging Stamina. Continuous use temperature range of -180 ° C to 250 ° C. PTFE (Teflon ®), ball so excellent frictionless known to most corrosive resistant possessed electrically insulating material |
Application | Packaging, reusable containers, automotive components, light load bearings, ball valves, transfusion, level calibration indicator. | POM ball table, drawer slide device, bearings, rollers, valves, electronic apparatus, sailing apparatus. | Used in check valve, light load, the knob pull switch, low-cost, but also for better flexibility requirements, high hardness aspects | Particularly suitable for use in cryogenic liquids and acids under the conditions of the instrument.Non-stick coatings, gears, slide plates, bearings and ball valves. |
Exhibiton

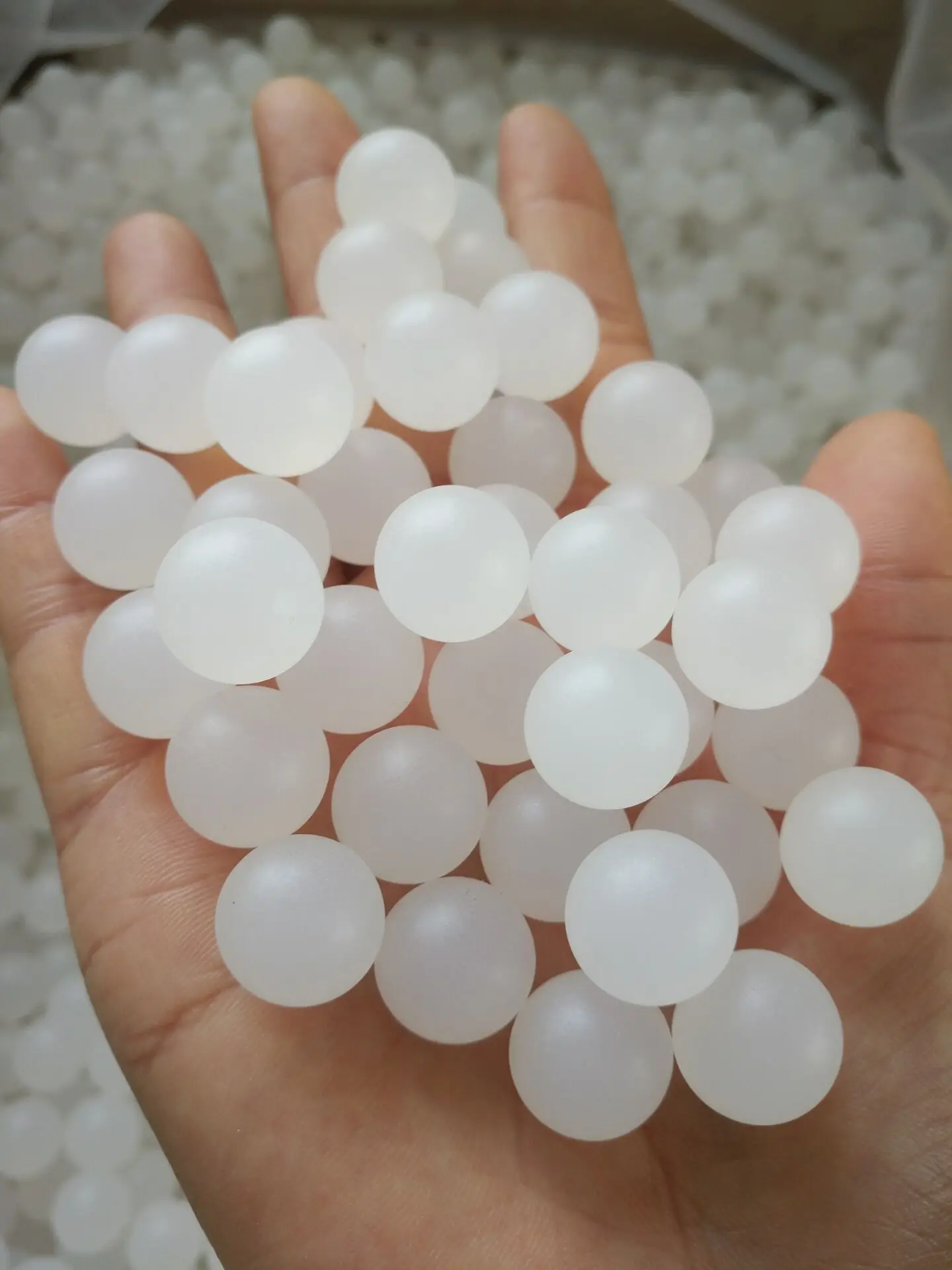

Solid PP plastic ball Polypropylene

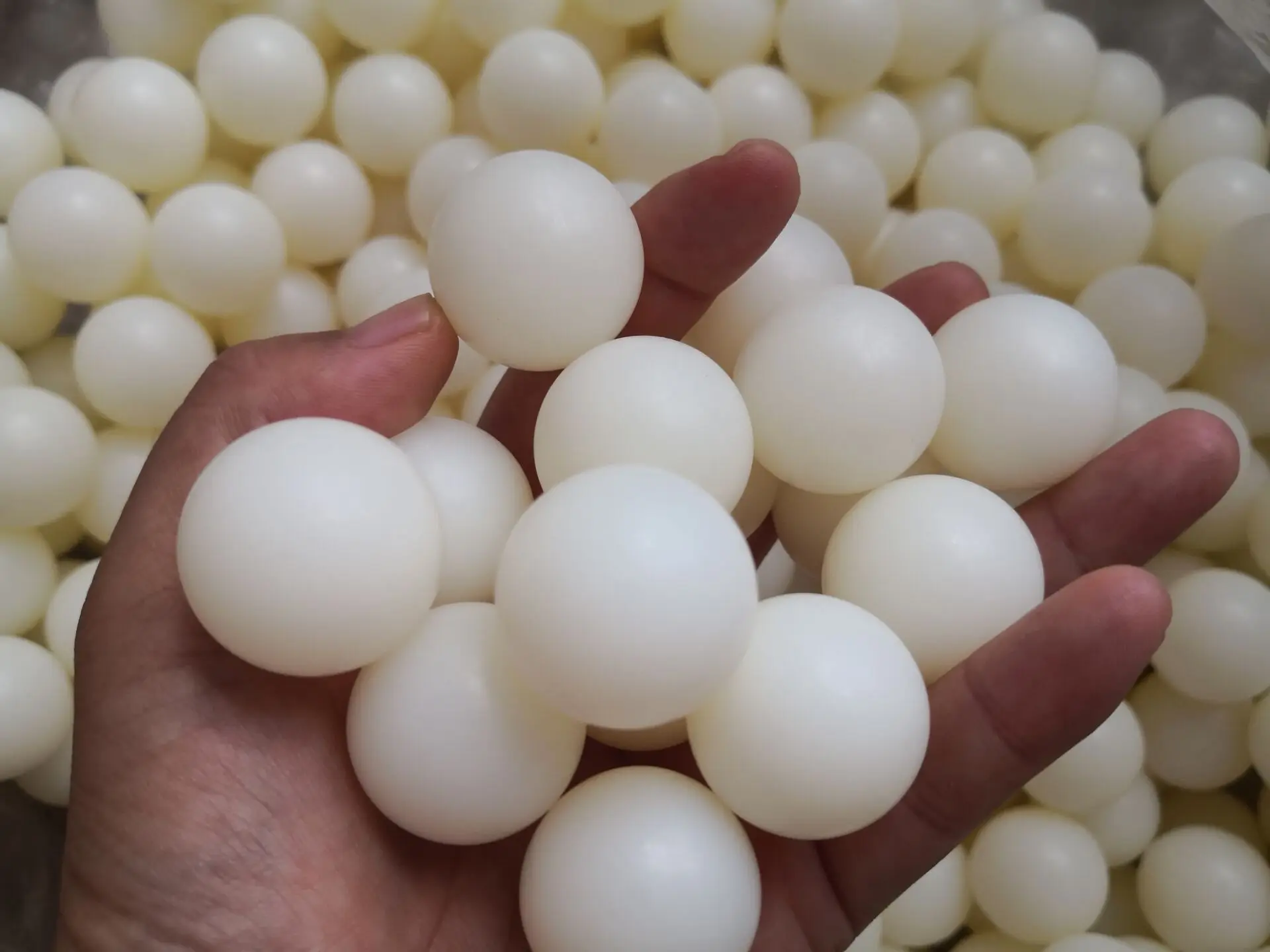

1mm POM plastic ball

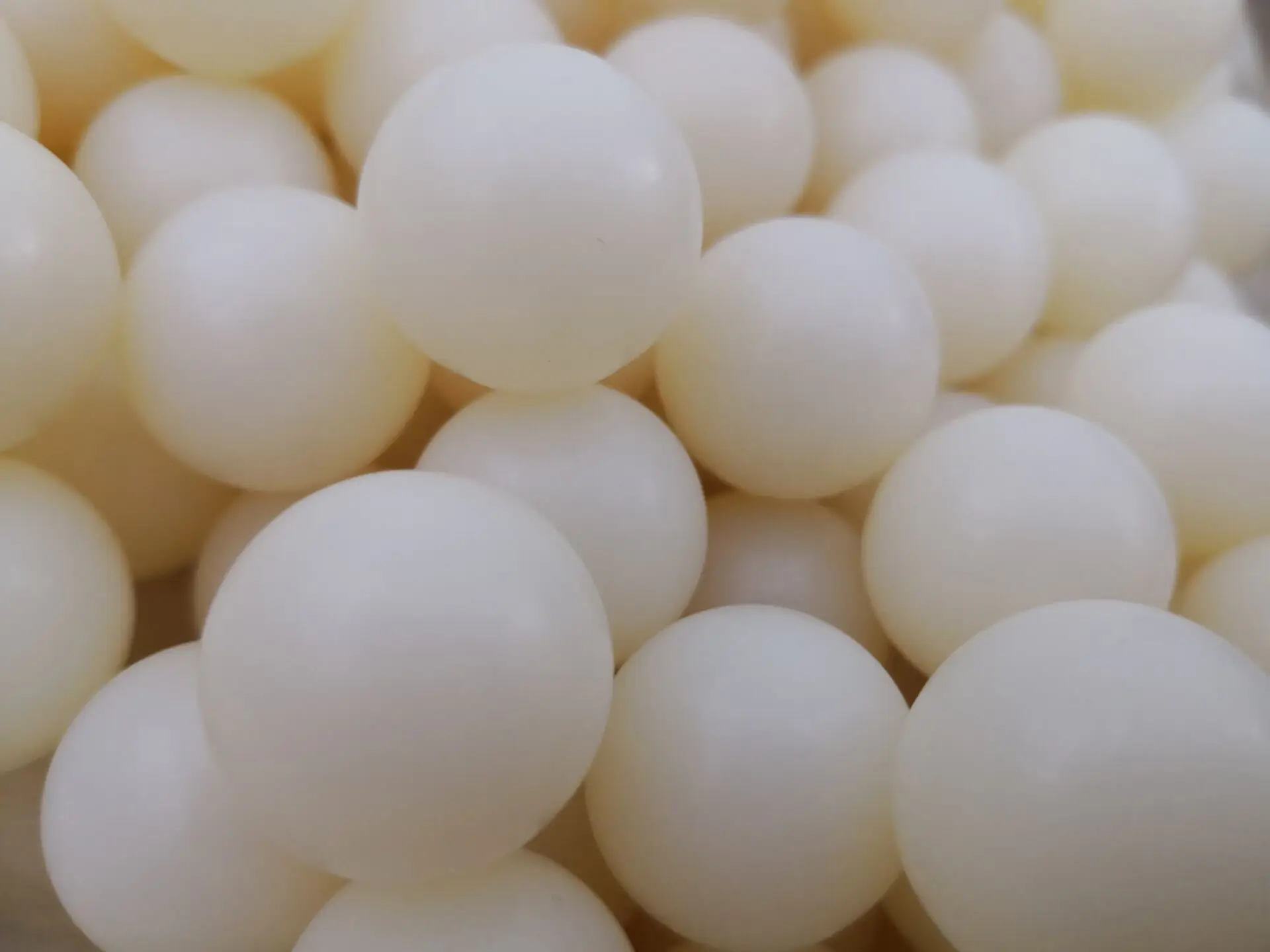

POM(DELRIN )Balls

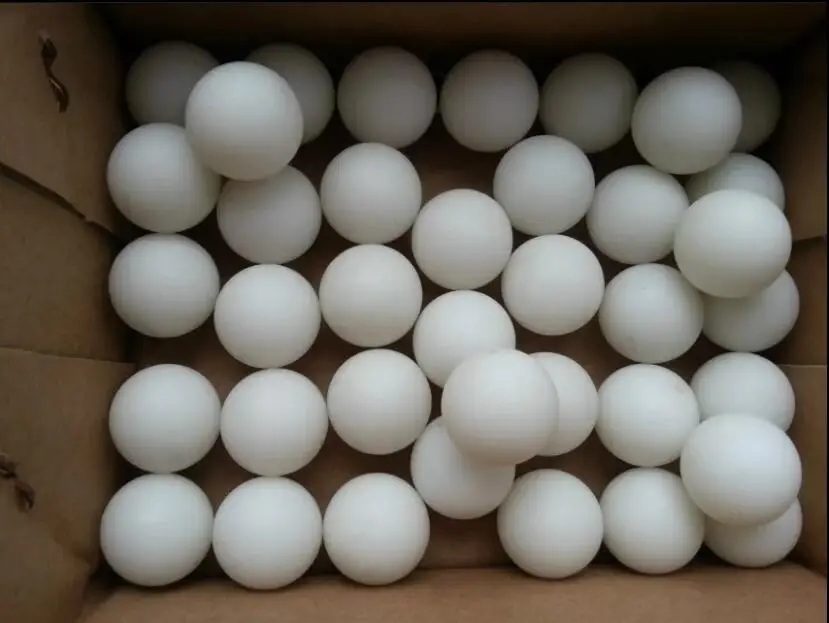

PA66( Nylon) Ball Teflon Balls-PTFE
Application
PP plastic ball Polypropylene | POM plastic ball Delrin | PA66 Plastic ball Nylon | PTFE plastic ball Polytetrafluoro ethylene |
Used for cosmetic beads, used for liquid level calibration indicator, medium oil or acid alkaline liquid | Table and drawer sliding devices, bearings, rollers, valves and electronics, sailing, etc | For check valve, light load bearing, knob, pull switch, good elasticity, high hardness device | Mainly used in cryogenic liquid and acid - base conditions of instruments |
Company Information
Ningyang Xinxin Stainless Steel Ball Manufacture Co.,Ltd is One of famous and professional stainless steel ball factory from china .
We have two professional factory to produce steel ball ,one is in Shandong province(5000 square meters),other one is in Henan
province (10000 square meters ) .
We have two professional factory to produce steel ball ,one is in Shandong province(5000 square meters),other one is in Henan
province (10000 square meters ) .
We have a professional high precision solid POM ,PP ,PA,PA66,PTFE plastic ball factory , the smallest size of 0.8mm 1mm POM plastic
ball our factory are able to produce now .
POM size :0.8mm-100mm
PP Size: 2mm-100mm
PA Size: 3.175mm-100mm
PA66 Size: 3.175mm-100mm
PTFE Size: 1mm-300mm
Grade:G0-G3 (0.01MM-0.05MM)
Certificate:ROHS,REACH,SGS .
ball our factory are able to produce now .
POM size :0.8mm-100mm
PP Size: 2mm-100mm
PA Size: 3.175mm-100mm
PA66 Size: 3.175mm-100mm
PTFE Size: 1mm-300mm
Grade:G0-G3 (0.01MM-0.05MM)
Certificate:ROHS,REACH,SGS .

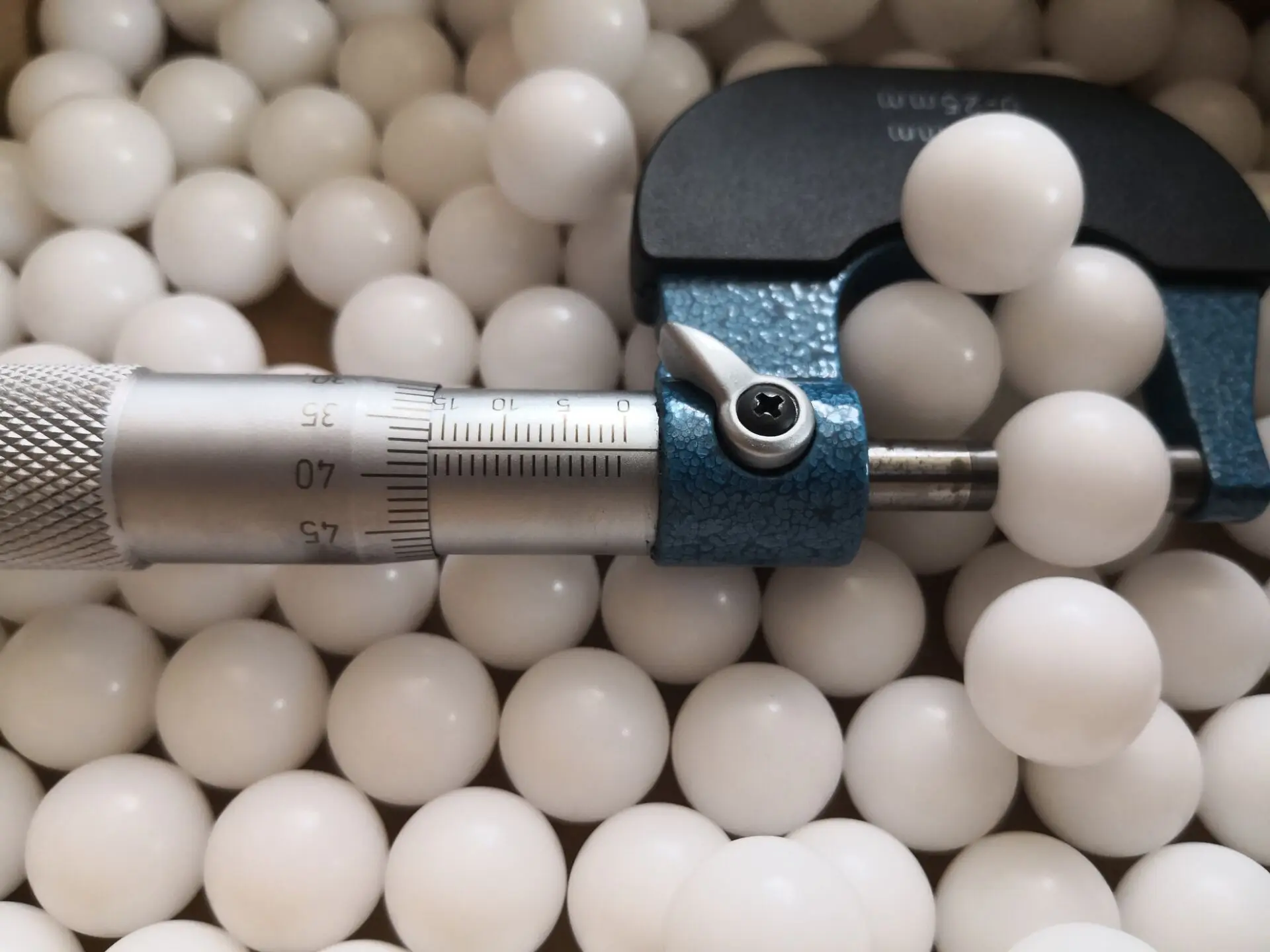

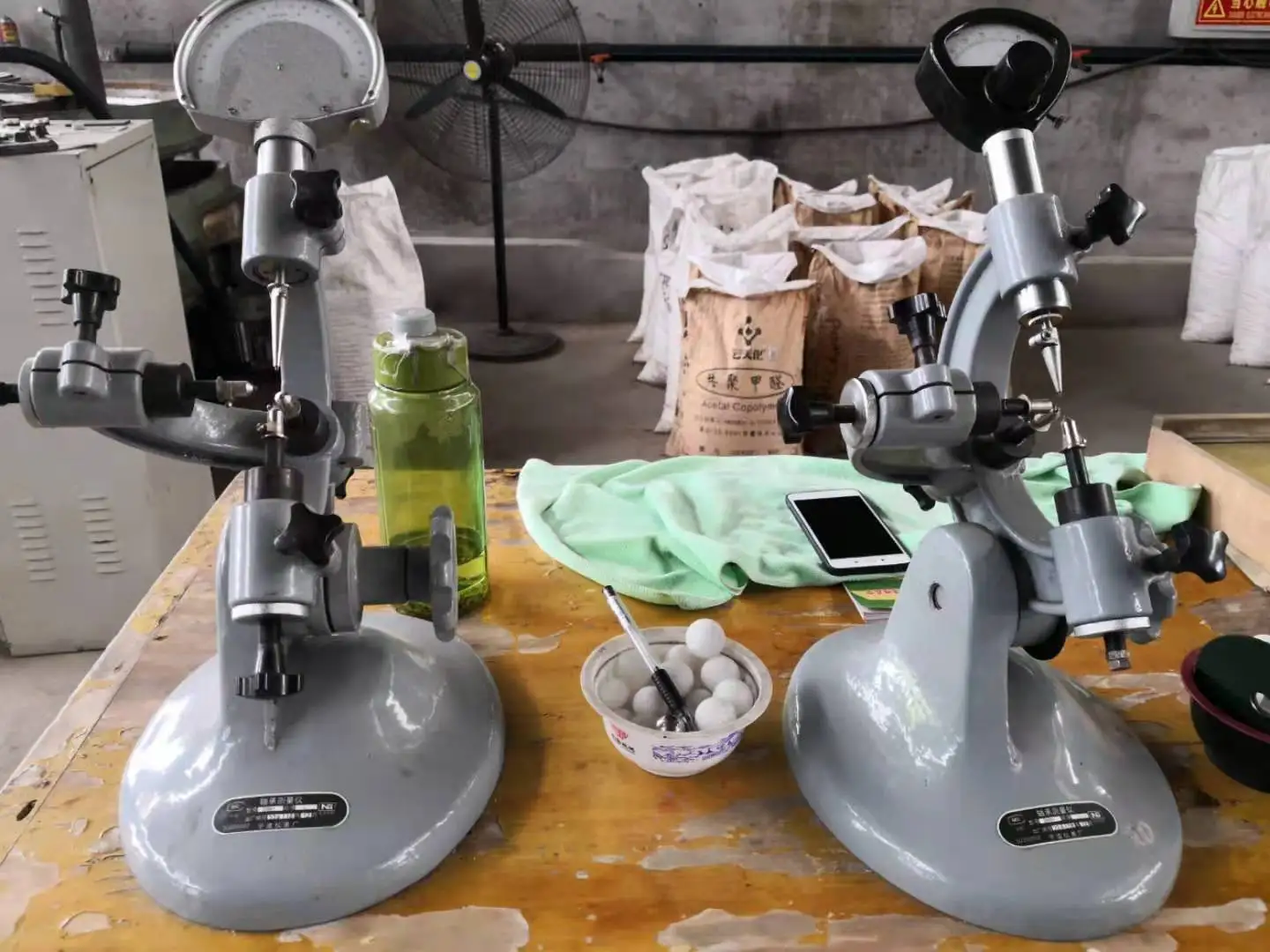

We have advanced production equipment and consummative instruments. We use perfect equipment to detect the roundness, libration size and the quality of the surface of steel balls.
Welcome to visit our factory and looking forwarder to cooperate with you !
