Product Overview
Description
Product Description

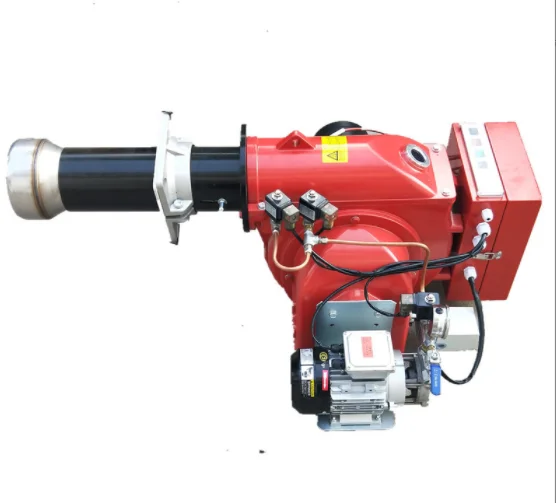

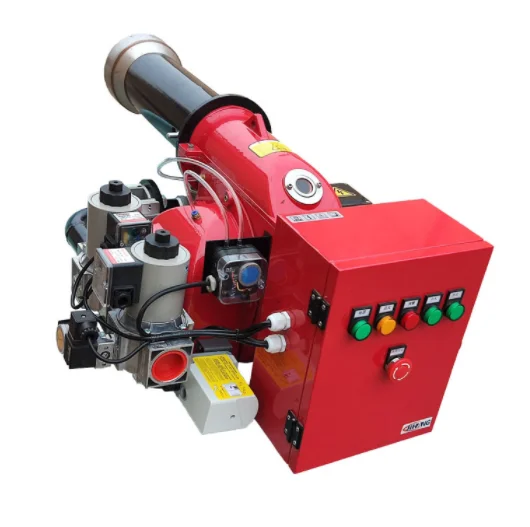

Burner fuel oil burner gas burners combustion machine
Burner fuel oil burner gas burners combustion machine
Different from integrated burner, a split burner consists of two modules:
1)Burner fuselage and head;
2)Independent blower.
These two modules are connected by air pipes to form a complete burner system. Benefits of independent blowers:
Blowers can be installed in workshops different from burners, such as basements, which can reduce the noise of boiler rooms. When the blower is installed in the same workshop, it is necessary to make a muffler outside the blower to reduce the noise without
blocking the arrangement of the burner.
-Split burner occupies less space in front of the boiler.
-The split burner also reduces the load on the front wall of the boiler.
-The blower can be installed according to any type, and can overcome the resistance of the back pressure or heat exchanger of the
combustor by using the existing ventilation equipment, which fully meets the requirements of users and industrial applications.
-The combustion-supporting air can be heated up to 250 degrees, and the operation efficiency of the system can be improved.
Different from integrated burner, a split burner consists of two modules:
1)Burner fuselage and head;
2)Independent blower.
These two modules are connected by air pipes to form a complete burner system. Benefits of independent blowers:
Blowers can be installed in workshops different from burners, such as basements, which can reduce the noise of boiler rooms. When the blower is installed in the same workshop, it is necessary to make a muffler outside the blower to reduce the noise without
blocking the arrangement of the burner.
-Split burner occupies less space in front of the boiler.
-The split burner also reduces the load on the front wall of the boiler.
-The blower can be installed according to any type, and can overcome the resistance of the back pressure or heat exchanger of the
combustor by using the existing ventilation equipment, which fully meets the requirements of users and industrial applications.
-The combustion-supporting air can be heated up to 250 degrees, and the operation efficiency of the system can be improved.
Power Kw | Heavy oil flow kg/h | Burner Model | Series Number | Power Supply | Motor Power Kw | Packing Size L x P x H mm | Weight Kg |
446 ~ 837 | 40 ~ 75 | BNH 75 F | 101049 | 3N 380V 50Hz | 1.1 | 1450x830x815 | 108 |
558 ~ 1116 | 50 ~ 100 | BNH 100 F | 101050 | 3N 380V 50Hz | 1.5 | 1450x830x815 | 116 |
669 ~ 1451 | 60 ~ 130 | BNH 120 F | 101051 | 3N 380V 50Hz | 2.2 | 1450x830x815 | 170 |
725 ~ 2009 | 65 ~ 180 | BNH 180 F | 101052 | 3N 380V 50Hz | 3 | 1450x830x815 | 195 |
937 ~ 3170 | 80 ~ 280 | BNH 250 F | 101053 | 3N 380V 50Hz | 7.5 | 1620x1200x960 | 255 |
1220 ~ 3460 | 109 ~ 310 | BNH 300 F | 101054 | 3N 380V 50Hz | 7.5 | 1620x1200x960 | 295 |
1284 ~ 3907 | 115 ~ 350 | BNH 350 F | 101055 | 3N 380V 50Hz | 9 | 1620x1200x960 | 305 |
1840 ~ 5500 | 165 ~ 490 | BNH 600 F | 101056 | 3N 380V 50Hz | 15 | 1620x1200x960 | 325 |
Technical and performance characteristics
1. Second stage fire operation;
2. Can adapt to any type of combustion chamber;
3.Precise air distribution ratio to ensure stable fuel and efficient combustion;
4. The innovative flame stabilizing tube design realizes full fuel mixing and overall flame stability;
5. Super anti-corrosion ability, convenient installation, operation and maintenance, safe and reliable, and low noise;
6. All parts are easy to disassemble, clean, repair and replace;
7. The mechanical pressure atomization is used in the whole process, and the atomization is relatively complete, ensuring relatively complete combustion.

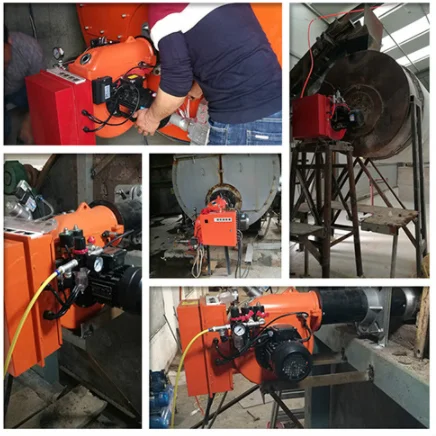

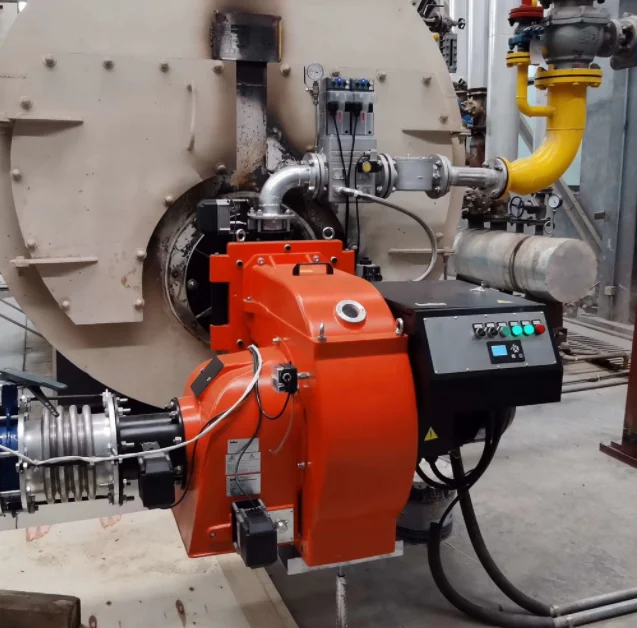

Mainly applicable to: all kinds of industrial boilers, drying furnaces, kilns, quenching furnaces, steam furnaces, hot water
furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.
furnaces, boiling water furnaces, ovens, heating furnaces, thermal oil furnaces and other boilers.
Burner Parts
1) Transfer oil pump: 1pcs
2) Air controller: 1pcs
3) Installation flange: 1pcs
4) Asbestos gasket: 1pcs
5) Outlet-inlet pipe: 2pcs
6) Overlow pipe: 1pc
7) Install screw: 4pcs
8) Inner six angle spanner: 1pcs
9) Nozzle spanner: 1pcs
10) Oil filter: 1pcs
11) Oil line connector: 4pcs
1) Transfer oil pump: 1pcs
2) Air controller: 1pcs
3) Installation flange: 1pcs
4) Asbestos gasket: 1pcs
5) Outlet-inlet pipe: 2pcs
6) Overlow pipe: 1pc
7) Install screw: 4pcs
8) Inner six angle spanner: 1pcs
9) Nozzle spanner: 1pcs
10) Oil filter: 1pcs
11) Oil line connector: 4pcs
Company Profile
Henan Yunchang New Material Co., Ltd. specializes in the production, construction, new technology research and development and promotion of refractory materials for industrial high temperature kilns. The company has independent import and export rights, service all over the world, is the furnace refractory engineering technology field with characteristics and competitiveness of scientific and technological production service enterprises. The company has a strong technical force, creating a first-class team specializing in resistant material engineering and rich experience in technological innovation, engineering design and construction. Among them, there are more than 10 senior research and design personnel, more than 10 engineers and more than 20 technical personnel. The company is mainly engaged in:
1. Hot blast furnace transformation project (refractory ball to grid brick).
2. General contracting of pellet shaft furnace material resistance and construction.
3. General contracting of refractory materials and construction of iron mixing furnace and iron water tank.
4. General contracting of refractory materials and construction of lime shaft kiln.
5. General contracting of refractory materials and engineering for mineral heat furnace.
6. Provide melting and non-melting refractory products and technical services for various glass furnaces, such as regenerator, melting tank, working tank and material passage.
7. Refractories for circulating fluidized bed boilers.
8. Refractory materials for coke ovens.
9. Refractories for carbon roasters.
Company main products: corundum mullite bricks, high aluminum brick, clay brick of blast furnace, blast furnace hot blast stove with thermal shock, low creep high alumina series, hot blast stove with thermal shock, low creep mechanism of refractory ball clay brick, lightweight insulation series, AL2O3 - SiC - C, special refractory brick acid-proof brick, low porosity Gao He soft special firebrick, wear-resistant refractory castable refractory plastic, wear-resisting.
The company adheres to the road of scientific and technological innovation and attaches great importance to the way of combining production, learning and research. It has cooperated with many universities and scientific research institutes to ensure strong innovation ability and successfully developed dozens of domestic leading technological achievements with independent intellectual property rights. Henan Yunchang New Material Co., Ltd. has a diversified technical service framework from the beginning, to provide customers with economic, reliable, energy-saving services to lay a solid foundation. The company attaches great importance to the integration and improvement of industrial chain and technology chain. The refractory production base covering 20,000 square meters ensures superior performance and stable quality of refractory materials. With a professional construction team of more than 30 people, combined with superior refractory products, we have the ability to provide customers with overall solutions for safety, environmental protection and energy conservation. At the same time, the company attaches great importance to the construction of service platform, and its business network has covered all provinces and cities in China, and has been promoted to Iran, Turkey, Vietnam, Malaysia, India, Kazakhstan and other countries. "Scientific and technological innovation, win-win cooperation", Henan Yunchang New Material Co., Ltd. is committed to do a good job in every project, to meet customer needs to optimize the program, for users to create the best quality kiln material engineering.

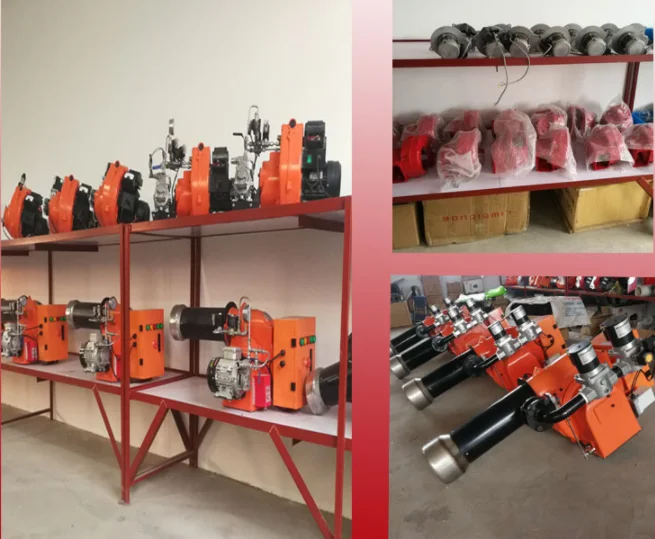

Product Line
Certifications
Our Advantages
Our competitive Advantage:
1.Competitive Price. Make the products competitive in your market.
2.Abundant Experience.Prevent cracks and twist in bricks.
3.Different Moulds.Save mould fees for you.
4.Lower ferric Oxide,porosity,higher refractoriness,density,higher CcS and exacttolerance.
5.Strict Quality Control. Meet clients' quality requirement.
6.Safty packing,prompt delivery time,and excellent after-sales services
3.Different Moulds.Save mould fees for you.
4.Lower ferric Oxide,porosity,higher refractoriness,density,higher CcS and exacttolerance.
5.Strict Quality Control. Meet clients' quality requirement.
6.Safty packing,prompt delivery time,and excellent after-sales services
.7.Large stocks.Guarantee prompt delivery.
8.Professional Packing.Avoid damage and secure the goods in transportation.
8.Professional Packing.Avoid damage and secure the goods in transportation.
Packing & Delivery
1.Pallet+Paper or Steel angle bead+Paper board +Plastic or Steel belt +Plastic film
(1)Wooden pallet size:Usually 0.92*0.92m(standard brick),but 1*1m (Special shape brick)at most,
(2)Load weight of each pallet:Usually 1.5-1.7Tons.
(3)20 Foot Container can be loaded 25-26Tons at most,about 13-16Pallets.
2.Size 230x114x65:448PCS/Pallet,size 230x114x65/55:480PCS/Pallet,size 230x114x65/45:512PCS
3.Can make the packing according to customer's requirements.
(1)Wooden pallet size:Usually 0.92*0.92m(standard brick),but 1*1m (Special shape brick)at most,
(2)Load weight of each pallet:Usually 1.5-1.7Tons.
(3)20 Foot Container can be loaded 25-26Tons at most,about 13-16Pallets.
2.Size 230x114x65:448PCS/Pallet,size 230x114x65/55:480PCS/Pallet,size 230x114x65/45:512PCS
3.Can make the packing according to customer's requirements.
