5GHz 25dBi 1201Mbps 2*2 MIMO Hi Power outdoor wireless Wifi dish bridge based on 802.11ax technology. for ubiquiti
- Category: >>>
- Supplier: Lanbowan Communication Ltd.
Share on (1600658680229):
Product Overview
Description
Product Description

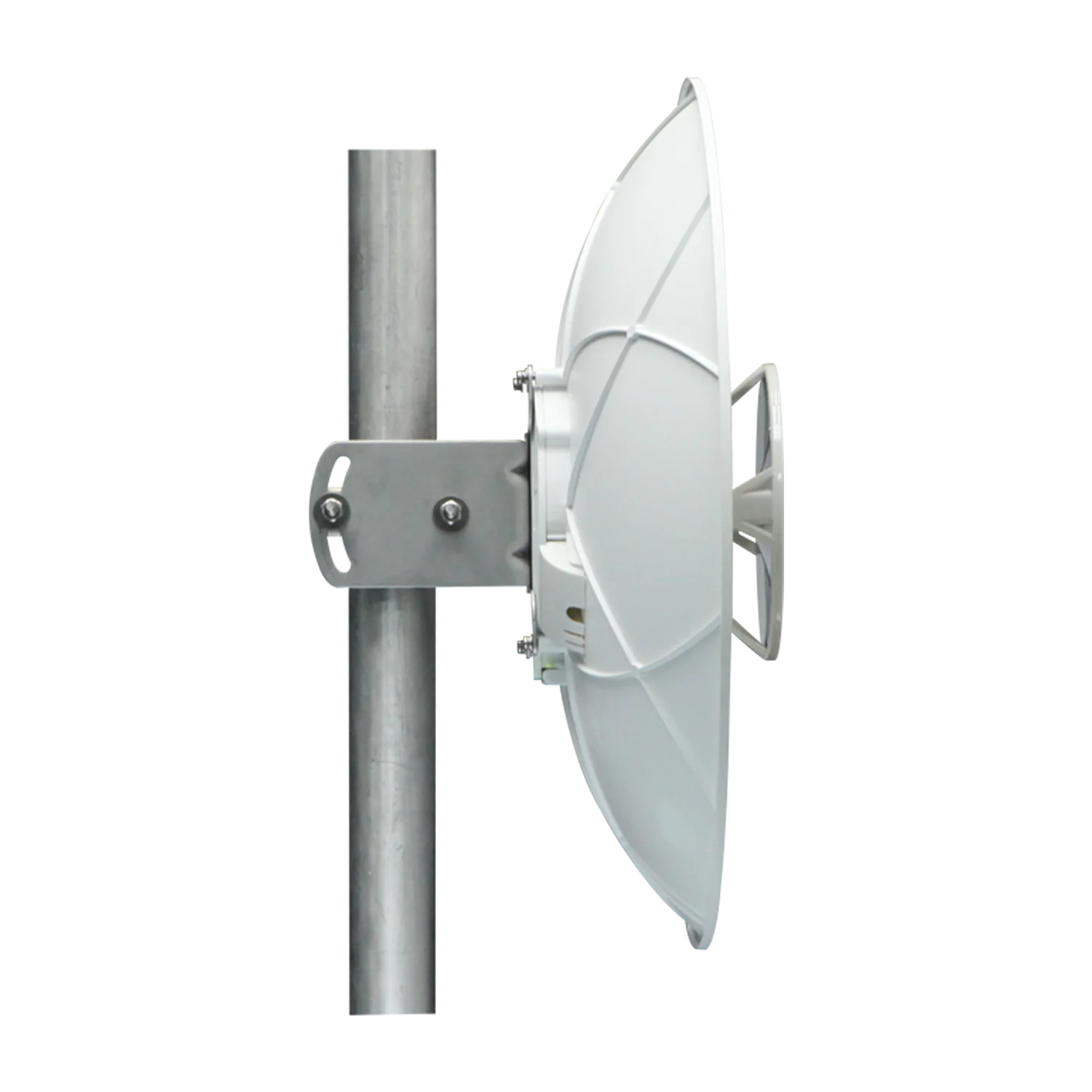

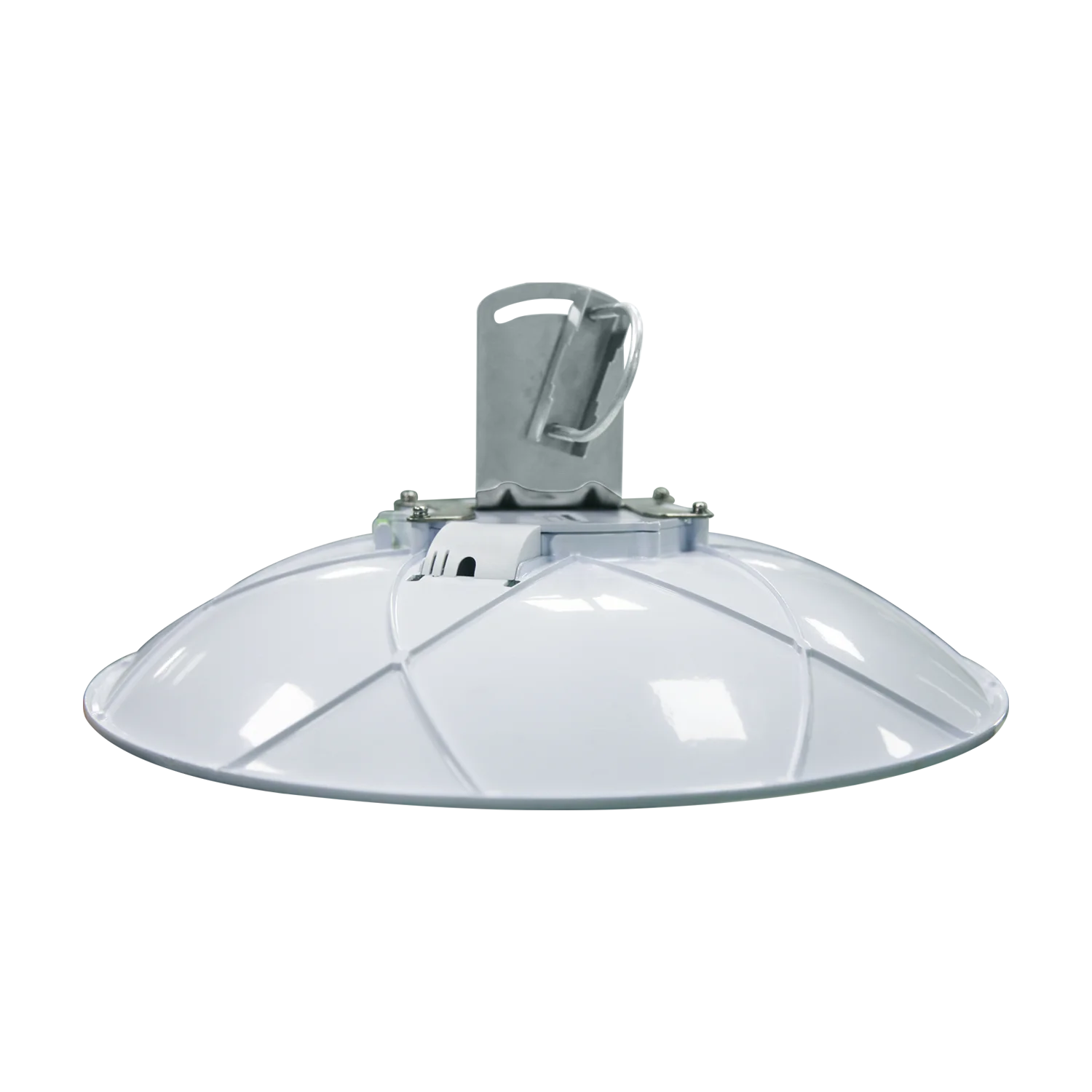

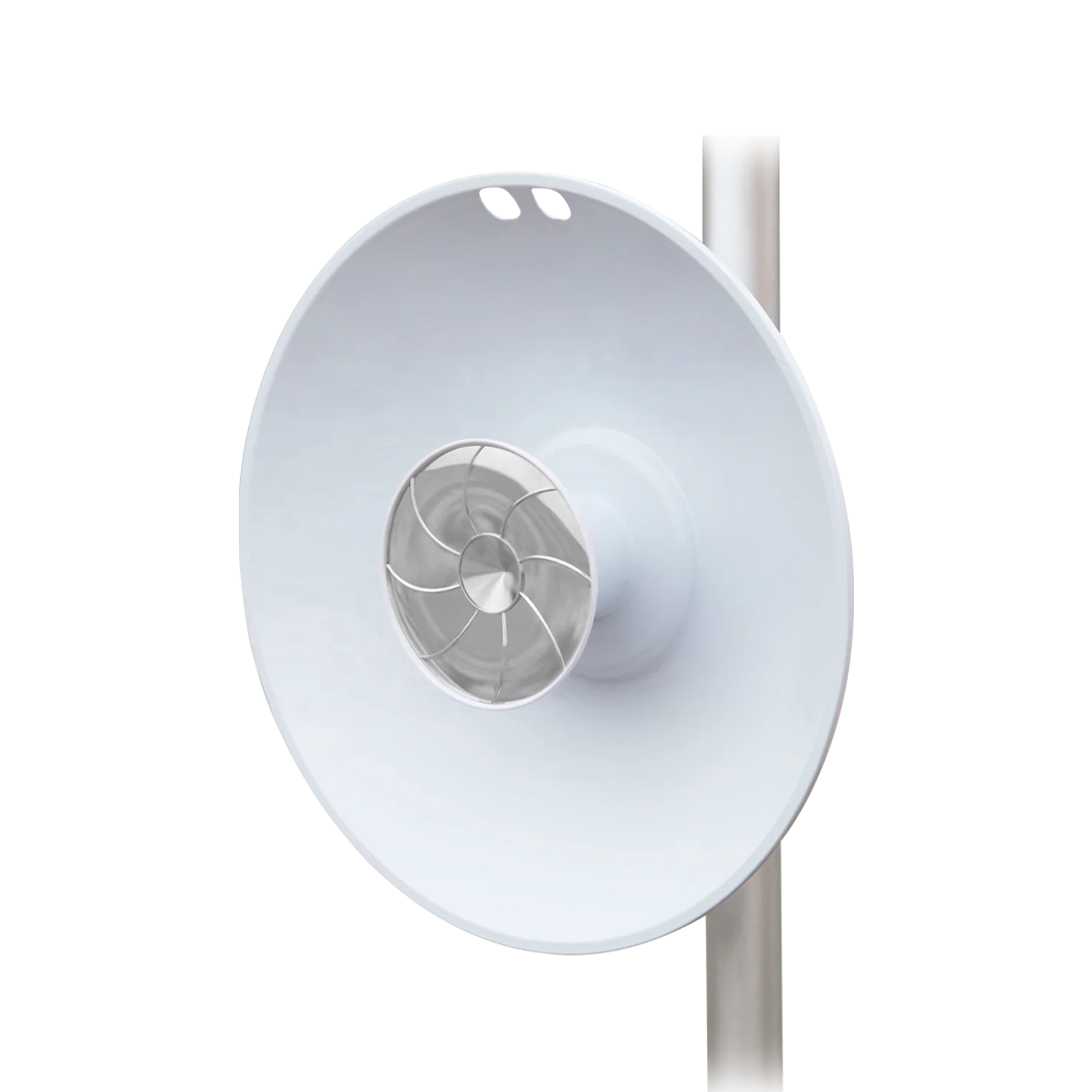

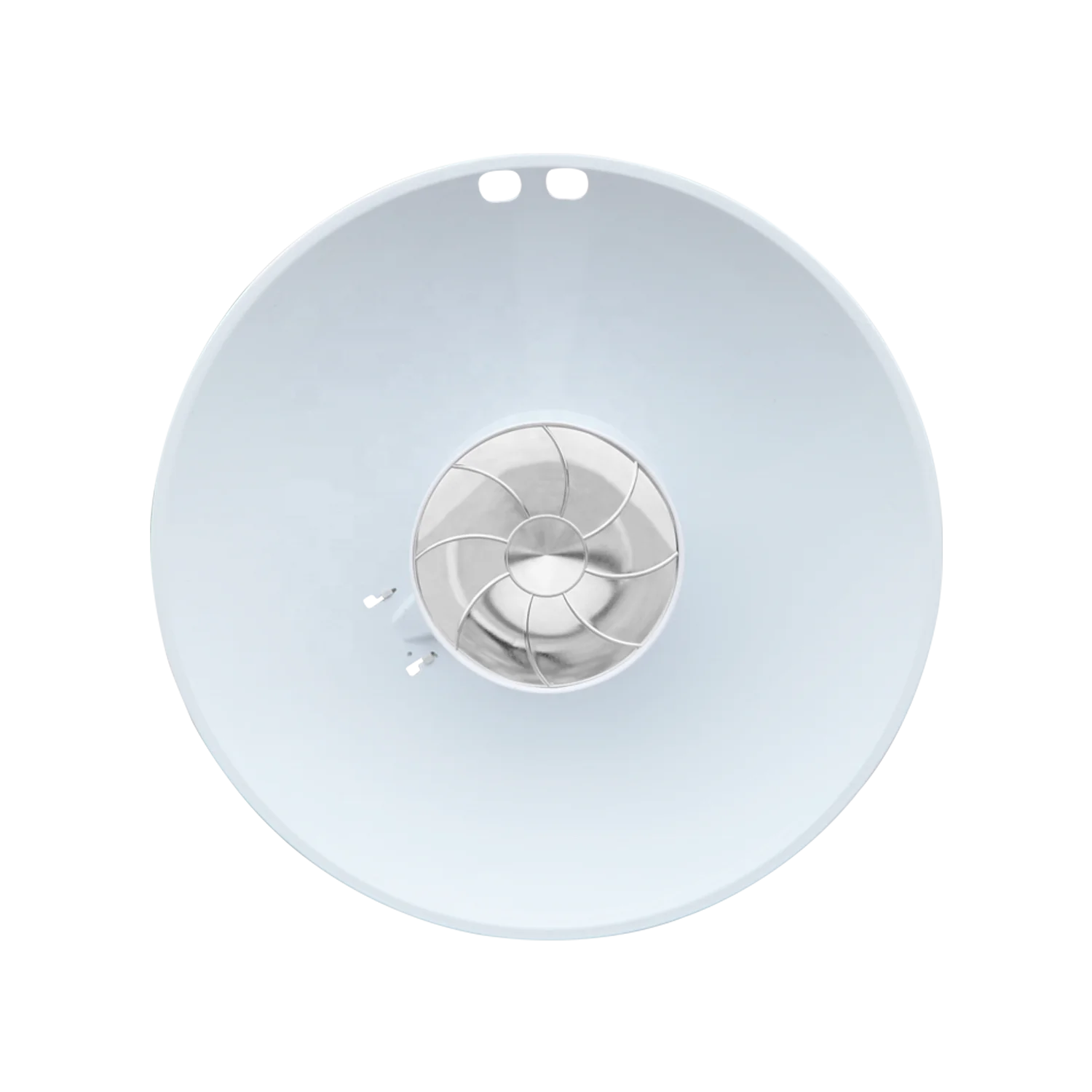

WIS-D525AX is a 1201Mbps 2*2 MIMO Hi-Power outdoor wireless dish bridge based on 802.11ax technology.
It is industry die-cast IP65 design with high performance, cost-effective and dedicated to long distance wireless network
solutions.
Featuring the revolutionary Mu-Mimo technology, WIS-D525AX is fully compatible with Wisnetworks base station and
CPE thus greatly improving the network scalability in throughput and latency. With 25dBi dual-polarized dish antenna,
a pair of WIS-D525AX can easily build 10km+ long range wireless connection and keep a high speed rate.
WIS-D525AX is best applied to rural wireless Internet, wireless backhaul and other industrial wireless solutions.
It is industry die-cast IP65 design with high performance, cost-effective and dedicated to long distance wireless network
solutions.
Featuring the revolutionary Mu-Mimo technology, WIS-D525AX is fully compatible with Wisnetworks base station and
CPE thus greatly improving the network scalability in throughput and latency. With 25dBi dual-polarized dish antenna,
a pair of WIS-D525AX can easily build 10km+ long range wireless connection and keep a high speed rate.
WIS-D525AX is best applied to rural wireless Internet, wireless backhaul and other industrial wireless solutions.
Features
Incredible Long Range
● Up to 27dBm Tx Power
● Up to 27dBm Tx Power
● 25dBi MIMO Dish antenna
● Wireless Speed up to 1201Mbps
● Narrower Beamwidth for noise immunity
Wireless Solutions for Surveillance
● Cost-effective passive PoE
● IP65 Waterproof
● Multiple mounting methods
● Extremely Amazing Performance
Full Feature & Performance
● Full WisOS Support
● Auto-Distance Adjust
● 10km+ Availability

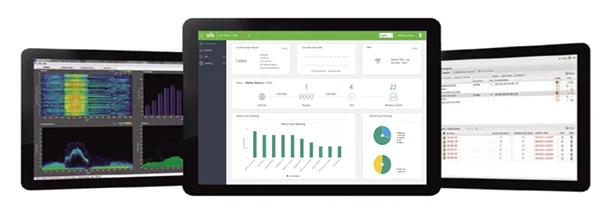

● Fully Managed by WiController
Features and Benefifits
- 25dBi dish antenna to build robust wireless PtP link
- Compliant with 802.11acx Wireless speed up to 1201Mbps
- Wireless Solutions for Surveillance
- 5 kilometers throughput 300Mbps+
- 160/80/40/20MHz selectable for channel bandwidth
- Easy deployment and adjustment with provided mounting kits
- Passive POE(24VDC) for flflexible deployment
- Weather-proof design for outdoor environment
- Up to16kV ESD protection
- Compliant with 802.11acx Wireless speed up to 1201Mbps
- Wireless Solutions for Surveillance
- 5 kilometers throughput 300Mbps+
- 160/80/40/20MHz selectable for channel bandwidth
- Easy deployment and adjustment with provided mounting kits
- Passive POE(24VDC) for flflexible deployment
- Weather-proof design for outdoor environment
- Up to16kV ESD protection

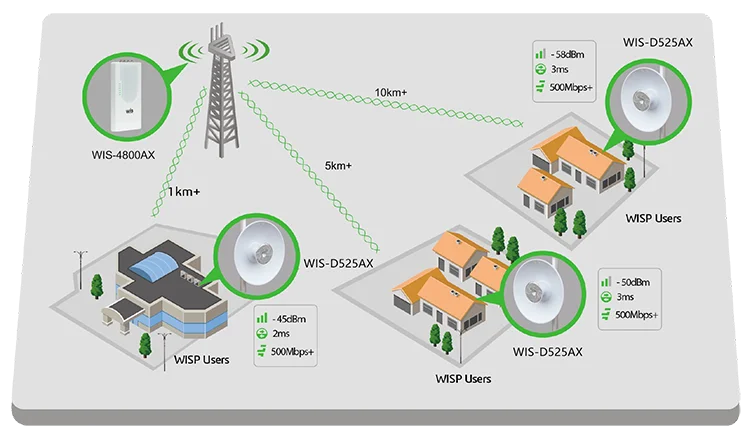

Network Diagram
Product Paramenters
Radio | 802.11a/n/ac/ax radio Wireless Speed up to 1201Mbps Frequency Range:5.150-5.250GHz 5.250-5.350GHz（Support DFS） 5.470-5.725GHz(Support DFS) 5.725-5.825GHz Tx Power up to 27dBm Rx Sensitivity 300M:-71dBm@10% PER 54M:-75dBm@10% PER 1M:-95dBm@10% PER |
Antenna | 25dBi dish antenna Beamwidth(HPBW) Horizontal:11°，Vertical:11° Open space 5-15KM |
Physical Parameters | Dimension: Φ400mm Wight: 2.6kg Enclosure: Aluminum (Dish) ESD Protection: 16kV Working Temp: -40 ~ 70°C Storage Temp: -40 ~85°C Working Humidity: 10%〜95% non-condensing |
Interfaces | 1x 10/100/1000 Base-T Ethernet (Gigabit LAN with Passive PoE) |
Security | Integrated Firewall WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP) Encryption; 64/128-bit WEP; |
LED | Power：On/Off LAN:On/Off/Flashing WLAN:On/Off/Flashing RSSI Signal:1,2,3 |
Power | 24VDC, 0.75A Power Consuption: 6W |
Certifification | CE, RoHS |
Package content | WIS-D525AX Radio 25dBi Dish Quick Setup Guide Power Adapter with Passive PoE Mounting bracket & kits |
