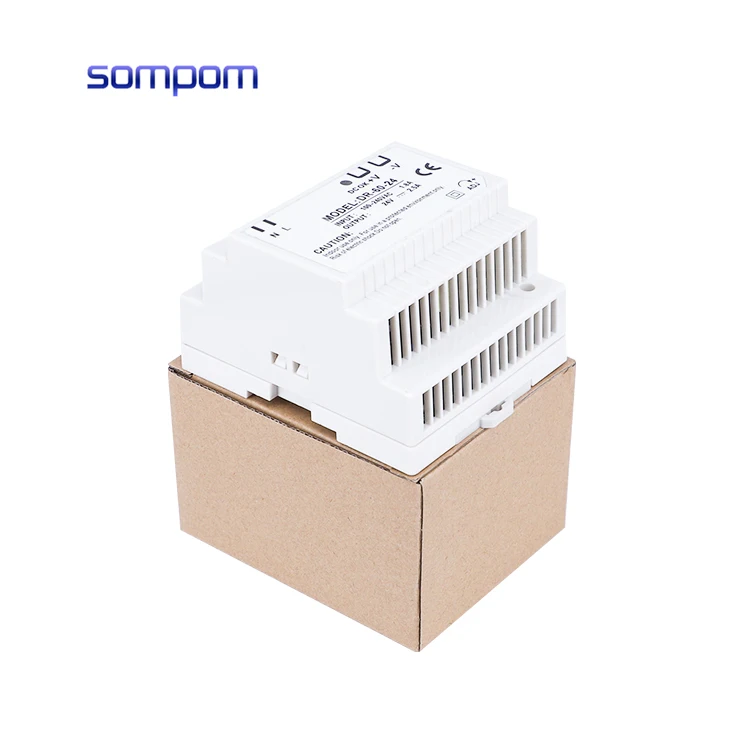

SOMPOM Factory Manufacturing Single Output 5V/12V/24V 60W Rail Type Power Supply for Led Light with CE RoHS ISO9001 FCC

Share on:

Price:$8.35 - $8.95
Price in USD:Details


Product Overview


Products Description

DC Output
DC Voltage: 5V/12V/24V
DC Current : 2-12A
Ripple & Noise: 80MV
DC Adjustable Range: ±10% Rated Voltage
Voltage Tolerance: ±2.0%
Line Regulation: ±0.5%
Load Regulation: ±1%
Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC

AC Input
AC Voltage Range: 100-240V AC
Frequency Range: 47-63Hz
AC Current: 0.86/115V 0.4A/230V
AC Inrush Current: 20A/115V 40A/230V
Leakage Current< 0.5mA /240VAC

Over-load: 105%-150% hiccup mode,Auto-recovery
Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
Over-temp. : Shut down O/P voltage, Auto-recovery

Working temp.: -10~ +60C° (Refer to output load derating curve)
Working Humidity:20 ~ 90% RH, non-condensing
Storage Temp.: -10~ +60C°
Storage Humidity: 10 ~ 95% RH

Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Safety standards: CE,RoHS,FCC,ISO9001

Recommend Products

About Us

SOMPOM is focusing on offering LED switch power, waterproof switch power,rainproof switch power,AC-DC power adapter and CCTV camera power. Withe the over load protection, over voltage protection and high temperature protection. SOMPOM wins customer’s favor by its high efficiency, reliability and long life span. Each of the switch power is extremely safe and stable after 5 times testing. All of our powers have the ISO9001,CE,FC,ROHS certification. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering.



1、Q: What is your MOQ of switch power?
A: Our MOQ is 1 piece

2、Q:How many year warranty of your Led driver?
A: Two years

3、Q: Do you offer sample of power?
A: Yes, We offer free sample, but you need pay the shippment.

4、Q: Do you have switch power factory?
A: Yes, we are OEM & ODM manufacturer in Donguan.

5、Q: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.

6、Q: Do you have any certification?
A: Yes, we have CE, RoHS, FCC and ISO9001 right now. If you need other certification with large order, We can apply for it.
