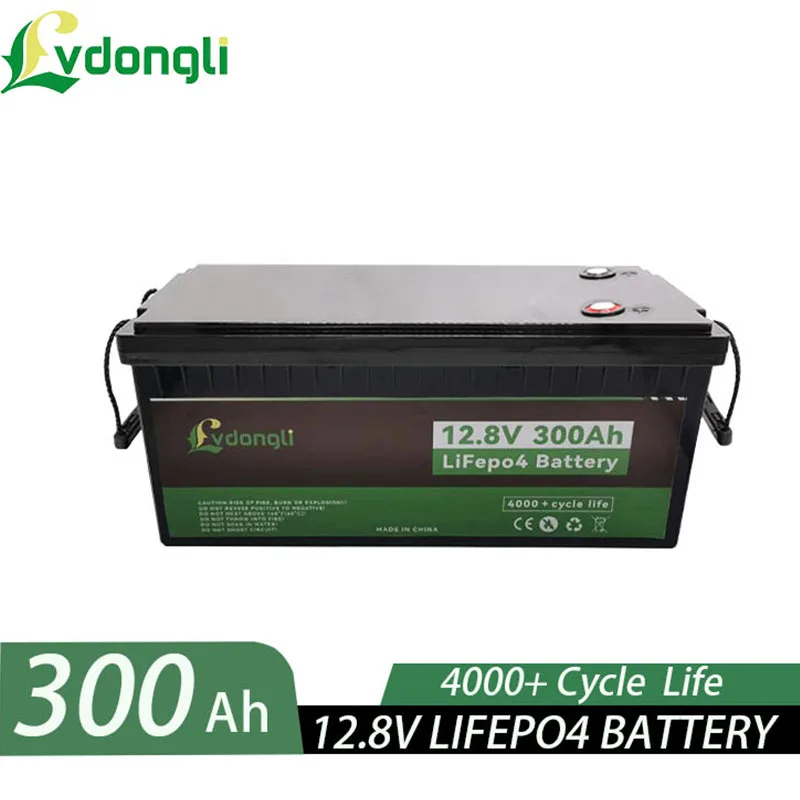

Wholesales rechargeable Lifepo4 12V 300Ah lithium ion battery pack
- Category: >>>
- Supplier: Dongguan,Green,Power,Battery,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
General pecic Electrical Characteristics | Nominal Voltage | 12.8V |
Nominal Capacity | ||
Energy | 3840Wh | |
Intemal Resistance | ≤30mΩ | |
Cycle Life | [email protected] Charging/Discharging,Until 70% Capacity | |
Self Discharge | ≤3.5% per month at 25℃ | |
Standard Charging | Max Charging Voltage | 14.4~14.6V |
Charging Mode | At 0℃~45℃ temperature,charged to 14.4V at a constant current of 10.8A,and then,changed continuously with constant voltage of 14.4V until the current was not more than 1.08A | |
Charging Current | 40A | |
Max Charging Current | 100A | |
Standard Discharging | Discharging Current | 40A |
Max.Continuous Current | 200A | |
Max Pulse Current | 400A(<3S) | |
Discharging Cut-off Voltage | 8.8V | |
Operating Condition | Charge Temperature | O'℃ to 45'℃(32F to 113F)@60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60'℃(-4F to 140F)@60±25% Relative Humidity | |
Storage Temperature | O'℃ to 45'℃(32F to 113F)@60±25% Relative Humidity | |
Water Dust Resistance | IP65 | |
Structure | Cell & Format | IFR32700 N60&4S9P |
Casing | Plastic | |
523*269*218Dimension(L*W"H'TH) | 229*138*212mm | |
Weight | Approx.25Kg | |
Terminal | M6 |
If you have any questions about the product
Details Images
Company Profile
Dongguan Green Power Battery Technology Co., Ltd. is a high-tech enterprise specializing in the research and development, production, sales and service of solar power generation systems. Its products include household energy
storage systems, portable energy storage systems, and solar street lights and photovoltaic products., established
in 2018, is formed by an elite team with 10 years of experience in energy storage system and portable energy storage
system industry technology, production, quality and sales.The company's production base is located in Dongguan,
Guangdong, and there are more than 80 employees. Since its establishment, the company has fully absorbed the
management experience mentioned above and successfully passed the 109001 quality system certification. The whole
series of products meet the requirements of EU ROHS and REACH.Passed UL, CB, CE, FCC, PSF and other certifications. Green Power insists on being market-oriented, backed by a strong R&D team, and tailor-made excellent and reliable new
energy products according to customer needs. Widely recognized by customers.We strictly implement ISO 19001: 2008 quality system and ISO 14001 environmental management system. With strong capital, huge productivity, advanced technology and professional after-sales, we strive to build a world-renowned brand.
storage systems, portable energy storage systems, and solar street lights and photovoltaic products., established
in 2018, is formed by an elite team with 10 years of experience in energy storage system and portable energy storage
system industry technology, production, quality and sales.The company's production base is located in Dongguan,
Guangdong, and there are more than 80 employees. Since its establishment, the company has fully absorbed the
management experience mentioned above and successfully passed the 109001 quality system certification. The whole
series of products meet the requirements of EU ROHS and REACH.Passed UL, CB, CE, FCC, PSF and other certifications. Green Power insists on being market-oriented, backed by a strong R&D team, and tailor-made excellent and reliable new
energy products according to customer needs. Widely recognized by customers.We strictly implement ISO 19001: 2008 quality system and ISO 14001 environmental management system. With strong capital, huge productivity, advanced technology and professional after-sales, we strive to build a world-renowned brand.
