HUGEROCK T60EX 5.5inch 8+128GB IP67 Waterproof Industrial Handheld Android RFID Barcode Scanner Rugged Pda
- Category: PDAs >>>
- Supplier: Shenzhen,Soten,Technology,Company,Limited
Share on:
Product Overview
Description

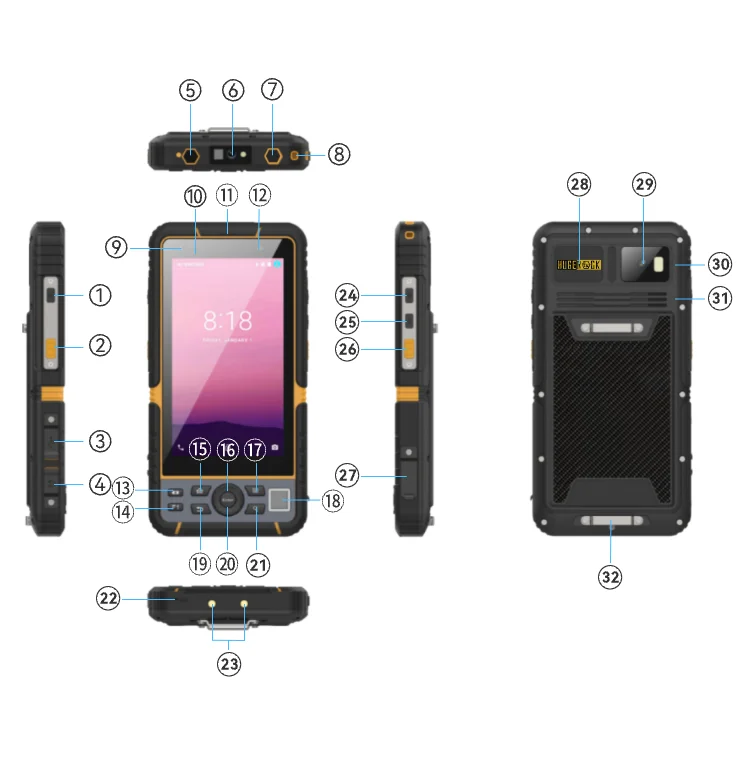

1. Power button | 2. SOS button | 3. Type-C (Sealed Cover) | 4. Earphone (Sealed Cover) | 5. RS232 (Optional) |
6. Barcode module (Optional) | 7. SM (Optional) | 8. Hanging hole | 9. Front camera | 10. Charge lamp |
11. Receiver | 12. Light sensor | 13. Delete button | 14. Custom button | 15. Home button |
16. Confirm button | 17. Menu button | 18. Fiingerprint module (Optional) | 19. Back button | 20. Arrow button |
21. Search button | 22. MIC | 23. 2pin pogo pin | 24. Volume up | 25. Volume down |
26. Scan button (Definition) | 27. SIM (Sealed Cover) | 28. Nameplate | 29. Main camera | 30. Flash light |
31. Speaker | 32. Fihand strap xing parts |
Hardware | ||||||||
CPU | ARM Cortex A73 octa-core (2.0GHz ) | |||||||
GPU | ARM Mali-G72 MP3 | |||||||
RAM | 8G | |||||||
Internal Memory | 128G | |||||||
External Memory | Micro SD card (T-FLASH card), max 256GB | |||||||
Main Camera | 13.0MP(AF) with flash led | |||||||
Sub Camera | 5.0MP | |||||||
Battery | 7800mAh | |||||||
Display | 5.5 inch IPS/AFFS 1080*1920 FHD industrial 500cd/m2 Sunlight Readable | |||||||
Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen | |||||||
IO/Sensor/Navigation | ||||||||
SIM Card | Nano sim card*2 | |||||||
TF Card | Micro SD card (T-FLASH card); max 256GB | |||||||
Headphone | 3.5mm (CTIA） | |||||||
Charging interface | Type-C+2pin pogo pin | |||||||
Data interface | USB Type-C(OTG)*1 | |||||||
RS232 (optinal ） | RS232X1 | |||||||
Gravity sensor | support | |||||||
Motion sensor | support | |||||||
Direction Sensor | support | |||||||
Magnetic Field Sensor | support | |||||||
Gyro sensor | support | |||||||
Rotation Vector | support | |||||||
Light-sensor | support | |||||||
Acceleration sensor | support | |||||||
Charger | 5.0V 2A-10W | |||||||
Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) | |||||||
Appearance | ||||||||

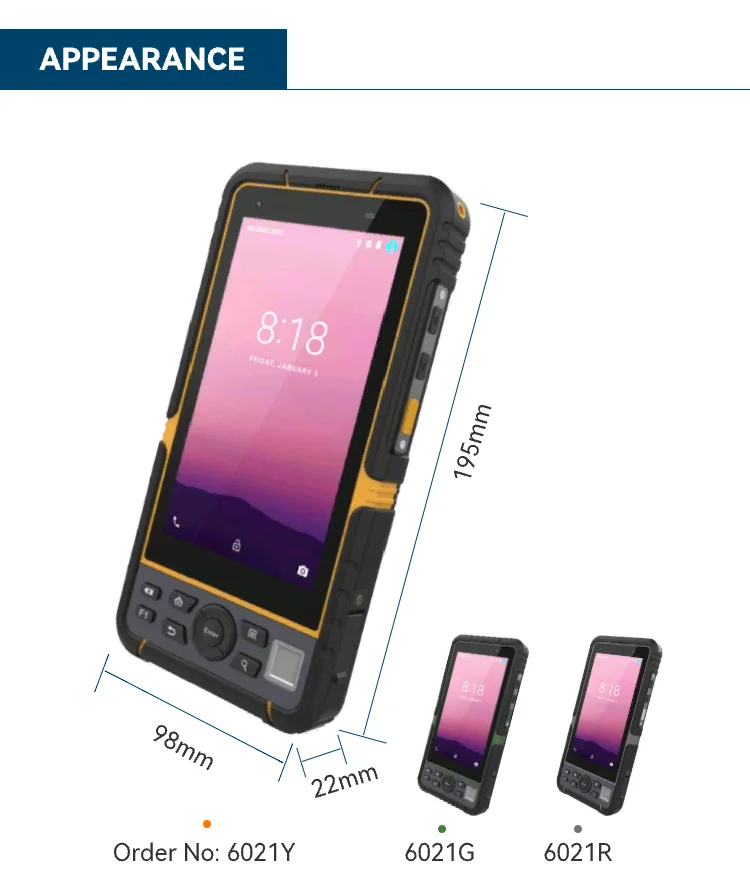

Size | 195*98*22mm (L×W×H) | |||||||
Weight | 460g | |||||||
Color & Material | Black&yellow; Black&green; Black&Gray | |||||||

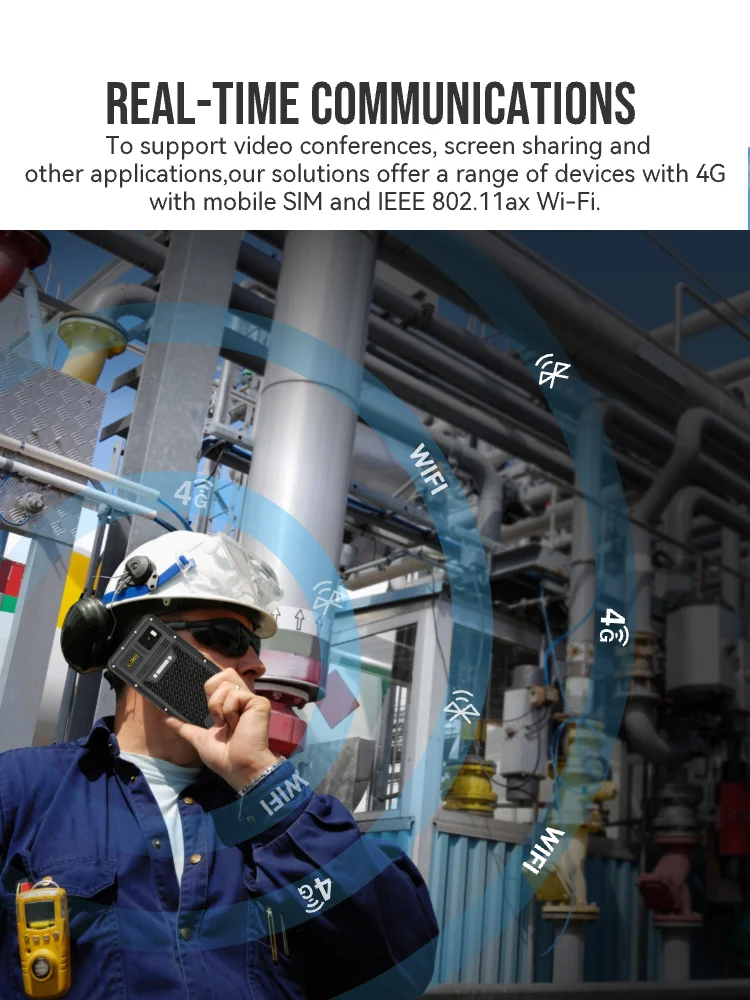

Communications & Networking | ||||||||
Phone Call | GSM /WCDMA/CDMA 1X/VoLTE | |||||||
2G | GSM/CDMA 1X/EDGE/GPRS/WAP | |||||||
2G Band | GSM（B2/3/5/8） | |||||||
3G | WCDMA 3.75G (HSDPA+42.2Mbps, HSUPA+11.5Mbps), EVDO | |||||||
3G Band | WCDMA(B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1 | |||||||
4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink | |||||||
4G Band | TD-LTE(B38/39/40/41); FDD LTE(B1/2/3/4/5/7/8/12/17/20/28) | |||||||
WI-FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac | |||||||
BT | 4.2 Low Energy (LE) | |||||||

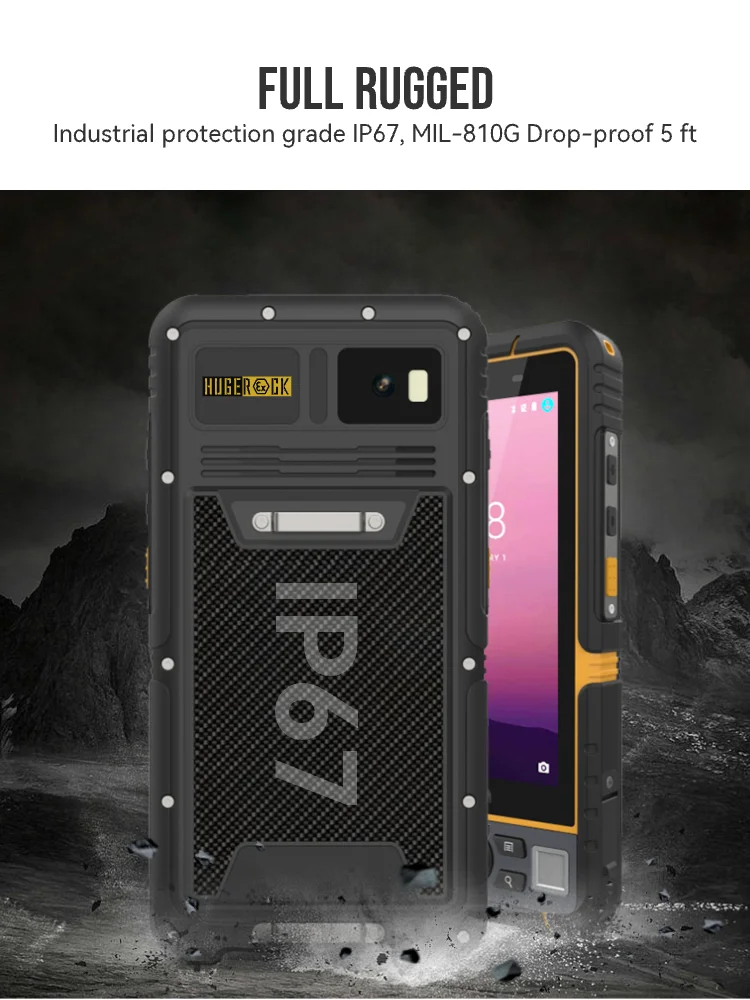

Industrial & Reliability Design | ||||||||
Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g | |||||||
Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 | |||||||
Waterproof | Class 7 ( IEC 60529 ) | |||||||
Dustproof | Class 6 ( IEC 60529 ) | |||||||
Operating temperature | -20°C to 55°C | |||||||
Storage Temperature | -40°C to 80°C | |||||||
Reliability | MTBF>5000h; MTTR<0.5h | |||||||
RH | 5% to 95% | |||||||
Operating Altitude | Max: 4,500m (15,000 feet) | |||||||
Certification/OS/Software | ||||||||
Certification | ATEX/3C /FCC/CE/ROHS/IP67（IEC 60529） | |||||||
Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified， Chinese, Chinese Traditional, etc | |||||||
OS | Android 10.0 | |||||||
Package/Warranty terms/OEM | ||||||||
Warranty | 24 months | |||||||

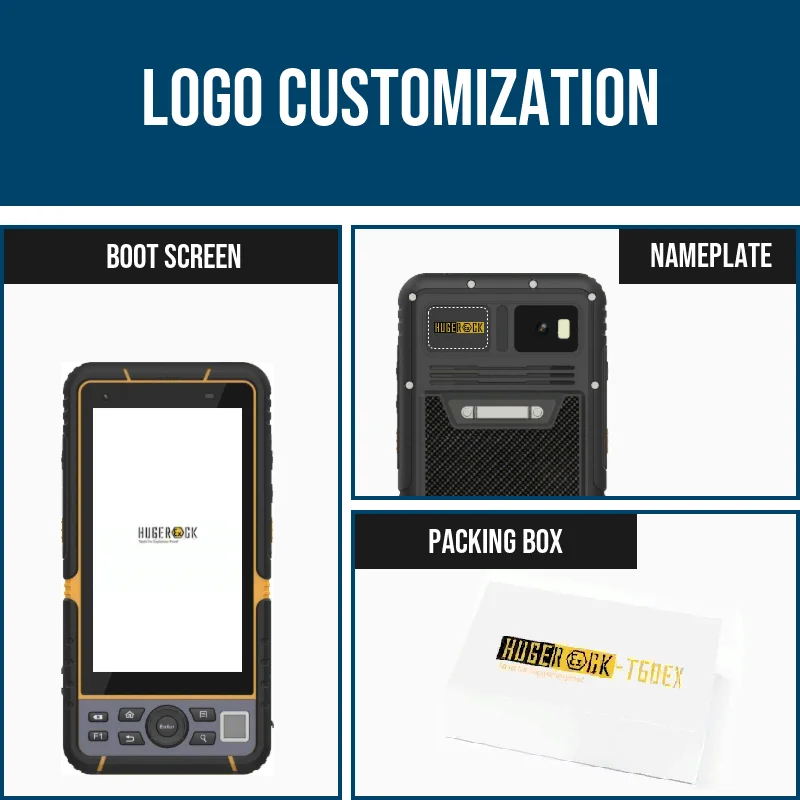

OEM/ODM | Support | |||||||

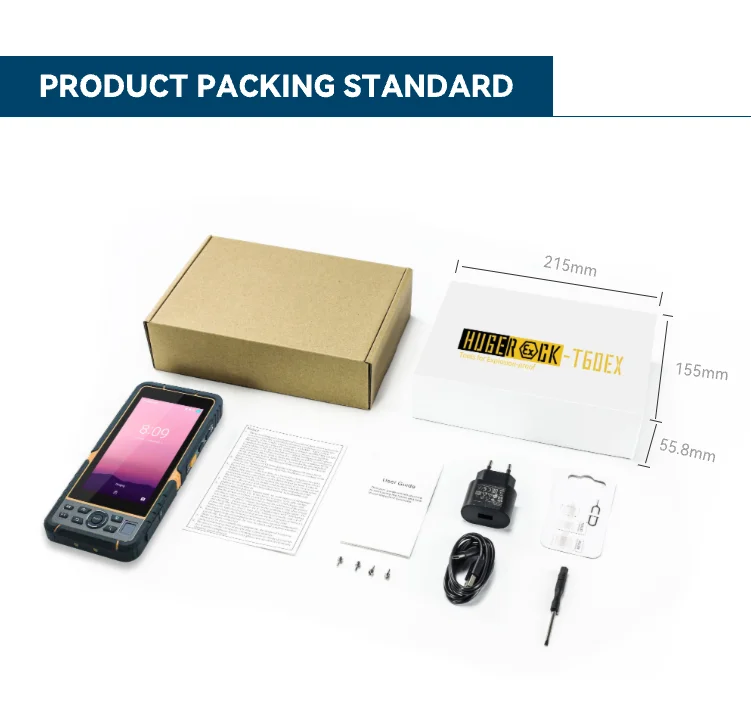

Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box (Can be customized logo)/Aircraft box/Toolkit (optional)/OTG x 1/SIM Card Ejector x 1 | |||||||
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences
