Deep Drawing Four Column Hydraulic Press Machine Animal Salt Lick Blocks Making Machine From Factory

Product Overview

Description

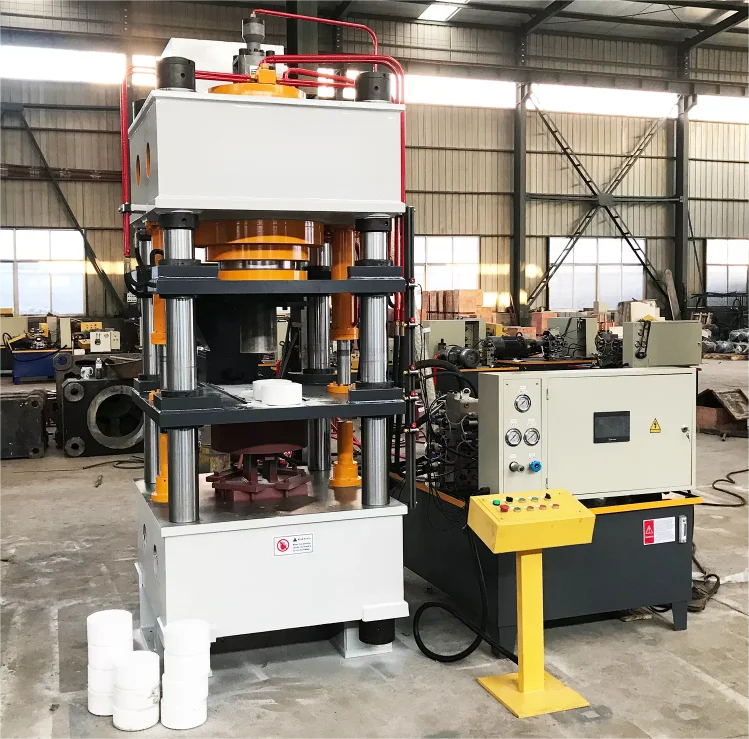

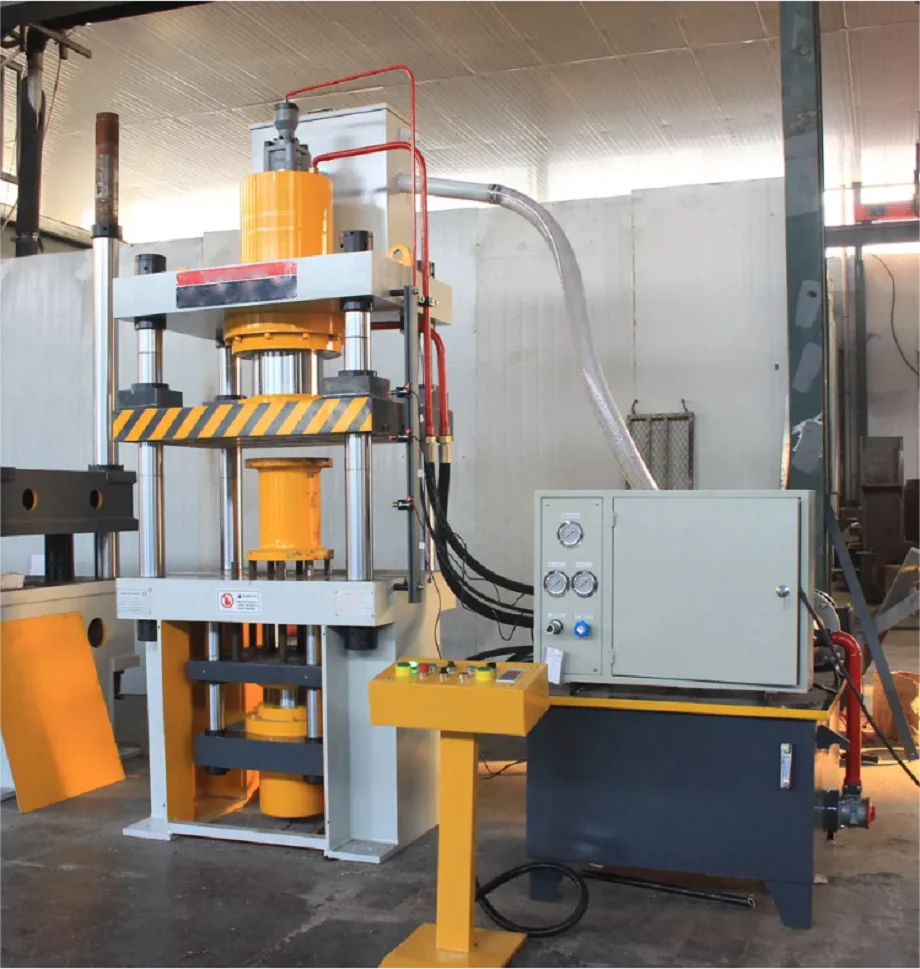

Deep Drawing Four Column Hydraulic Press Machine Animal Salt Lick Blocks Making Machine From Factory



The salt block press machine is a series of animal husbandry products of hydraulic briquetting machine launched by our company. It is specially designed for the development of cattle and sheep livestock industry and is a professional production equipment for mineral nutrient salt blocks on the modern market.



1. Structure:
It consists of an upper beam, a slide block, a workbench, an upright post, a main cylinder, hydraulic system and electrical system components. The Salt table making hydraulic press machine column uses the high quality 45# forging steel and the surface hardness can reach HRC38-42.The main oil cylinder seals use imported materials to ensure reliable sealing.



2. Hydraulic System:
The hydraulic system device is arranged on the right side of the press, with cartridge integrated system, flexible action, reliable work, good sealing performance. The hydraulic pump comprises an oil tank, a high-pressure pump, motor, cartridge valves and other components.



3. Electrical Control System:
an independent electric cabinet and a centralized control panel.



4. Operation:
Two working modes as inches and semi-automatic strokes.



5. Security:

The emergency stop button can stop the machine immediately. The slide has Limit Switch on both up and down of the work table. Hydraulic support safety circuit is arranged in the cylinder piston inside of the hydro-cylinder.



Specification



Color, Motor power, Workbench size, Opening height, Effective stroke can all be customized, Size of salt block mold included.



Parameters	Unit	YQ32-315	YQ32-500	YQ32-630	YQ32-800
Nominal Force	KN	3150	5000	6300	8000
System Pressure	Mpa	25	25	25	25
Slider Max.opening height	mm	1000	1250	1500	1800
Slider effective stroke	mm	600	800	900	1000
Effective worktable size(L.RxF.B)	mm	800*800	1260*1160	1600*1600	1500*X1500
Nominal force of upper ejection clinder	KN	630	630	1000	1000
strok of upper ejection cylinder	mm	300	300	300	350
salt block weihgt	Kg	2kg-5kg	2kg-5kg	10kg-15kg	10kg-15kg

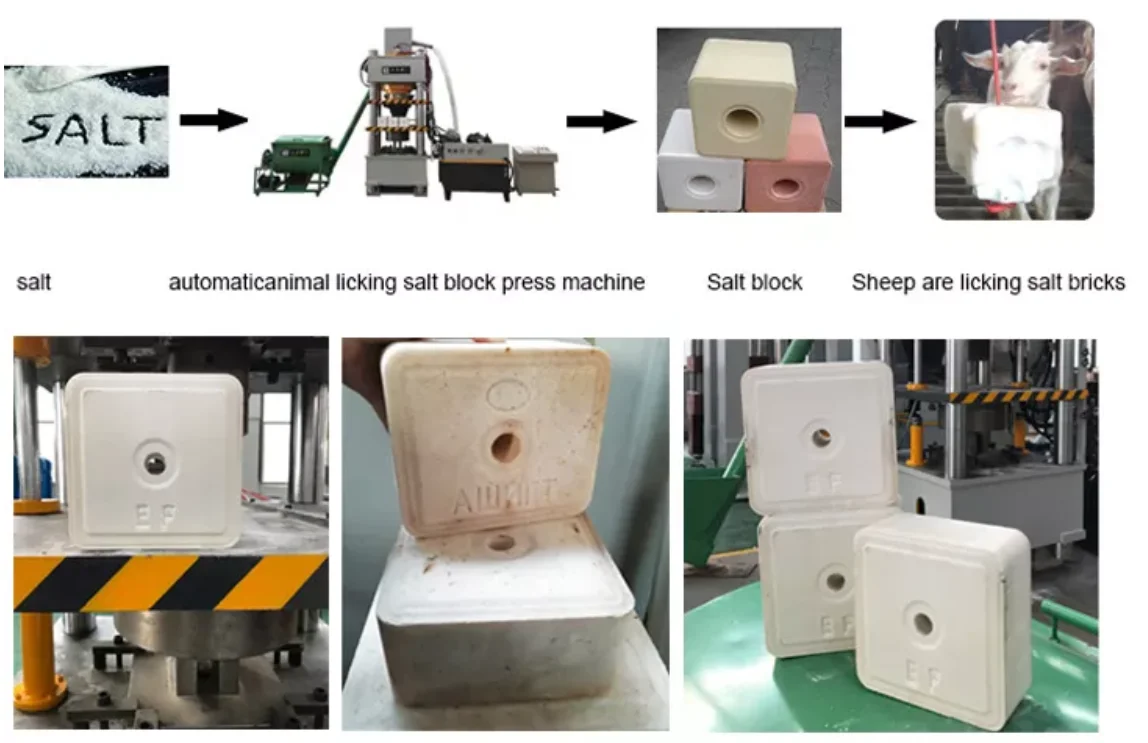

Application



Packing & Delivery



FAQ

Q1. How to send my enquiry?

You can contact us by email, phone call, Instant Messenger.



Q2. How can I choose the most suitable machines?

Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.



Q3. What's the main products of your company?

We specialized in many kinds of CNC machines, such as Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on.



Q4.Delivery time

Machines order takes 20 days after deposit payment received. Please inquiry sales.



Q5. Payment Terms

30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.



Q6. How long is the warranty for machines?

Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.Please contact your Sunrise sales representative for details.



Q7. Can you engineer come to our place to help with machine installation & commission?

Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.



Q8. If I can't know how to operate. Can your engineer help me programme well on machine?

Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into U-disc of operation video to help you.



If any interest about our cnc lathe machine, cnc milling machine or cnc machining center, please just contact us freely.And we warmly welcome you to visit our factory at any time, thank you.
