TUOSHI Vehicle Caravan Wifi Mobile Signal CPE SMA External Antenna 1200mbps Dual Lock band lte Sim 4g industrial cellular router
- Category: >>>
- Supplier: Shenzhen Tuoshi Technology Co. Ltd.
Share on (1600659292829):
Product Overview
Description
Specification
Interface | Network | 4*lan 1*wan |
SIM | 2FF sim | |
Button | reset | |
DC adapter | Input voltage:12V 1.5A | |
Solution | Routing and WiFi chipset supplier | MTK |
BASE | Routing and WiFi chipset model | MT7628A+MT7612E |
Routing and WiFi processor info | IEEE 802.11 a/b/g/n/ac | |
DDR/SPI | 64MBytes/16MBytes | |

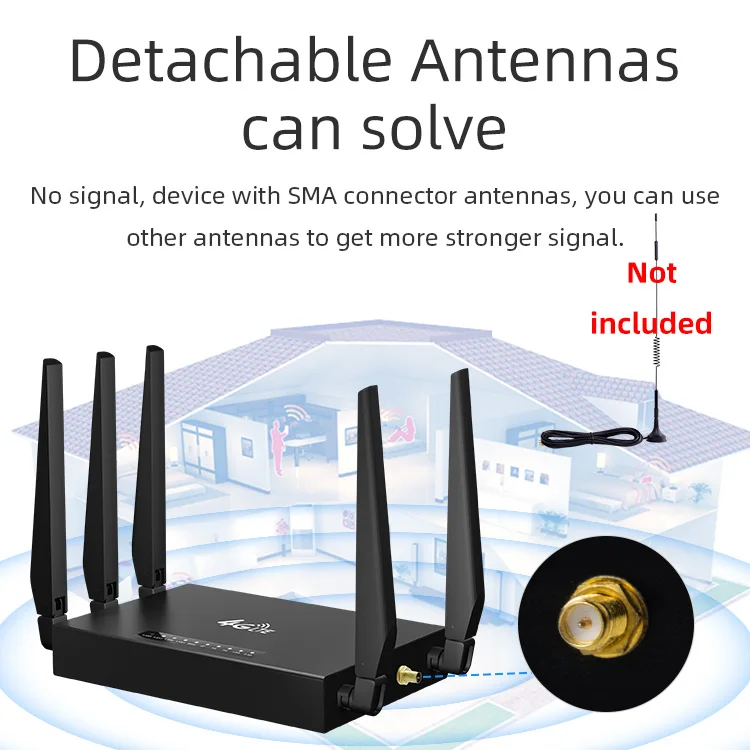

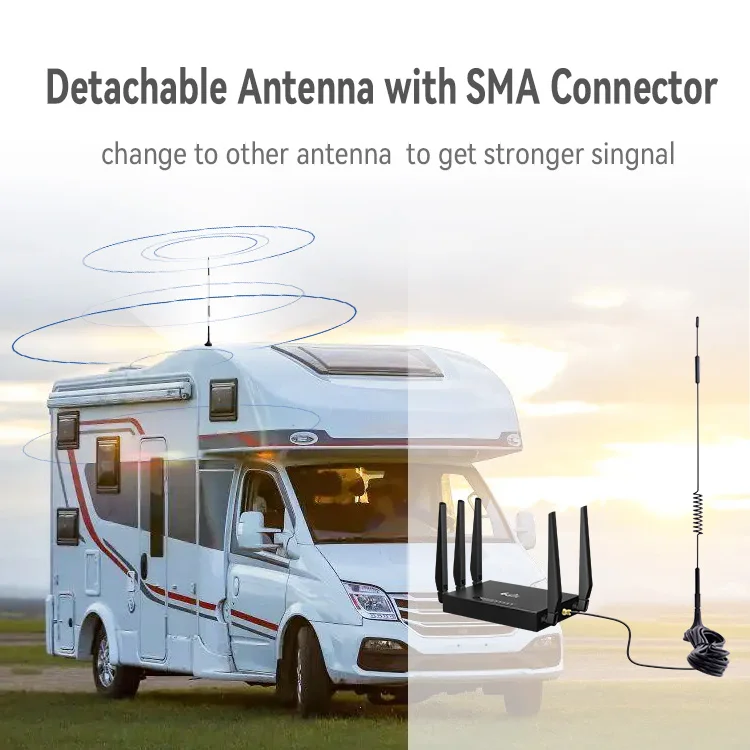

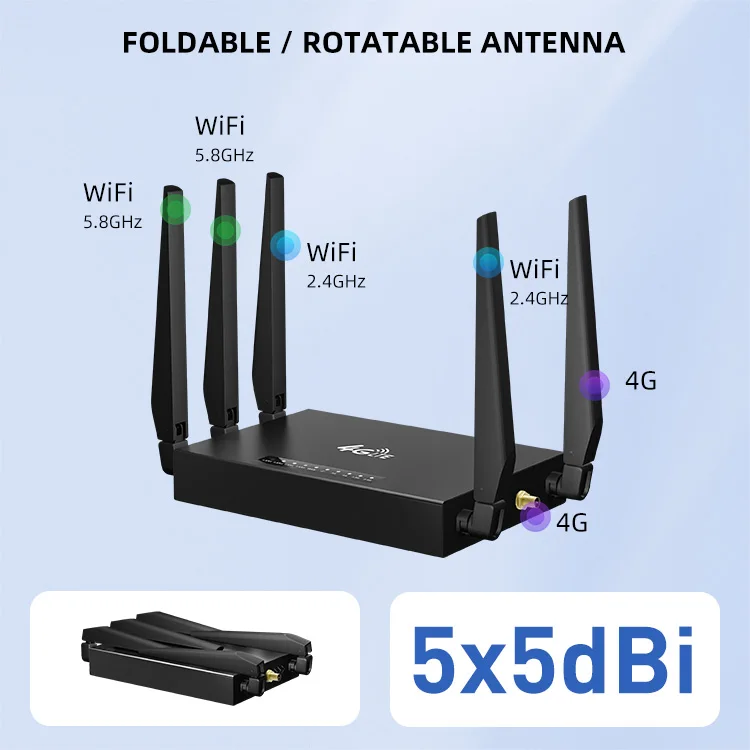

RF | Main antenna | Internal antenna(1 SMA Detachable Antenna） |
Receive diversity antenna | Internal antenna(1 SMA Detachable Antenna） | |
WiFi band | 2400MHz-2483.5MHz 5170MHz-5835MHz | |
MIMO for WiFi | 2.4G 5dbi X 2 5G 5dbi X 2 | |
Max. transmitter power for WiFi | 802.11a 14dBm±2dBm; 802.11b 22dBm±2dBm; 802.11g 18dBm±2dBm; 802.11n 16dBm±2dBm; 802.11ac 15dBm±2dBm; | |
Software | Language | Chinese&English |
APN Setting | Supported | |
Device Settings | Supported | |
WIFI Settings | Supported | |
Routing Settings | Supported | |
Firewall Settings | Supported | |
Technical standard | LED | Supported |
WiFi standard | 802.11a/b/g/n/ac | |
WiFi security | WPA/WPA2 | |
OS | Windows XP、Windows Vista、Windows 7、Windows 10、MAC、Linux | |
Browser | IE (8.0 and later)、Firefox (3.0 and later)、Safari (4.0 and later)、Opera (10.0 and later)、Chrome (10.0 and later) | |
Envionment | Operating temperature | 0 to 50° C |
Storage temperature | -40 to 70° C | |
Humidity | 5% to 95% |
Please check which version can work on your country before buying.
Version 1: work on America&Latin America countries
LTE FDD: B2/B3/B4/B5/B7/B8/B12/B13/B17/B25/B26/B66
LTE TDD: B41
WCDMA: B2/B4/B5/B8
GSM: 850/900/1800/1900
Version 2: Europe Version
LTE FDD: B1/B3/B7/B8/B20/B28
LTE TDD: /B38/B40/B41
WCDMA: B1/B8
GSM: 900/1800
Version3: Asia & Africa version
LTE FDD: B1/B3/B5/B8
LTE TDD: B38/B39/B40/B41
WCDMA: B1/B8
TD-SCDMA: B34/B39
CDMA2000 1X/EVDO: BC0
GSM: 900/1800
Version 1: work on America&Latin America countries
LTE FDD: B2/B3/B4/B5/B7/B8/B12/B13/B17/B25/B26/B66
LTE TDD: B41
WCDMA: B2/B4/B5/B8
GSM: 850/900/1800/1900
Version 2: Europe Version
LTE FDD: B1/B3/B7/B8/B20/B28
LTE TDD: /B38/B40/B41
WCDMA: B1/B8
GSM: 900/1800
Version3: Asia & Africa version
LTE FDD: B1/B3/B5/B8
LTE TDD: B38/B39/B40/B41
WCDMA: B1/B8
TD-SCDMA: B34/B39
CDMA2000 1X/EVDO: BC0
GSM: 900/1800
Product Description
Company Profile
Shenzhen Tuoshi Technology Co.,Ltd., mainly committed to the R&D, production and sales of electronic, communication products. Tuoshi is a competent manufacturer in China which focus on wifi and 4G products for more than 15 years. Our main products range from 4G router, CPE, wifi antennas, wifi repeater, wifi bridge, wifi router. We have our own SMT lines, assemble lines and moulding machines. Certified by CE, FCC, RoHS. Based on the advantages of independent R&D and production, 3 main operators in China has started to cooperate with our company for outdoor WLAN series wireless network cards, wifi repeaters and wireless CPE. At the same time, we maintain close technical exchanges and cooperation with international first-class chip manufacturers. We have very wide cooperation with mobile operators around the world. We have very wide cooperation with distributors for 4G and wifi products from USA, Spain, Mexico, Brazil and Indonesia market.
Q1: What's advantage of your company?
A1: * Professional manufacturer of 4G router/wifi repeater/wifi adapter/CPE with more than 15 years experience from 2006.* CE,FCC,RoHS,SGS approved Factory
* OEM /ODM service and support
Q2: What Certificates available?
A2: CE, RoHS, ISO9001, FCC.
Q3: Could I use our own logo and label?
A3: Yes, we could provide OEM service and make the products with your own label.
Q4: How is Quality Control and Warranty?
A4: All products have been 100% strictly Quality Checked in-house before packing.
A3: Yes, we could provide OEM service and make the products with your own label.
Q4: How is Quality Control and Warranty?
A4: All products have been 100% strictly Quality Checked in-house before packing.
