CATV Optical Mini Receiver with 1 RF Male Female Port FTTH Optical Node Fiber Passive Receiver
CATV Optical Mini Receiver with 1 RF Male Female Port FTTH Optical Node Fiber Passive Receiver
CATV Optical Mini Receiver with 1 RF Male Female Port FTTH Optical Node Fiber Passive Receiver
CATV Optical Mini Receiver with 1 RF Male Female Port FTTH Optical Node Fiber Passive Receiver
CATV Optical Mini Receiver with 1 RF Male Female Port FTTH Optical Node Fiber Passive Receiver
CATV Optical Mini Receiver with 1 RF Male Female Port FTTH Optical Node Fiber Passive Receiver
CATV Optical Mini Receiver with 1 RF Male Female Port FTTH Optical Node Fiber Passive Receiver

CATV Optical Mini Receiver with 1 RF Male Female Port FTTH Optical Node Fiber Passive Receiver

Share on (1600659295007):


Price:$1.60 - $1.80

Quantity:


Product Overview

Description



Product Description

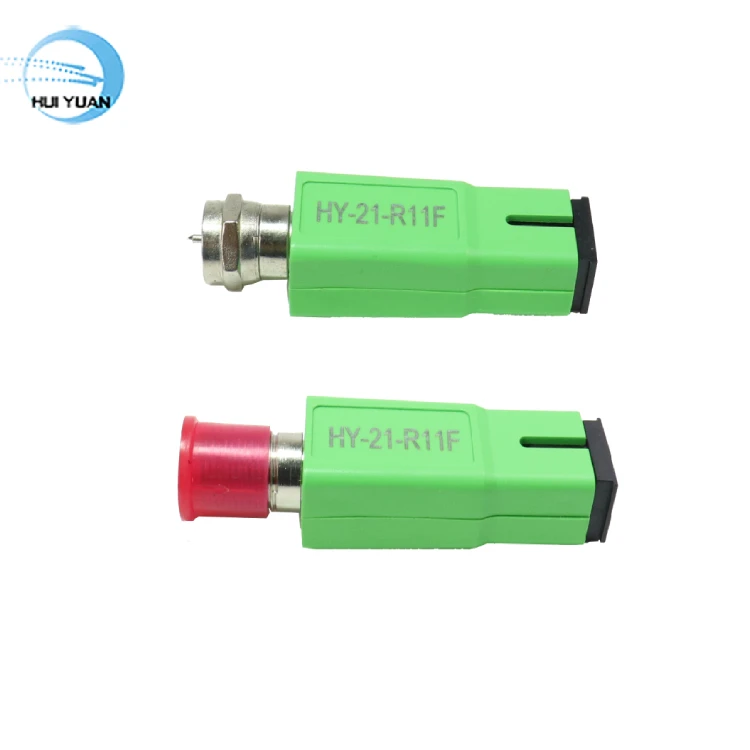

HY-21-R11F series CATV converter for digital television,fiber to the home. This machine adopts the high sensitivity optical receiving tube,without power supply,no power consumption.When the input optical power output level Pin=-1dBm, Vo=68dBuV, can be economically and flexibly apply the integration of three networks,fiber to the home network application.

HY-21-R11Fx appearance of enamel, there are two kinds of optical made selection:

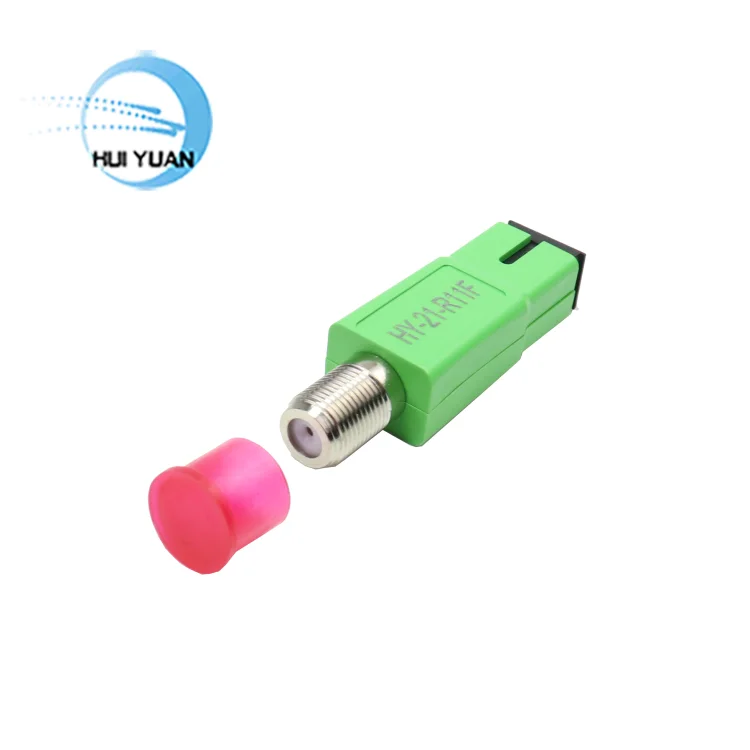

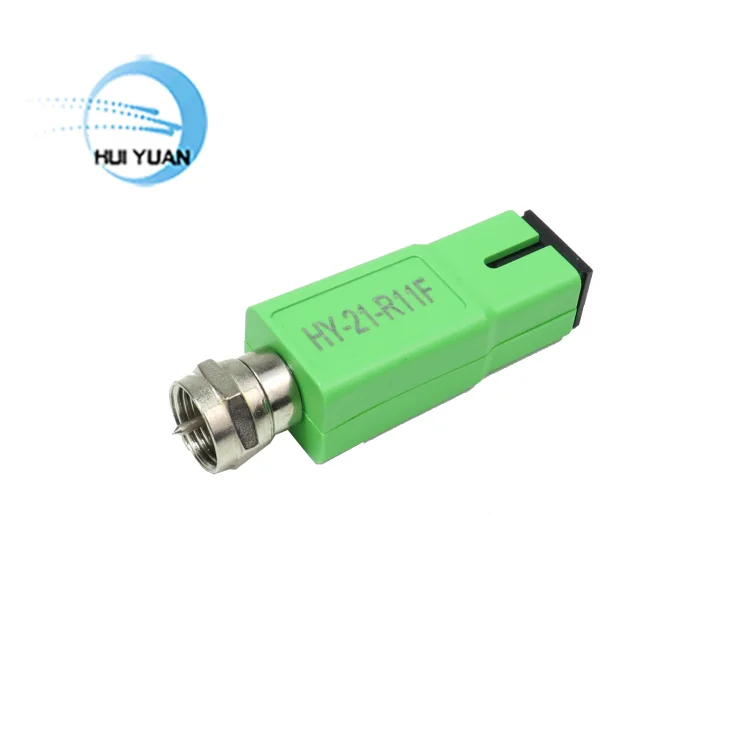

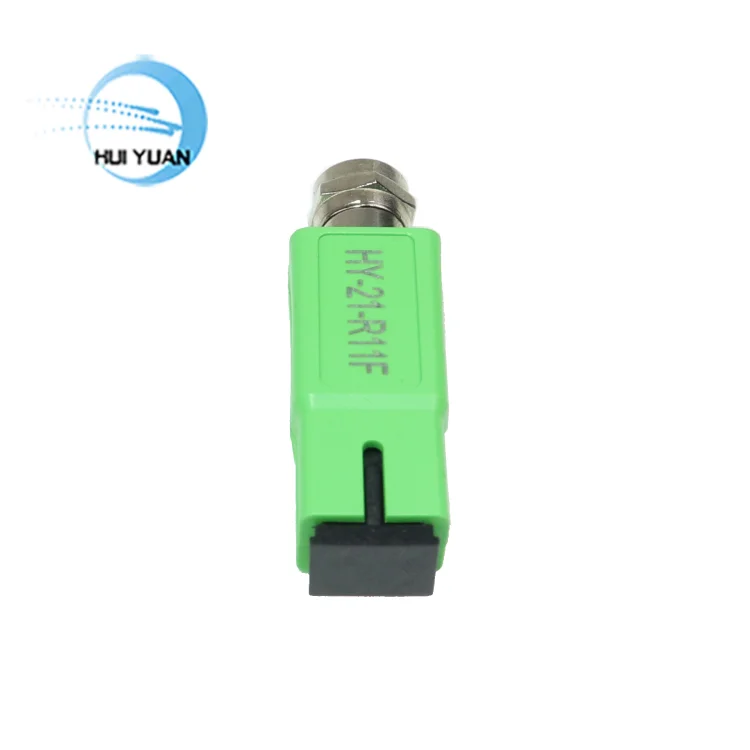

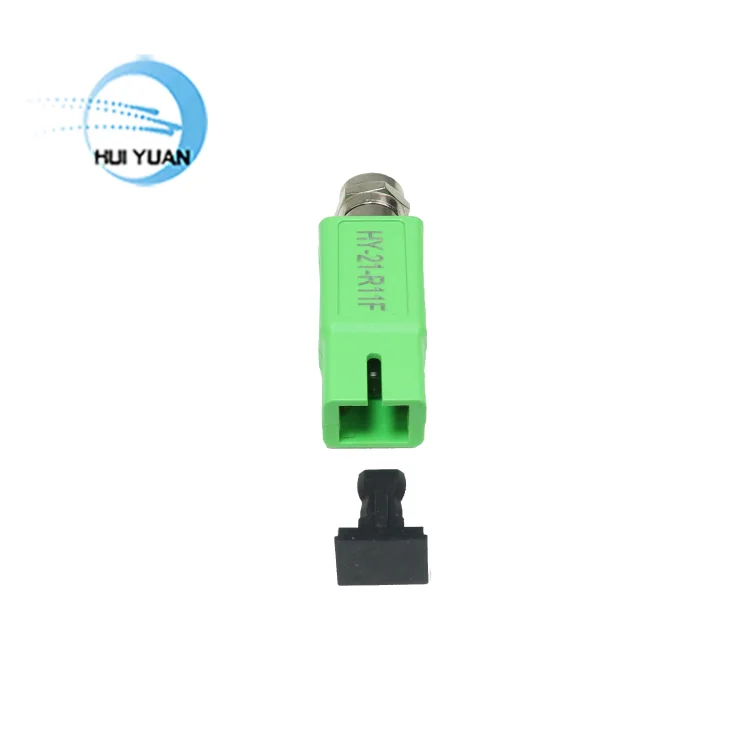

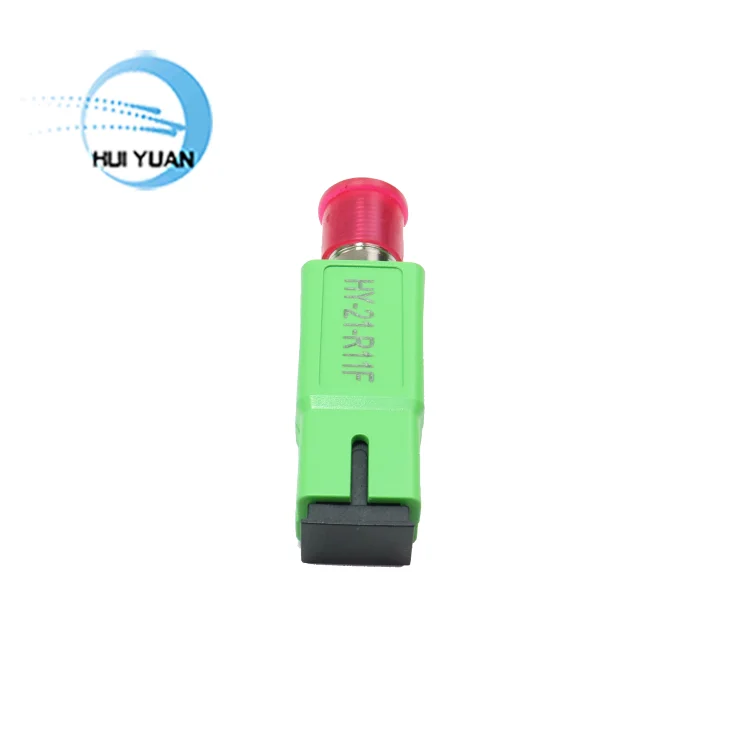

Details Images




Specification


NO.
Products Type
HY-21-R11FA/HY-21-R11FB
1
Wavelength of Input Beam(nm)
1310~1550/1550nm
2
Input optical power(dBm)
-12~ 0dBm
3
Output Impedance of Radio Frequency
75Ω
4
Optical connector
SC/APC or SC/UPC
5
Range of frequencies
47~1000MHZ
6
Reflectional loss of light(dB)
>45
7
Inner flatness of band
±1.5dB
8
Output Return of Radio Frequency:
≥16dB
9
C/N:
≥51dB
10
C/CSO
≥62dB
11
C/CTB
≥65dB
12
Weight of Product(g)
50g
13
Overall Dimension(mm)
52×17×15mm
