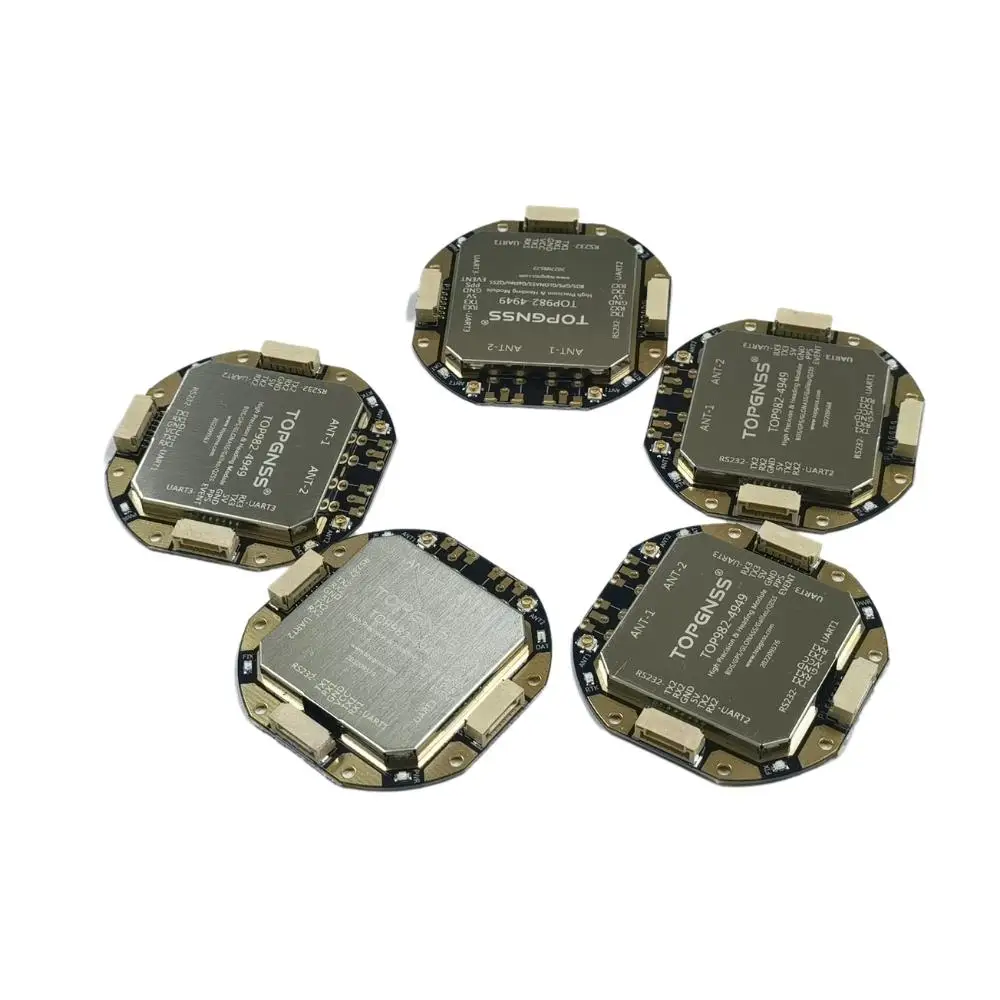

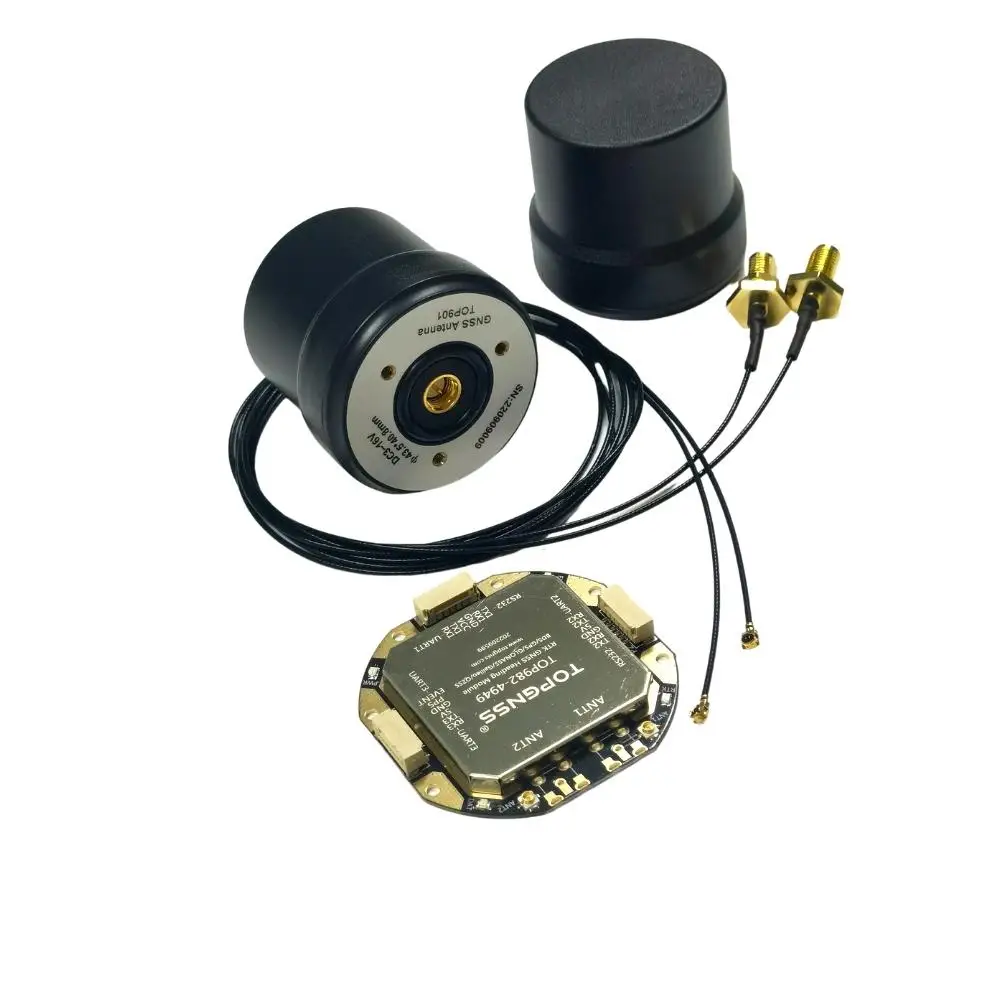

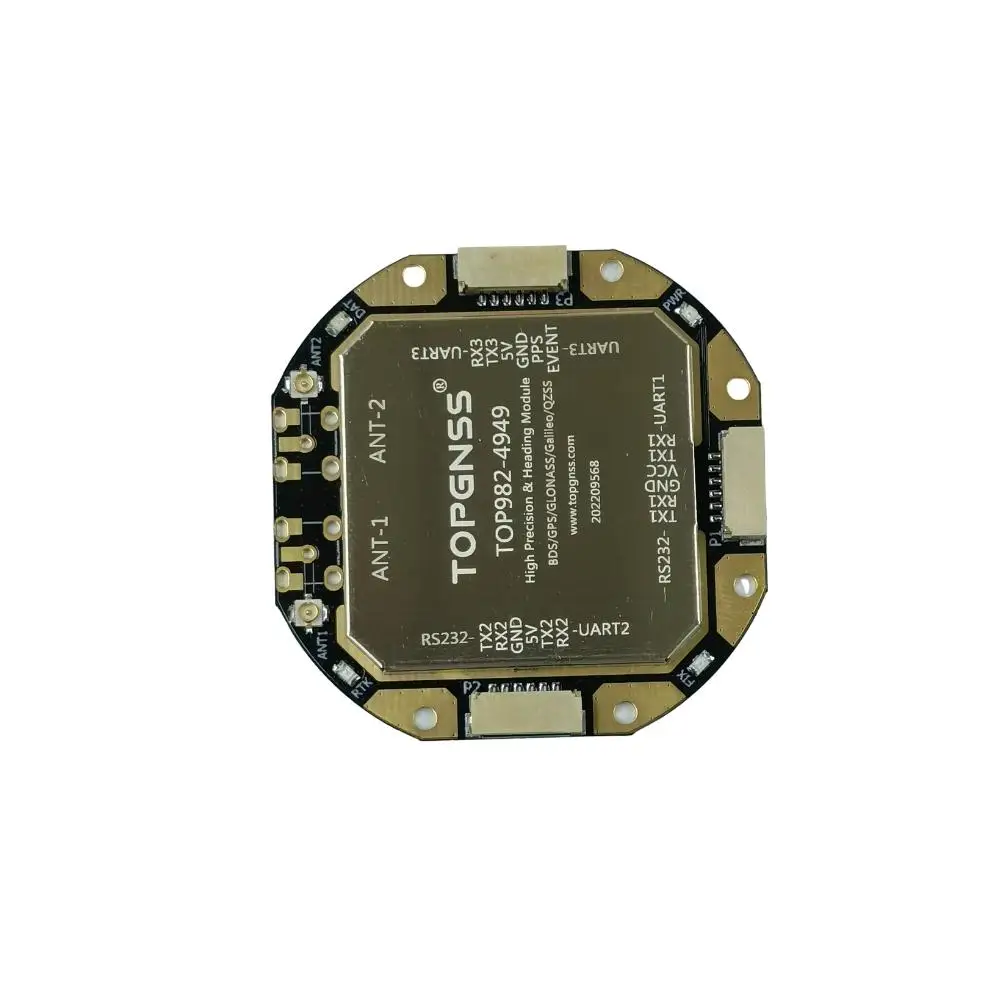

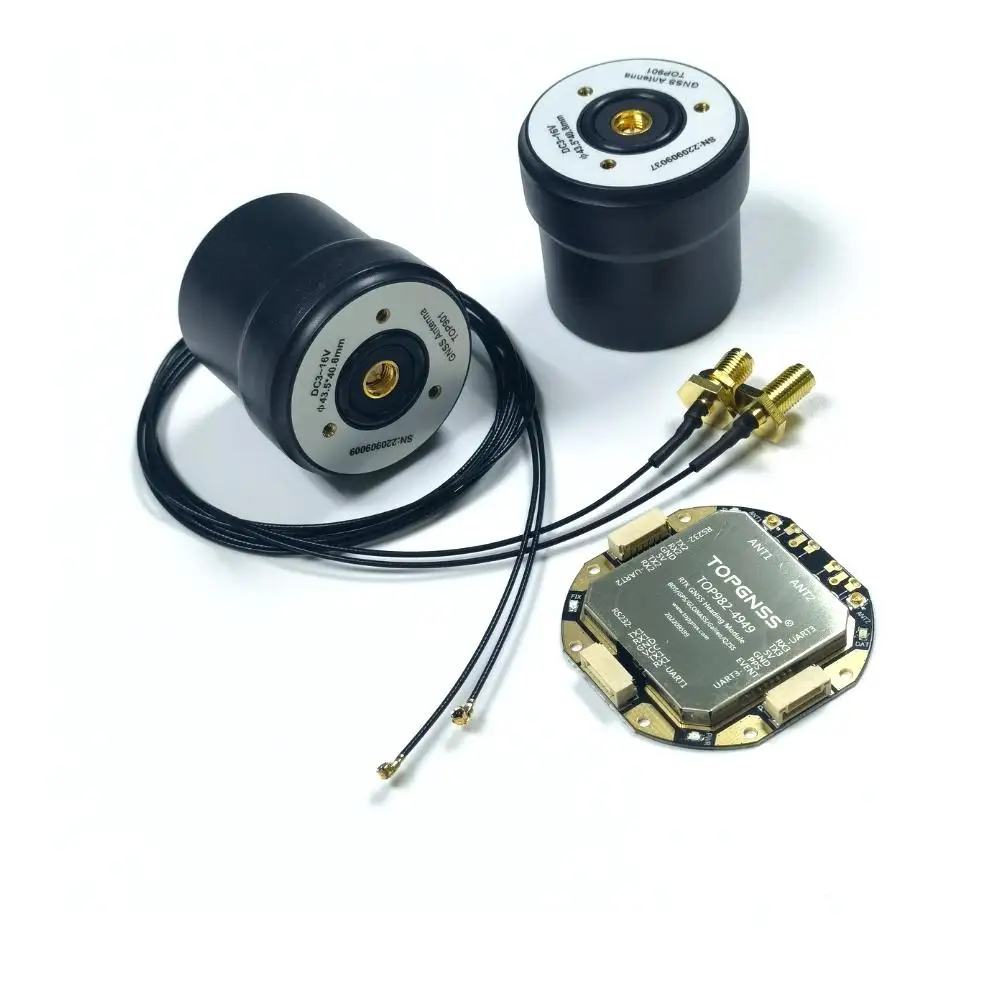

TOP982 4949 Positioning and Heading RTK high precision 9 36V GNSS module antenna Spiral antenna L1 L2 L5 UART or RS232 TOPGNSS

Product Overview

Description

The TOPGNSS TOP982-4949 high precision GNSS RTK and heading module is an multi-frequency, multi-constellation GNSS module based on the Nebulas-II GNSS SoCan. It has a small footprint and supports GPS L1/L2,L5GLONASS L1/L2, Galileo E1/E5a/ E5b, BeiDou B1/B2 and SBAS. The TOP982 is used in a variety of applications such as drones, autonomous vehicles and mechanical control.



•


  Key Features





•

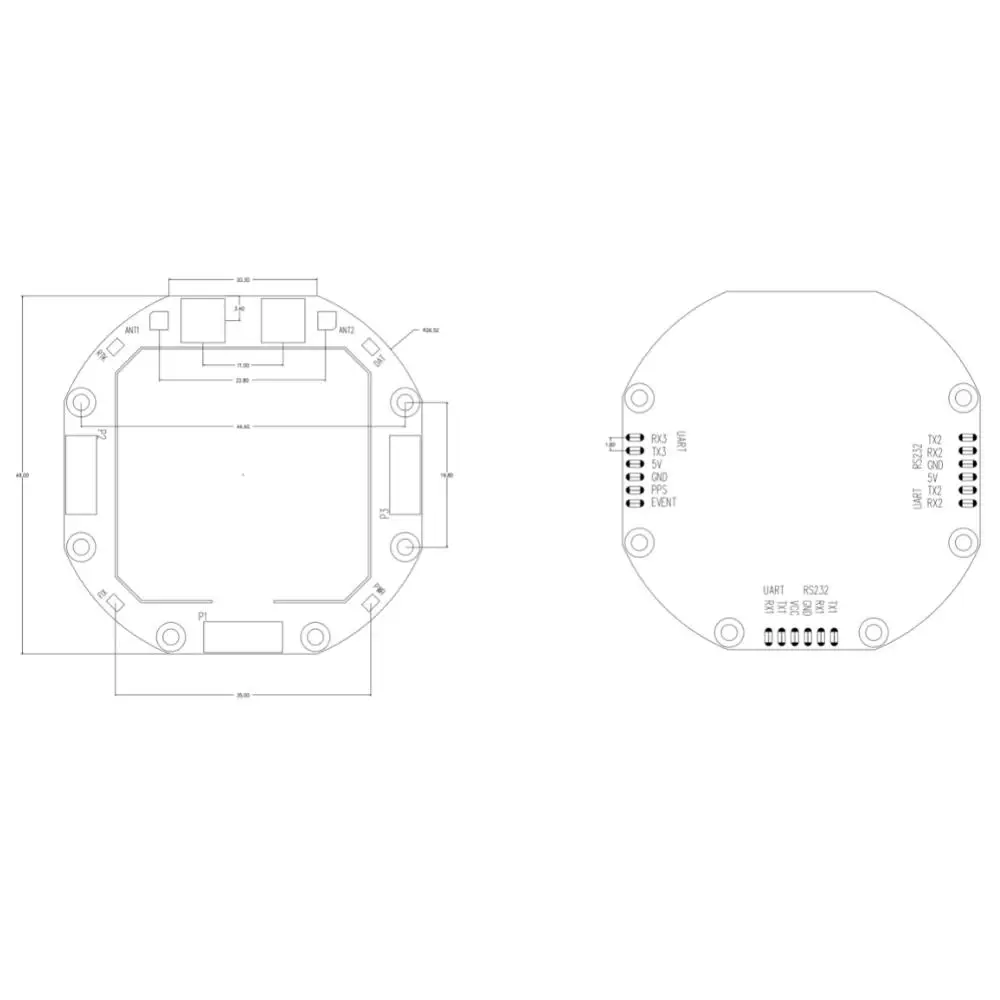

  49 mm ×49mm





•


  Supports all-constellation multi-frequency on-chip RTK positioning and dualantenna heading solution





•


  Supports BDS B1I/B2I/B3I + GPS L1/L2/L5 + GLONASS L1/L2 + Galileo E1/E5a/E5b+ QZSS L1/L2/L5 + SBAS





•


  Dual-RTK engine technology





•


  Adaptive recognition of RTCM input data format





•


  Dual antenna input





•


  Supports UART+RS232
