Screw Air Compressor Oil Filter Element 3PPM Air Compressor Oil Filter
- Category: >>>
- Supplier: Guangdong Taikesasi Electromechanical Equipment Co. Ltd.
Share on (1600659508080):
Product Overview
Description
Product Overview

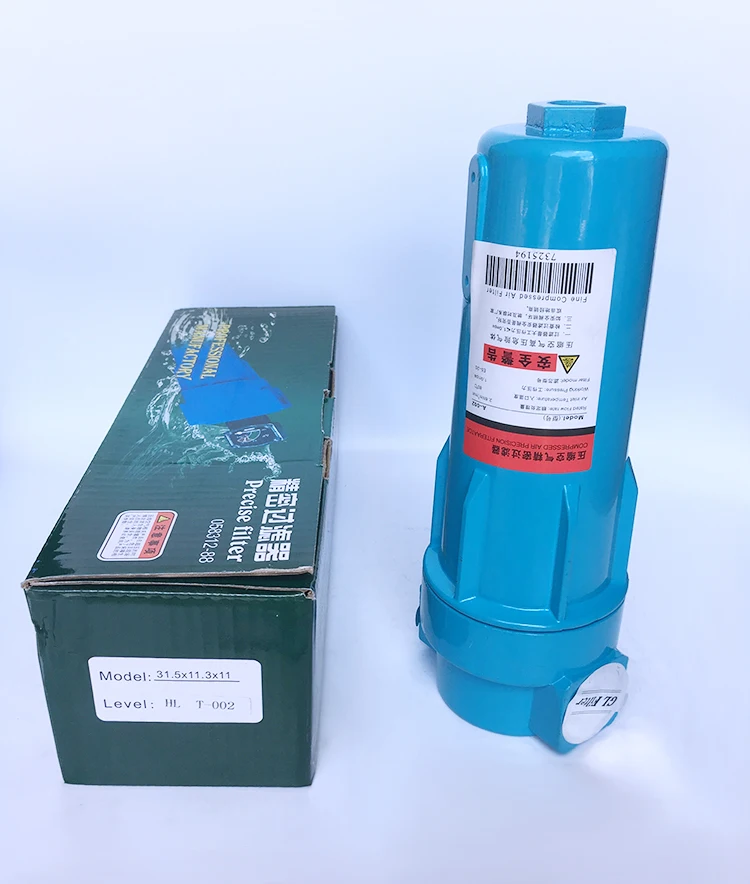

COMPRESSED AIR FILTER
Kapa air filters grade is divided into C,T,A, AA, H.
C: Filter out liquid and solid particles above 3 microns.
T: Filter out liquid and solid particles above 1 microns.
A: Filter out liquid and solid particles above 0.01 microns.
AA: Filter out liquid and solid particles above 0.01 microns and 99.999% oil mist of liquid particles.
H: Filter out residual oil vapors and other odors in compressed air.
PRODUCT SPECIFICATIONS
TYPE | CAPACITY (Nm³/MIN) | AIR INLET PIPE DIAMETE | WEIGHT(KG) | MATCHED AIR COMPRESSORPOWER(KW) |
S-001 | 1.2 | R1 | 1.5 | 7.5 |
S-003 | 2.4 | R1 | 1.6 | 11 |
S-004 | 3.8 | R1 | 2.8 | 22 |
S-007 | 17 | R1 1/2 | 4.4 | 37 |
S-010 | 11 | R1 1/2 | 4.9 | 55 |
S-014 | 14 | R2 | 7 | 75 |
S-018 | 17 | R2 | 7.3 | 90 |
F-014 | 14 | DN50 | 46 | 75 |
F-018 | 18 | DN80 | 51 | 90 |
F-022 | 23 | DN80 | 54 | 110 |
F-028 | 28 | DN80 | 75 | 150 |
F-035 | 33 | DN80 | 75 | 160 |
F-045 | 45 | DN100 | 81 | 250 |
F-054 | 55 | DN125 | 118 | 315 |
F-066 | 65 | DN125 | 118 | 355 |
F-088 | 85 | DN125 | 153 | 450 |
FEATURES AT A GLANCE
COMPACT DIMENSIONS
PRECISION CONTROL
SAFETY USE
SIMPLE INSTALL
SEASY MAINTENANC
Front elevation
Behind elevation
Inside elements
