Product Overview
Description
Product Description

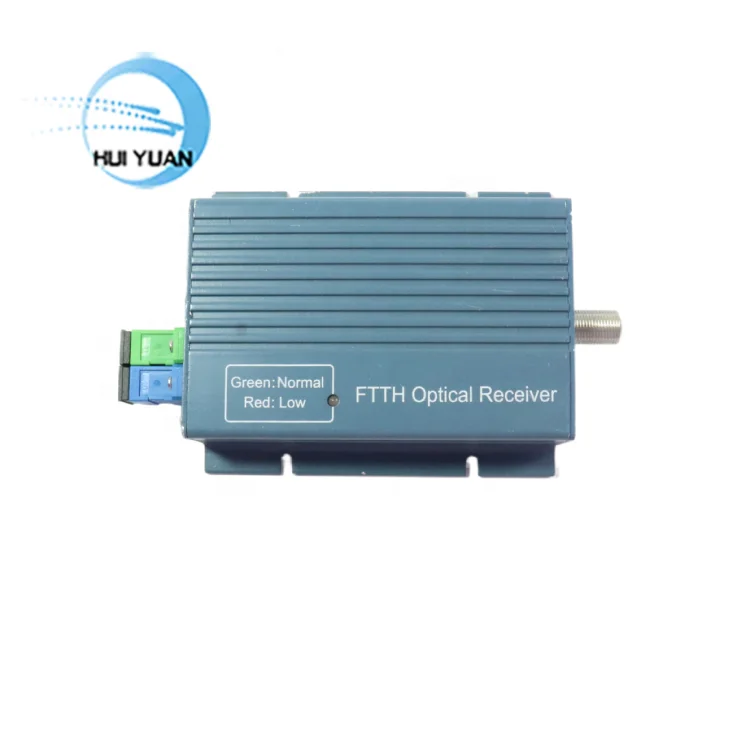

HY-21-R32 optical receiver is home optical receiver with optical fiber access as its ultimate goal. It is suitable for FTTH (fibre to the home) network fiber subscriber access terminals, enabling analog or digital signals to enter the home. The machine uses low-power photo detectors, GaAs and optical AGC technology to meet the fiber-to-the-home CATV reception needs. This device can increase WDM and achieve triple play.

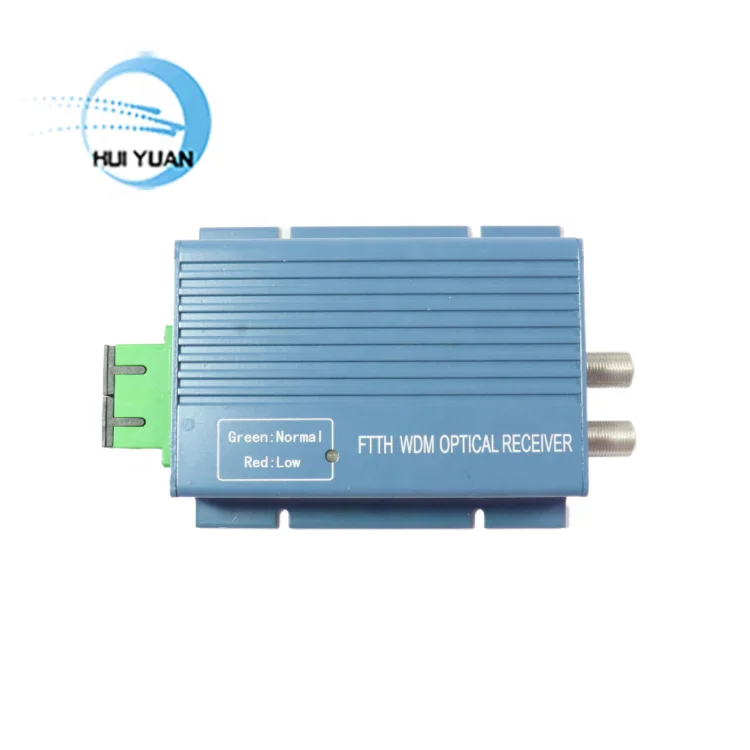

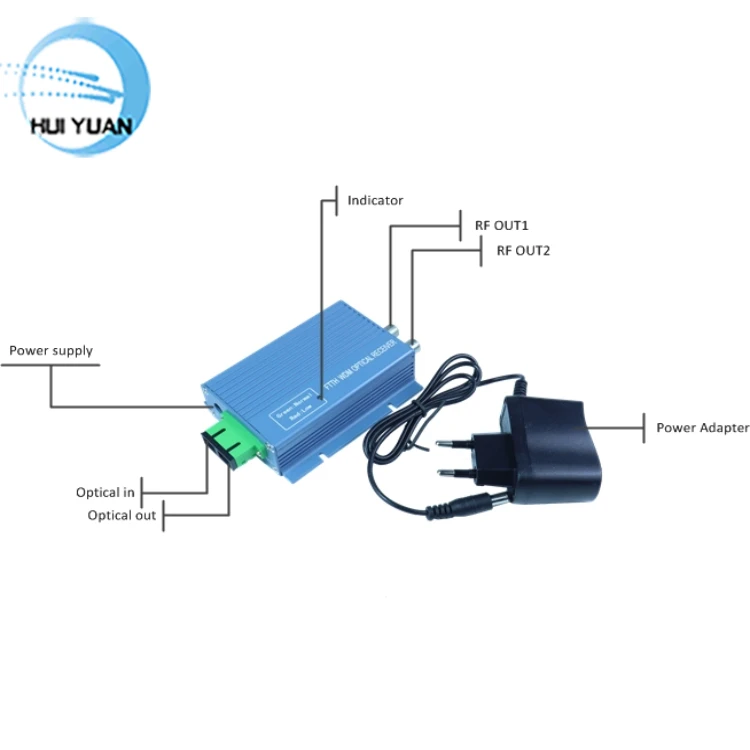

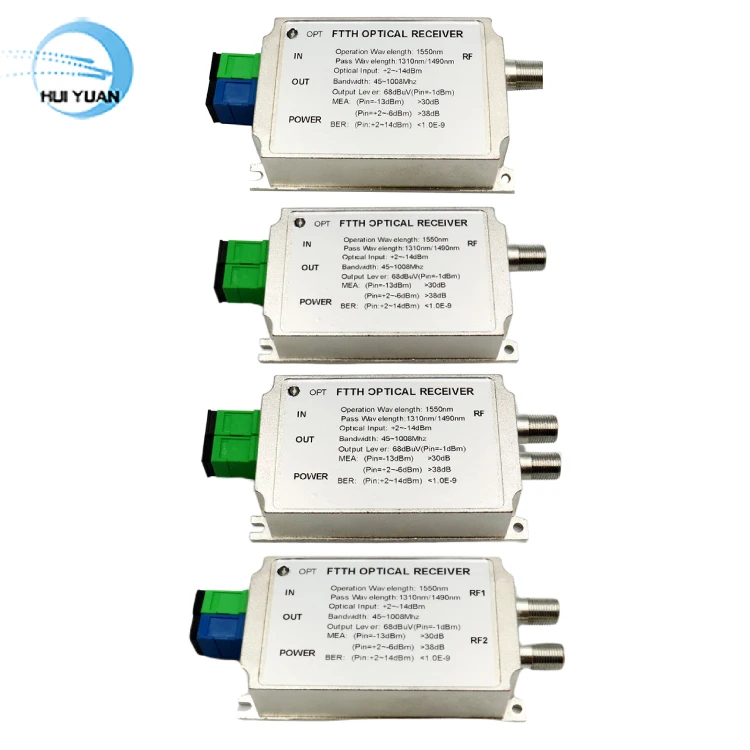

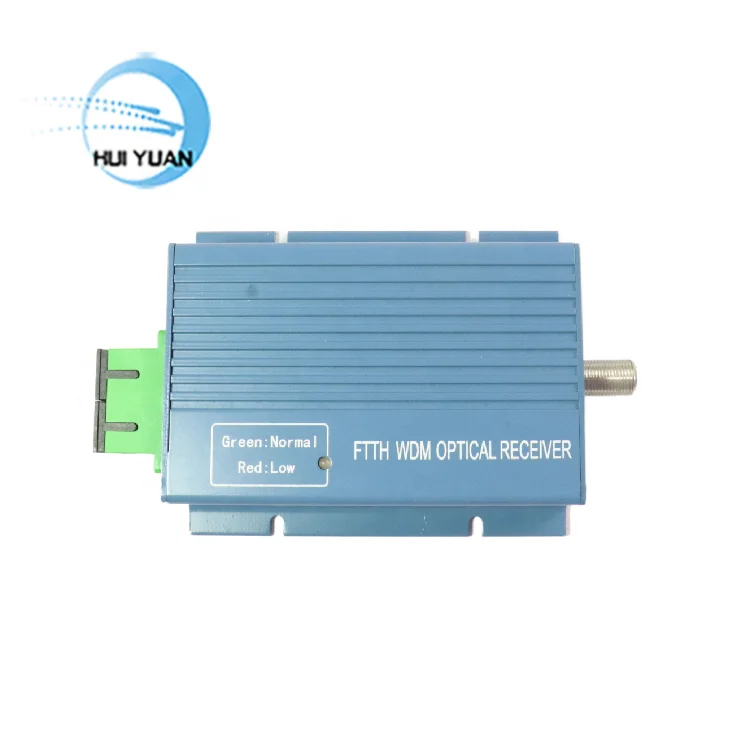

Details Images
Main features
Brushed aluminum shell with good heat dispersion.
RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -18dBm reception at a minimum, and
the -10dBm reception of an analog signal at a minimum.
RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -18dBm reception at a minimum, and
the -10dBm reception of an analog signal at a minimum.
With light input AGC (AGC range can be customized according to user).
Low-power design, using high-efficiency switching power supply to ensure high reliability and high stability of the
power supply. The overall power consumption is less than 1W, with a light detection circuit.
Low-power design, using high-efficiency switching power supply to ensure high reliability and high stability of the
power supply. The overall power consumption is less than 1W, with a light detection circuit.
Multi-stage lightning protection devices (TVS transient suppression diodes), and lightning protection systems are
tight to ensure safe operation of the equipment.
tight to ensure safe operation of the equipment.
Built-in WDM can realize single-fiber home (1490/1310/1550nm) tri-network convergence applications.
Built-in optical isolator, input to achieve 1490/1310nm isolation.
SC/APC or FC/APC optical connector
The output level can be adjustable within the range 0 -18dB, output level more than 80dBuV.
SC/APC or FC/APC optical connector
The output level can be adjustable within the range 0 -18dB, output level more than 80dBuV.
It can realize the power supply mode of output feed.
Can realize single or dual output
Specification
Number | Item | Unit | Description | Remark | ||
1 | Optical connector form | FC/APC or SC/APC or FC/PC or SC/PC | 1260~1620 | 0dBm~-10dBm(Analog signal） | ||
2 | Frequency Range | 45~1006MHz | 1310/1490 | R33x1 | ||
3 | Optical input power | dBm | 0~-10 | Analog signal | ||
0~-18 | Digital signal | |||||
4 | optical reflection loss | dB | ≥45 | |||
5 | Output port number | 1 or 2 | ||||
6 | In-band flatness | ±1dB@45~1006MHz | ±0.75 | |||
7 | RF output reflection | ≥16dB@ 47~550MH ; | ≥82 | Pin:-7.0~+2.0dBm | ||
8 | Gain adjustment range | dBm | 0-18 | |||
9 | Carrier to Noise Ratio | dB | ≥51 | |||
10 | AGC control range | dBm | 0~-9 | |||
11 | CSO | dB | ≥62 | |||
12 | CTB | dB | ≥65 | |||
13 | RF Output impedance | Ω | 75 | |||
14 | Output level | （78~80)dBuV(AGC:@-9~+0dBm， Pin=0dBm) | ||||
15 | Operating temperature | ℃ | -20 ~+55 | |||
16 | Host voltage | DC5V | ||||
17 | Adapter voltage | AC90V ~145V&AC145V ~ 265V | AC90V ~145V&AC145V ~ 265V | |||
18 | Infeed voltage | DC5V | ||||
19 | Power | W | ＜1 | |||
20 | Product net weight | kg | 0.17 | |||

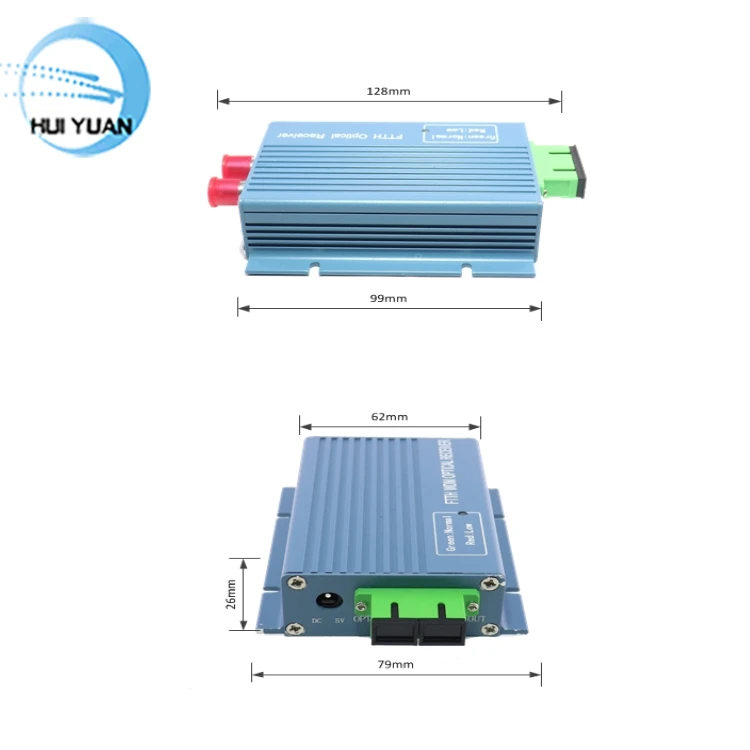

21 | Product net size | mm | 129x79x26 | |||
Note: Test conditions: 59 PAL-D analog television channel signals at 550 MHz frequency range, in the range of 550 MHz to 862 MHz, under specified link loss conditions. The digital modulation signal is transmitted within the rate range, the level of the digital modulation signal (within the 8 MHz bandwidth) is 10 dB lower than the carrier level of the analog signal, and the optical receiver input optical power is 0 dBm, measuring C/N, CTB, CSO.
