Pizarra Interactiva 4K Multi Points Infrared Touch Panel Interactive White Board Smart Whiteboard 55 65 75 86 98 100 110 Inch
- Category: >>>
- Supplier: Guangzhou Zhijing Intelligent Technology Co. Ltd.
Share on (1600659596972):
Product Overview
Description
Why Choose Us
- Our Advantages -
1. Strong OEM/ODM manufacturing capability:
8 Years Focus On Commercial Display One-stop Solutions,14,000㎡ Factory Floorspace; Production capacity of 500 products per day;
2. Customized MOQ=1 pcs:
From simple logo and packaging customization to complex product hardware and software solution design;
3. Top 1 in large size shipments in China:
For products with the size of 100 inches and above, we have great advantages, and the shipment volume is among the top three in China;

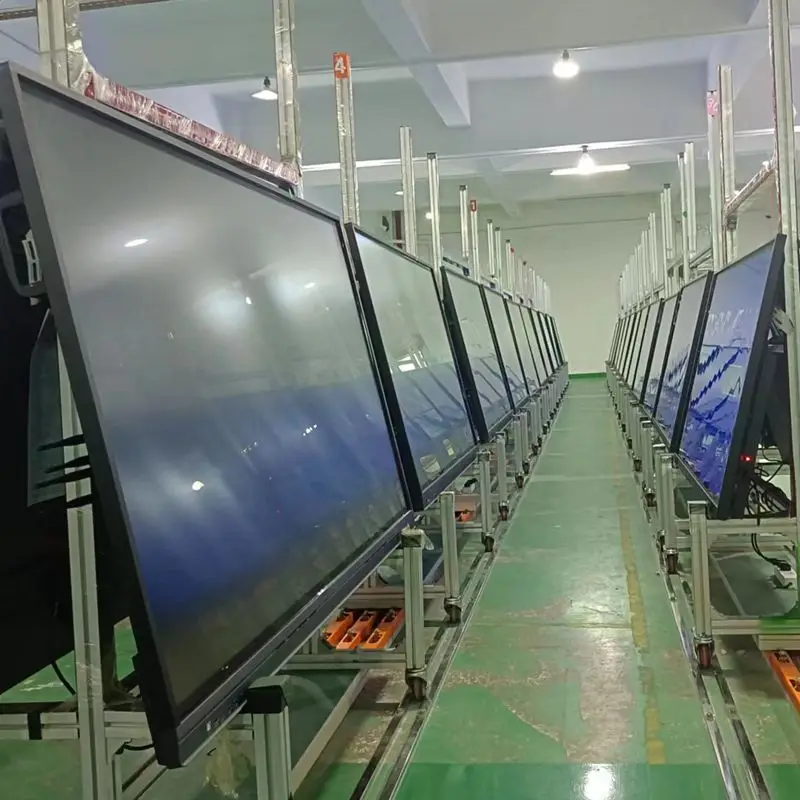

4. Two times aging test:
During the production process, aging at 40 ℃ for 2 hour, and aging at room temperature for 4-8 hours afteroffline.
We don't make brand, we make your brand better.
Product Description
Custom Factory Price 65 75 86 98 100 105 110 Inch All In One Interactive Flat Panel Digital Whiteboard Electronic Smart Board For Conference and Teaching/CheapPrice 55 65 75 86 100 Inch LCD Display Smart Board 20 Points Infrared Interactive Touch Screen Whiteboard

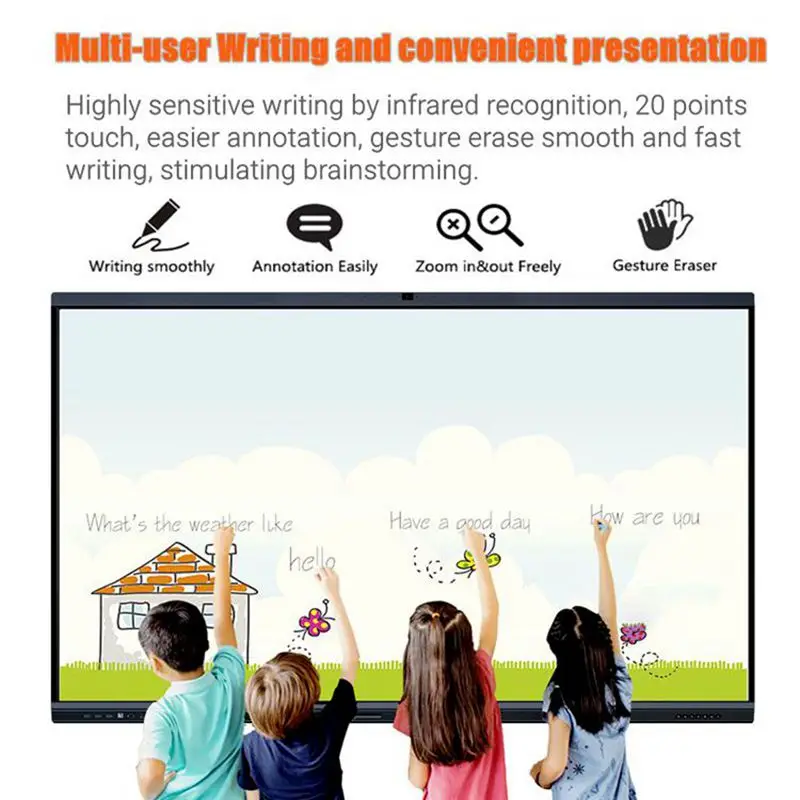

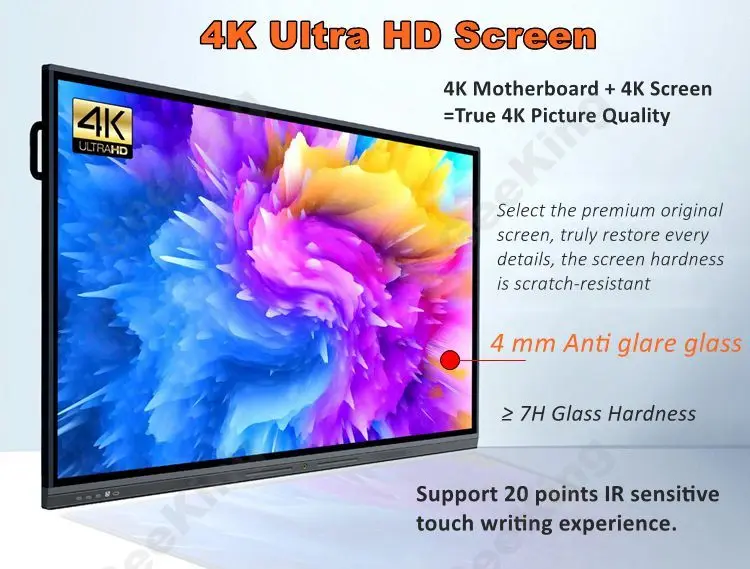

Interactive board: Ultra high 4K resolution，Sensitive 20 points IR touch，Built in professional whiteboard software，Professional Anti-Glare glass.
New ODM Cheap Interact Display Digital Smart Board 20 Points Infrared Smart LCD Touch Screen Interactive White board For Meeting

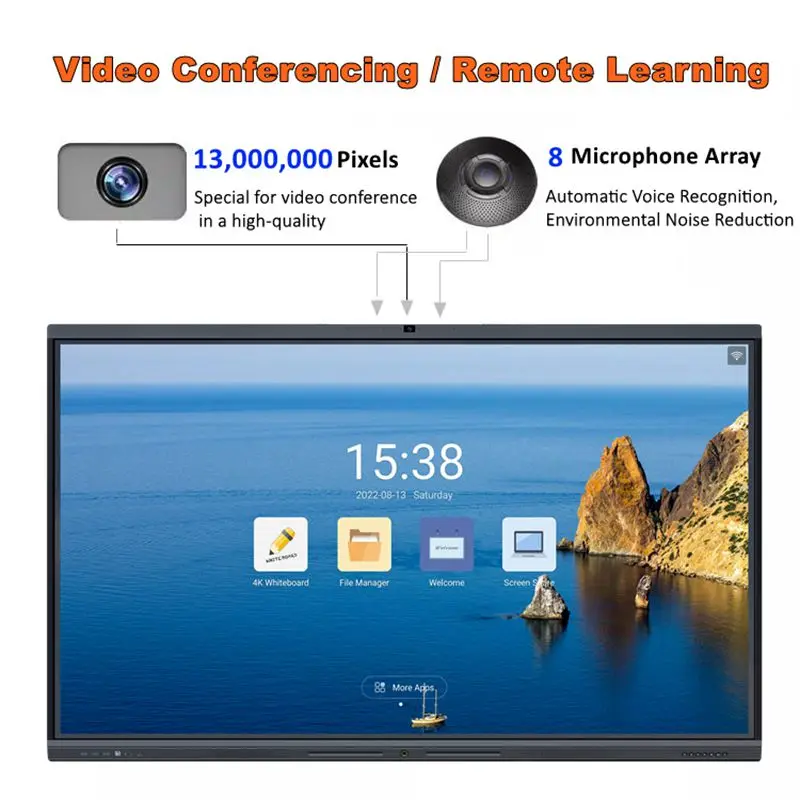

Dual System: Open ecosystem allows you to choose whichever apps are best for you and your organization. Interactive board have dual systems, Android 11 and windows 10, you can use existing Zoom, Google Meet, Microsoft Teams, Webex and other popular 3rd party video conferencing meetings .

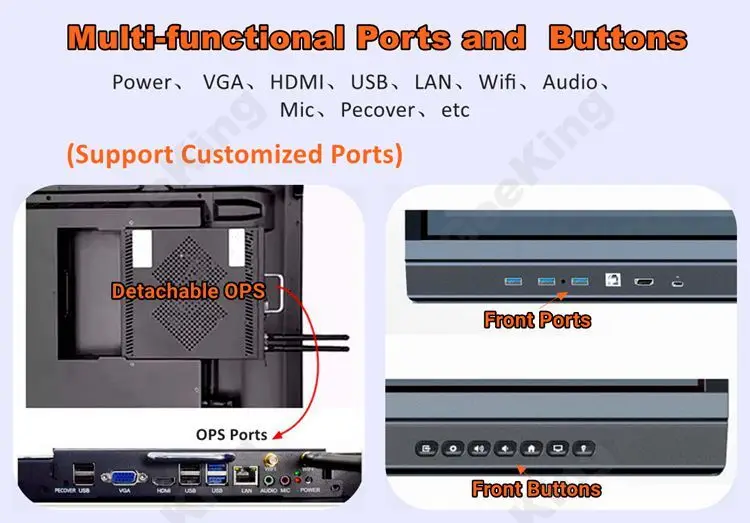

Wireless Share: Smart board supports phone pc tablet up to 4 users to screencast simultaneously via Airplay and Eshare, or by connecting in via H-DMI. With your screen cast, you can annotate as needed, share via video conferencing, or screenshots.Supports multi-person and multi-device editing and sharing on the 4K UHD interactive board in real-time.

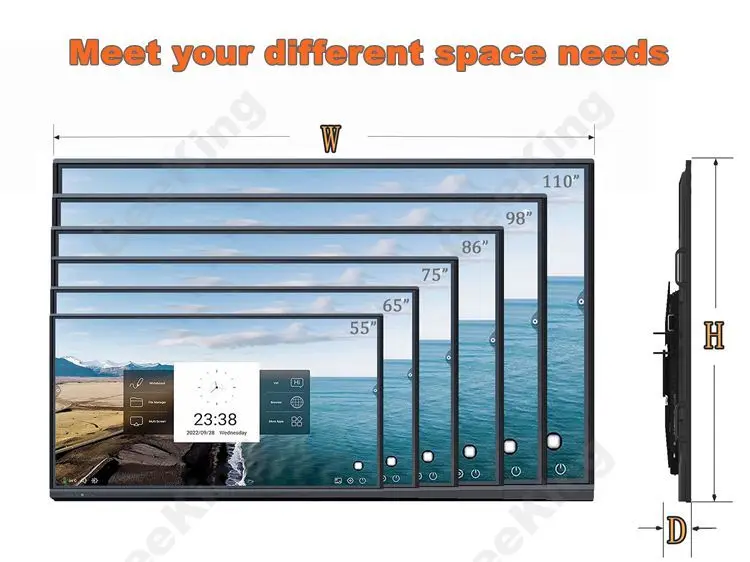

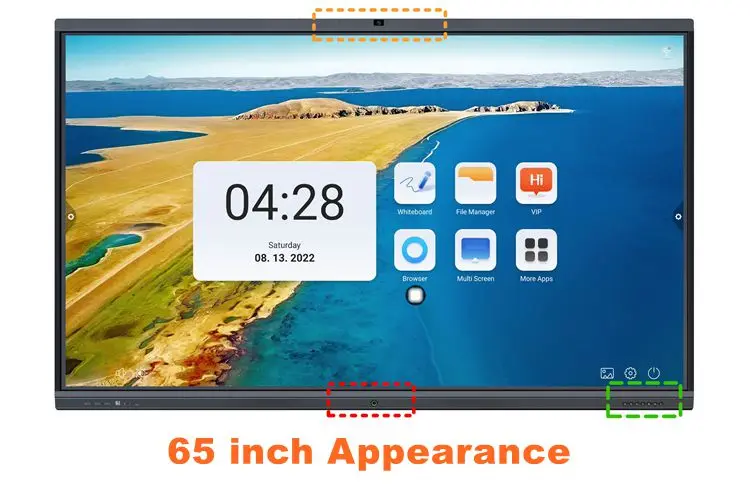

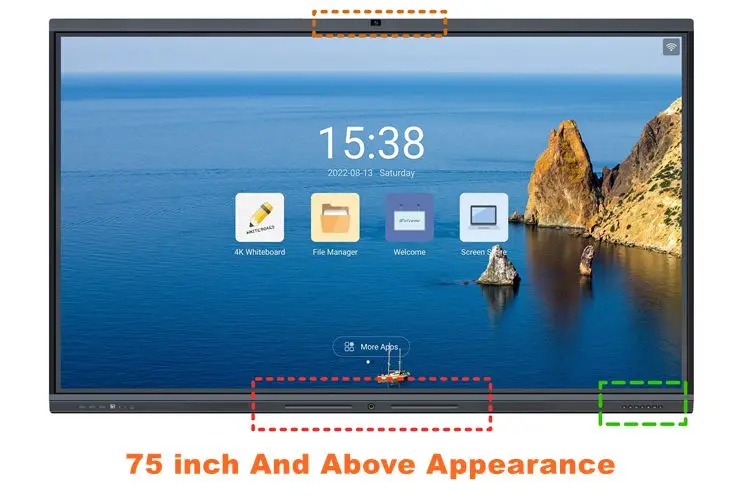

Size (inch) | Area (㎡) | Persons | L*W*H (mm) |
65 | 20-30 | 20 | 1486.08*901.26*88.9 |
75 | 30-40 | 35 | 1708*1026*89.1 |
86 | 50-80 | 50 | 1954.44*1165.21*89.1 |
100 | 60-120 | 100 | 22.18.24*1318.1*100.81 |
105 | 100-150 | 120 | 2508.84*1156.36*74.5 |
110 | ≥150 | ≥150 | 2502.04*1498.66*69.5 |
Specification
Product Name | All In One Interactive Smart Whiteboard For Conference & Education | |
Dual System | ||
Windows 10 OS | Intel core i3/i5/i7 option, | |
Memory 4G/8G/16G option | ||
Hard Disk: 128G/256G/512G/1T option | ||
Android OS | Quad core, 3G RAM, 32G ROM, Android 8.0/9.0 version | |
LCD Panel | ||
Size | 65 inch / 75 inch / 85 inch / 98 inch / 110 inch Available | |
Panel Brand | LG、BOE、AU (gauge A screen) | |
type | TFT-LCD S-PVA | |
Resolution | 3840 × 2160 (UHD) @60hz, 4K UHD screen | |
Brightness | 450 cd/m² | |
Ratio contrast | 2000:01:00 | |
Visual Angle (horizontal/vertical) | 178°/178° | |
Response time | 8ms | |
Visual area(mm) | 1649.7(W)×928(H) mm | |
Color gamut (NTSC) | 72% | |
Backlight | WLED | |
display scale | 16:09 | |
Response time | ＜8ms | |
Life | >60000H | |
Infrared touch characteristic | ||
Touch the specifications | Infrared touch frame | |
glass | 4mm tempered glass | |
Glass transmittance | > 88% (higher transmittance depends on glass surface treatment technology such as AR/AG) | |
Object induction number (IR) | Touch at 20 | |
Number of infrared induction lines (W D) | 32767 × 32767 | |
Positional accuracy | More than 90% of the touch area is 2mm | |
The interface definition | USB 2.0(Full speed) | |
Touch the strength | Zero pressure touch | |
The light resistance | It has light resistance | |
Induction life | 6 million times | |
The response time | ＜8ms | |
The power supply mode | Full duplex usb-powered DC +5V up to 500mA | |
Switching power supply | ||
Power consumption (typical value) | AC100-240V~(+/-10%),50/60Hz | |
Standby power consumption | 270W | |
The power interface | 1W | |
Switching power supply | European standard 220V two - phase three - wire system | |
Mechanical specification parameters | ||
The net weight | 54kg | |
Gross weight | 68.5kg | |
Bare machine outline size (W x D x H) | 1715.8×1024.1×96.8mm | |
Package size (W x D x H) | 1813×1126×190mm | |
Shell material (face frame/back shell) | Plastic/Sheet metal | |
Shell color (face frame/back shell) | black | |
To protect the glass | 4mm toughened glass/level 7 earthquake resistant | |

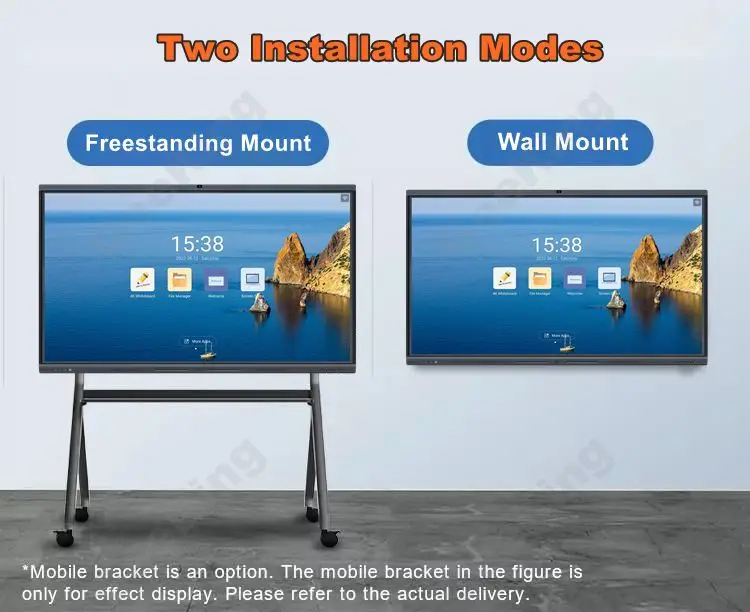

Type of installation | Supports/wall hangers | |
The cooling way | Temperature-controlled fan dissipates heat | |
The environment | ||
Working temperature | 0℃~50℃ | |
Working humidity | 20%~80%(No condensation) | |
Storage temperature | -20℃~60℃ | |
Store humidity | 10%~90%(No condensation) | |
Display mode | S-ips, often black display, transmission | |
Maximum service time (hours/day) | 24 hours | |
Features | ||
The speaker | 2×8Ω/5W(built in) | |
Support for input mode | Stylus writes keyboard | |
The attachment | ||
The user manual | Manual, warranty card, certificate of conformity | |
cable | The power cord | |
Others (optional accessories) | Remote control, base/bracket, WiFi | |
65/75/86/100/110 Inch Finger Multi Touch Screen Smart LCD Display Meeting Room Electronic Digital Interactive Smart White Board/ Wholesale Customized Pizarra Interactiva 4K Multi Points Infrared Touch Panel Interactive White board Smart Whiteboard For School Teaching
Packing & Delivery
We are working with reliable shipping companies,you order will be delivered to your address on time! We can also ship out the goods to your shipping forwarder if requested,we are more flexible!
Global Transportation: We will find out the BEST logistics solutions for you!
1. DHL / UPS / FedEx / TNT, Door-to-Door;
2. By Air or by Sea, for FCL; Airport / Port receiving;
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods;
We choose the best and safe packaging material to make sure your orders won’t be damaged during delivery.
Global Transportation: We will find out the BEST logistics solutions for you!
1. DHL / UPS / FedEx / TNT, Door-to-Door;
2. By Air or by Sea, for FCL; Airport / Port receiving;
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods;
We choose the best and safe packaging material to make sure your orders won’t be damaged during delivery.
Company Profile
Guangzhou GeeKing Intelligent Technology Co., Ltd. is a solution provider of commercial digital display related products, mainly engaged in interactive flat panel displays, education whiteboards, interactive conference panels, advertising displays, digital signage, touch screen kiosks, LED displays, industrial displays, live broadcast all in one machines and other related commercial display equipment products. The production base is located in Dongguan, which is known as the world factory. The factory covers an area of more than 14000 square meters, and has R&D centers and marketing centers in Guangzhou and Shenzhen. All hardware is equipped with software as the overall solution. All our products have passed CE, ROHS and FCC certification.
Our production mainly are for OEM and ODM orders,we don't make brand,we make your brand better.

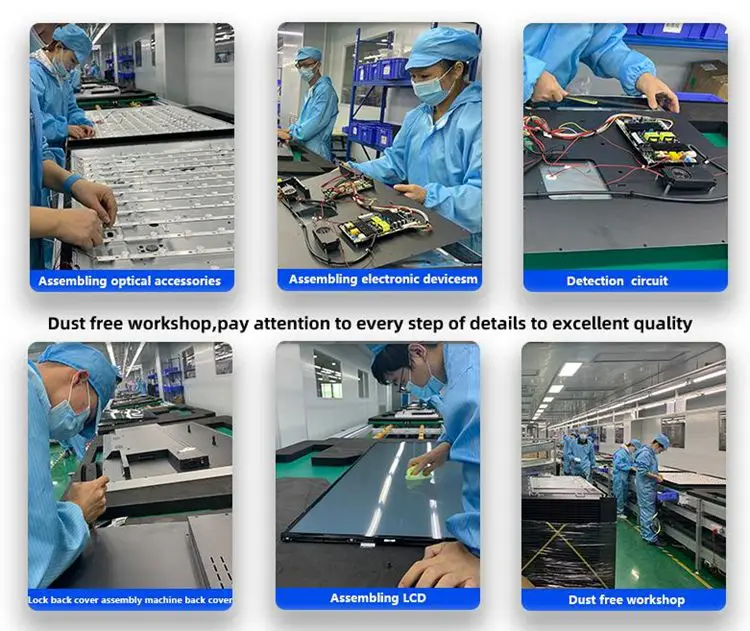

Strong OEM/ODM manufacturing capability: Our products are 100% original and brand new panels of famous brands such as LG/Samsung/BOE, equipped with advanced production equipment, product testing equipment, dust-free workshops, skilled workers, and meet ISO9001 standards, which has always been praised by customers. Our fast delivery speed of some products can reach 3 days,which also impressed our customers.
Professional international team: Our international team is composed of experienced sales personnel and engineers. Our experienced marketing manager can provide professional sales services, and our experienced engineers can provide the best after-sales service support for all customers.
Fast after-sales service: We attach great importance to fast after-sales service and regard it as one of our core advantages. We have a professional team of international after-sales engineers, who can provide quick response to any problems encountered by customers. You can find our engineers at any time. We have provided tens of thousands of sets of products for customers around the world, which have been well received by customers in Southeast Asia, the Middle East, Central Asia, Australia, Europe, Africa and other countries.
Welcome to choose us as your partner, and we will do our best to make you satisfied with the common interests.
Our production mainly are for OEM and ODM orders,we don't make brand,we make your brand better.
Strong OEM/ODM manufacturing capability: Our products are 100% original and brand new panels of famous brands such as LG/Samsung/BOE, equipped with advanced production equipment, product testing equipment, dust-free workshops, skilled workers, and meet ISO9001 standards, which has always been praised by customers. Our fast delivery speed of some products can reach 3 days,which also impressed our customers.
Professional international team: Our international team is composed of experienced sales personnel and engineers. Our experienced marketing manager can provide professional sales services, and our experienced engineers can provide the best after-sales service support for all customers.
Fast after-sales service: We attach great importance to fast after-sales service and regard it as one of our core advantages. We have a professional team of international after-sales engineers, who can provide quick response to any problems encountered by customers. You can find our engineers at any time. We have provided tens of thousands of sets of products for customers around the world, which have been well received by customers in Southeast Asia, the Middle East, Central Asia, Australia, Europe, Africa and other countries.
Welcome to choose us as your partner, and we will do our best to make you satisfied with the common interests.
FAQ
Q1: Is your company a real manufacturer?
A: Our company is the professional manufacturer in Gaobu Town,Dongguan city, you are the mostly welcomed to visit our factory
anytime.
A: Our company is the professional manufacturer in Gaobu Town,Dongguan city, you are the mostly welcomed to visit our factory
anytime.
Q2: Can you provide OEM/ODM service for the all in one interactive flat panel?
A: Yes,well supported.including software, packaging, product logo, etc., Our production mainly are for OEM and ODM orders,we don't make brand,we make your brand better.
A: Yes,well supported.including software, packaging, product logo, etc., Our production mainly are for OEM and ODM orders,we don't make brand,we make your brand better.
Q3: What is the MOQ of interactive flat panel? What's the lead time?
A: We have some items in stock , you can order 1pcs for test, the goods can be delivered within 3-7 days for small orders, and the production time about 15 -20 days for more than 100pcs
A: We have some items in stock , you can order 1pcs for test, the goods can be delivered within 3-7 days for small orders, and the production time about 15 -20 days for more than 100pcs
Q4: How can I trust your product quality?
A: Our warranty time is 1 year,Our products comply with ISO9001 quality system and CE/FCC/ROHS standards,From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. All our products pass strict QC inspection in the production process. In particular, All products need to complete 72-hour aging test to ensure no problems before shipment.
A: Our warranty time is 1 year,Our products comply with ISO9001 quality system and CE/FCC/ROHS standards,From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. All our products pass strict QC inspection in the production process. In particular, All products need to complete 72-hour aging test to ensure no problems before shipment.
Q5: What's your after-sale service?
A: We have the professional sales and technique team to support you, most important, our engineer could do you favor online or
onsite. you will get our reply within 24 hours.You will find us when you need.
A: We have the professional sales and technique team to support you, most important, our engineer could do you favor online or
onsite. you will get our reply within 24 hours.You will find us when you need.
Q6: What is your payment term?
A: You can pay us by T/T, credit card, Western Union, PayPal, Alibaba Trade Assurance; L/C is acceptable too. All of them will at
least 30% deposit in advance, and the rest of 70% will paid before delivery.
A: You can pay us by T/T, credit card, Western Union, PayPal, Alibaba Trade Assurance; L/C is acceptable too. All of them will at
least 30% deposit in advance, and the rest of 70% will paid before delivery.
Q7: If you are not online, how can I contact with you?
A: If I'm not online please check the following information, you can send me email or send message through Whatsapp or Wechat.
A: If I'm not online please check the following information, you can send me email or send message through Whatsapp or Wechat.
