Product Description





CHS042


Extra-low Carbon Stainless Steel covered Welding electrode


                                                                                     AWS A5.4  E309LMo-16


                                                                             ISO 3581-A-E (23 12 2 L) R 3 2


                                                                                   ISO 3581-B-ES309LMo-16


                                                                               BS EN 1600-E 23 12 2 L R 3 2


                                                                                   CSA W48-01  E309LMo-16


                                                                                      GB/T 983  E309MoL-16





Type of Covering:   Lime-titania


Welding Position:   F, H, HF, OH, V


Type of Current:   DCEP or AC





Features & Applications


It is suitable for welding structures fabricated by similar extra-low carbon stainless steels or for dissimilar steel welding, e.g. the lining of urea synthetic tower. The crack-resisting and corrosion resistance is improved due to the molybdenum to the point in weld metal.





Chemical Composition of Deposited Metal (%)














































   C



  Mn



   Si



   Cr



   Ni



Mo



 Cu



   S



   P



Standard



≤0.04



0.50-2.50



≤1.00



22.0-25.0



12.0-14.0



2.0-3.0



≤0.75



≤0.03



≤0.04



Typical



0.026



0.86



0.64



23.14



13.25



2.42



0.16



0.011



0.023






Mechanical Properties of Deposited Metal (AW)

























Tensile Strength   Rm (MPa)



Elongation   A4 (%)



Standard



  ≥520



≥30



Typical



635



36






Sizes Pieces & Recommended Current (DC+ or AC)




























Size (mm)



2.5 x 300



3.2 x 350



4.0 x 400



5.0 x 400



Current (A)



F, H



  50-70



  80-110



  130-160



 160-220



V, OH



  45-60



  70-100



  110-140



 —






 Noted:  1) The rod should be baked at 300℃-350℃ for 1 hour before use.


            2) The surfaces to be welded must be cleaned away impurities of oil contamination, rust, moisture .


            3) Smaller current and short arc are recommended in welding and weave beads no wider than 2.5 times                    of the diameter of the core rod is better.

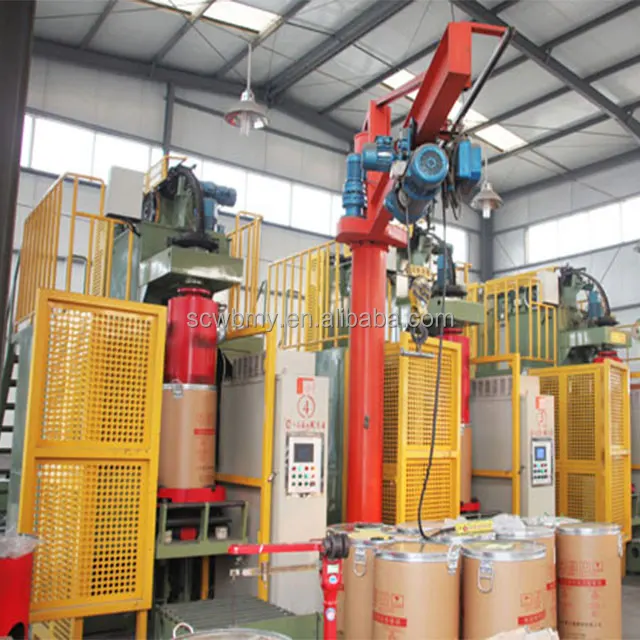

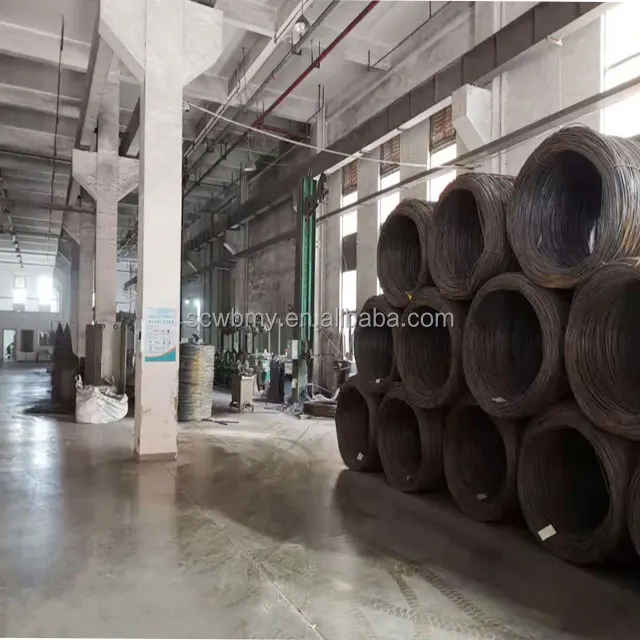

Facory Tour
