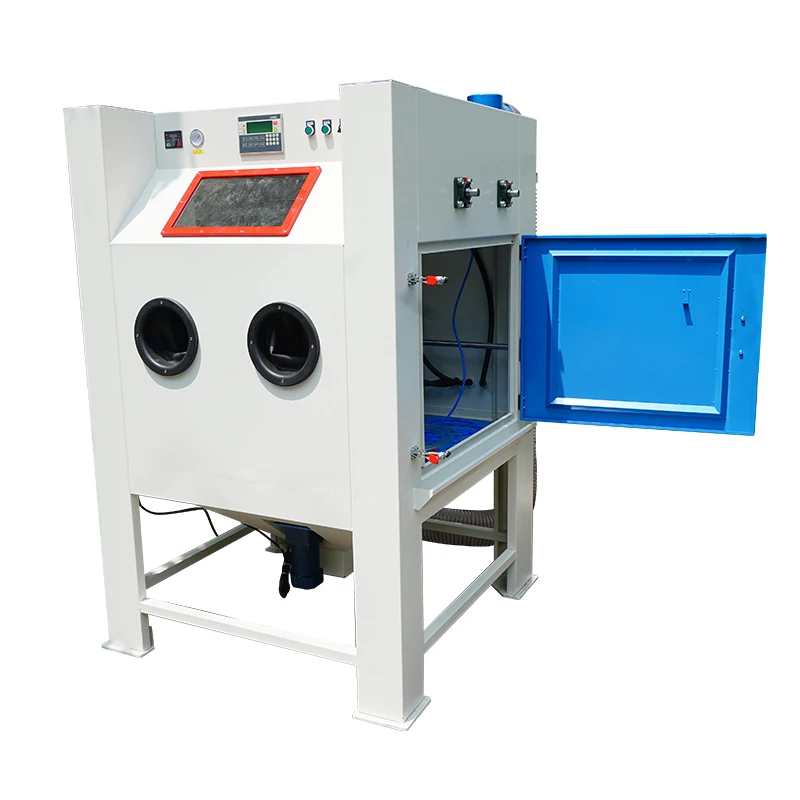

Industrial automatic wheel sand blasting machine
- Category: >>>
- Supplier: Hangzhou Kafan Machinery & Equipment Co. Ltd.
Share on (1600659700943):
Product Overview
Description
Products Description
Industrial automatic wheel sand blasting machine
This sandblasting machine is extremely popular for wheel finish among worldwide customers, as the full automatic operation reduces time and labor while ensures efficiency, quality consistency and flexiblility.

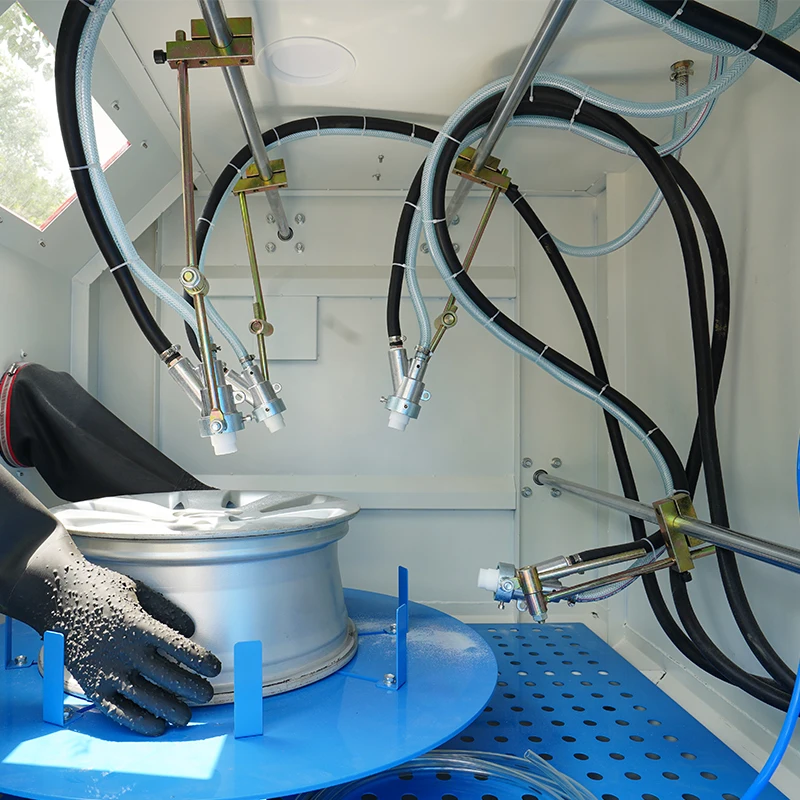

The 360 degree turntable rotates automatically while auto guns swinging and blasting that ensures all surfaces and corners can be cleaned uniformly.
The 360 degree turntable rotates automatically while auto guns swinging and blasting that ensures all surfaces and corners can be cleaned uniformly.
Details Images
Automatic Turntable Blasting Machine Features

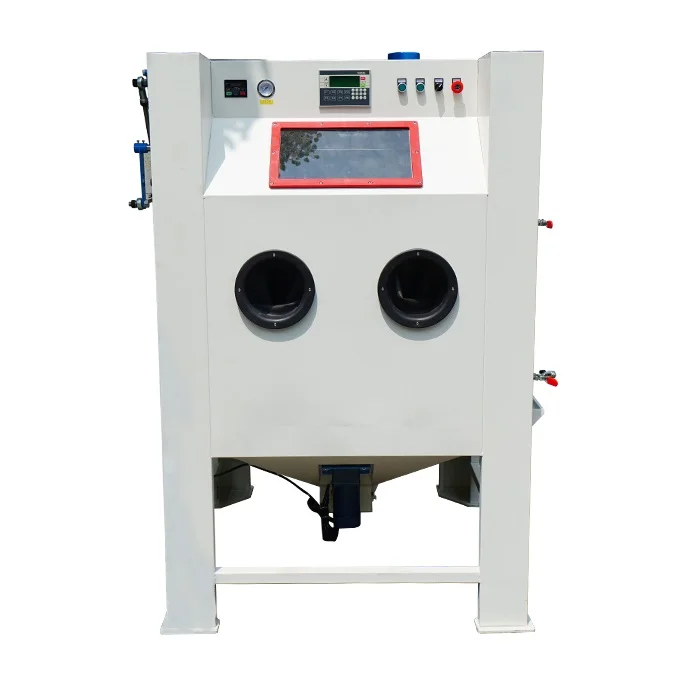

1. Control panel at the front gives you easy access to set blasting time, select gun blasting mode and dust removing.
2. The blasting guns can be set both manual or automatic operation to meet your various needs.
3. Heavy-duty turntable is ideal to load large, irregular shaped workparts.
4. Blasting time can be set as required, the machine will automatically stop when time arrives.
5. The removed dust is collected through a cartridge filter dust collector, which is cleaned by pulse-jet valve.
6. Used abraives can be recycled to the funnel beneath the working chamber.
2. The blasting guns can be set both manual or automatic operation to meet your various needs.
3. Heavy-duty turntable is ideal to load large, irregular shaped workparts.
4. Blasting time can be set as required, the machine will automatically stop when time arrives.
5. The removed dust is collected through a cartridge filter dust collector, which is cleaned by pulse-jet valve.
6. Used abraives can be recycled to the funnel beneath the working chamber.
Pressure Regulating Valve
Cyclone
Rubber Gloves

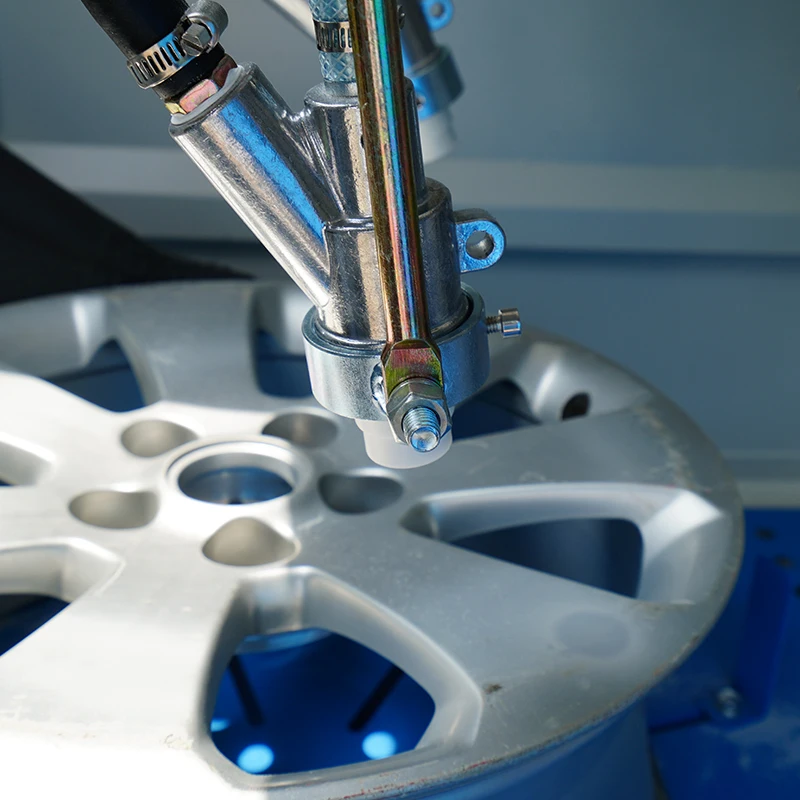

Blasting Gun
Model: | KF-1212-4A |
Working chamber dimension(L*W*H): | 1200mm*1200mm*850mm |
Power supply： | 220V, 50HZ (voltage can be customized as local) |
Machine light power： | 220V, LED* 2 |
Compressed air source： | 5-7bar(kg/㎡) |
Air flow： | 0.8-3m3/min dry and clean compressed air |
Separator air volume： | 8.5m3/min |
Dust removal method | Cartridge Filter Type |
Blasting Gun Qty | 4 pcs |
Blasting Nozzle | Boron Carbide |
Application
This automatic sandblast cabinet designed with turntable to enhance improve working efficiency when operating heavy or irregular shaped workparts, especially excellent for wheel finish.
Recommend Products
Can be customized according to the workpiece. Automatic Abrasive Blasting Machine with turntable or drum or customized fixtures for wheels
Model Loading weight (kg) | Turntable | Loading weight (kg) | Right door W*H(mm) | Outside size L*W*H(mm) | Cabin Size L*W*H(mm) |
KF-9080 | Φ600mm | 100 | 500*560 | 1250*950*1580 | 900*800*800 |
KF-1010 | Φ800mm | 150 | 650*780 | 1420*1050*1900 | 1000*1000*800 |
KF-1212 | Φ800mm | 200 | 750*780 | 1620*1250*2000 | 1200*1200*800 |
Packing
Company Information
PROFESSIONAL MANUFACTURER OF SURFACE FINISHING MACHINERY
Kafan is a brand specializing in design and manufacturering sandblasting equipment and mass finishing equipment. devoted all ourselves supplying solution for worldwide customers, because of the superior technology, quality, service, we’ve established long term business relationship with distributor in US, Mexico, Russia, Poland, UK, Germany, South Africa, Vietnam, Thailand, etc.
Our products can be divided into two main parts, sandblasting equipment and mass finishing machines.
Sandblasting equipment including: manual sandblasting machine, suction sand blast cabinet, pressure blasting machine, wet abrasive blasting equipment, portable blaster pot, automatic conveyor blast system, tumbler blaster, rotary table blast machine, crawl blast machine, blasting parts and abrasives.
Mass finishing system including: vibratory polishing & deburring bowl, vibratory bowl with separator, centrifugal barrel tumbling machine, centrifugal disc finishing system, mass finishing media.
Sandblasting equipment including: manual sandblasting machine, suction sand blast cabinet, pressure blasting machine, wet abrasive blasting equipment, portable blaster pot, automatic conveyor blast system, tumbler blaster, rotary table blast machine, crawl blast machine, blasting parts and abrasives.
Mass finishing system including: vibratory polishing & deburring bowl, vibratory bowl with separator, centrifugal barrel tumbling machine, centrifugal disc finishing system, mass finishing media.
FAQ
1.What is the air pressure and air consumption of each blasting gun?
The input air pressure for the sandblasting machine is 8 bar and air consumption of each gun is about 1m3/min.
2.What is the abrasive and size to be applied?
Sand size ranges from mesh 16 to mesh 320 is all workable, like garnet, aluminum oxide, glass beads, corundum, steel grit, stainless steel shot, etc.
3.Can the abrasive be recycled?
Yeah, the abrasive is reused and circulates inside the blasting cabinet. Add some more from time to time. Don’t need to replace.
4. Can the machine be made to 220v 3-phase voltage?
Yes, we can customize 220v, 3 phase according to customer requirements. And voltage from 100V to 480V can all be made.
5.Is there dust outside the cabinet?
No, there isn’t. The blasting cabinet is equipped with dust collection system itself. It is sealed and closed. Outside is dustless and clean.
6. How long does it take for the machine to be delivered?
It can be delivered within 15-20 working days after receiving the advance payment.
7. Does the machine have a warranty?
Except for wearing parts, the machine is guaranteed for one year.
8. Do you have customers in the US? I would like to confirm more information from local customers.
We have cooperative customers in many countries and can provide customer contact information.
9. Are you a factory?
Yes, our factory locates in Hangzhou, and we have been in this industry for nearly 20 years.
10. Is there a possibility for us to send a sample to your company and give us a test of the equipment
Yes, you can send us work-pieces, we will provide free samples testing according to your requirements.
The input air pressure for the sandblasting machine is 8 bar and air consumption of each gun is about 1m3/min.
2.What is the abrasive and size to be applied?
Sand size ranges from mesh 16 to mesh 320 is all workable, like garnet, aluminum oxide, glass beads, corundum, steel grit, stainless steel shot, etc.
3.Can the abrasive be recycled?
Yeah, the abrasive is reused and circulates inside the blasting cabinet. Add some more from time to time. Don’t need to replace.
4. Can the machine be made to 220v 3-phase voltage?
Yes, we can customize 220v, 3 phase according to customer requirements. And voltage from 100V to 480V can all be made.
5.Is there dust outside the cabinet?
No, there isn’t. The blasting cabinet is equipped with dust collection system itself. It is sealed and closed. Outside is dustless and clean.
6. How long does it take for the machine to be delivered?
It can be delivered within 15-20 working days after receiving the advance payment.
7. Does the machine have a warranty?
Except for wearing parts, the machine is guaranteed for one year.
8. Do you have customers in the US? I would like to confirm more information from local customers.
We have cooperative customers in many countries and can provide customer contact information.
9. Are you a factory?
Yes, our factory locates in Hangzhou, and we have been in this industry for nearly 20 years.
10. Is there a possibility for us to send a sample to your company and give us a test of the equipment
Yes, you can send us work-pieces, we will provide free samples testing according to your requirements.
