M10 Thread Adjustable Foot Cups Reinforced Nylon Base 50mm Diameter Articulated Feet Furniture Leg 100mm Leveling Foot
- Category: Furniture Legs >>>
- Supplier: Wuxi,Laojiu,Hardware,Electromechanical,Co.,Ltd.
Share on:
Product Overview
Description
M10 Thread Adjustable Foot Cups Reinforced Nylon Base 50mm Diameter Articulated Feet Furniture Leg 100mm Leveling Foot
Product Paramenters

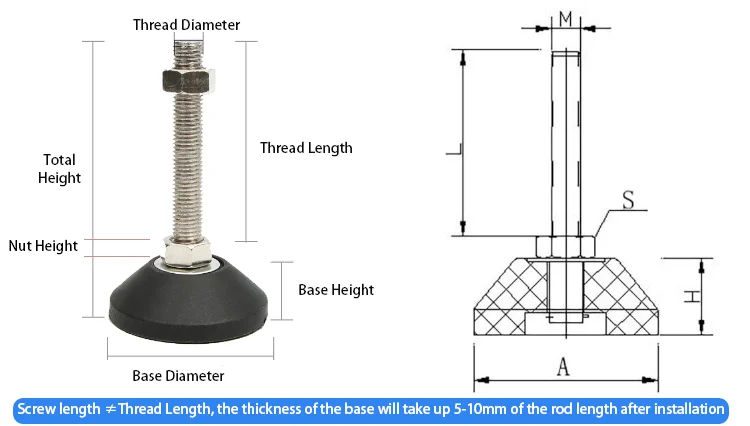

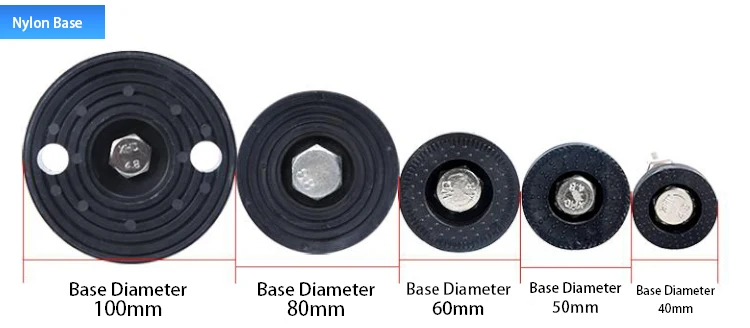

Model | Base Diameter (mm) A | Base Height (mm) H | Thread Diameter (mm) M | Thread Length (mm) L | Nut Height (mm) S | Total Height (mm) | Max Load KG | |||||||
D40*M8*60 | 40 | 22 | 8 | 63 | 6 | 91 | 60 | |||||||
D40*M8*80 | 83 | 111 | 60 | |||||||||||
D40*M10*60 | 10 | 62 | 7 | 91 | 65 | |||||||||
D40*M10*80 | 82 | 111 | 65 | |||||||||||
D40*M10*100 | 102 | 131 | 65 | |||||||||||
D40*M12*60 | 12 | 56 | 8 | 86 | 80 | |||||||||
D40*M12*80 | 78 | 108 | 80 | |||||||||||
D40*M12*100 | 98 | 128 | 80 | |||||||||||
D40*M12*120 | 121 | 151 | 80 | |||||||||||
D50*M8*60 | 50 | 23 | 8 | 62 | 6 | 91 | 75 | |||||||
D50*M8*80 | 82 | 111 | 75 | |||||||||||
D50*M10*60 | 10 | 62 | 7 | 92 | 80 | |||||||||
D50*M10*80 | 81 | 111 | 80 | |||||||||||
D50*M10*100 | 102 | 132 | 80 | |||||||||||
D50*M12*60 | 12 | 55 | 8 | 86 | 100 | |||||||||
D50*M12*80 | 78 | 109 | 100 | |||||||||||
D50*M12*100 | 97 | 128 | 100 | |||||||||||
D50*M12*120 | 121 | 152 | 100 | |||||||||||
D60*M12*60 | 60 | 26 | 12 | 53 | 8 | 87 | 120 | |||||||
D60*M12*80 | 75 | 109 | 120 | |||||||||||
D60*M12*100 | 95 | 129 | 120 | |||||||||||
D60*M12*120 | 118 | 152 | 120 | |||||||||||
D60*M14*80 | 14 | 71 | 10 | 107 | 140 | |||||||||
D60*M14*100 | 91 | 127 | 140 | |||||||||||
D60*M14*120 | 121 | 157 | 140 | |||||||||||
D60*M14*150 | 136 | 172 | 140 | |||||||||||
D60*M16*80 | 16 | 70 | 11 | 107 | 150 | |||||||||
D60*M16*100 | 92 | 129 | 150 | |||||||||||
D60*M16*120 | 120 | 157 | 150 | |||||||||||
D60*M16*150 | 140 | 177 | 150 | |||||||||||
D80*M12*100 | 80 | 25-30 | 12 | 100 | 8 | 500-1200KG | ||||||||
D80*M12*150 | 150 | |||||||||||||
D80*M14*80 | 14 | 80 | 10 | |||||||||||
D80*M14*100 | 100 | |||||||||||||
D80*M16*50 | 16 | 50 | 11 | |||||||||||
D80*M16*80 | 80 | |||||||||||||
D80*M16*100 | 100 | |||||||||||||
D80*M16*120 | 120 | |||||||||||||
D80*M16*150 | 150 | |||||||||||||
D80*M16*200 | 200 | |||||||||||||
D80*M20*100 | 20 | 100 | 14 | |||||||||||
D80*M20*150 | 150 | |||||||||||||
D80*M20*200 | 200 | |||||||||||||
D80*M24*100 | 24 | 100 | 17 | |||||||||||
D80*M24*150 | 150 | |||||||||||||
D80*M24*200 | 200 | |||||||||||||
The above data are manually measured, there is about ±5mm error，Please contact us if you have precise requirements for specifications and sizes OEM is available，We can customize according to customer's requirements | ||||||||||||||
Products Description
Product Name | Material | Base Material | Thread Material | Surface Treatment | |||
Levelling Feet | ZINC | Nylon | Carbon Steel | Galvanizing process or other | |||
Stainless Steel:304/201 | Stainless Steel | / | |||||
Product Features | Fixed or Adjustable | ||||||
Leveling Feet
Foot cup, also known as a flat bottom machine foot or leveling feet is a component that uses threads for height adjustment. It is used to adjust the height, level and tilt of the equipment.
In addition, the foot cups also include galvanized foot plates,stainless steel adjustment feet, nylon foot cups, shock absorbing feet, etc.

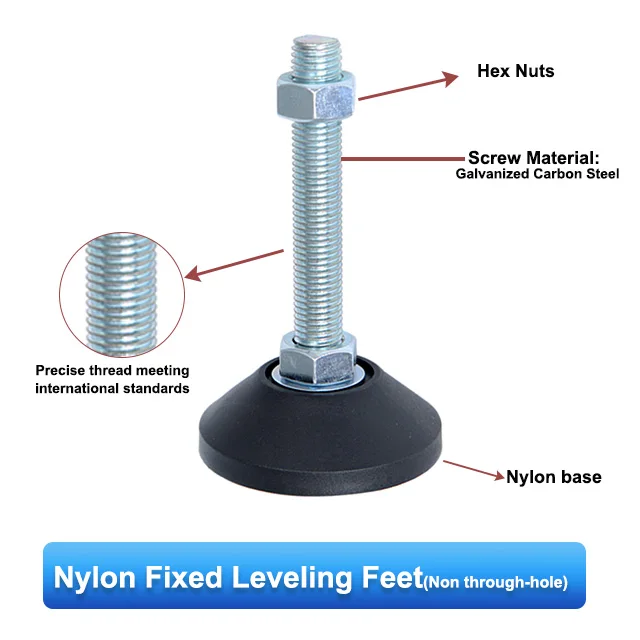

Material: base selected reinforced nylon (PA6), screw selected carbon steel (Q235),
screw surface treatment galvanized (optional nickel / chrome, etc.)
screw surface treatment galvanized (optional nickel / chrome, etc.)

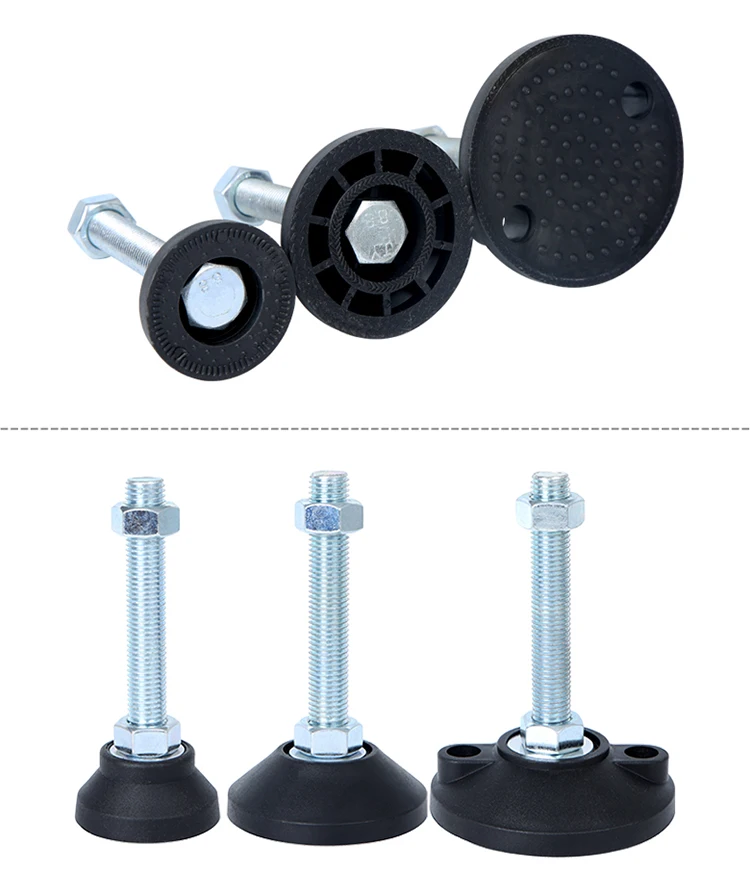

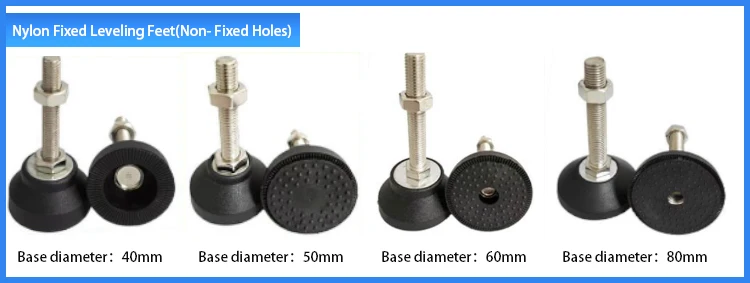

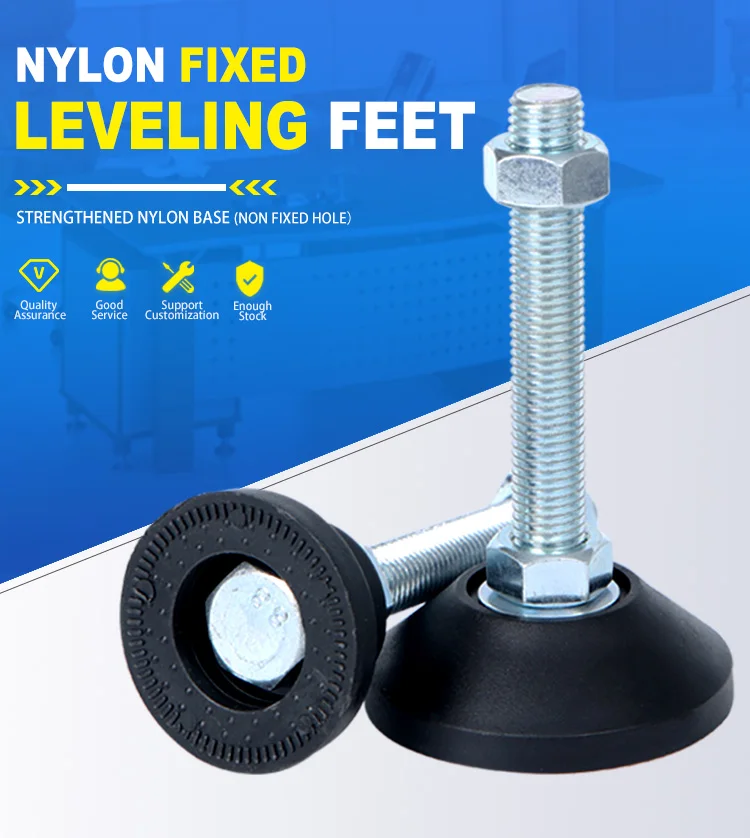

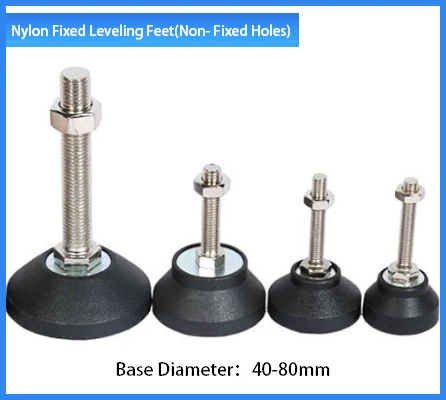

Nylon Fixed Leveling Feet

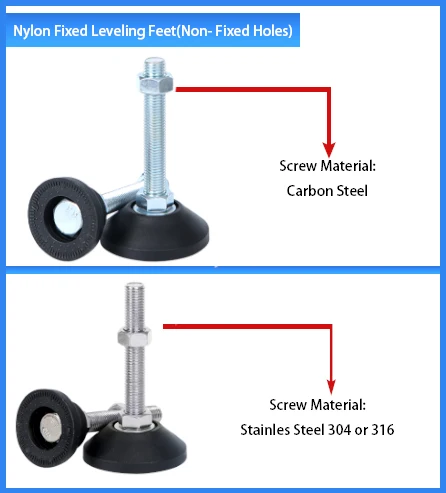

1.screw material in addition to carbon steel, stainless steel 304 or 316 is OK
2.Except for the dimensions in the table, the other lengths of the screw can be customized
3.thread diameter can be done in imperial standard
4.The product load-bearing capacity is not only by the screw or chassis, but two components grouped together; the size of the
load-bearing capacity and the number of products used is not proportional
5.Screw and base can be connected by the card spring, relative to the rotatable; products can be adjusted up and down according to the hexagon, and also according to the matching nut to adjust the height ,the product screw and base can also be used to fix the nut type connection, relative to the non-rotatable
load-bearing capacity and the number of products used is not proportional
5.Screw and base can be connected by the card spring, relative to the rotatable; products can be adjusted up and down according to the hexagon, and also according to the matching nut to adjust the height ,the product screw and base can also be used to fix the nut type connection, relative to the non-rotatable

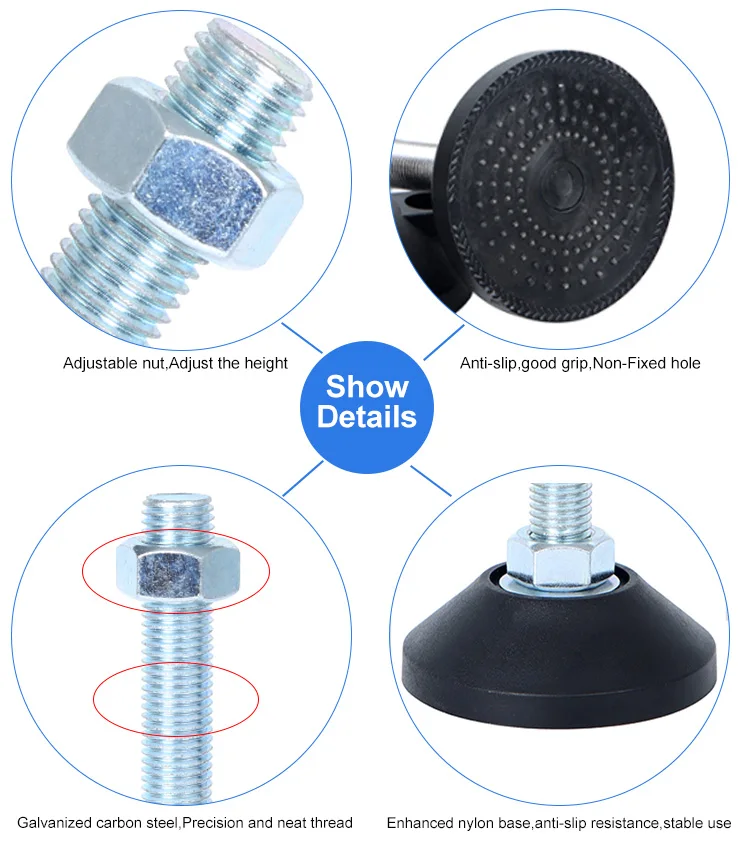

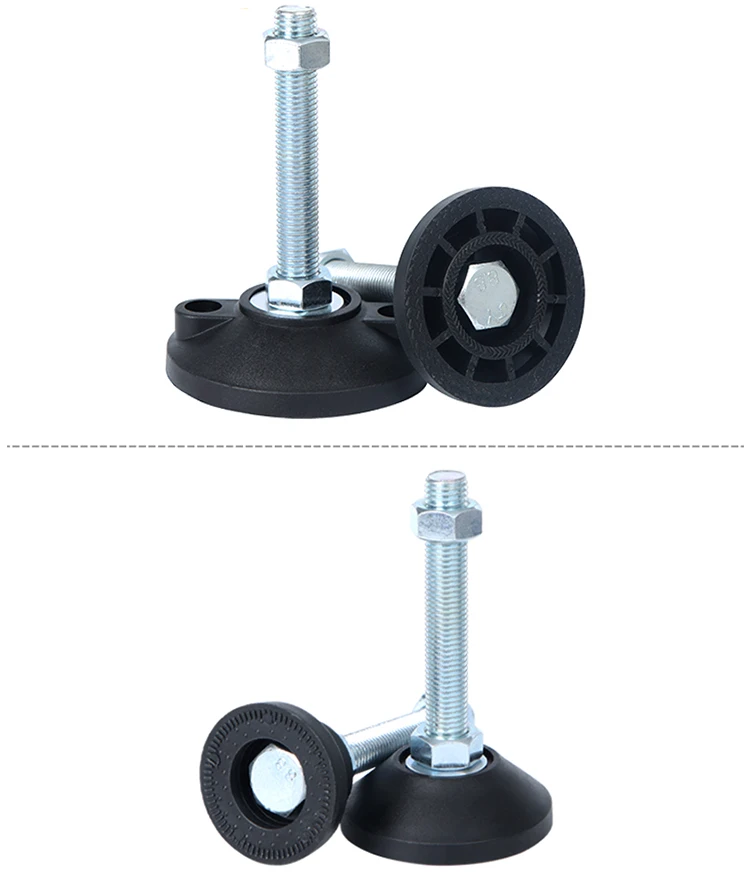

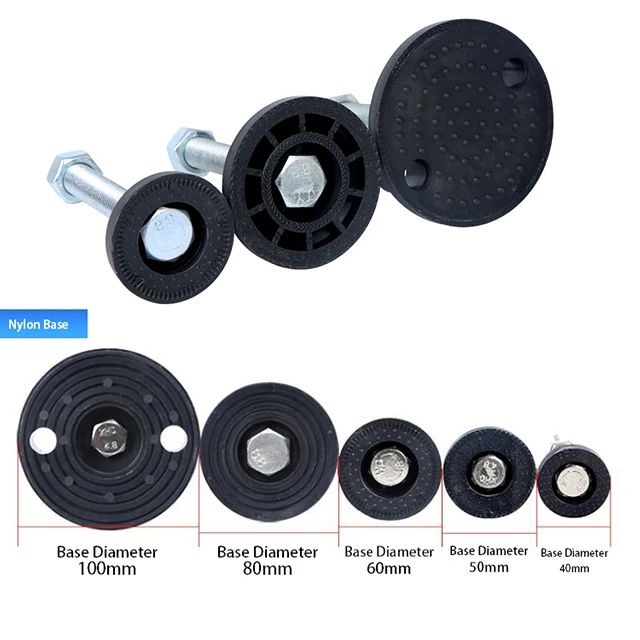

Details Images
Applications
Field of application of leveling feet
Our company products are widely used in general equipment,automobile, building, communication, electron, energy, printing machinery, textile machinery, packaging machinery, medical equipment, petroleum and petrochemical equipment,electrical home appliances and furniture, apparatus, machine tools, conveyor systems, and heavy industry in general,etc.
Company Profile
Wuxi Laojiu Hardware Electromechanical Co., Ltd
Wuxi Laojiu Hardware Electromechanical Co., Ltd. was established in 2005, combining R&D,foreign trade and professional service of fasteners as an organic whole.We have established a good image in the fastener producing and marketing field, well received by consumers.
We specialize in manufacturing all kinds of Leveling Mounts, Leveling Feet,Adjustable feet,Adjustable foot,Machine feet,Threaded Tube Ends and Inserts,Plum handle screw, adjustable handle lever,Pull Handle,all kinds of screws, nuts, bolts, washers, spring,rivet, anchor and CNC parts which sell well in Japan, the USA and the EU.
Our company are located in WUXI, Jiangsu Province, China ,where both the air and sea transportation are very convenient.We have our own factory,our company has strong production capacity and enough stock,sells professional standard fasteners.Our products accord with the international quality system, such as ANSI and BS. Our company offers high quality professional fasteners for industrial fields.
Our company products are widely used in automobile, building, communication, electron, energy, electrical home appliances and furniture, apparatus, machine tools, conveyor systems, and heavy industry in general,etc.Our materials are carbon steel, stainless steel, and reinforced nylon. We own advanced equipment and production lines and have a group of professional technicians. We also have attained ISO9001:2000 certification.
Welcome to consult, negotiate and order all series fastener from businessman in all countries, we will provide all –directions “one- stop purchase completely” service for you
Our company are located in WUXI, Jiangsu Province, China ,where both the air and sea transportation are very convenient.We have our own factory,our company has strong production capacity and enough stock,sells professional standard fasteners.Our products accord with the international quality system, such as ANSI and BS. Our company offers high quality professional fasteners for industrial fields.
Our company products are widely used in automobile, building, communication, electron, energy, electrical home appliances and furniture, apparatus, machine tools, conveyor systems, and heavy industry in general,etc.Our materials are carbon steel, stainless steel, and reinforced nylon. We own advanced equipment and production lines and have a group of professional technicians. We also have attained ISO9001:2000 certification.
Welcome to consult, negotiate and order all series fastener from businessman in all countries, we will provide all –directions “one- stop purchase completely” service for you
