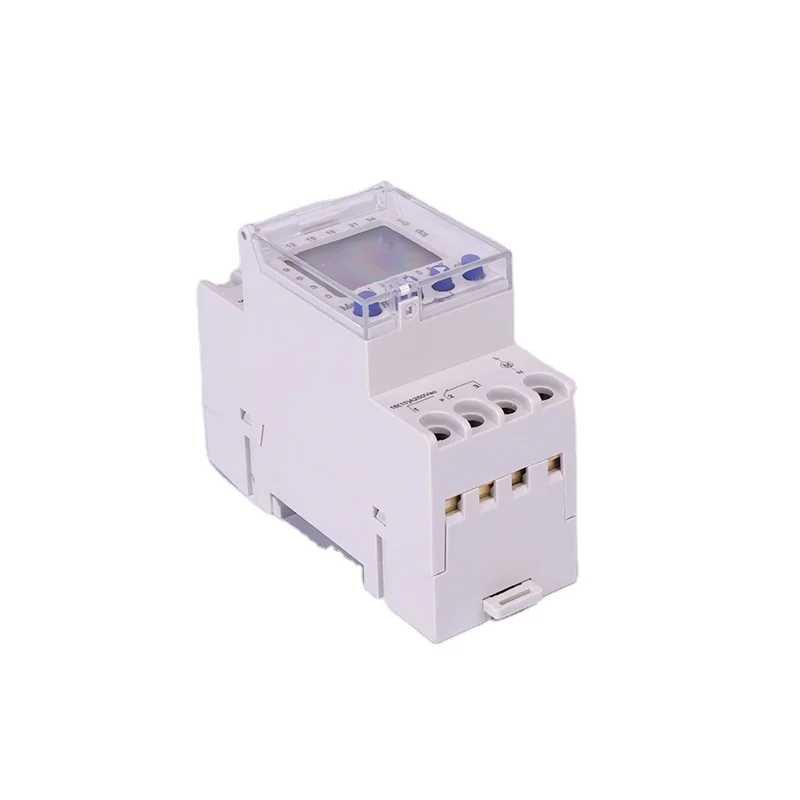

CGZ 16A 110V/220V Relay Digital LCD Power Automatic Timer Switch for Generator and Street Light

Product Overview

Description

220V programmable timer switch

CGZ 16A 110V/220V Relay Digital LCD Power Automatic Timer Switch for Generator and Street Light







Foshan Guangzhu Electrical Co., Ltd. is the professional timer switch supplier in China. Buy all kinds of timer switch, contact us directly, we have many choices for you, thanks!



timer switch Good  quality!!

timer switch Best price!!

timer switch Certainly Choose Us !!  Come  on...



220V light timer control switch



220V programmable timer switch



1.Timer Switch Description:

220V programmable timer switch  timer switch

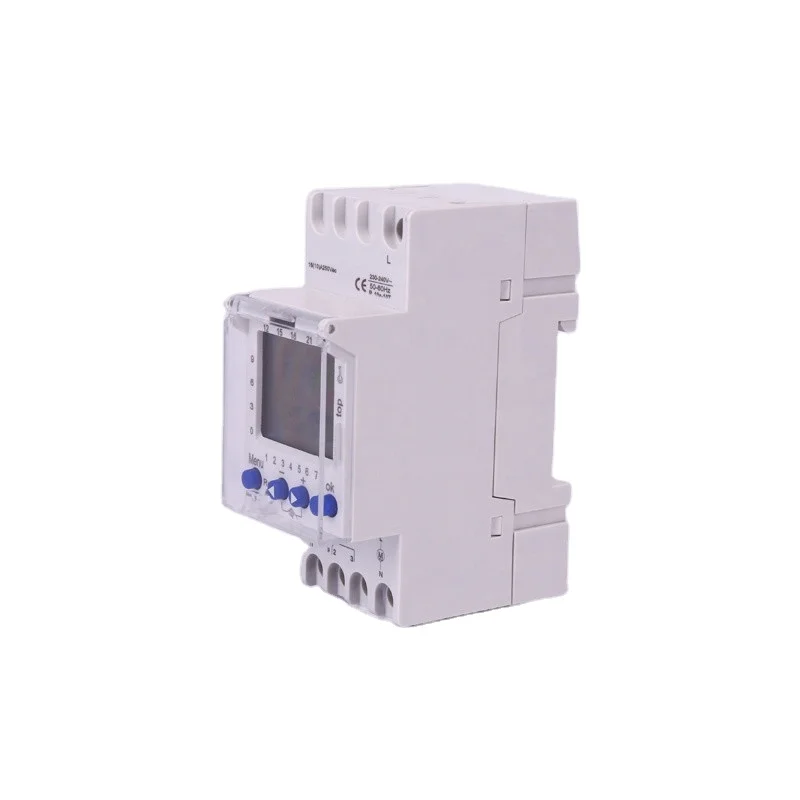

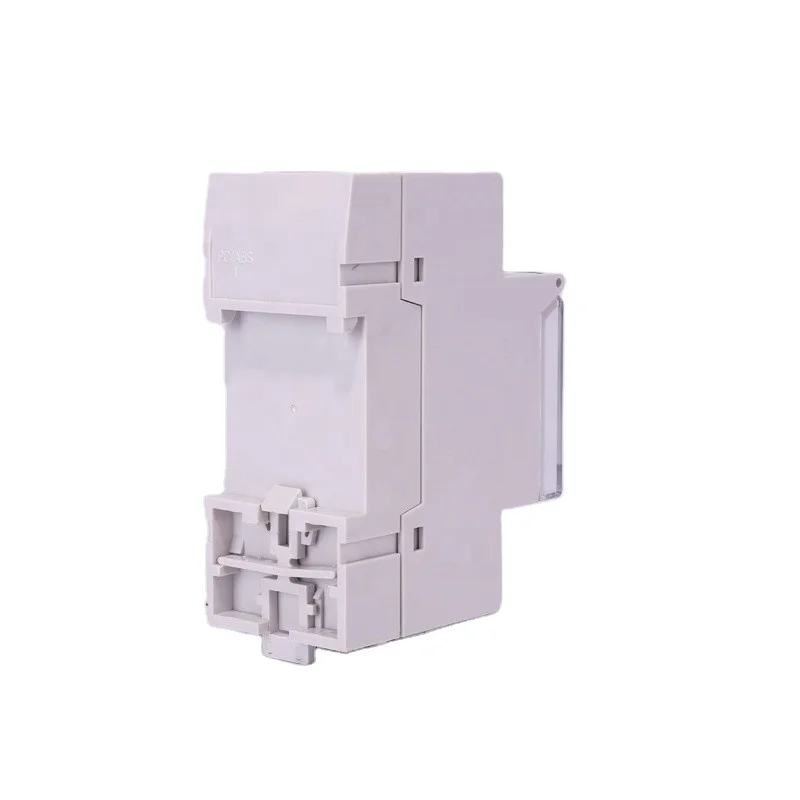

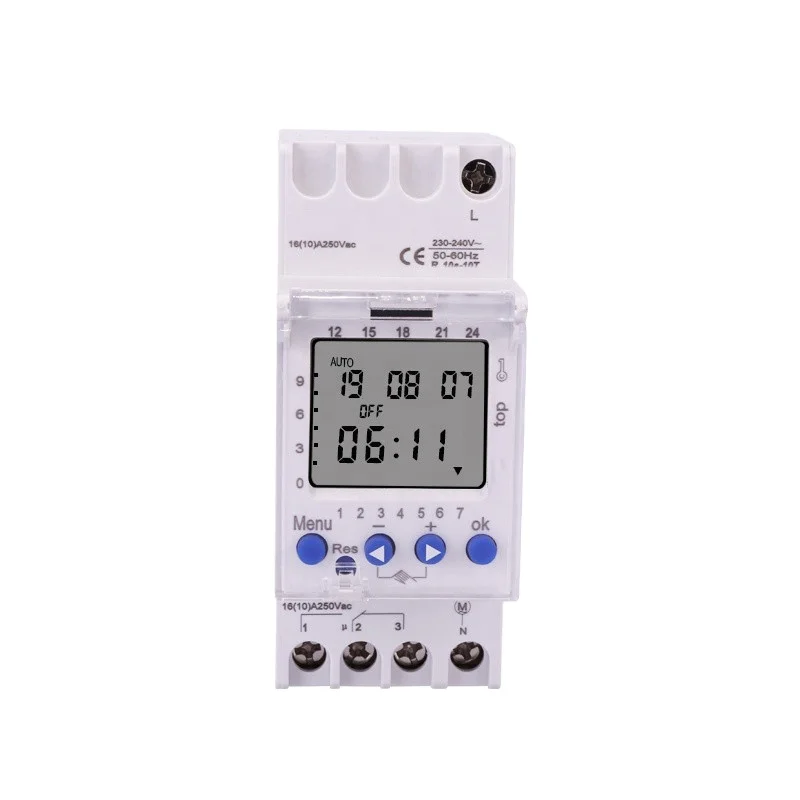

 AHC811 One Channel 7 Days 24hrs Programmable Electronic Digital Time Switch with Pulse can automatically switch on and switch off various kinds of electric equipment at a preset time before a week and can work cyclically per week or day (from one mnute to 168hours) according to the preset programs



Characteristics:
•  36mm DIN rail time switch for 7 days-24 hours
•  6 Languages display English  Portugal  Italy Spain Germany France
•  Advanced pre-setting one week before
•  18 groups on-off program for daily and weekly
•  Automatic summer/winter time: EUROPE Great Britain U.S.A/Canada FREE
•  58 Memory pulse program, Adjustable pulse duration 1s~59s
•  One channel, volt free output, Accurate-to-the-minute control
•  LED power ON/OFF indicator, high contrast LCD display
•  Display year/month/day/hour/minute
•  Reset function and manual override
•  Memory progroms by built-in lithium battery  inside for power failiure

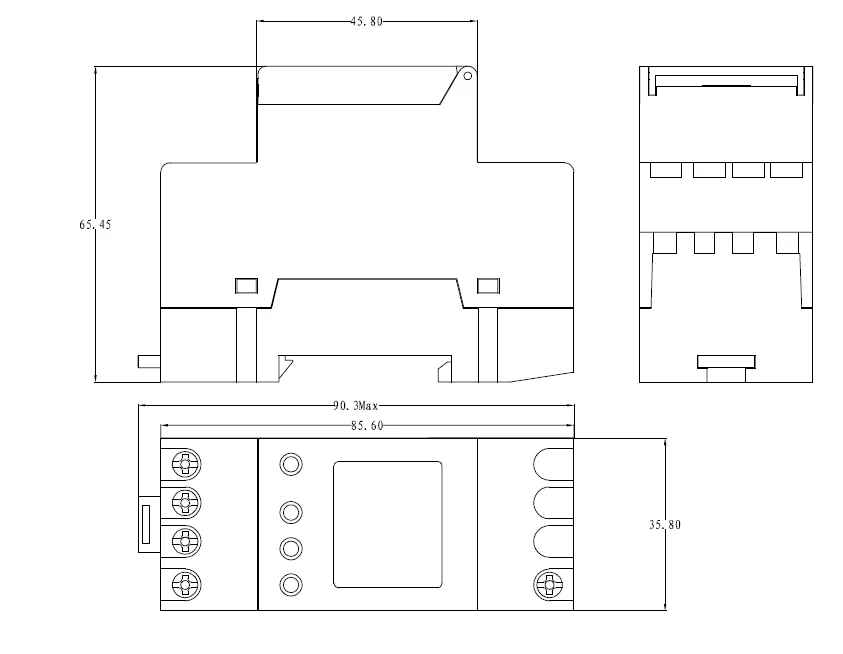

Height × Width × Depth:
•  Product Size: 87 × 36 × 67 mm



Specification:

•  Universal Input Voltage: 230Vac or 110Vac 50/60Hz.
•  Output: 16amp, SPDT @ 250Vac, volt-free output.
•  Installation: 35 mm DIN rail or installed in distrubution board.



Technical Data:

Model	AHC811
Temp.range: -20°C+50°C	Power Supply: 200~250Vac
Power consumption 4.5 VA (MAX)	Display: LCD
Switching contact: 1 changeover switch	Programs: 36 on/off each day or week
Hysteresis 2 sec/day (25°C)	Mini interval: 1 mins
Capacity: 16A 250V AC	Black-out: 60 days
Timer range: 1min~168hr	Recharge battery:3 V
Average error: 1s/24h, 25°C	Weight: 0.15kg





Package infos:

unit weight:0.18kgs

packing: 100pcs/ctns, 18kgs (GW)

dimensions:38*24*38cm

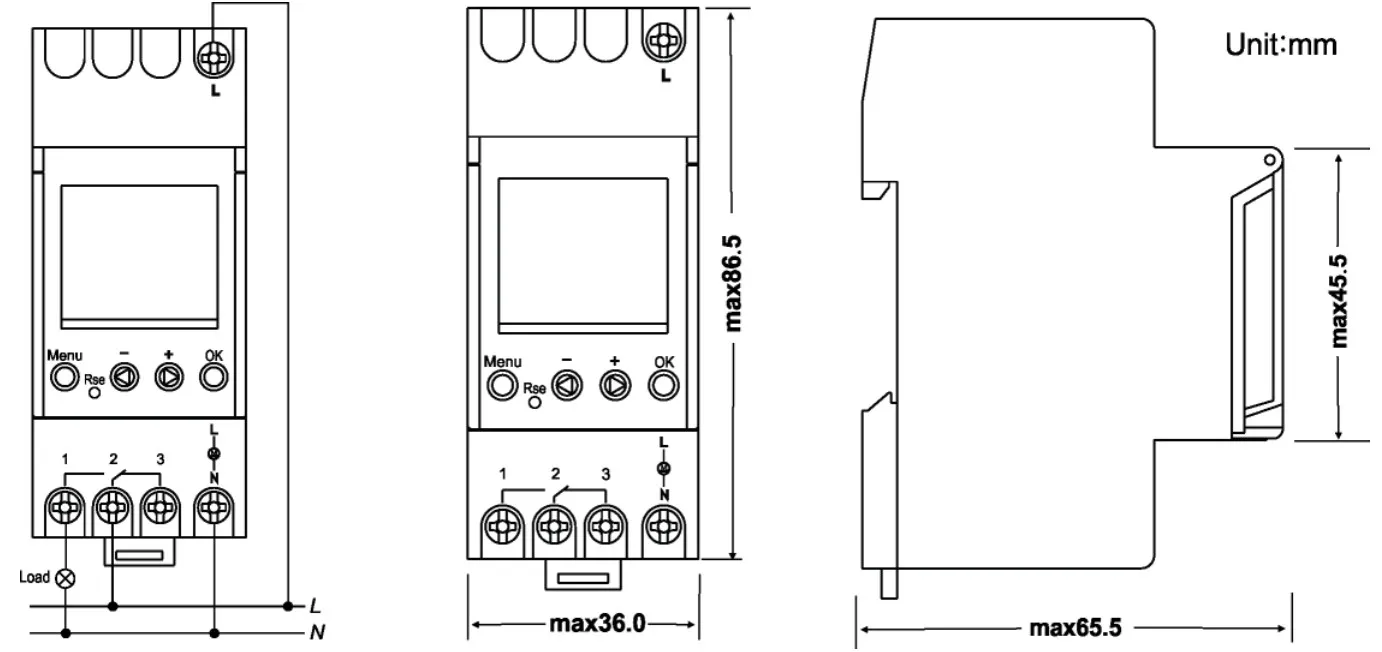

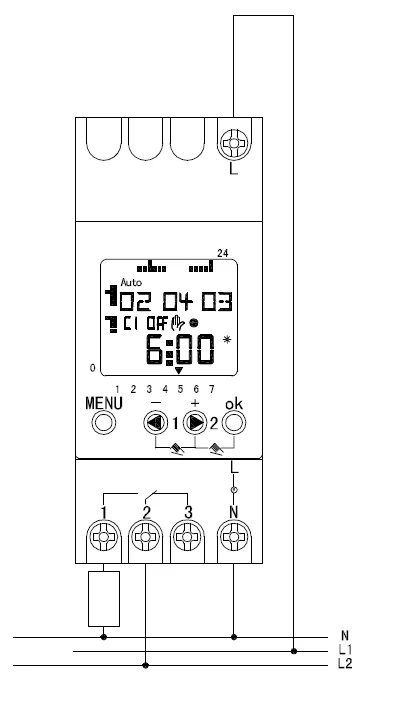

Connection:





220V programmable timer switch

2. Application:                                                                  V programmable timer switch



1.Timing for charging cell phones, batteries , car batteries , to prevent overcharging.

 2.Used for electric water heaters, electric heaters , electric cookers , humidifiers, oil heater , air purifiers and other home appliances , home appliances to achieve automatic switch.

3 .In the implementation of TOU areas timer will give you the price in effect to use Google .

4.Street lights for time switches , advertising light boxes, power distribution box ( very applicable ) , facade lighting, building facade lighting control . For you thespians , while reasonable for you to save money.

5.Timing for garden irrigation , drainage pumping regularly , aquarium keeping .

6.Timer switch for video surveillance , the school regularly broadcast playback, and other uses.



Application:

- streetlight

- neon light (sign)

- lamp

- water heater

- air conditioner

- billboard

- electric cooker

- booster, sprayer

- bottler

- preheater

- pool

- gate

- sprinkler

- agriculture facilities

- broadcasting equipment
