Product Overview
Description

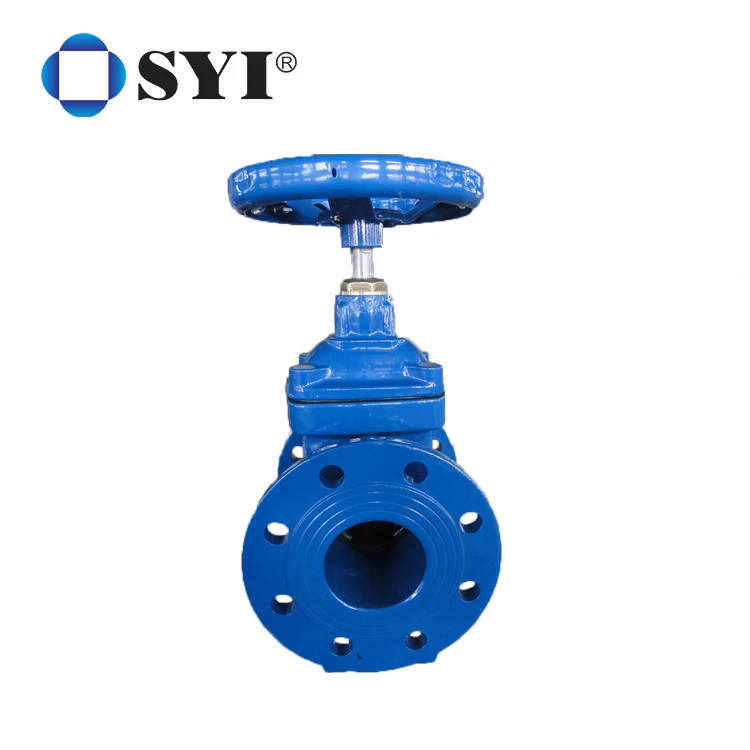

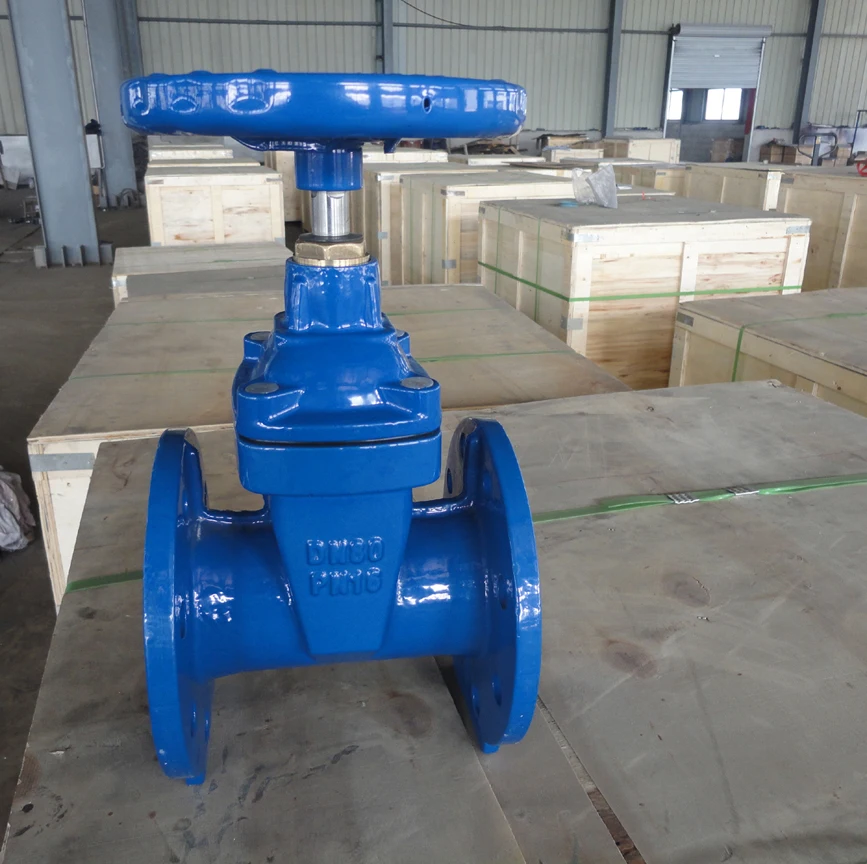

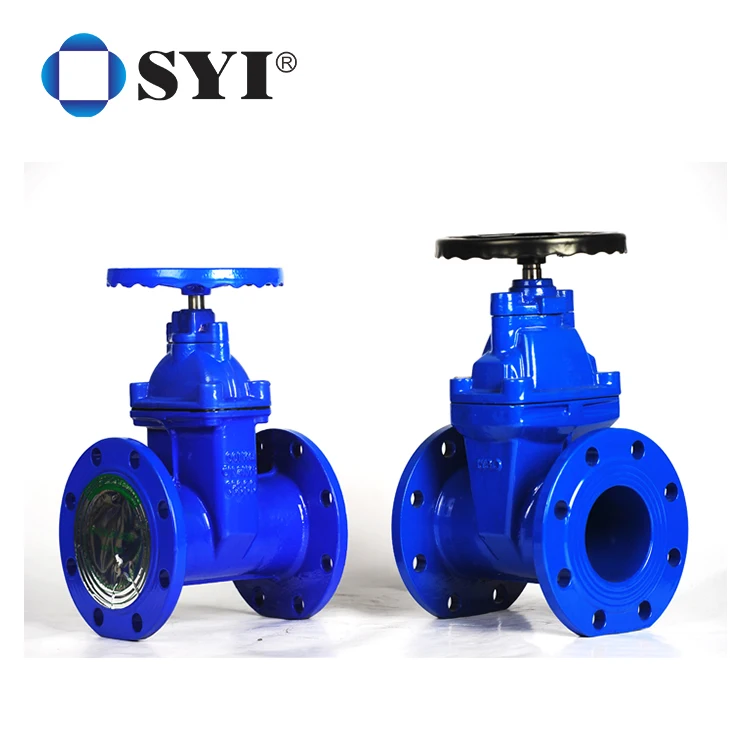

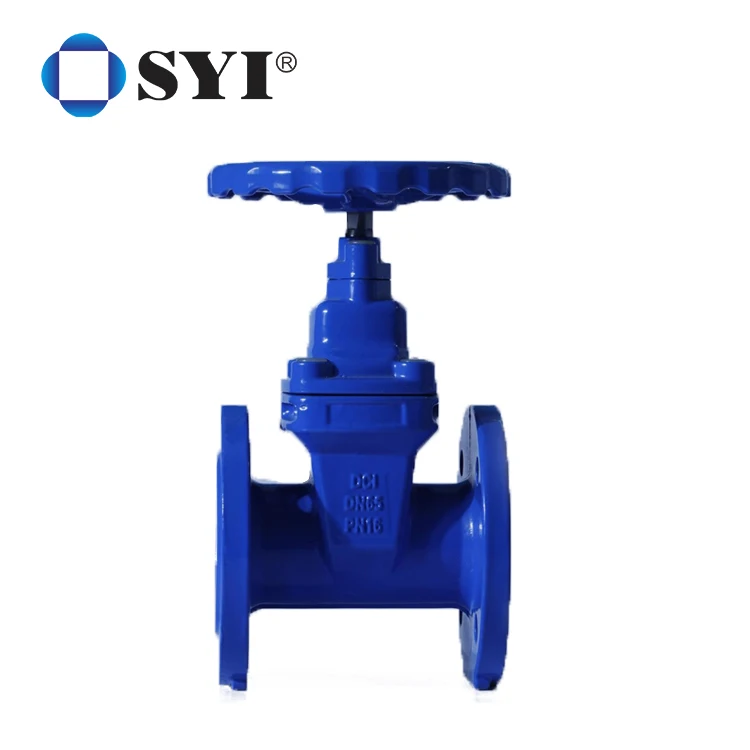

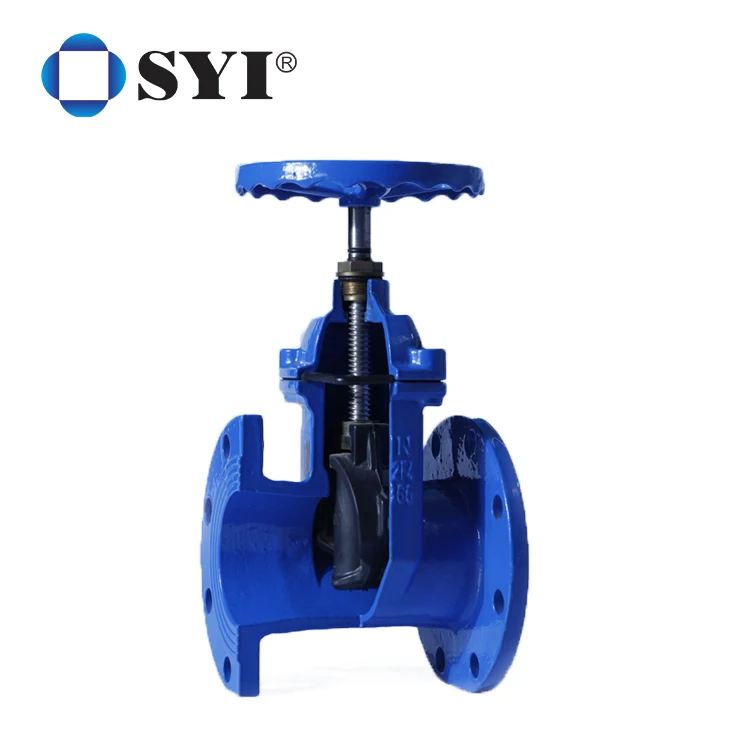

SYI COMPACT BS 5163 Non-Rising Stem Resilient Seated Gate Valve
Product Description
SYI COMPACT BS 5163 Non-Rising Stem Resilient Seated Gate Valve is the light type gate valve, with the newest compact design in the market, more lighter, more easier, and more lower cost, but with the same good quality and better for use.
Name | Non-Rising Stem Resilient Seated Gate Valve | |
Design | BS5103 | |
Face to face | BS5163 / ISO5752 SERIES3 / ASME B16.10 | |
Flange drilling | DIN2531/DIN2532/ DIN2533 / EN1092 | |
Working temperature | 0-100º C | |
Working pressure | PN10 / PN16 | |
Main Parts and Material:
Item | Part Name | Material | Item | Part Name | Material |
1 | Body | GGG50 | 6 | Handwheel | GGG50 |
2 | Disc | GGG50 with NBR/SBR | 7 | O Ring | NBR/EPDM |
3 | Stem Nut | Brass | 8 | Locating ring | Brass |
4 | Stem | Stainless Steel | 9 | O-ring | NBR/EPDM |
5 | Bonnet | GGG50 | 10 | Brass nut | Brass |
Main Dimensions: Unit: mm
DN | L | D | ||||
PN10 | PN16 | |||||
40 | 165 | 150 | 150 | |||
50 | 178 | 165 | 165 | |||
65 | 190 | 185 | 185 | |||
80 | 203 | 200 | 200 | |||
100 | 229 | 220 | 220 | |||
125 | 254 | 250 | 250 | |||
150 | 267 | 285 | 285 | |||
200 | 292 | 340 | 340 | |||
250 | 330 | 400 | 400 | |||
300 | 356 | 455 | 455 | |||
350 | 381 | 505 | 520 | |||
400 | 406 | 565 | 580 | |||
450 | 432 | 615 | 640 | |||
500 | 457 | 670 | 715 | |||
600 | 508 | 780 | 840 | |||
700 | 610 | 895 | 910 | |||
800 | 660 | 1015 | 1025 | |||
900 | 711 | 1115 | 1125 | |||
1000 | 811 | 1230 | 1255 | |||
1200 | / | 1455 | 1485 | |||
For other sizes not mentioned above, please contact us. We have right to change the data without further notice. | ||||||

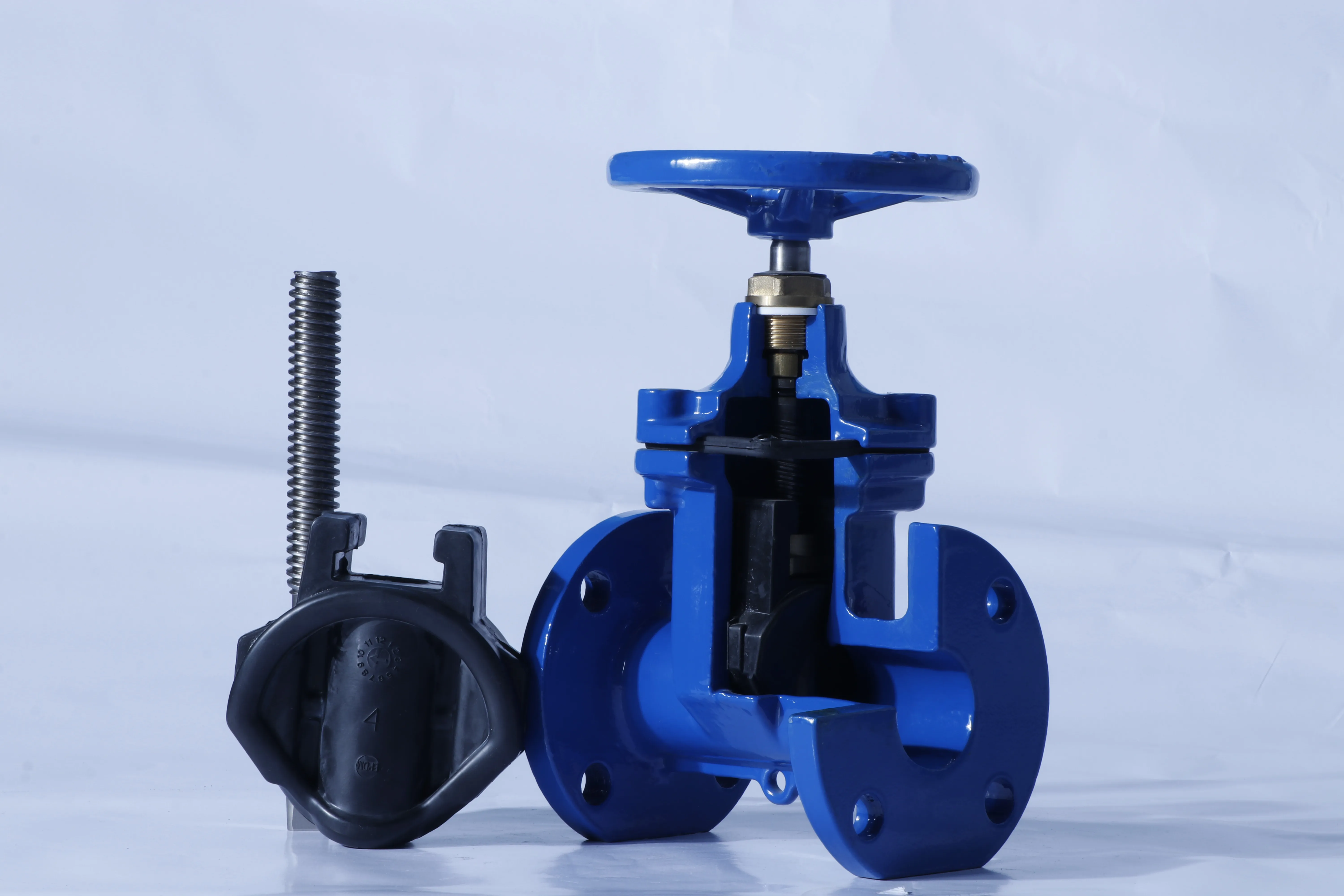

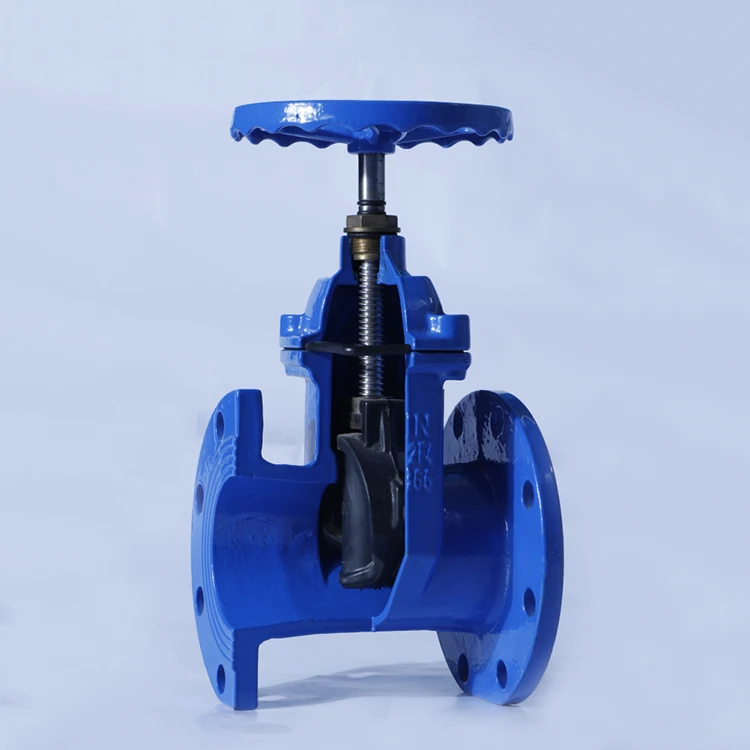

BS 5163 adopt British Standard, it is with medium length, Flat bottom seat ring Integral with the body. Inside and outside epoxy resin coating,wedge wholly bonded with rubber. Three “O” ring sealing. These all insure excellent corrosion protection and reliable sealing capability. AS per request, the gate valves can be actuated by operating lever, hand wheel electrical actuator and so on.
Unique design:
* Compact design
* Length: medium length
* One-piece bonnet,non-rising stem
* Stem nut is separated from wedge.no seizing-up
* Flat bottom seat ring Insures no dead space
* "O”ring design for stem back sealing leads to maintenance free
Excellent Corrosion Protection:
* Inside epoxy resin coating or vitreous enamel(upon request)
* Outside epoxy resin coating
* Socket head cap bolts,sealed with glue on the top
Reliable Health Nature:
* Epoxy resin coating complies with the WARS certification
* Wedge bonded with rubber for the health inspection.
* Trims are made of stainless steel or bronze
Scope Of Application:
* Potable water supply
* Industrial fields
Unique design:
* Compact design
* Length: medium length
* One-piece bonnet,non-rising stem
* Stem nut is separated from wedge.no seizing-up
* Flat bottom seat ring Insures no dead space
* "O”ring design for stem back sealing leads to maintenance free
Excellent Corrosion Protection:
* Inside epoxy resin coating or vitreous enamel(upon request)
* Outside epoxy resin coating
* Socket head cap bolts,sealed with glue on the top
Reliable Health Nature:
* Epoxy resin coating complies with the WARS certification
* Wedge bonded with rubber for the health inspection.
* Trims are made of stainless steel or bronze
Scope Of Application:
* Potable water supply
* Industrial fields
Packing & Delivery

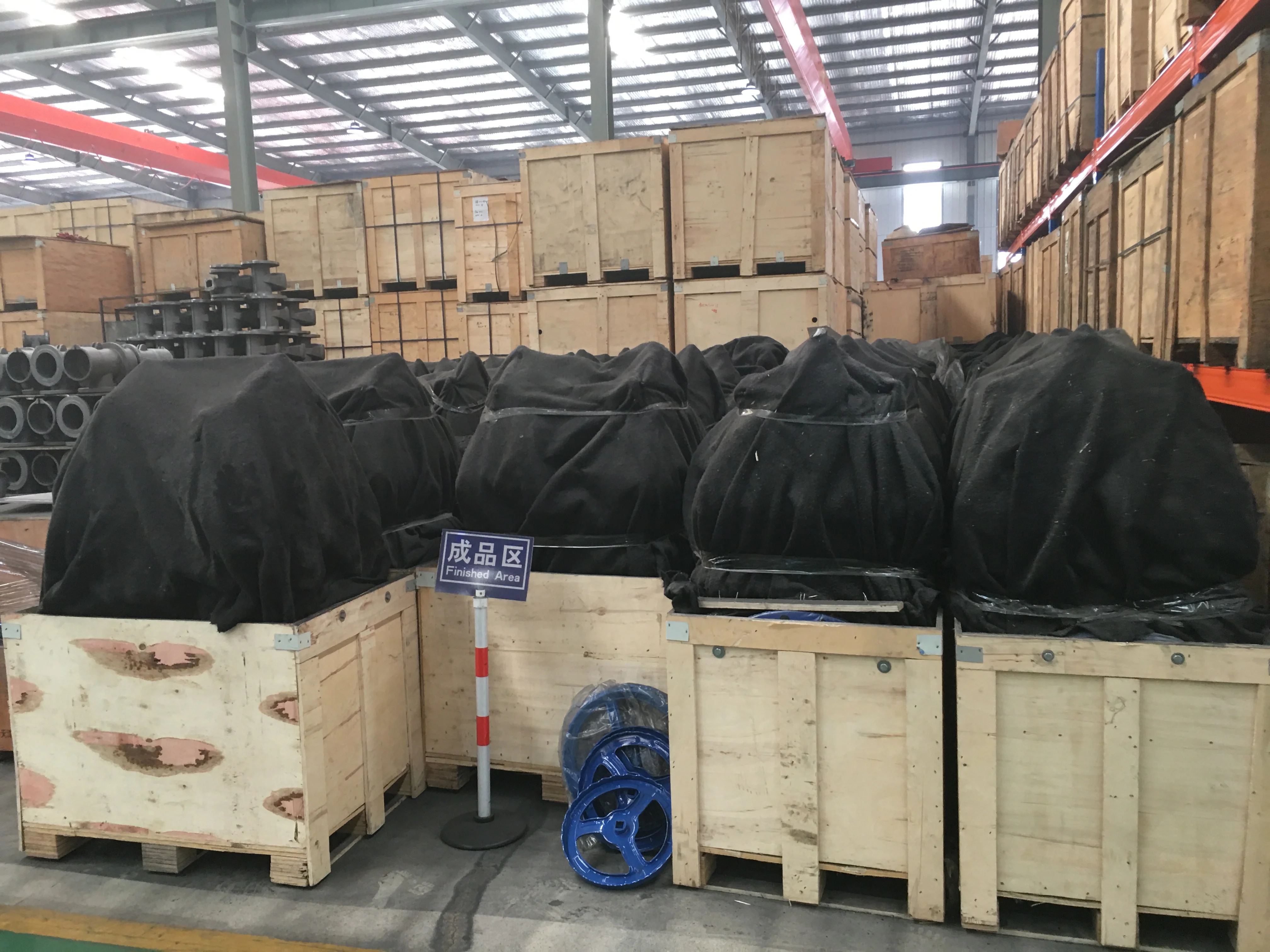

Packing:

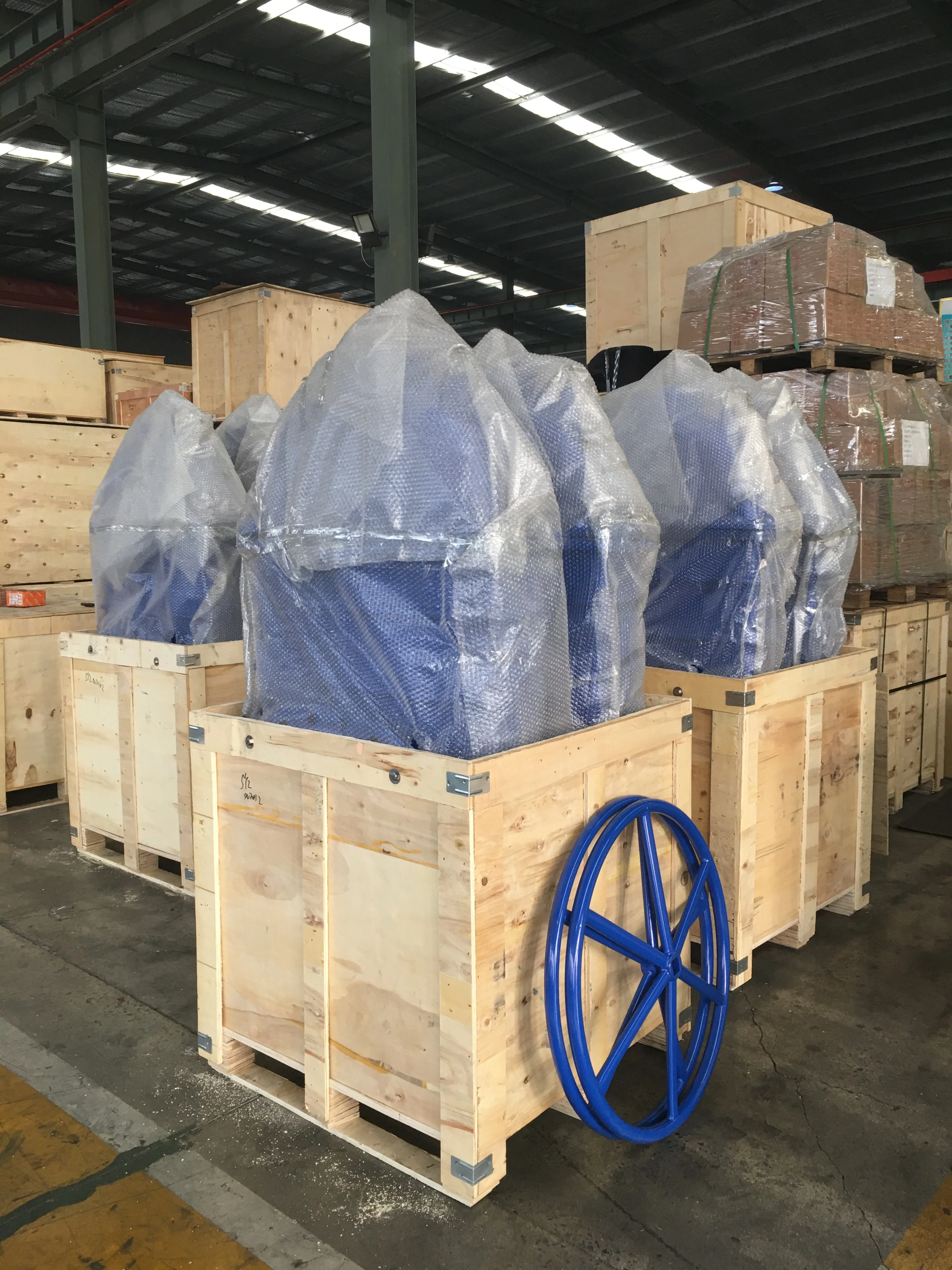

Usually packed by plywood crates or pallets.
For correct Transporting operation, please also refer to:
It is important to apply a few simple chocking and lashing rules to minimize the risks of incident during transport.
Vehicles must be suitable for the transport, loading and uploading of ductile iron pipes and fittings. Apply the following basic rules:
-Prevent any contact between the valve elements and metal surfaces (to avoid damaging the coatings).
Vehicles must be suitable for the transport, loading and uploading of ductile iron pipes and fittings. Apply the following basic rules:
-Prevent any contact between the valve elements and metal surfaces (to avoid damaging the coatings).
-Make sure the valves do not come into direct contact with the trailer floor (store the pipes horizontally by placing two parallel rows of good quality wooden planks fastened to the floor).
-Make sure that the valves can be loaded and unloaded in complete safety.
-Make sure that the load is secure during transport.
-Always use vehicles or trailers with sufficiently large stanchions fitted on each side of the floor to stabilize the load.
-Lash the load with textile straps and lever tensioners.
-Make sure that the valves can be loaded and unloaded in complete safety.
-Make sure that the load is secure during transport.
-Always use vehicles or trailers with sufficiently large stanchions fitted on each side of the floor to stabilize the load.
-Lash the load with textile straps and lever tensioners.
Quality Control
SYI Pipeline regards quality as an essential and integral part of our business success. Until now, we
are ISO9001:2015 TUV, BSI Kitemarked, SGS, BV, FM certified, and UL, WRAS listed. We are the approved supplier to many worldwide known countries and authorities. Manufacturing "SYI" Brand products has evolved as a mark of quality!
are ISO9001:2015 TUV, BSI Kitemarked, SGS, BV, FM certified, and UL, WRAS listed. We are the approved supplier to many worldwide known countries and authorities. Manufacturing "SYI" Brand products has evolved as a mark of quality!
Chemical Analyzing
Microstructure Testing
Spectrum Analyzing
Hydraulic Pressure Testing
Service

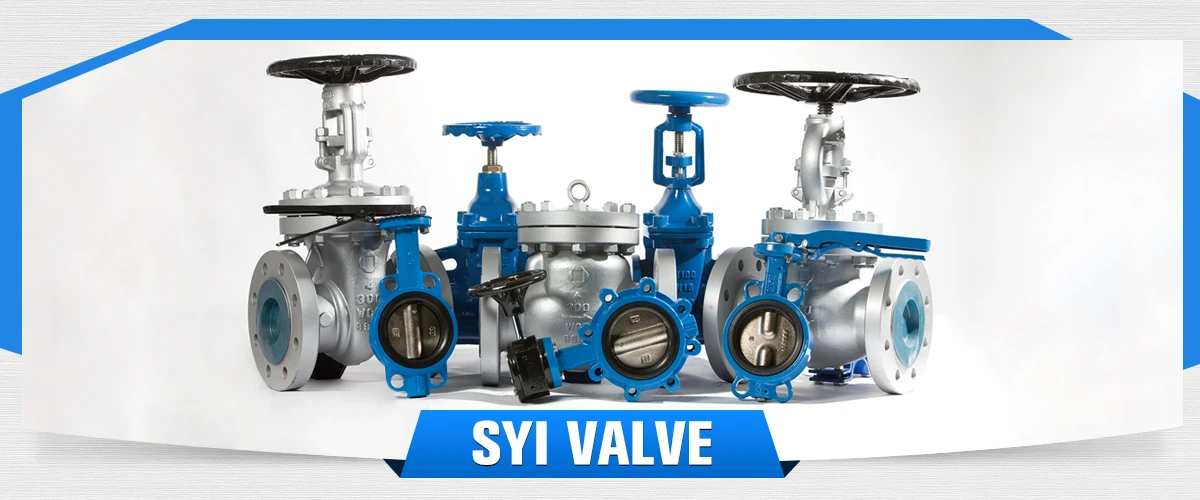

SYI manufactures and designs complete series of Valves according to DIN/BS/EN/API/ANSI/AWWA
/ASME/ Russian and other major standards.
-Gate Valves,
-Butterfly Valves,
-Check Valves,
-Y-Strainers
-Air Release Valves
-Globe Valves
-Fire Hydrant
-Butterfly Valves,
-Check Valves,
-Y-Strainers
-Air Release Valves
-Globe Valves
-Fire Hydrant
The Valves supplied by SYI Pipelines are mainly used for adjusting water, steam, oil, gas, and natural
gas in chemical industries, acid, alkali, and salt working pipelines. Sizes from 50-2000mm can meet full requirements from customers.
gas in chemical industries, acid, alkali, and salt working pipelines. Sizes from 50-2000mm can meet full requirements from customers.

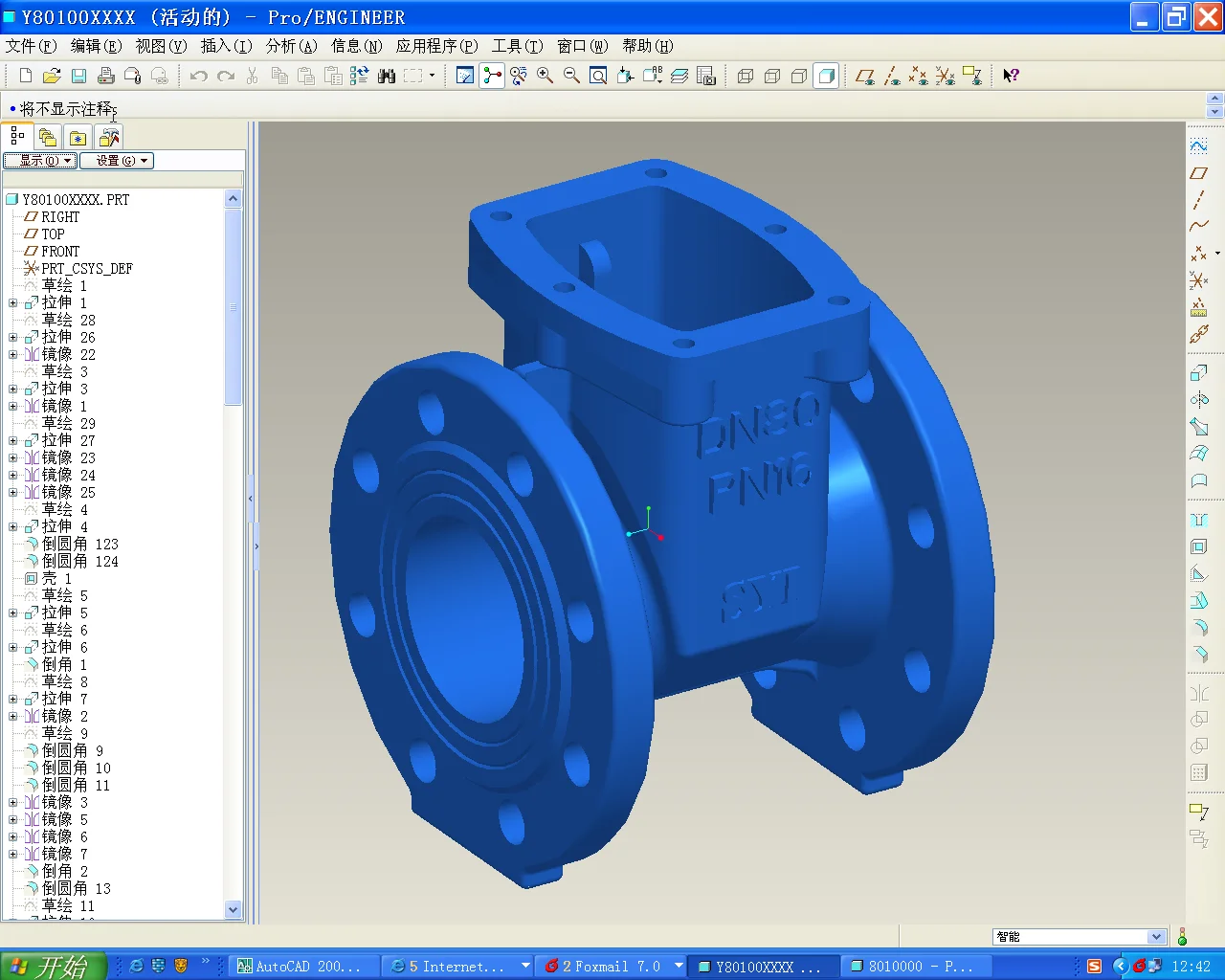

A group of highly experienced technical engineers are right here waiting for any of your request.Professional software used for design and test.
We are able to use most of the world-wide engineering software, including AUTO Cad, Pro Engineer, Solid Works and etc.
SYI is keeping on designing the series of valves for pursuing the better performance and easier operation.
New design and patterns could be developed based on customers’ requirement.
SYI is keeping on designing the series of valves for pursuing the better performance and easier operation.
New design and patterns could be developed based on customers’ requirement.
Company Profile
SYI has continually invested in better technology and production facilities. More than 4,000 patterns
are ready. We are capable to finish all the production processes from moulding, shot-blasting, machining, coating to packaging. We have over 100,000 m2 foundry land including:
-10,000 m2 of the pattern, sand mixing, polishing, machining, hydraulic pressure, coating, packaging workshops;
-4,000 m2 of three green sand moulding workshops and one resin sand moulding workshops;
-3,000 m2 of automatic moulding machine line and epoxy coating line
-professional laboratory
-machining shop
-and our own tooling shop

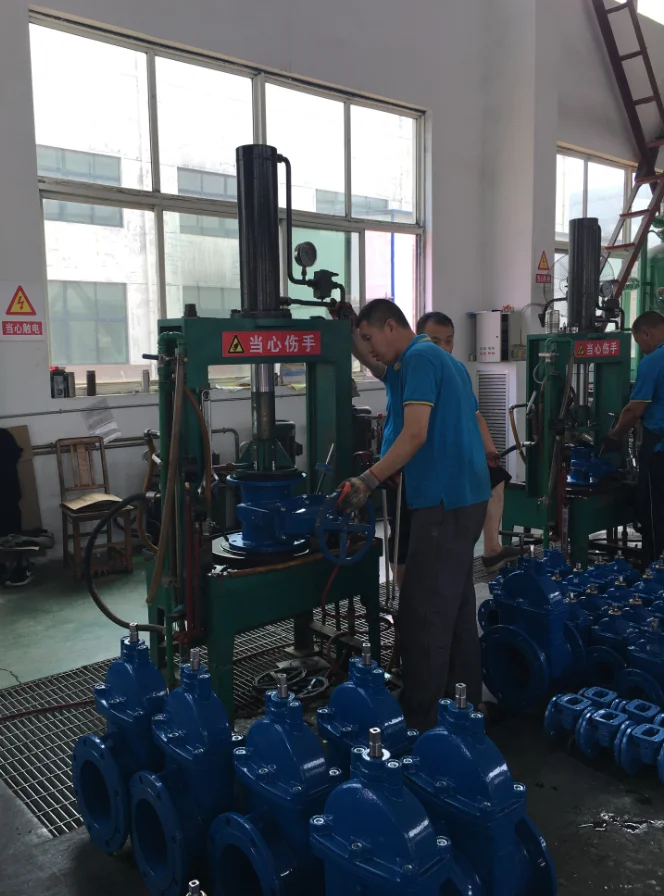

Strict process and operating regulations together with perfect quality assurance system making every production step under control. All the products are subject to tests and inspections including composition analysis, metallographic examination, dimension & surface finish inspection, ring test, tensile test, hardness test, hydrostatic test, lining and coating test to be sure that the products meet the requirements of the standards.
