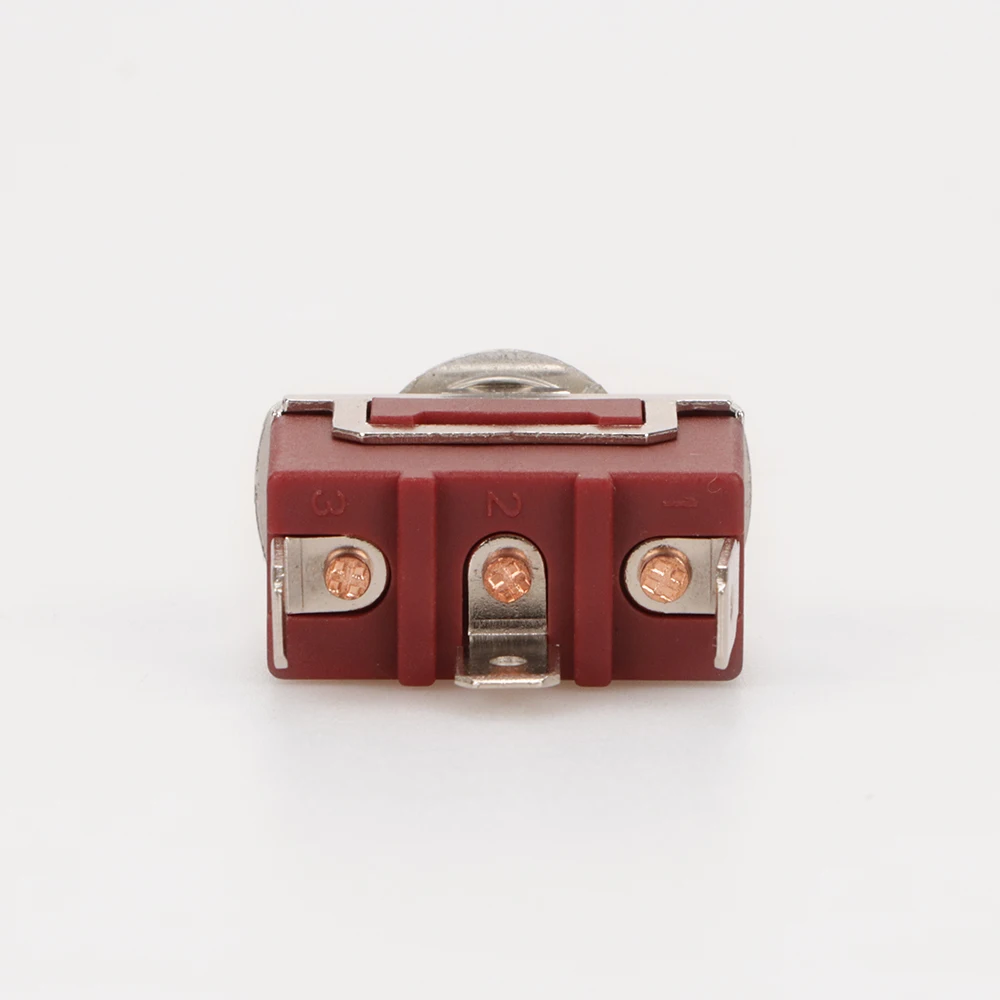

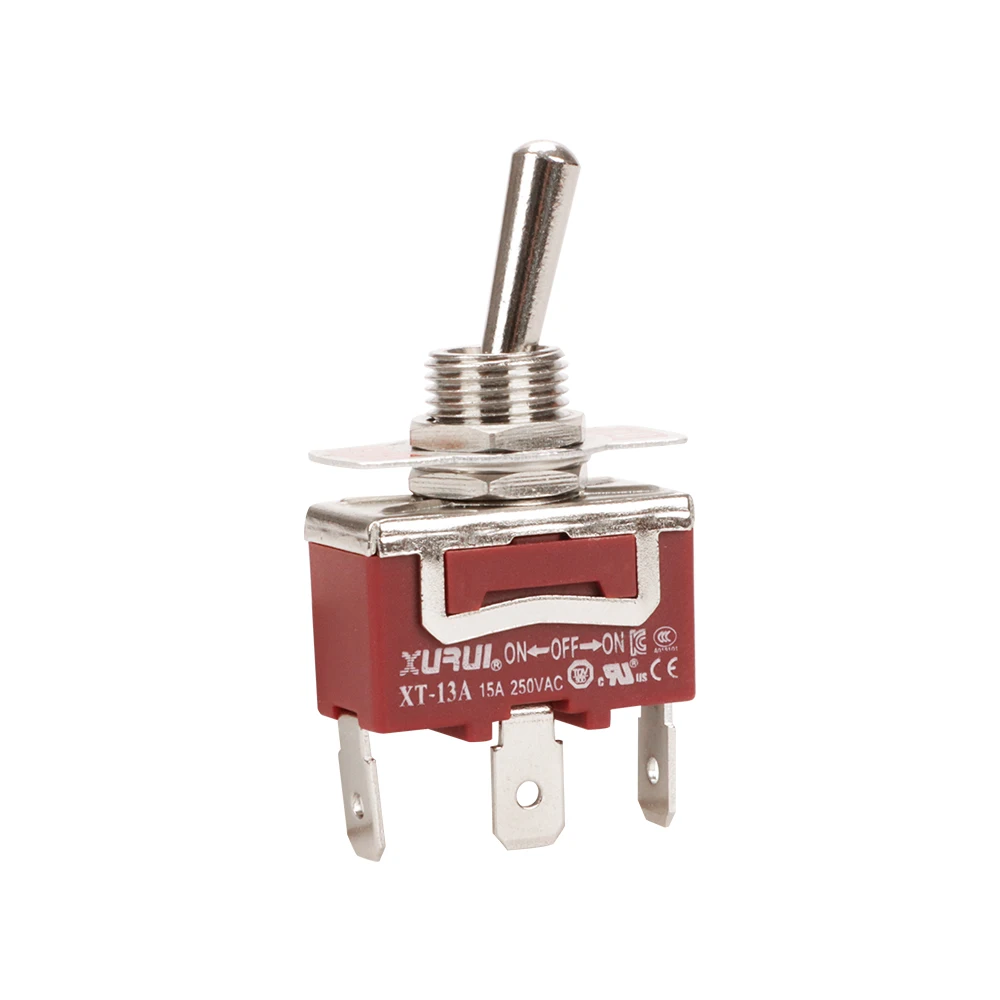

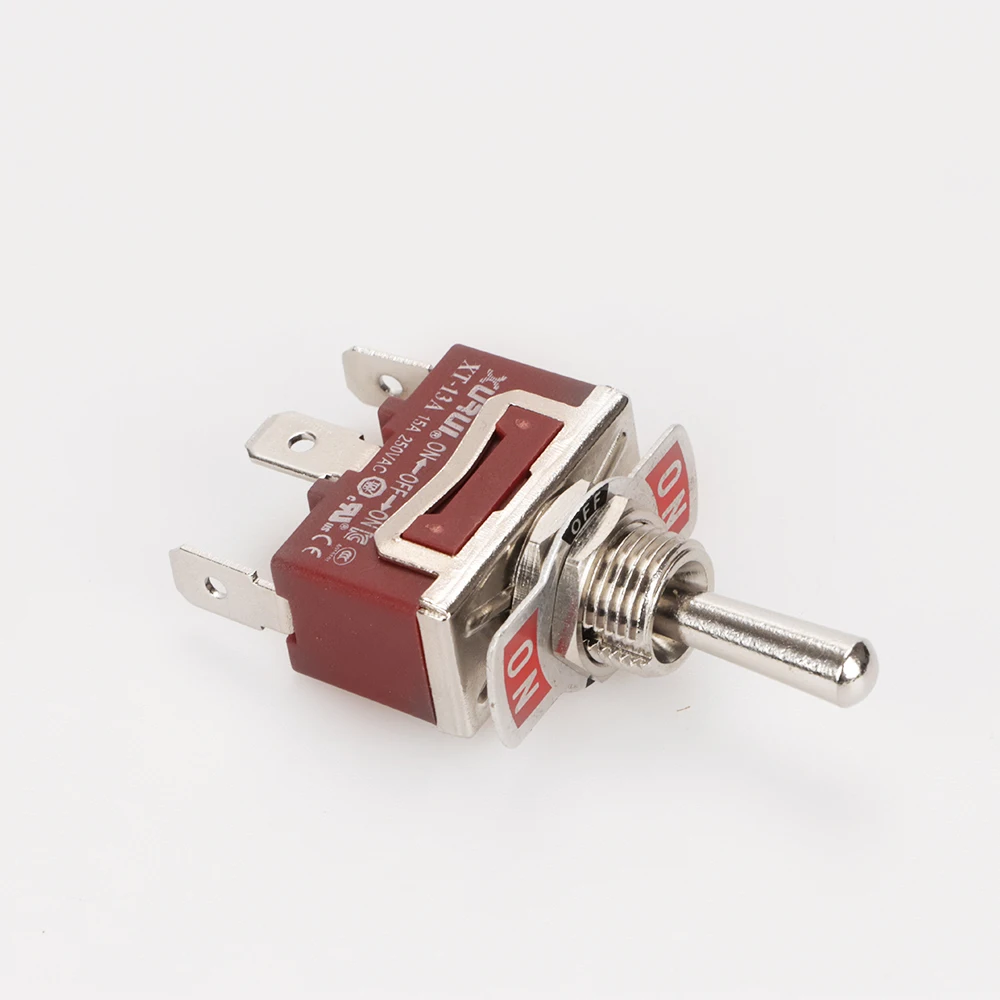

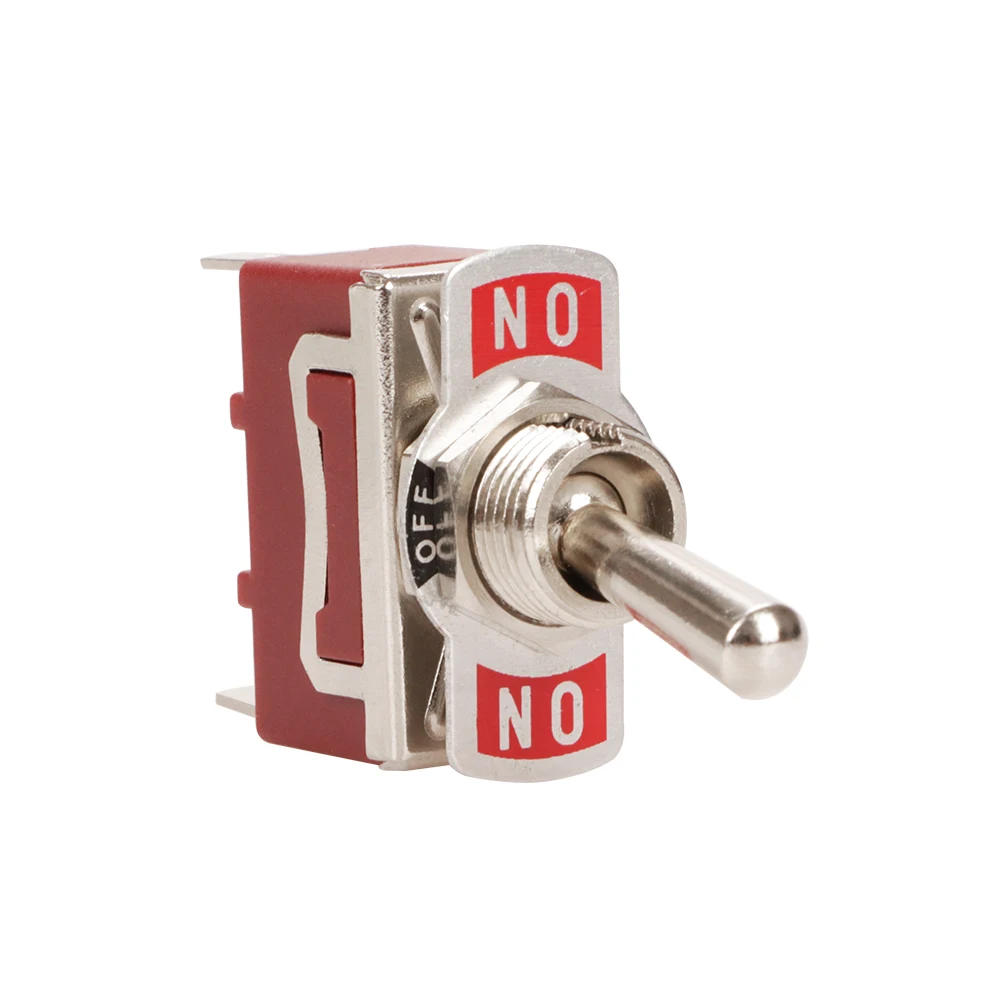

(ON) OFF (ON) SPDT auto return panel mount toggle switch 125VAC 20A
- Category: >>>
- Supplier: Zhejiang Xurui Electronic Co. Ltd.
Share on (1600659783126):
Product Overview
Description
Property & Application
- Adopt thermoplastic crust, compact construction, and simple installation;
- May install the protecting cap, can against oil and dustproof;
- Hand reset and automatic reset for flexible choice;
- Widely used in electrical equipment, automatic machine, communication equipment and instrument, electro motion tool etc.
Model & Meanings
Mounting Holes & Product Structure
Specification
Item | Data | |
Rating load | 15A/250VAC,25A/250VAC MTS:6A125,250V | |
Operating frequency | 30times/min | |
Insulation resistance | 100MΩAbove DC500V | |
Contact resistance | 25mΩ initial value | |
Withstand voltage | Non-connection wire | 1000VAC |
Every terminal | 1500VAC | |
Vibration | Misoperation | 10-55Hz Amplitude 1.5mm |
Impact | Durable | 1000m/s² |
Misoperation | 300m/s² | |
Life | Electrical | 100,000 above |
Mechanical | 500,000 above | |
Protection degree | IP40 | |
Operating temperature | -25~+80℃ | |
Operating humidity | <85% | |
Terminal Forms
Dimensions
Why Choose Us
- Quality Assurance: We offer replacement if you receive defective or wrong items in 12 months from the shipping date.
- Supplied directly from factory with more than 16 years experience.
- Short Delivery Time: Stock in 2 days, order as short as 7 days.
- Small order welcome.
- Payment by Paypal is supported.
Certifications
Zhejiang Xurui Electronic Co., Ltd is the vice precident of Electric Line Association, Technology Innovation Enterprise in Zhejiang province.
Xurui has won more than 30 kinds of national patents and three patents of invention.
Company
Zhejiang Xurui Electronic Co., Ltd, established in 2002, is specialized in the research, development, production of industrial products.
Xurui has a modern workshop covering more than 2,000 square meters. There are about 120 employees, incuding more than 10 years experienced technicians.
Main Products: 1. Micro Switch; 2. Limit Switch; 3. Toggle Switch; 4. Foot Switch; 5. Solid State Relay; 6. Reed Switch; 7. Proximity Switch.
Production Process
Exhibition
FAQ
Q: How do you control the products' quality?
A: 100% auto inspection machine and manual test together before packing.
Q: Would you accept to use our logo?
A: If you have good quality, we would like to do OEM and ODM, customized specification.
