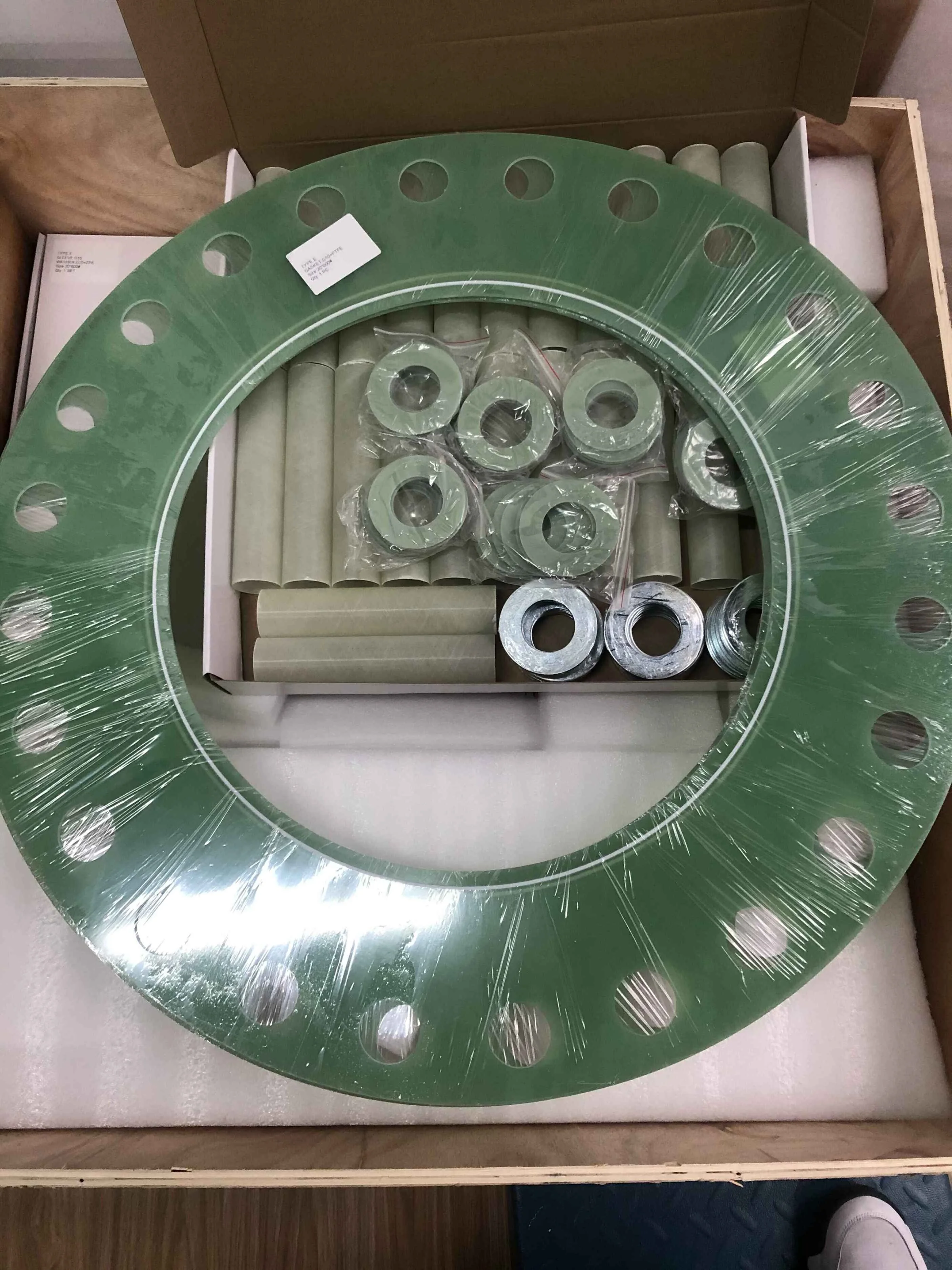

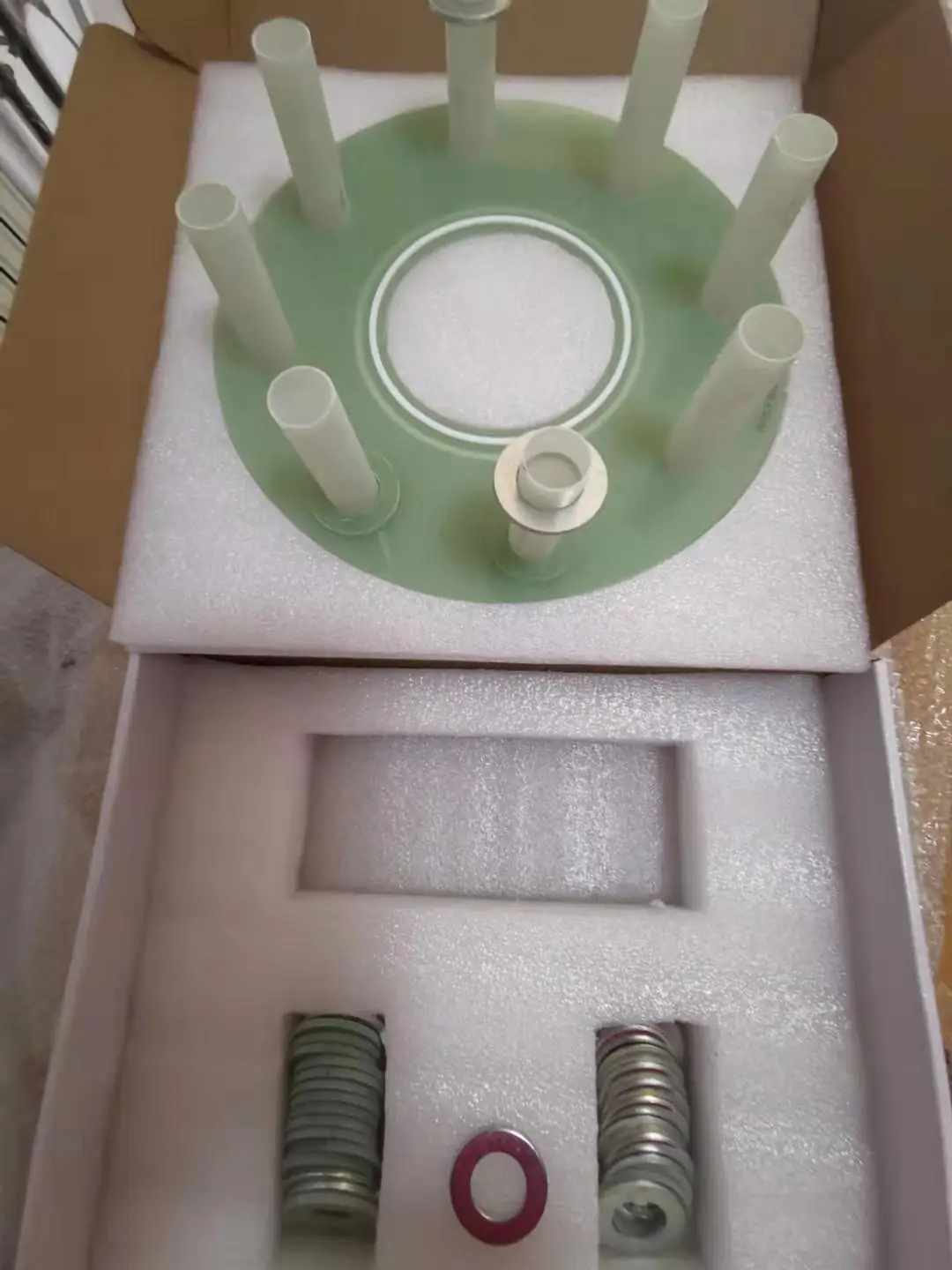

Insulation flange sealing gasket kit type D type E type F
Flange Insulation Gasket Sets are used to solve the sealing and insulating problems of flanges, and to control losses due to corrosion and leakage of pipelines. They are widely used to seal flanges and control stray electric currents in piping at oil, gas, water, refinery, and chemical plants, to increase the effectiveness of cathodic protection systems.
Sunriseetech manufacture and maintains supply good quality products and materials which help solve most flange sealing problems and insulation problems.

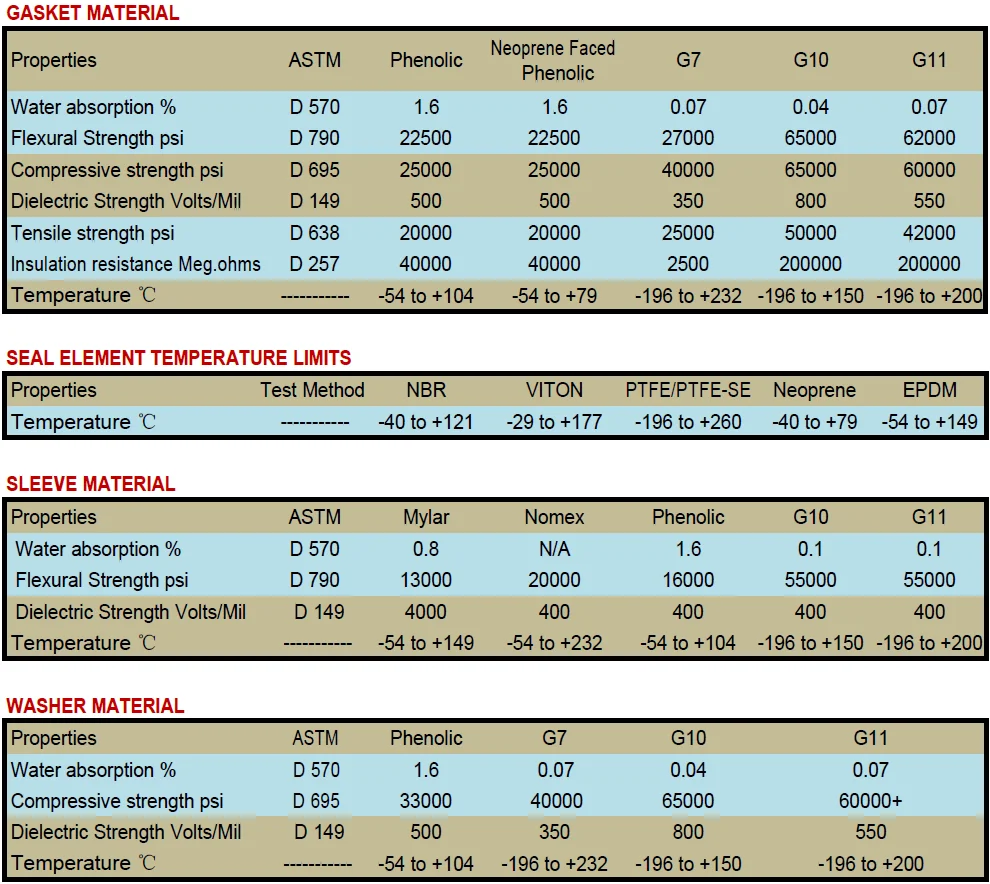

Specification
Different type
Type D: Gaskets are specifically designed to fit into the ring groove of ring-type-joint flanges. They are manufactured of a
medium weave, fabric-reinforced phenolic material and are sized to ANSI specifications available in basic oval as well as
octagonal shape. BX gaskets with pressure rating to 15,000 PSI.

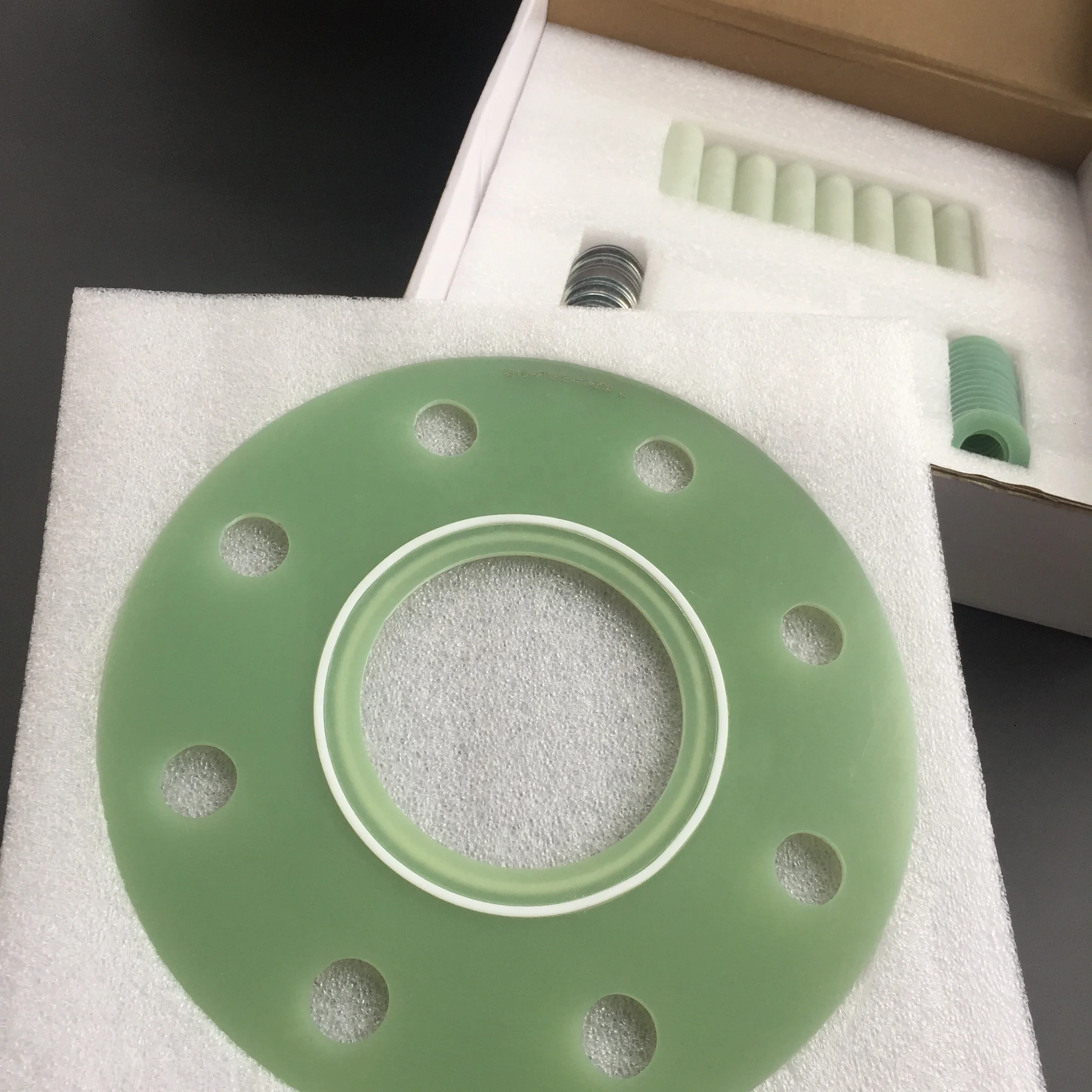

Type E: a full-faced gasket with the same outside diameter as the flange and precision cut bolt holes. This design facilitates proper alignment of the gasket during installation and foreign material prevented from shorting the flange insulation. The type E gaskets are available in plain face or Neoprene face phenolic, as well as a variety of high temperature materials.

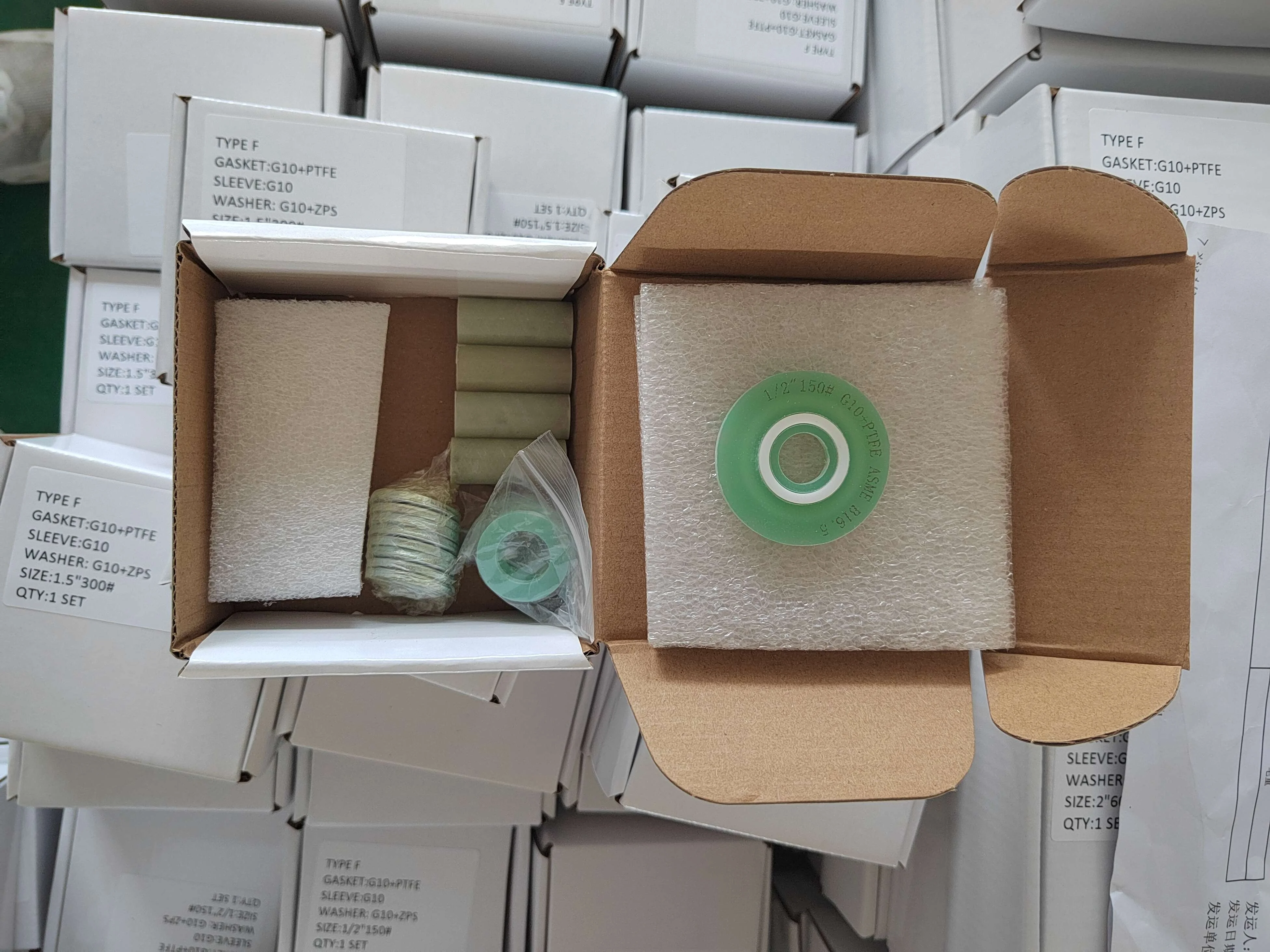

Type F: The gasket is made to fit the raised face portion of the flange only. As there are no bolts holes in the F style gasket,
the inside diameter of the bolt hole circle is slightly smaller than the outside diameter of the gasket
medium weave, fabric-reinforced phenolic material and are sized to ANSI specifications available in basic oval as well as
octagonal shape. BX gaskets with pressure rating to 15,000 PSI.
Type E: a full-faced gasket with the same outside diameter as the flange and precision cut bolt holes. This design facilitates proper alignment of the gasket during installation and foreign material prevented from shorting the flange insulation. The type E gaskets are available in plain face or Neoprene face phenolic, as well as a variety of high temperature materials.
Type F: The gasket is made to fit the raised face portion of the flange only. As there are no bolts holes in the F style gasket,
the inside diameter of the bolt hole circle is slightly smaller than the outside diameter of the gasket
Application
1, To limit the extent and cost of cathodic protection current to only those pipes that need to be protected from the main
cathodic protection system
2, To electrically "split up" long pipelines into distinctive cathodic protection systems
3, To isolate a pipeline to ensure that cathodic protection or stray electricity currents do not cause increased corrosion, or
cause a hazard
4, To isolate piping systems where dissimilar metals are present
5, To eliminate static loading charge transfer in discharge or loading operations at oil storage terminals
cathodic protection system
2, To electrically "split up" long pipelines into distinctive cathodic protection systems
3, To isolate a pipeline to ensure that cathodic protection or stray electricity currents do not cause increased corrosion, or
cause a hazard
4, To isolate piping systems where dissimilar metals are present
5, To eliminate static loading charge transfer in discharge or loading operations at oil storage terminals
Recommend Products
Company Profile
Shaanxi Sunriseetech Co.,Ltd was establised in 2010 at the earliest and located in xian International Trade & Logistics Park.Sunriseetech is a private enterprise specializing in research, development, production and sales of all kinds of composite material.The main products have insultion flange gasket, FRP rod/tube/channel/grating/duct rodder/bolts/rebar/carbon fiber rod/tube,etc. Our team has more than 10 years relevant experience, and through the continuous development and introduction of technology, our products get approved and been supplied in many countries around the world, such as USA, Brazil,Spain,Japan,Korea,Indonesia,Vietnam, India, Malaysia, Pakistan, etc.
Sunriseetech can provide customers with technical advice, supply of goods and material, transportation, installation supervision etc service. OEM and sample order is acceptable.
Sunriseetech can provide customers with technical advice, supply of goods and material, transportation, installation supervision etc service. OEM and sample order is acceptable.
About us

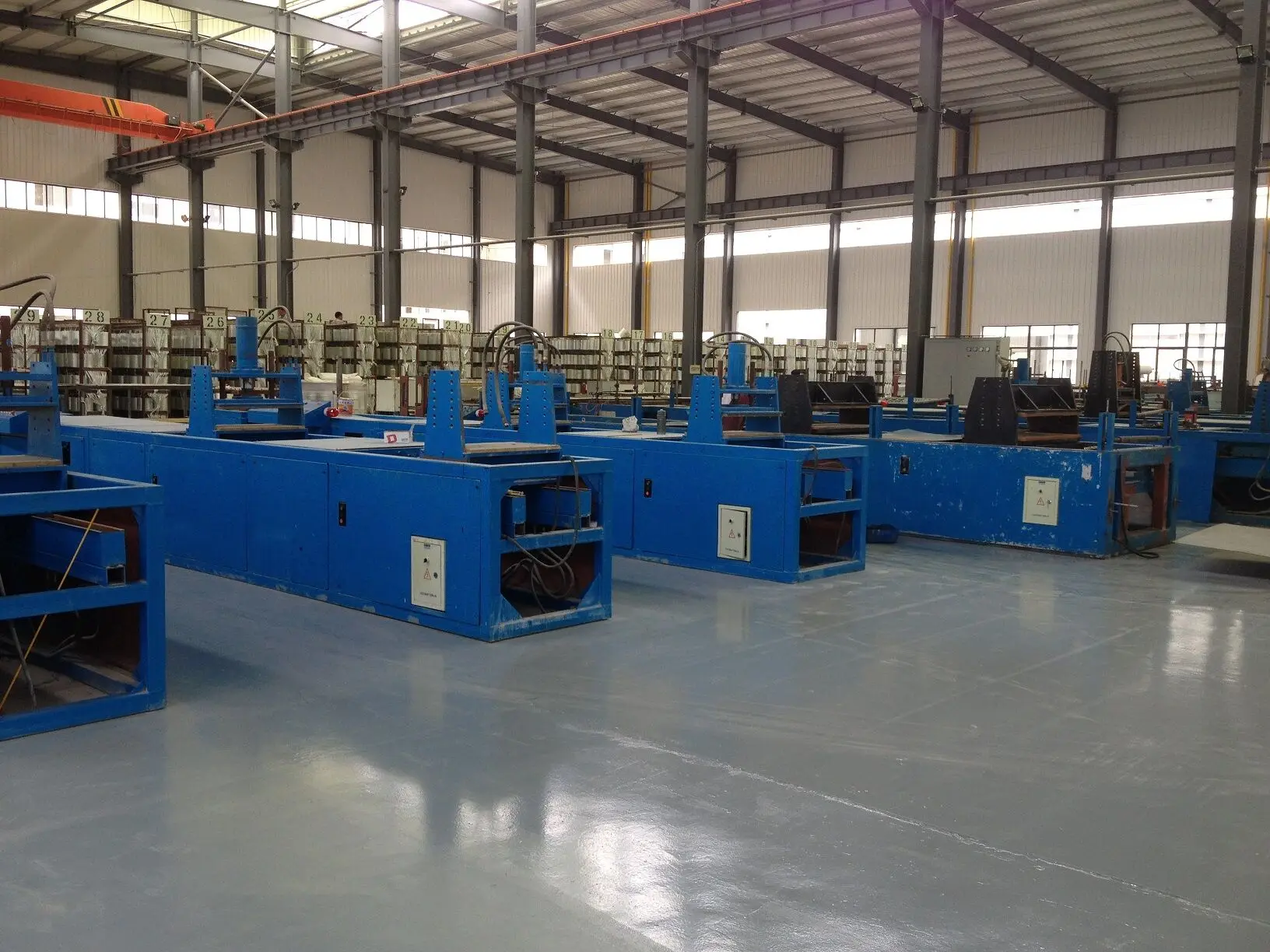

Our factory

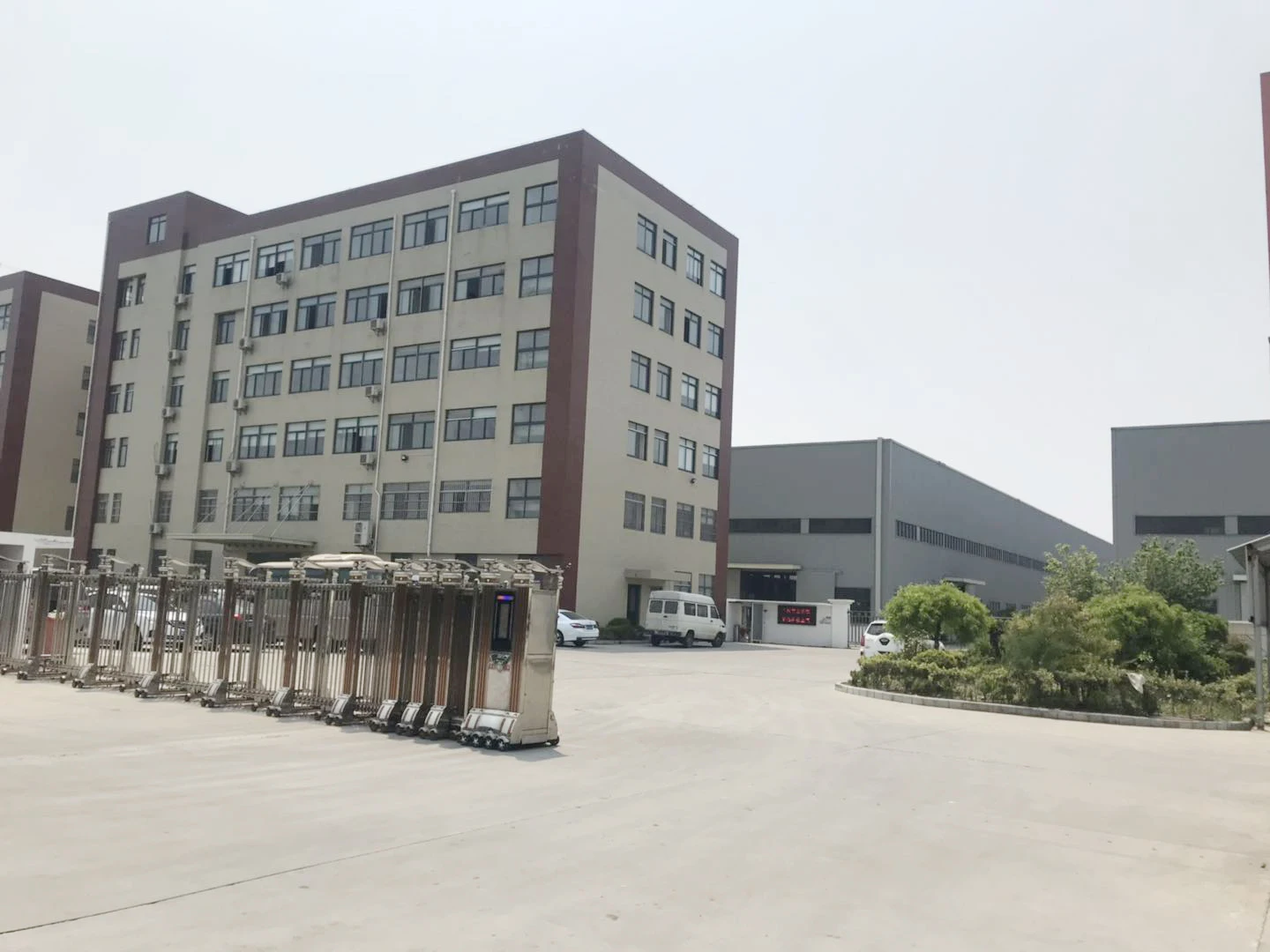

Our office
Our team
Our exhibition
Our customers
Our certificate
Manufacturing Technique

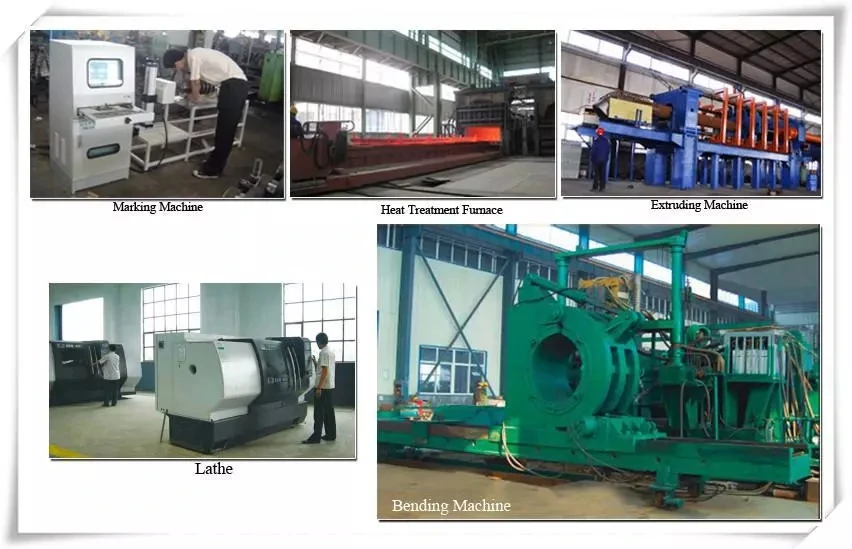

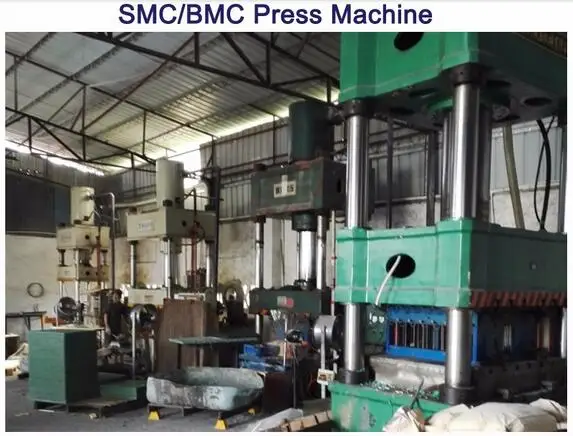

Production Equipment
