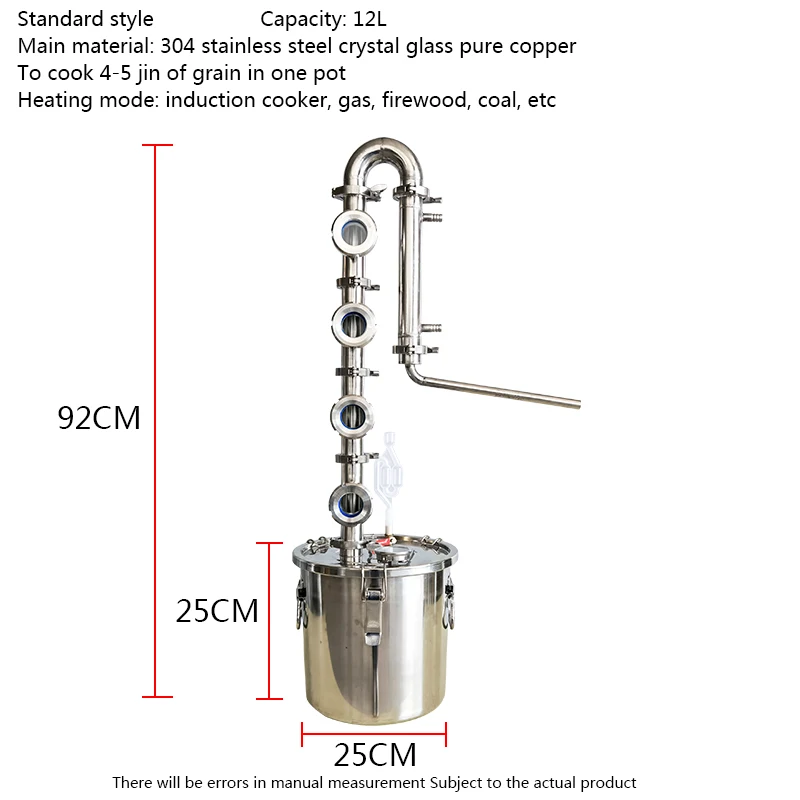

12L 304 stainless steel Household Alcohol distiller Vodka Whiskey rum Distiller 4 layer copper core reflux column Private winery
- Category: >>>
- Supplier: Jiangxi Daliangzao Machinery Technology Co. Ltd.
Share on (1600659905280):
Product Overview
Description

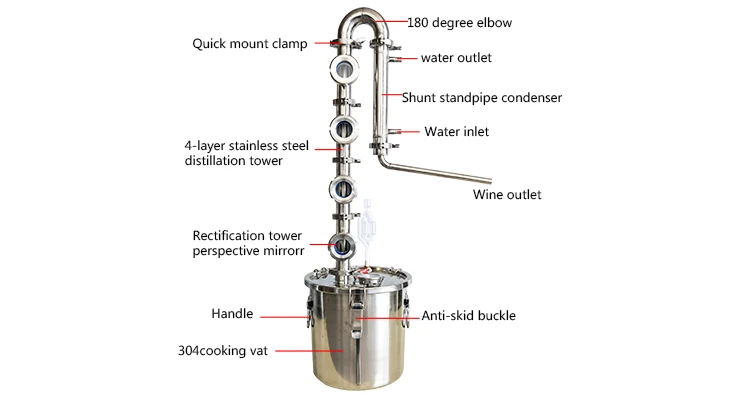

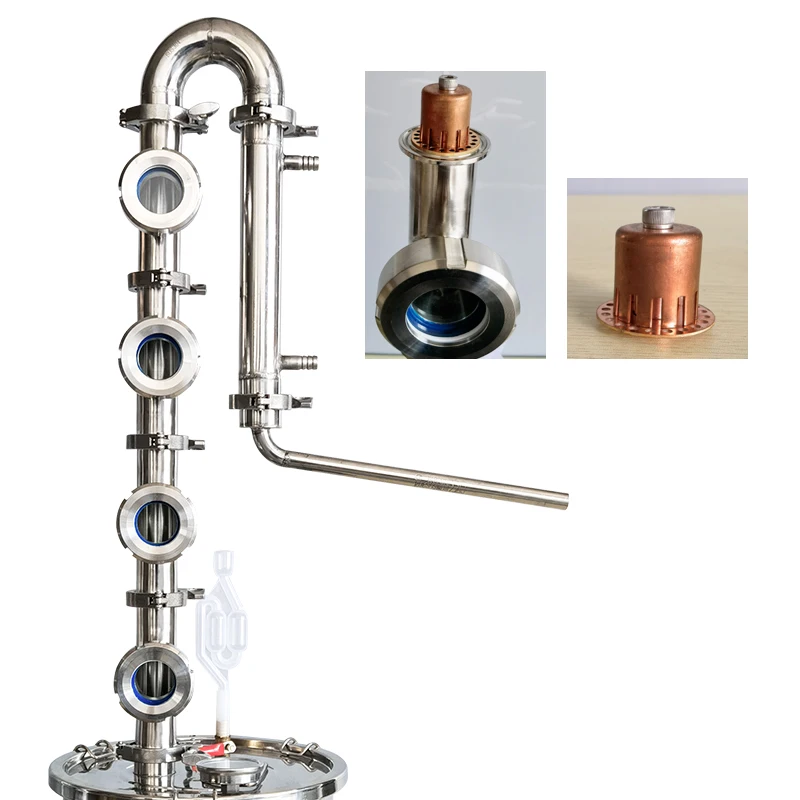

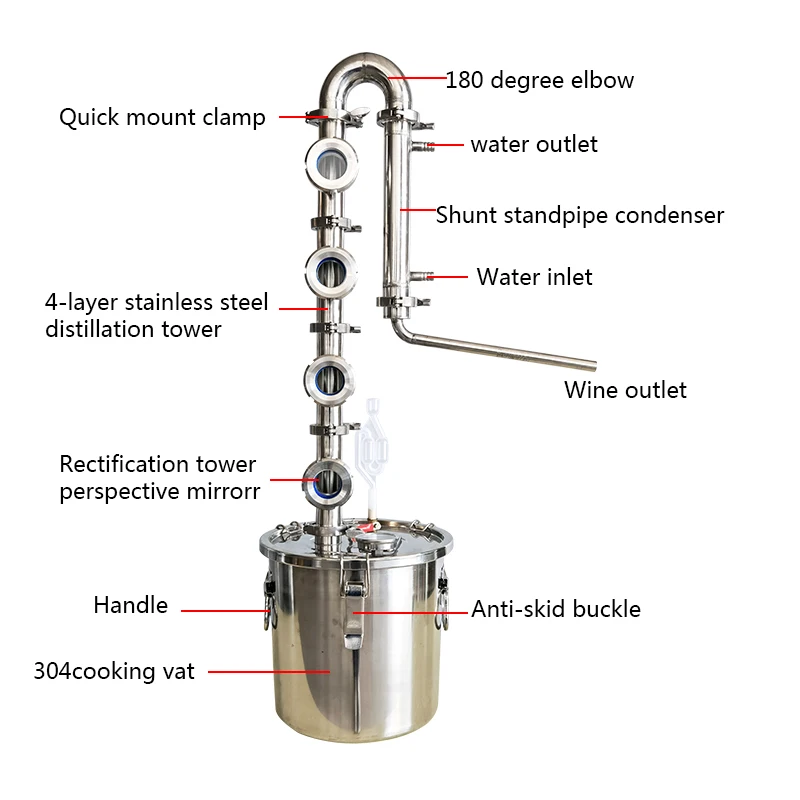

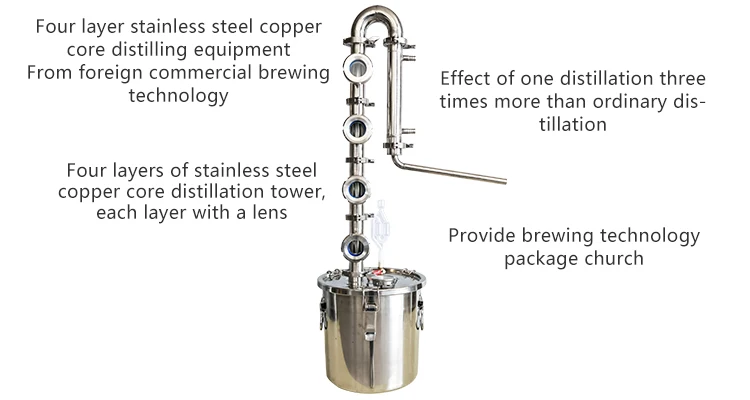

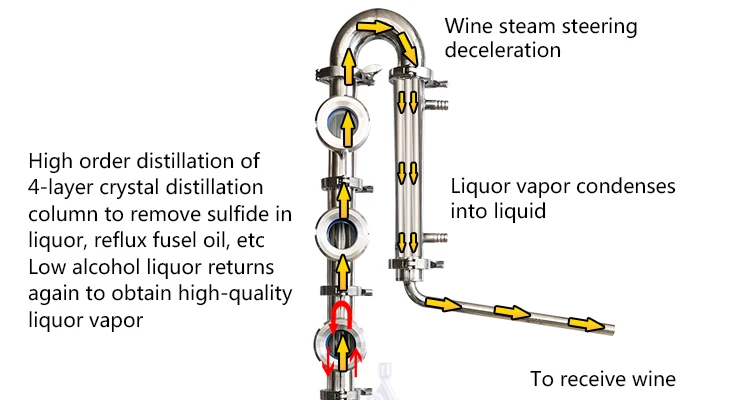

4 layers of stainless steel copper core distillation tower brewing equipment, using 4 layers of reflux design, each layer with an observation mirror, reflux column built-in pure copper core, purification of wine, greatly improve the quality of wine.

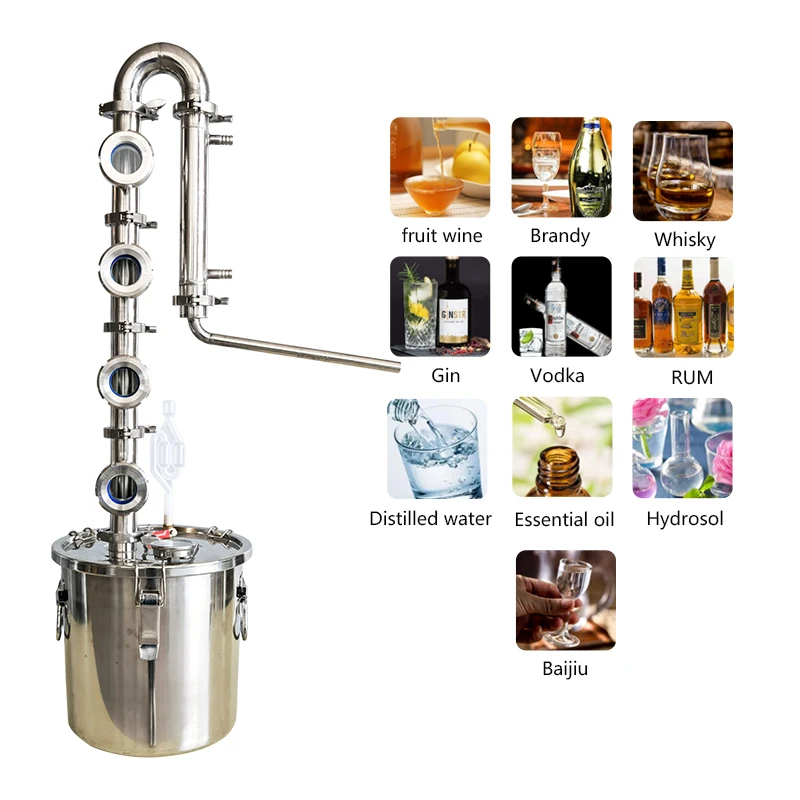

This is a distiller specially designed for families, using the design of reflux column, fast wine, more high-strength wine, easy to operate.
Details Images
The steaming barrel is made of food grade stainless steel. The barrel body is polished inside and outside and thickened at the bottom.

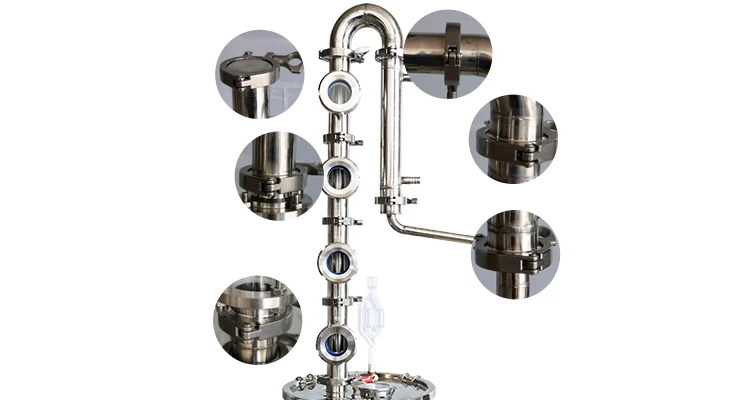

Steam barrel, return column, reducer bend, condenser to wine tube are all designed by quick loading clamp. Quick loading clamp
joint is processed by CNC turning process. Special silica gel sealing ring is added at the joint and tightened with clamp.
joint is processed by CNC turning process. Special silica gel sealing ring is added at the joint and tightened with clamp.

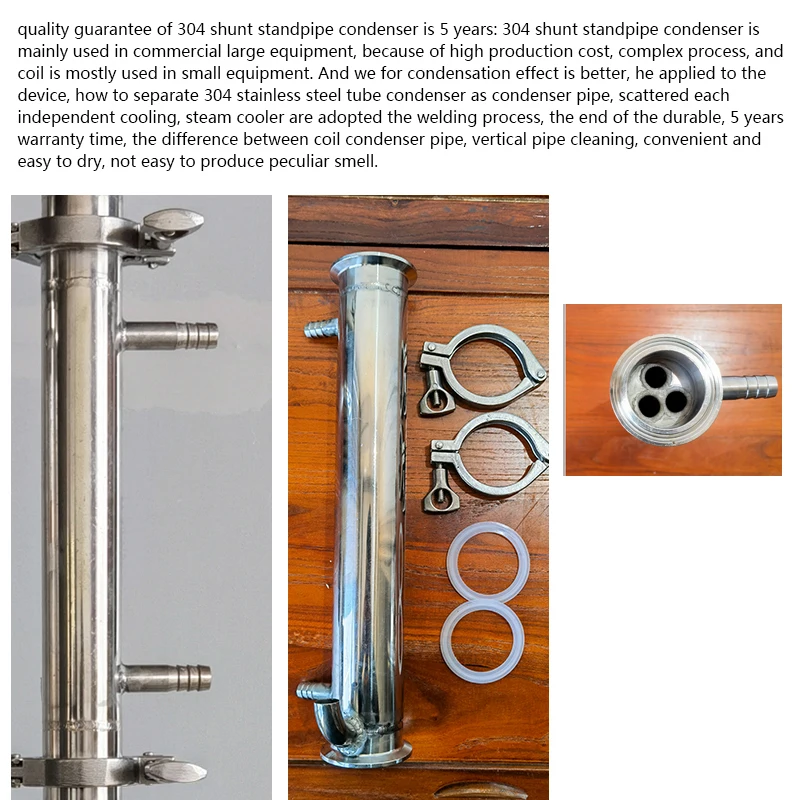

304 shunt standpipe condenser, using 304 stainless steel tube as condenser tube, all welded, strong and durable, wine steam into
the condenser after dispersing, each condenser independent cooling, let the wine temperature is lower.
the condenser after dispersing, each condenser independent cooling, let the wine temperature is lower.
Embedded silica gel sealing ring, high temperature resistance, long service life, good sealing performance.
Metal thermometer, metal shell, probe deep into the barrel, accurate measurement of temperature in the barrel, waterproof,
moisture-proof, no battery, with long service life.
moisture-proof, no battery, with long service life.
Equipped with steam drawer

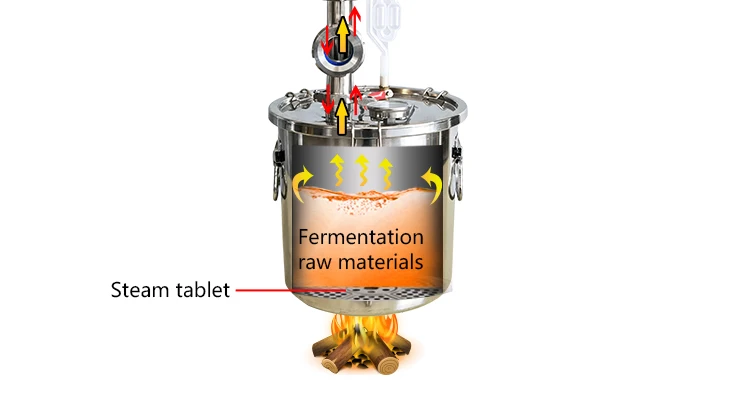

Grate, each barrel is equipped with - a grate, which can be placed in the barrel after the support leg is installed, and the solid materials can be placed in the grate in the filter bag_ Do not contact the bottom of the barrel, and add water in the barrel without pasting the pot.
Grate, each barrel is equipped with - a grate, which can be placed in the barrel after the support leg is installed, and the solid materials can be placed in the grate in the filter bag_ Do not contact the bottom of the barrel, and add water in the barrel without pasting the pot.
The filter bag
The filter bag is filled with distiller's grains and other solid fermentation products, which are placed on the grate and isolated from the bottom of the barrel to effectively prevent pot pasting.
The filter bag is filled with distiller's grains and other solid fermentation products, which are placed on the grate and isolated from the bottom of the barrel to effectively prevent pot pasting.
Accessories list
Product size
model | 6L | 12L | 20L | 33L | 50L | 70L | 98L |
Barrels of high | 20cm | 25cm | 30cm | 35cm | 40cm | 45cm | 50cm |
Drum diameter | 20cm | 25cm | 30cm | 35cm | 40cm | 45cm | 50cm |
The installation height | 87cm | 92cm | 97cm | 102cm | 119cm | 124cm | 129cm |
Loop column diameter | 1.5" | 1.5" | 1.5" | 1.5" | 2" | 2" | 2" |
Steam interface diameter | 1.5" | 1.5" | 1.5" | 1.5" | 2" | 2" | 2" |
Diameter of cooler | 1.5" | 1.5" | 1.5" | 1.5" | 2" | 2" | 2" |
Number of shunt standpipes | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
Condensing tube material | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel |
Packing size/weight | 32*32*32cm/8kg | 32*32*32cm/9kg | 37*37*37cm/11kg | 42*42*42cm/13kg | 47*47*47cm/15kg | 52*52*52cm/19kg | 57*57*57cm/25kg |
