Automatic Wood saw machines wood  pallet stringer panel board cutting off saw machine  +8615936239970





Product Description


Machine Description wood saw machine


This wood pallet cross cutting off saw machine can process the wood sawdust blocks, solid wood blocks, wood board, wood stringer etc. wood material, and can be adjusted to cut them in different size as you request.


Technical Paramter wood saw machine






































































































Model



LYE-2000



LYE-4000



LYE-6000



Cutting Length



10~120mm



10~120mm



10~120mm



Cutting Width



30~200mm



30~200mm



30~200mm



Cutting Length



2000mm



4000mm



6000mm



Max. cutting cross area



120*120/100*200mm



120*120/100*200mm



120*120/100*200mm



Feeding Speed



5~30m/min



5~30m/min



5~30m/min



Cutting Speed



40pcs/minute



40pcs/minute



40pcs/minute



Diameter.of Blade



Dia.400/450mm



Dia.400/450mm



Dia.400/450mm



Saw shaft size



Dia.30mm



Dia.30mm



Dia.30mm



Spindle speed



3500rpm



3500rpm



3500rpm



Feed servo motor



750w



750w



750w



Blade motor



7.5kw



7.5kw



7.5kw



Working Pressure



5~6kg/cm2



5~6kg/cm2



5~6kg/cm2



Dust collector



Dia.100mm*2



Dia.100mm*2



Dia.100mm*2



Dimension



4300*1200*1500mm



7300*1200*1500mm



9300*1200*1500mm



Cutting Deviation



<1MM



<1MM



<1MM



Details of machine wood saw machine

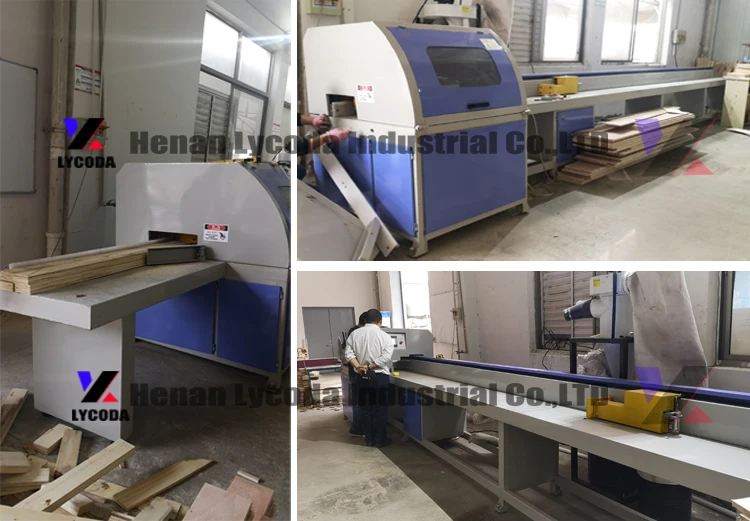

cut off saw machine (4).jpg

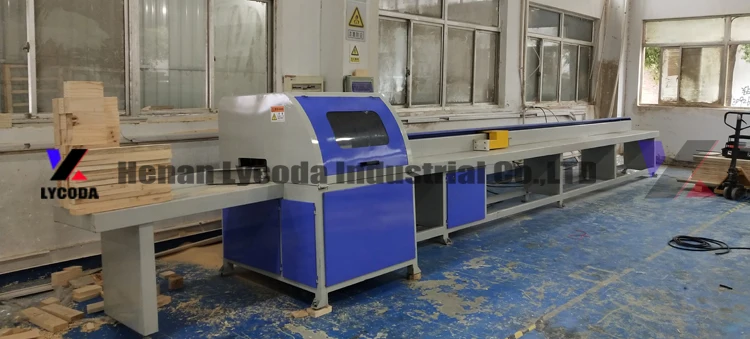

cut off saw machine (2).jpg

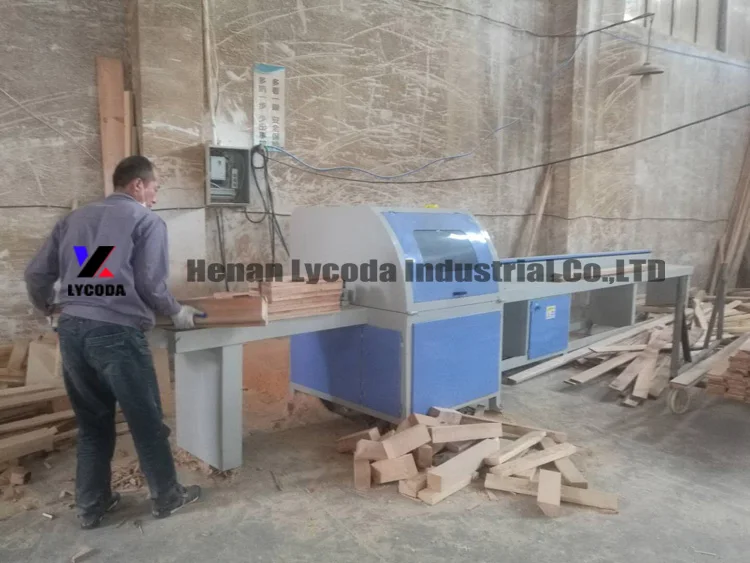

cut off saw machine (3).jpg





Packaging & Shipping

cut off saw machine (7).jpgWood machine seriesWood pallet cross cut off saw machinelycoda wood machine.jpg

lycoda wood machine1.jpg



FAQ


If you have any questions, please visit the following FAQ


1) Payment
We usually accept payment byT/T,L/C,Western Union or Tradeassurance.
2) How to Pay
30%-50% deposit, the balance payment would be paid before the delivery
3) The delivery time
It depends on your ordering quantity or different machine items, usually for 15-60 days at receipt of your deposit.
4) How do you know if the machine work well?
We will test the machine when the machine ready to make sure it work normally, and also take the photos of the machine and the package for your confirmation.
5)Trade Terms
FOB, CIF, CFR, EXW etc.
6) If need further information about our company or machine details, you can contact us directly.
