Trade Assurance  Factory Mnaufacturing Biomass Wood Sawdust Briquette Production Line






Product Description








Introduction

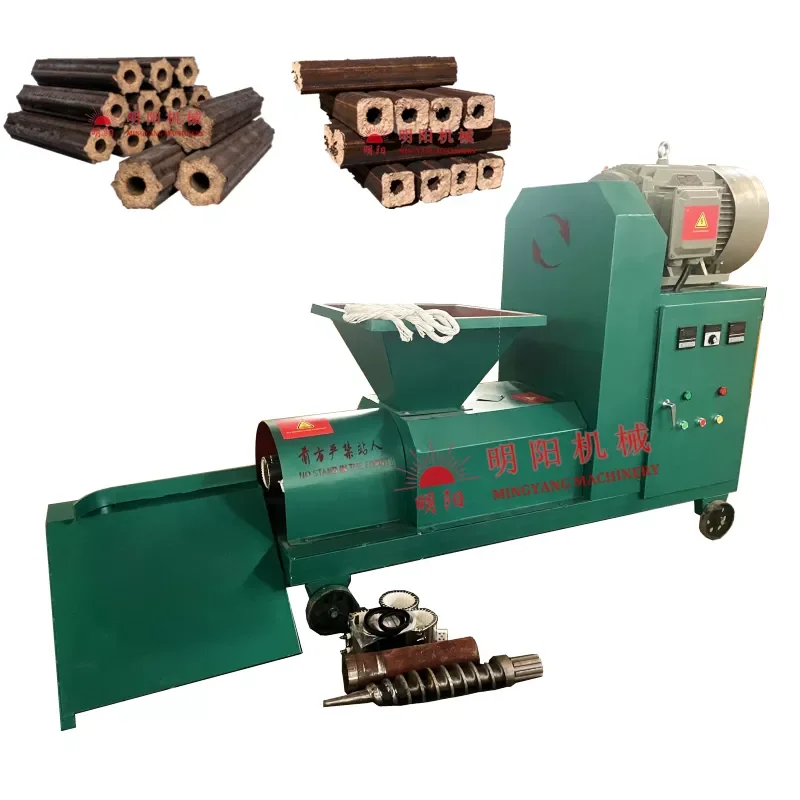

Trade Assurance Rice Husking Wood Sawdust Biomass Briquette Making Machine Price For Sale is used to make wood briquettes. Its raw material can be stalk, straw , sawdust, coconut shell, rice hust, rice stalk, tree branch and so on. The final wood briquettes can be used as the fuel of boiler or the material to make charcoal.




feedback_




There are two types machine

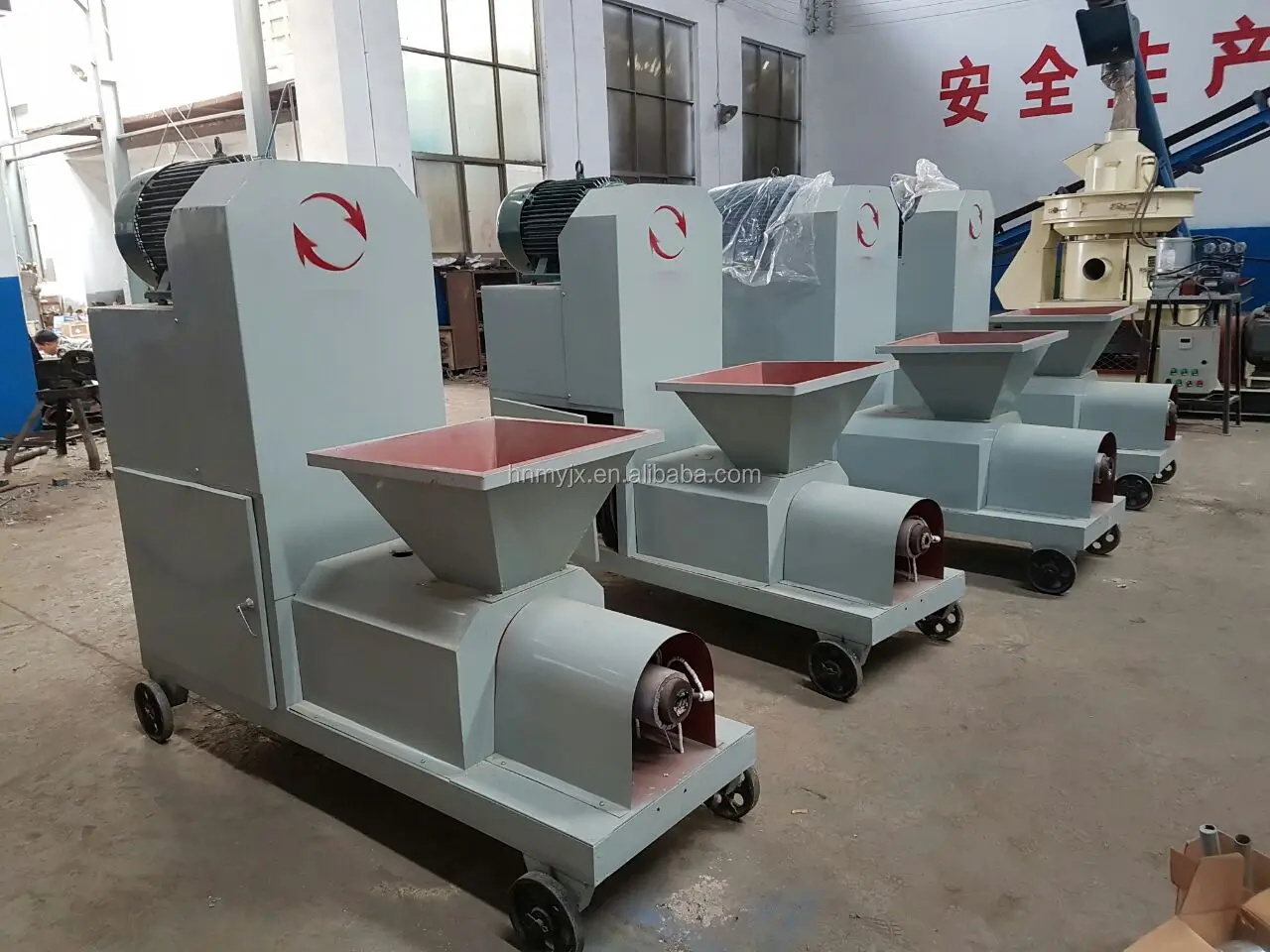

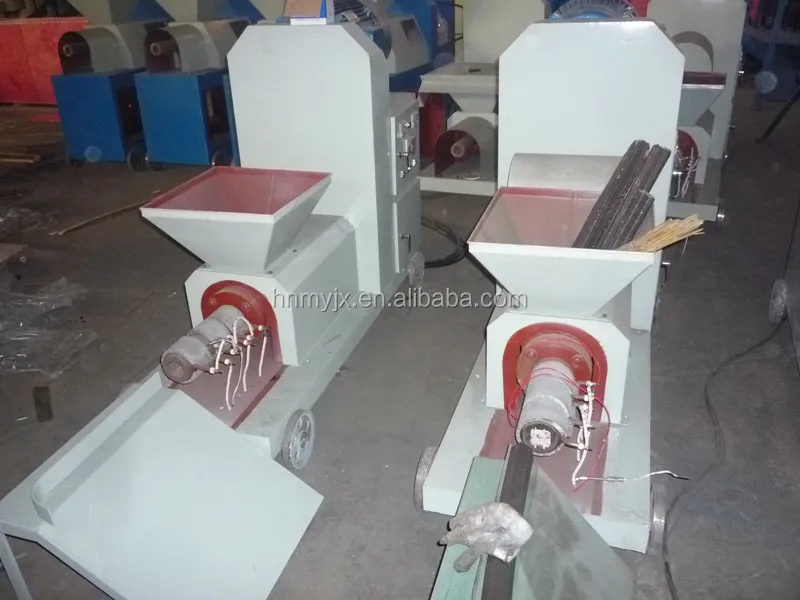

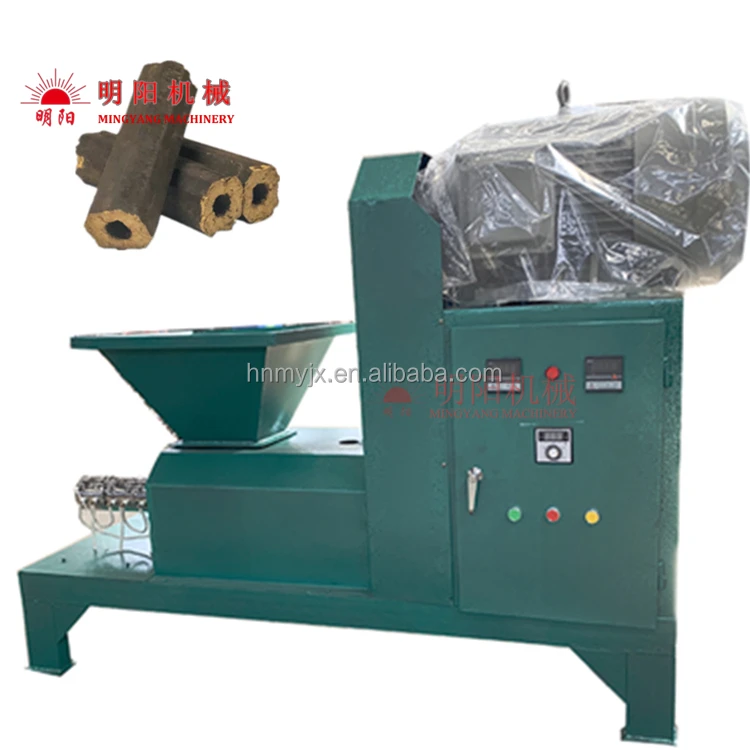

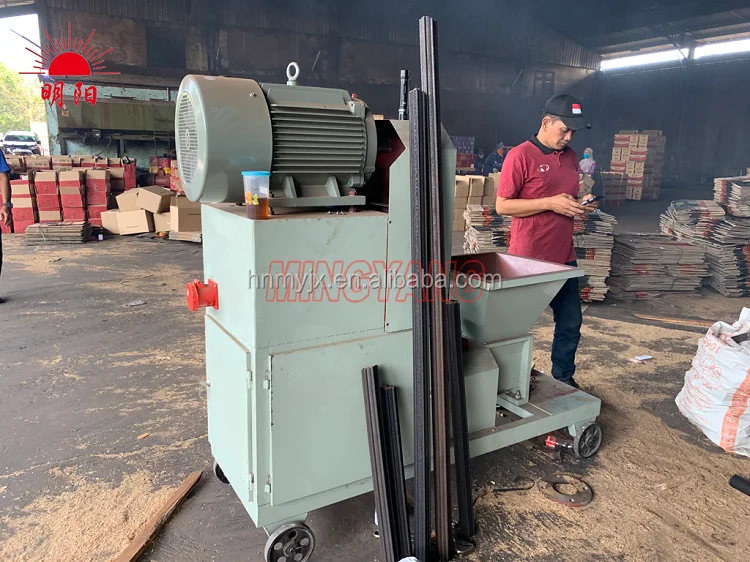

(1)Single machine
If the capacity you need is 120-450kg/h, you can choose one single machine, about the single machine, we have six types.






























































Model






Capacity  kg/h






Power  kw






Material temperature






Weight  kg






Packing dimension  mm






ZBJ50-9






120-220






11-15





8-12%

550






2200×600×1300






ZBJ50-C






350-420






22





8-12%

750






2700×700×1550






ZBJ60-9






220-250






15-18.5






8-12%






650






2400×700×1350






ZBJ70-9





280-34018.5-228-12%7802400×700×1400

ZBJ80-9





320-360228-12%8502400×750×1400

ZBJ90-9





380-450308-12%9802600×800×1500

briquette machine_


briquettes machines  (4)

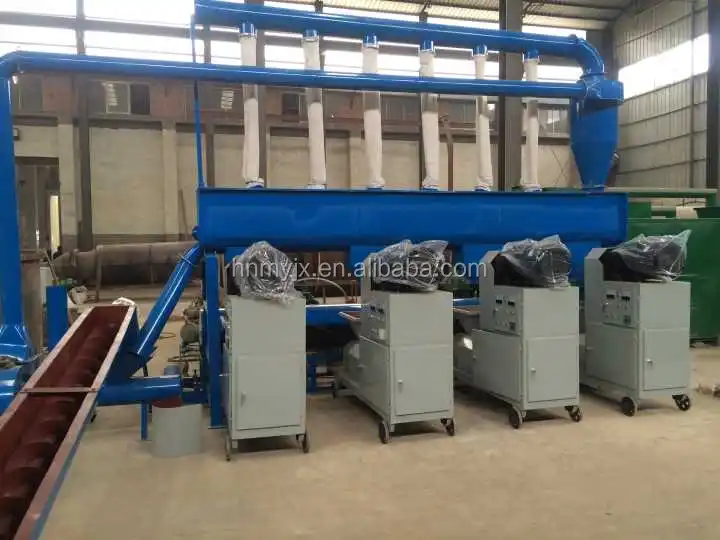

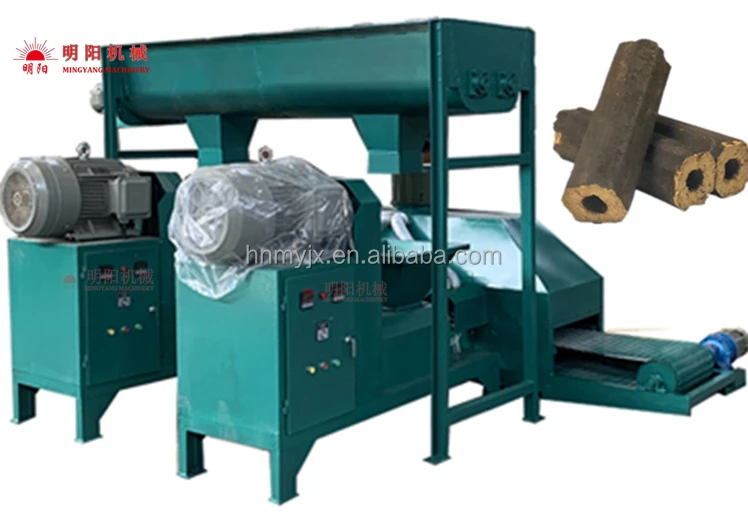

(2)Automatic Production line
If you need large capacity, one single machine can not meet your need, you can choose several sets of single machine, or use the automatic production line, the automatic production line have a large capacity ( from 800kg-2500kg/h),and it will save many workers and cost.

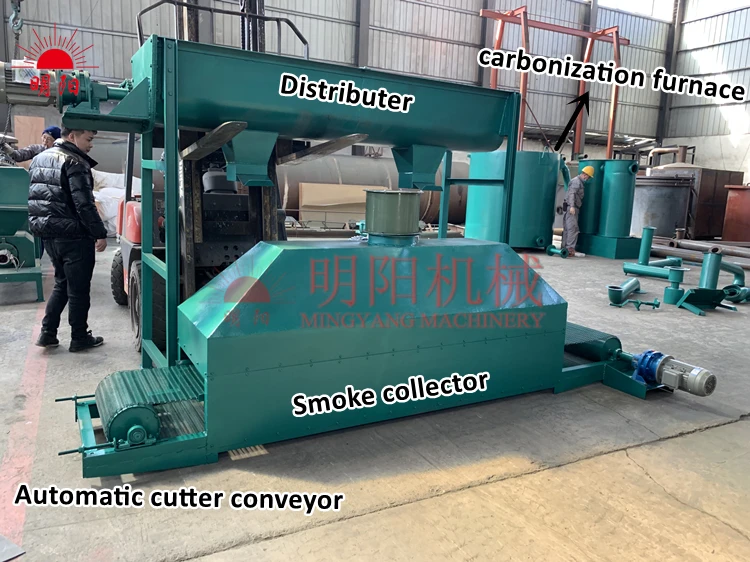

Our automatic line include the main machines and auxiliary Machinery .the main machine (several sets of single briquette machine) Auxiliary machine (material distributor, screw conveyor, belt conveyor, smoke disposal system, cool conveyor.













































Model






Capacity






 Power (kw)






Dimensions,


m





Bar Diameter, mm






Weight, MT






ZBJ9-4-1






900-1100kg/h






11*5+3+3+ 0.22






6.5*2.35*3.1






50,60,70






3.2






ZBJ9-4-2






1250-1500kg/h






15*5+3+3+0.22






6.5*2.35*3.1






50,60,70,80






3.8






ZBJ9-5-1






1800-2200kg/h






11*10+3*2+3+0.22*2






6.5*3.35*3.15






50,60,70






6.4






ZBJ9-5-2






2200-2500kg/h






15*10+3






6.5*3.35*3.15






50,60,70,80






7.5
















wood charcoal machine (2)










Main parts

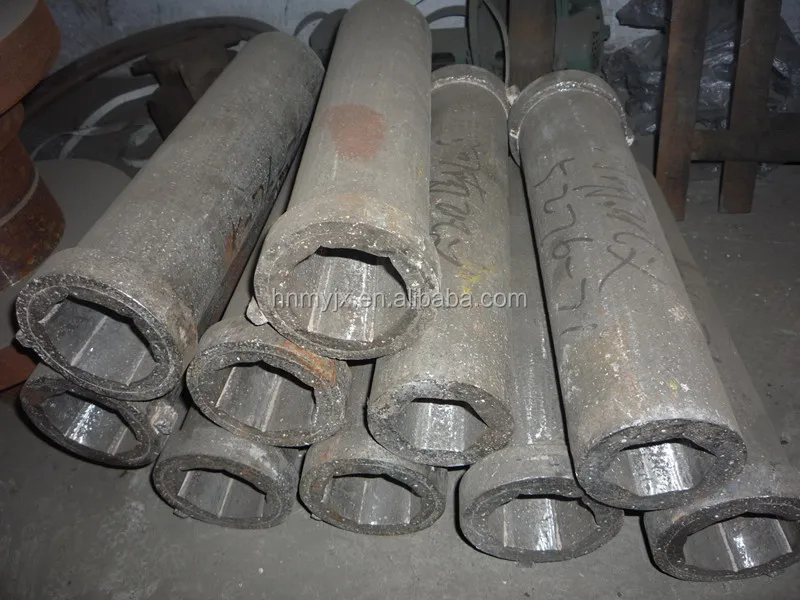

Forming tube, can make different shape for the finally wood briquettes.special casting steel, inner barrel boron


treatment,continuously use for more than 5 months.

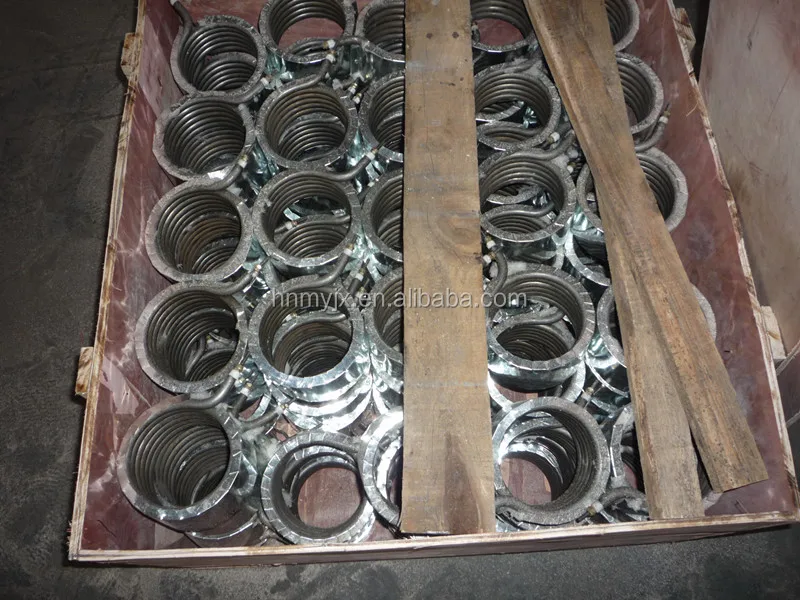

we adopted three heating rings which are made from thick copper wires and are ceramic inside. P1120879_.jpg

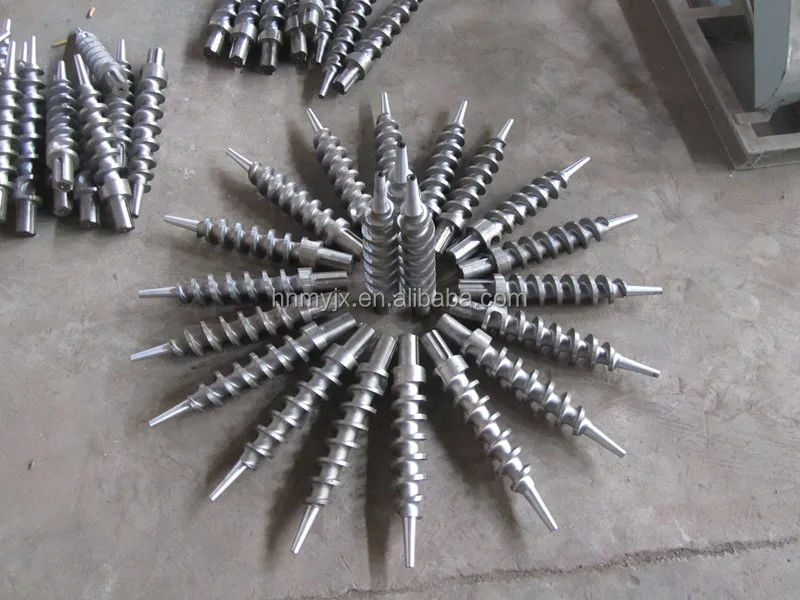

Propeller ,advanced design,high speed of producing rod ,high density,high resistance to wear,one welding time can work continuously for more than 30 hours. IMG_4304_.jpg









Working principle

Briquette machine uses a large screw to compress and extrude the biomass into briquettes. The natural lignin content in biomass is liberated with wood fiber under high pressure and temperature.In the briquetting process lignin serves as the glue and combines the particles of wood together,thus binding, compressing the biomass to form into various molds of high density briquette, such as hexagonal, quadrangular, square,etc. As your requirement, we can also change the shape to order. And the diameter of briquettes are from 50-80 mm. Moreover non-binder needs to be used during this process.


briquettes machines  (5)

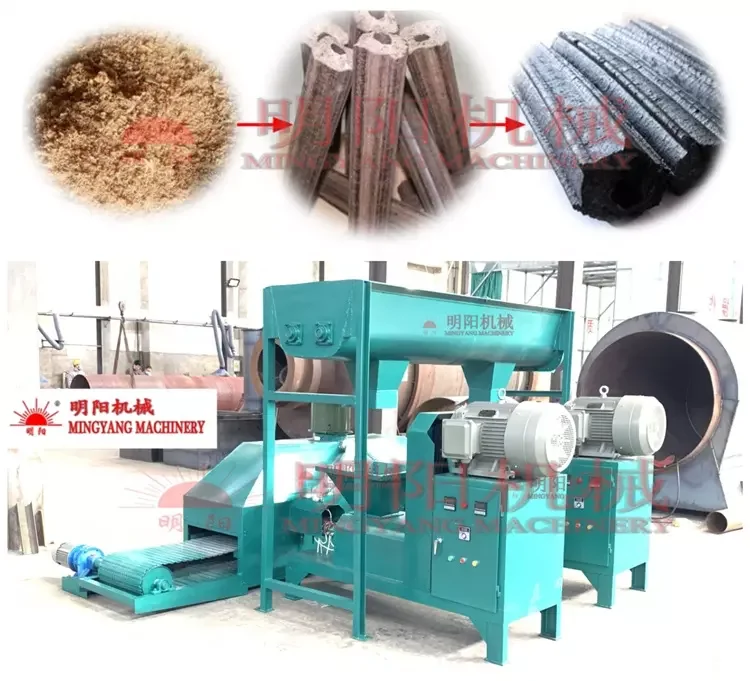

Raw materials and final briquettes

Maize stalks, soybean stalks, fire wood ,parawood scraps,palm shell,broomcorn stalks, cotton stalks, peanut plants, sunflower stalks, bamboo saw dust,bagasse, wood chips, rice husk, coffee husk,coir pith, jute sticks, groundnut shells, Bamboo,wood, Mustard stalk and cotton stalks .etc


Raw material request
Sawdust size: 3-5mm  (if the raw material size bigger,a crusher is needed)
Sawdust moisture: 8%-12%(if the raw material moisture is higher than 12%,a dryer is needed)




photobank (1)

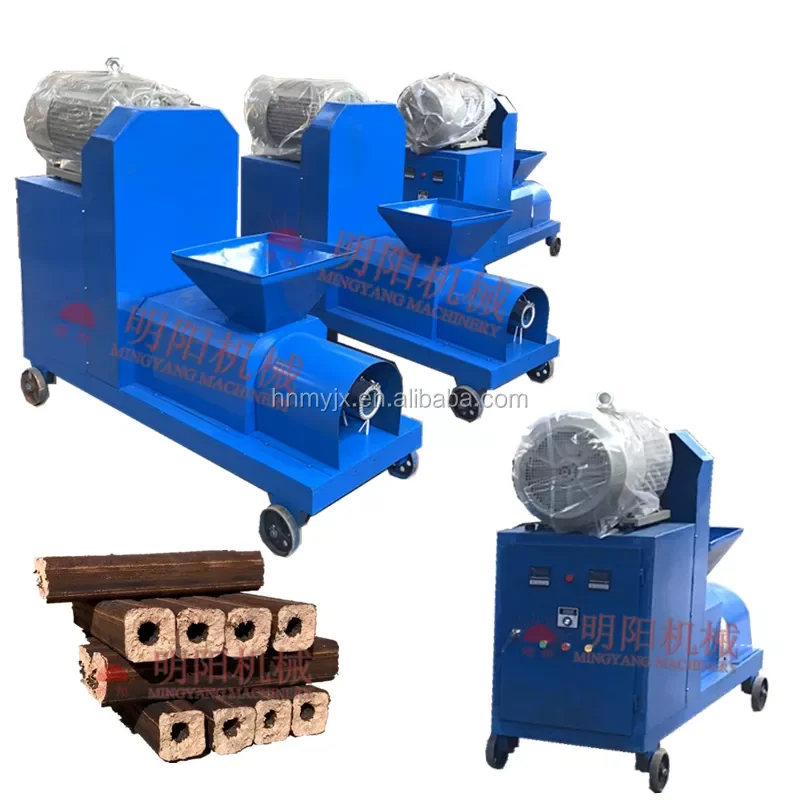

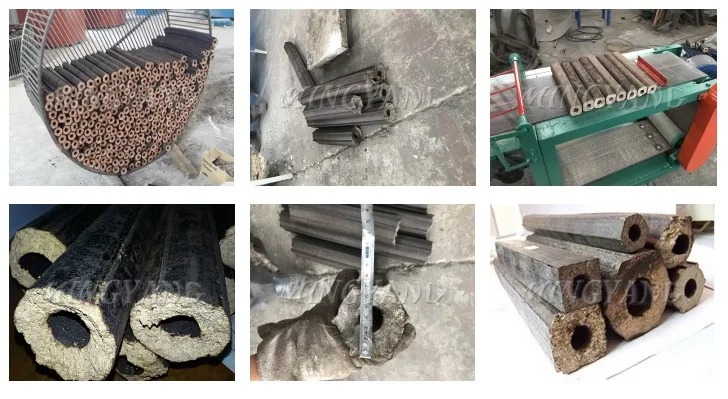

1.Final shape:hexagon, pentagon, square, round
2.Final length: 20-40 cm adjustable, according to per your needing
3.Final size: Dia. 50mm, 60mm,70mm,80mm











Learn more about the machine and the latest price , please click @ CONTACT US












CONTACT  US





Packaging & Shipping




Company Information








 Our Company Information

Gongyi Xiaoyi Mingyang Machinery plant is located in Zhengzhou.Henan province. Our machineryplant is specialize in WOOD BRIQUETTE MACHINE 30 years.


There have production line of makingwood charcoal briquette(including crusher , dryer , wood briquette machine, carbonization stove) ,


production line of making wood pellet (including crusher, dryer , wood pellets machine , dust separation plant and packaging machine)


production line of making coal ball briquette(includingvertical crusher, mixing machine, coal briquette pressing machine and dryer machine for coal briquette)


and other equipment such as screw conveyor, belt conveyor, scrap conveyor , sawdust carbonization stove, floating fish feed machine and so on.


Our machines have the best quality and we have got many certification such as CE, ISO, BV.
