Logistic concrete floor reinforcement use glued steel fiber for easy mixing
- Category: Prefabricated Buildings >>>
- Supplier: Yutian,Zhitai,Steel,Fiber,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Glued hook end steel fiber for concrete reinforcement
Glued steel fiber is a kind of admixtures or aggregates of concrete slab and concrete reinforcement etc.
Alibaba Trade Assurance Zero risk
We are member of Alibaba Trade Assurance (amount USD365,000 for now)
it is to protect your orders from payment to delivery, it means you will receive 100% refund from the Alibaba Trade Assurance if the orders not meeting agreed delivery or quality terms.
it is to protect your orders from payment to delivery, it means you will receive 100% refund from the Alibaba Trade Assurance if the orders not meeting agreed delivery or quality terms.
Products Description
Steel fibers today offer the designer and constructer state-of-the-art technology for use as reinforcement in many concrete elements and applications. There are many varieties of styles, shapes and sizes of steel fibers in the market today.
Introducing steel fibers into the concrete mix provide new mechanical properties. We now have a new material, with improved mechanical properties that can enhance structural applications. The fibers can be included as a substitute for the common steel reinforcement, or as a complement, or for a better performance for strain that the common reinforcement can't absorb.Micro steel fiber as a kind of admixtures or aggregate of concrete,which is also named brass coated micro steel fiber or micro steel rebars widely used for concrete reinforcement and concrete slabs.
* Increase and get a stable of tensile strength under flexion load, which produces a ductile behavior
* Increase impact resistance
* Increase cyclic loads of resistance (fatigue effect)
* Increase prevention of the plastic shrinkage crack
* Increase the concrete performance against thermal variations
* Get minor permeability
Application:
* Tunneling
* Industrial flooring
* Airport pavements
* Precast
* Pre-compressed concrete
Introducing steel fibers into the concrete mix provide new mechanical properties. We now have a new material, with improved mechanical properties that can enhance structural applications. The fibers can be included as a substitute for the common steel reinforcement, or as a complement, or for a better performance for strain that the common reinforcement can't absorb.Micro steel fiber as a kind of admixtures or aggregate of concrete,which is also named brass coated micro steel fiber or micro steel rebars widely used for concrete reinforcement and concrete slabs.
In mechanical and performance terms, by adding steel fibers to the concrete mix you can:
* Increase and get a stable of tensile strength under flexion load, which produces a ductile behavior
* Increase impact resistance
* Increase cyclic loads of resistance (fatigue effect)
* Increase prevention of the plastic shrinkage crack
* Increase the concrete performance against thermal variations
* Get minor permeability
Application:
* Tunneling
* Industrial flooring
* Airport pavements
* Precast
* Pre-compressed concrete
Glued steel fiber concrete aggregate and admixture
It is more and more popular used in FRC(Fiber reinforced concret) field. Application aspects have asphalt pavement,roads,tunnel construction, concrete slabs and industrial warehouse flooring etc.
Product Paramenters
Specification for brass copper coated micro steel fiber fibres
According to the Standard of JG/T 3064-1999 Steel Fiber Concrete, YB/T 151-1999 Steel Fiber for Concrete and ASTM A820-90 Steel
Fiber for The Fiber Concrete.
Raw Material | Q195 Carbon steel |
Tensile strength | ≥1200Mpa |
Diameter | 0.55mm |
Length | 35mm |
TYPE | Glued steel fiber |
Type | Diameter(mm) | Length(mm) | LD Ratio | Tensile strength |
RC60/30-BN | 0.5 | 30 | 60 | 1200~2000Mpa |
RC70/35-BN | 0.55 | 35 | 70 | 1200~2000Mpa |
RC80/60-BN | 0.75 | 60 | 80 | 1200~2000Mpa |
RC67/60-BN | 0.9 | 60 | 67 | 1200~2000Mpa |
Function
Glued Steel fiber Functions
(2) improve mechanical performance concrete
(3) prevent the damage to the concrete
(4) decrease the danger from crack of the concrete
(5) provide exceptional load stability and durability
Products Applications
Brass coated micro steel fiber has been widely used in many aspects such as highway road construction, bridge construction project,dam construction project,tunnel interior wall shotcrete,concrete slabs,industrial warehouse flooring and asphalt pavement etc.

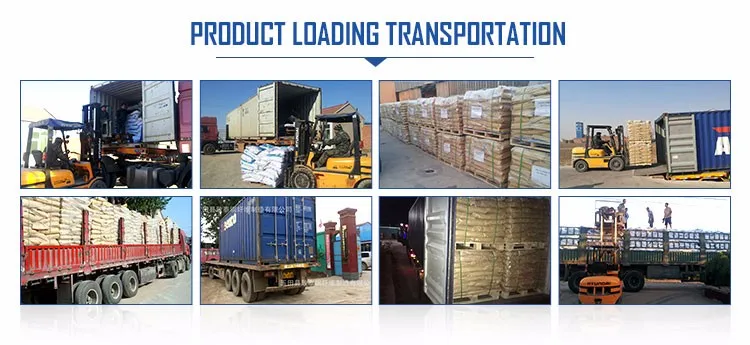

Product Packaging and Shipping
20kg per bag
50 bags per pallet
20 pallets per 20ft container
Company Profile
Yutian Zhitai Steel Fibers Manufacturing Co., Ltd. is located in Yahong Bridge, Yutian, Tangshang, close to Beijing-Shenyang Expressway, enjoying convenient transportation. We have excellent management and research talents and state-of-the-art steel fiber production equipment. Our company integrates the product development and manufacture. Zhitai brand steel fibers confrom to JG/T3064:1999 steel fiber reinforced concrete standard and YB/T151:1999 concrete steel fiber manufacturing standard. We also passed ISO9001 Quality Management System Certification.
Our products are mainly divided into RPC copper plated steel fiber and wire cutting steel fiber rows, and we have the annual production capacity of 15,000 tons. Our products have been widely used in high-speed railways, tunnels, subways, airport runways, concrete sleepers, water conservancy, electric power, banking, telecommunications, ports, military engineering, etc. We can greatly improve the concrete's strength and to increase the concrete impact resistance, fatigue resistance, etc.
Our sales network covers all provinces and cities, and we have participated in many large state construction projects, including Beijing-Shanghai High-Speed Railway, Dalian Passenger, Atlantic Passenger Dedicated Line, Beijing-Shijiazhuang Line, etc. We can customize products according to customers' needs and samples. Steel fiber products are also exported to Europe, the United States, Australia, and Africa, praised by customers.
We will be in a pragmatic and sincere cooperation attitude to meet the needs of our customers, and welcome new and old customers to visit us.
Construction Projects
Contact us
Mr. Harry WANG
Export Sales Manager
Mobile/Whatsapp:+86 18610846007
Web: www.ztgxw.com
Email: [email protected]
Feel free to contact us for nice offers in 2022
Export Sales Manager
Mobile/Whatsapp:+86 18610846007
Web: www.ztgxw.com
Email: [email protected]
Feel free to contact us for nice offers in 2022
