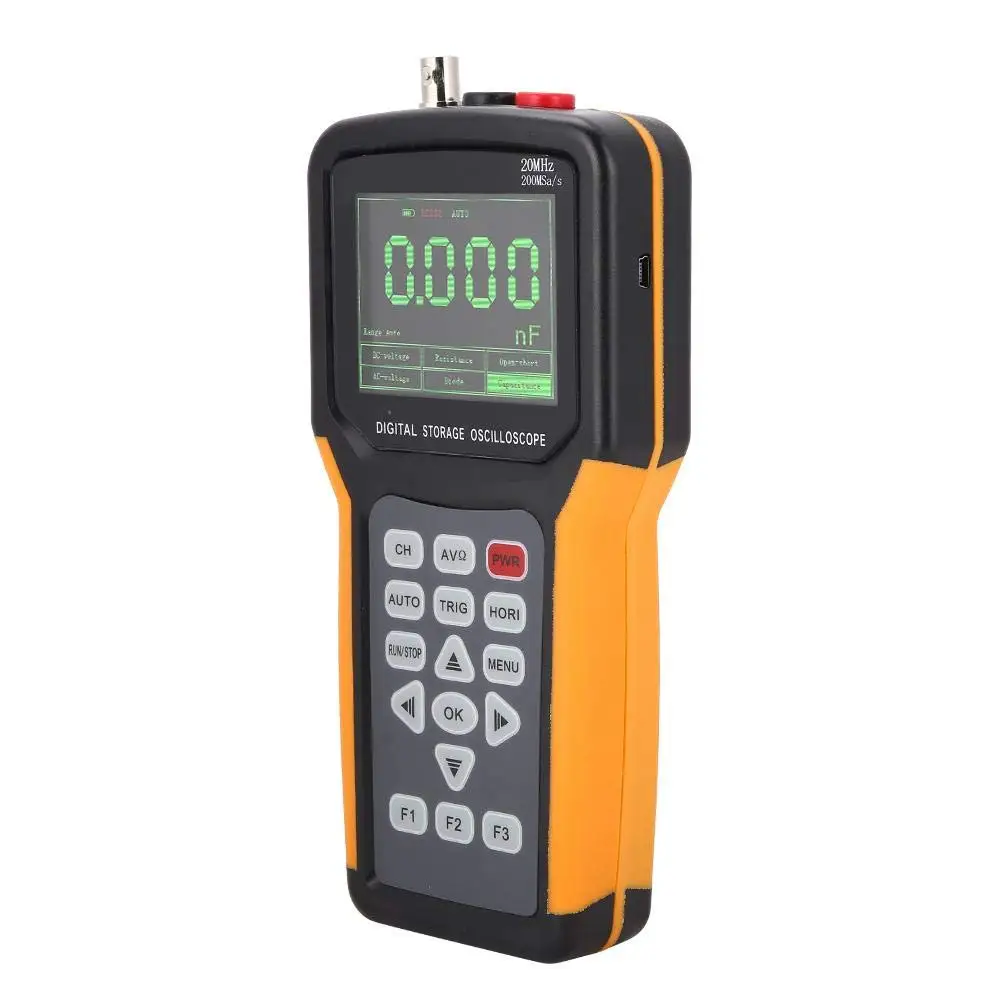

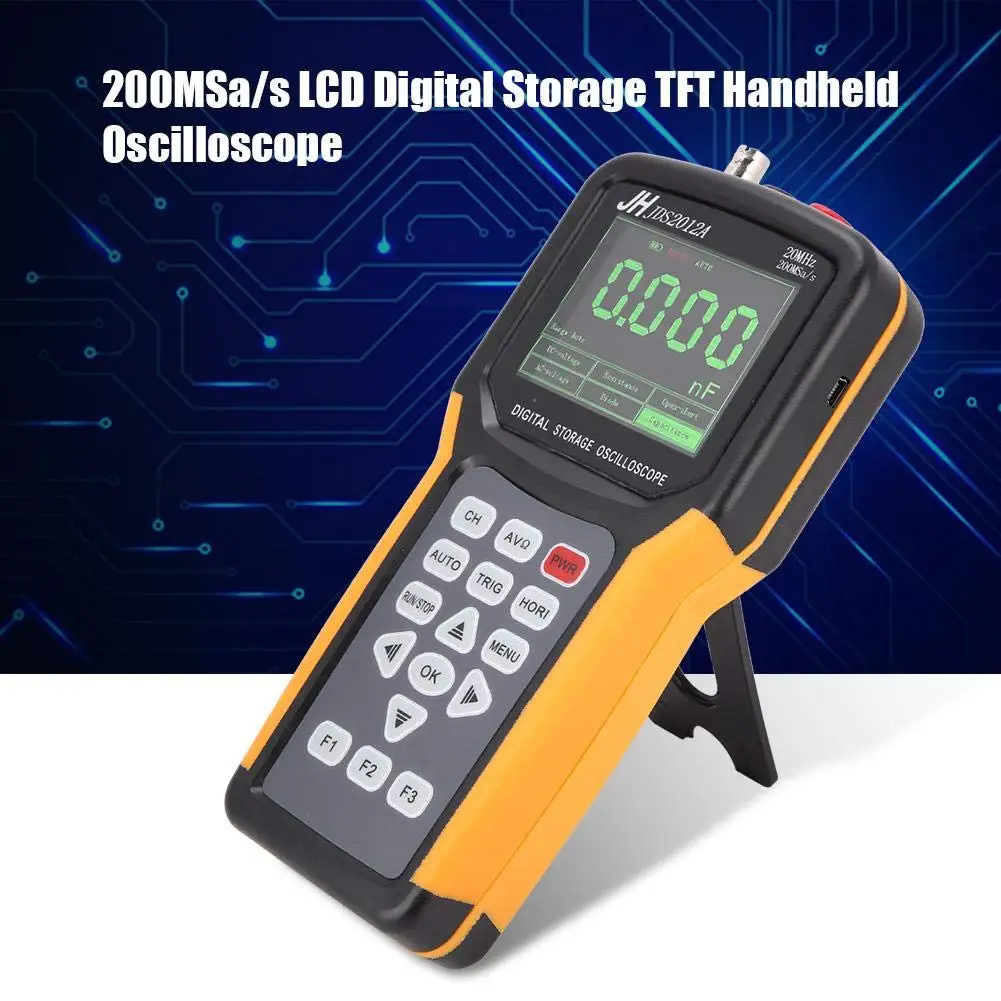

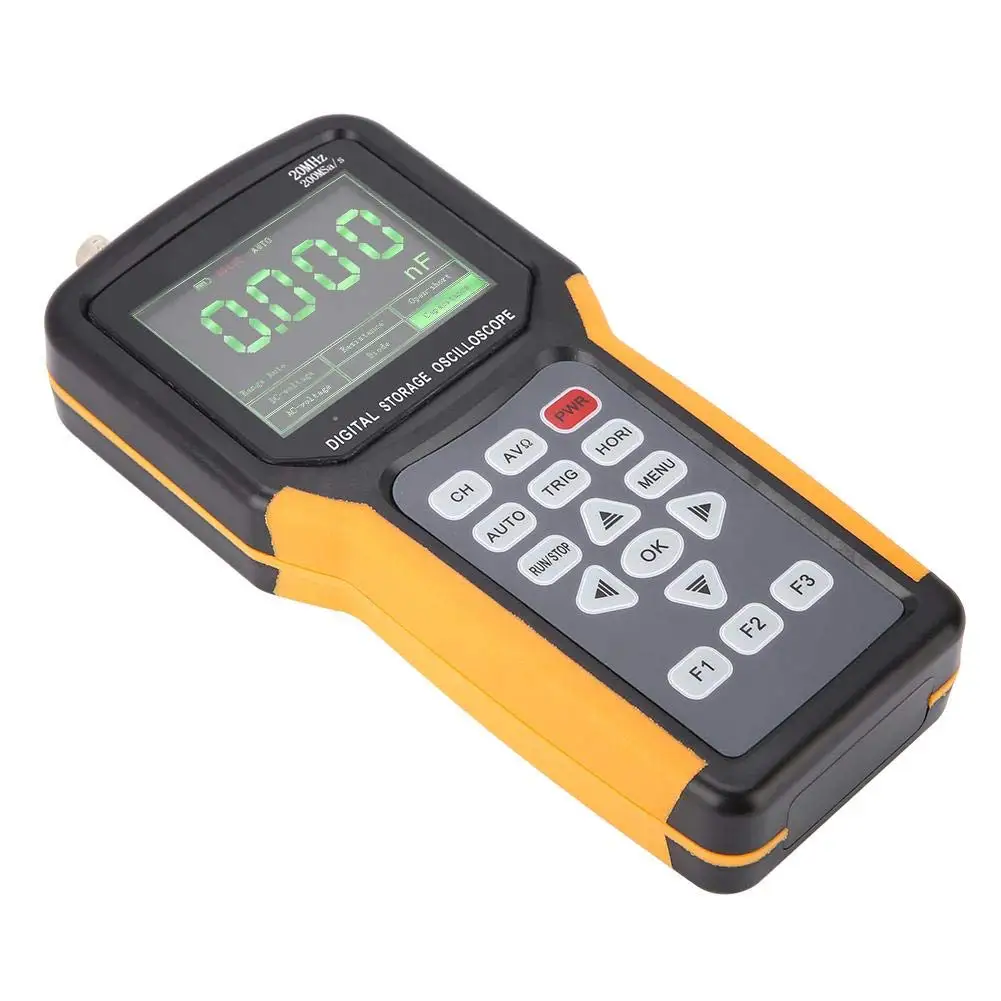

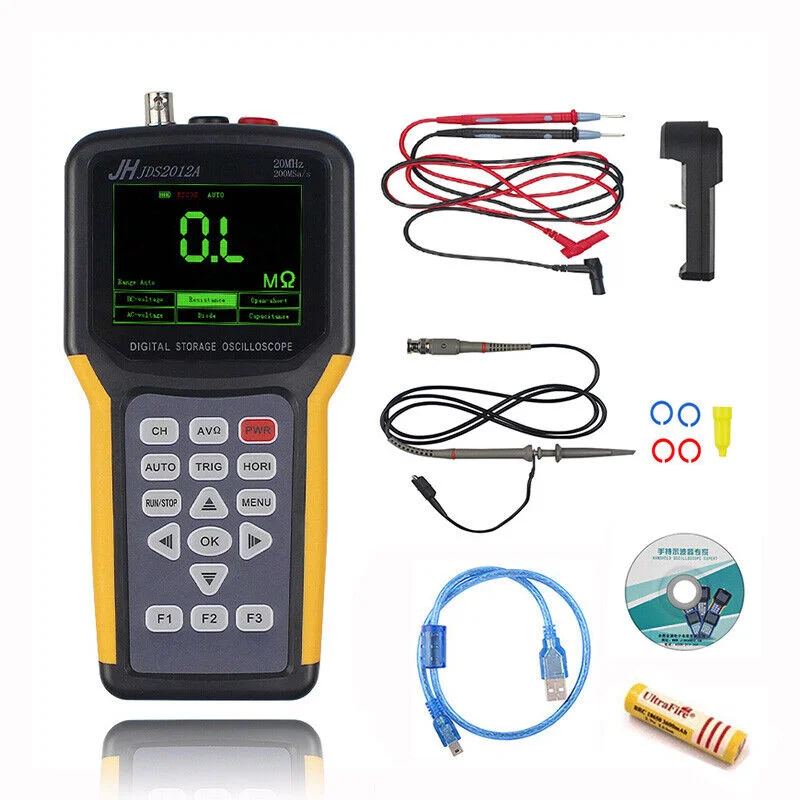

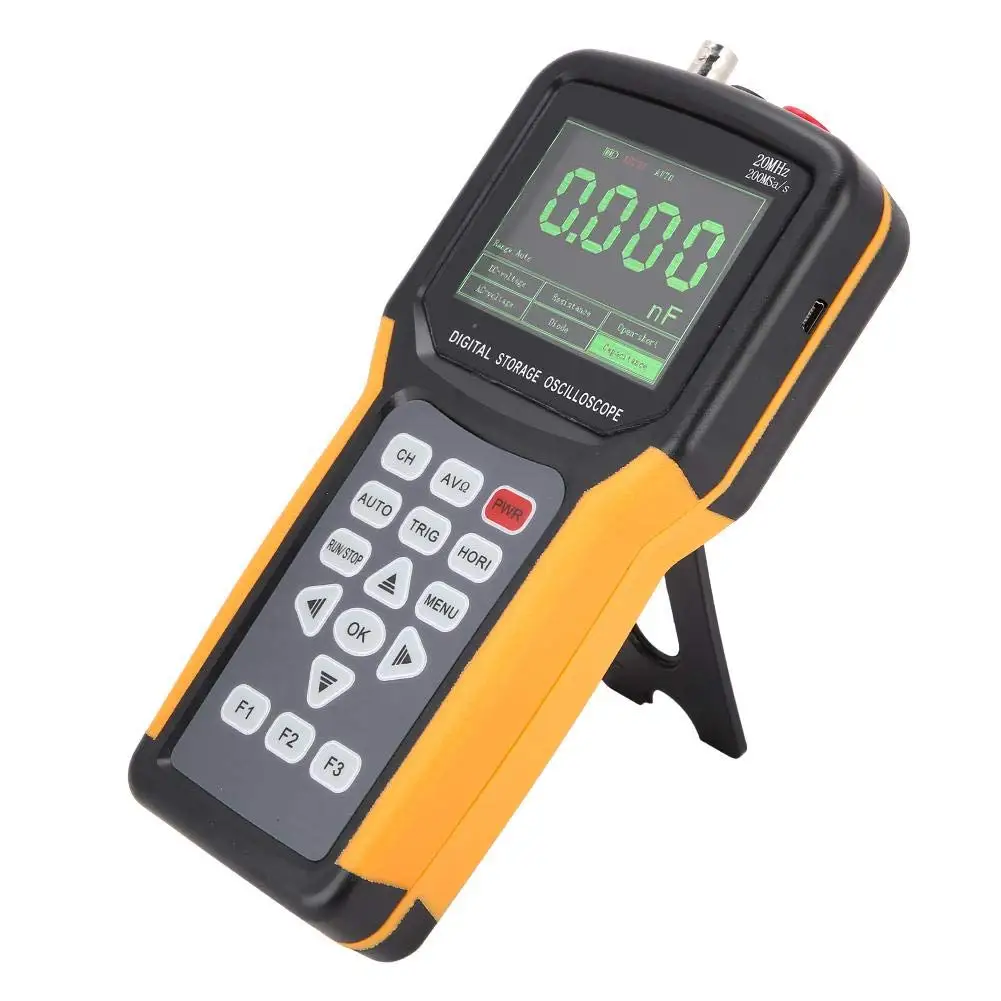

Handheld Oscilloscope Jds2012a Car Repair Maintenance Multimeter 20mhz
- Category: >>>
- Supplier: Acebott Stem Education Tech Co. Ltd.
Share on (1600660385920):
Product Overview
Description
Products Description
Handheld Oscilloscope Jds2012a Car Repair Maintenance Multimeter 20mhz
ARM processor + FPGA programmable logic + high-performance dual AD9288 chips, high-performance sampling
Single channel, maximum simultaneous real-time sampling rate 200MSa/s, bandwidth 20M
Vertical resolution, 8 bits; vertical accuracy, +/-3%
Impedance, 1MΩ 25pF; coupling, DC; display mode, Y-T, memory depth, 2K
Trigger mode, automatic, normal and single; trigger type, rising edge, falling edge
Input range: 10mV-5V, 100mV-50V (probe 1X10) (1, 2, 5 steps)
Time base range: 10ns-5s (1, 2, 5 steps) 100ms-5s (scan scan)
Screen: 3.2 inches, 16-bit true color, tft, 320*240
Battery: 3000+MA lithium battery (a single battery can work continuously for about 5 hours)
Size: 202*100*35 (mm)
Maximum sampling rate: 200MSa / S Channels: 1 Bandwidth: 20MHz (can be measured 33MHz) Vertical Resolution: 8 bits Input range: 10mv-5v; 100mv-50v (probe X10) (1,2,5 steps) Vertical Accuracy: + / -3% Impedance: 1MΩ 25pF Coupling: DC, AC Display mode: Y-T Input voltage: 40v (probe X10); 400v (probe X10) 220v voltage can be measured; (probe X100) 2000v voltage can be measured Time base Time Base Range: 10ns-50ms (1,2,5,5 step) 100ms-5s (Scan scan) Memory Depth: 2K Trigger Modes: Auto, Normal and Single Type: rising edge, falling edge Automatic detection: Support (50Hz-40MHz) Level: Digital Measurement: peak to peak and frequency Cursor: Cursor support time and voltage Equipment Screen: 3.2-inch, 16-bit true color, TFT, 320 * 240 Battery: 3000 + mA lithium battery (single cell about 7 hours of continuous work) Size: 202 * 100 * 35 (mm) |
Multimeter Technical Specifications: |
Full-scale reading: 4000 count DC voltage: 400mv/4.000v/40.00v/400.0v/1000v 5 files AC voltage: 400mv/4.000v/40.00v/400.0v/750v 5 files Resistance measurement:400.0Ω/4.000KΩ/40.00kΩ/400.0kΩ/4.000mΩ/40.00mΩ 6 files Capacitance measurement: 51.20nF/512.0nF/5.120UuF/51.20uF/100uF (30Sec) 5 files Off detection: less than 60Ω when the buzzer alarm Diode measurements: 0v-1.5v |
