1550nm WDM Receiver Active Node Router Bandwidth 47 1008MHz for CATV Optical Fiber Receiver for FTTH GPON
- Category: >>>
- Supplier: Fuzhou Huiyuan Communication Equipment Co. Ltd.
Share on (1600660412560):
Product Overview
Description
Product Description

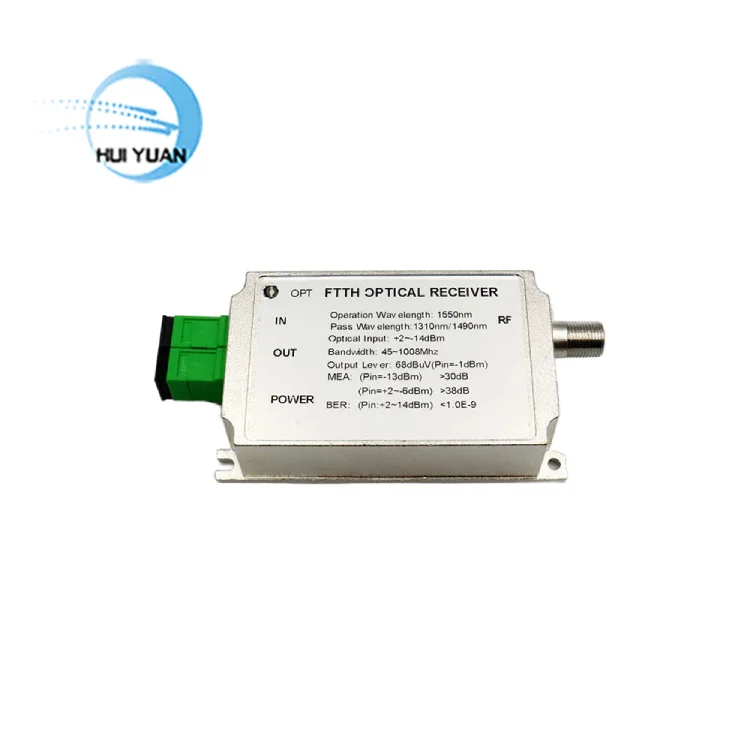

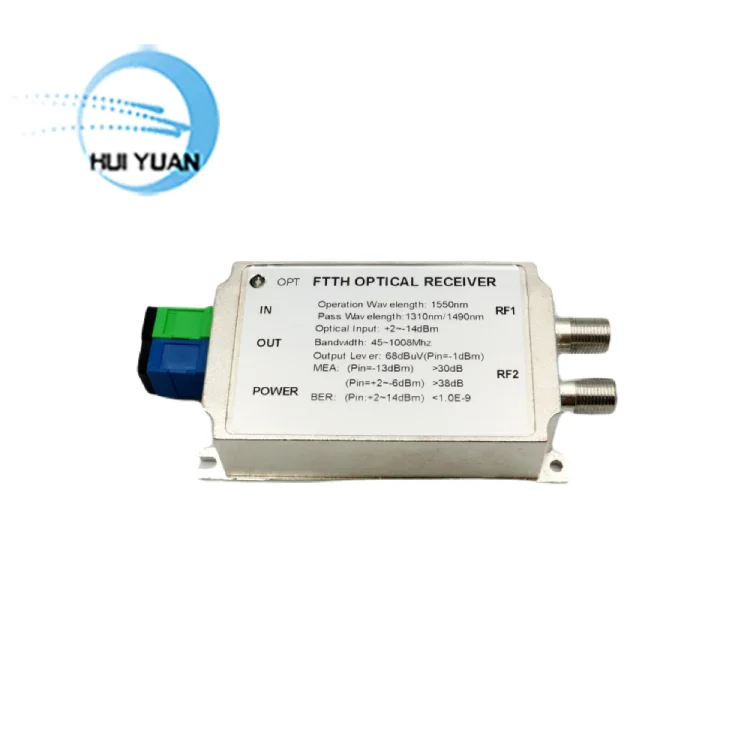

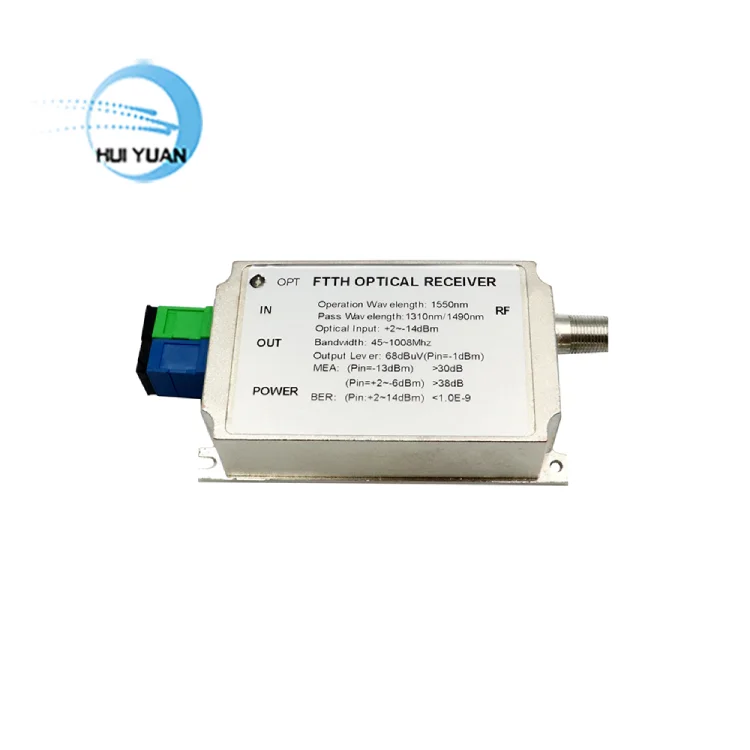

HY-21-R35 optical node is a compact in-door optical node especially designs for FTTH application. It designs with a single
MMIC chip, compared with the two-stage amplifier structure, it has the characteristics of high integration, high performance, excellent anti-jamming performance. In addition, it can achieve best linearity and low noise figure with lowest power consumption by power saving sill. It also achieves digital AGC control skill by I2C interface. It provides a high-quality and high-performance FTTH network solution for cable TV operators.
MMIC chip, compared with the two-stage amplifier structure, it has the characteristics of high integration, high performance, excellent anti-jamming performance. In addition, it can achieve best linearity and low noise figure with lowest power consumption by power saving sill. It also achieves digital AGC control skill by I2C interface. It provides a high-quality and high-performance FTTH network solution for cable TV operators.
Main features
Single MMIC chip solution;
RF bandwidth : 45 ~ 1006 MHz;
RF bandwidth : 45 ~ 1006 MHz;
Output level: > 80dBuV (@AGC(-9 ~ 0 dBm) power input);
Wide optical power input range: -18 ~ +2 dBm;
Digital AGC control and range: -9 ~ 0 dBm;
MER: >39.2dB @>-9dBm,RFsource ≥ 80dBuV
Wide optical power input range: -18 ~ +2 dBm;
Digital AGC control and range: -9 ~ 0 dBm;
MER: >39.2dB @>-9dBm,RFsource ≥ 80dBuV
CNR: >57dB @>-11dBm,RFsource ≥90dBuV

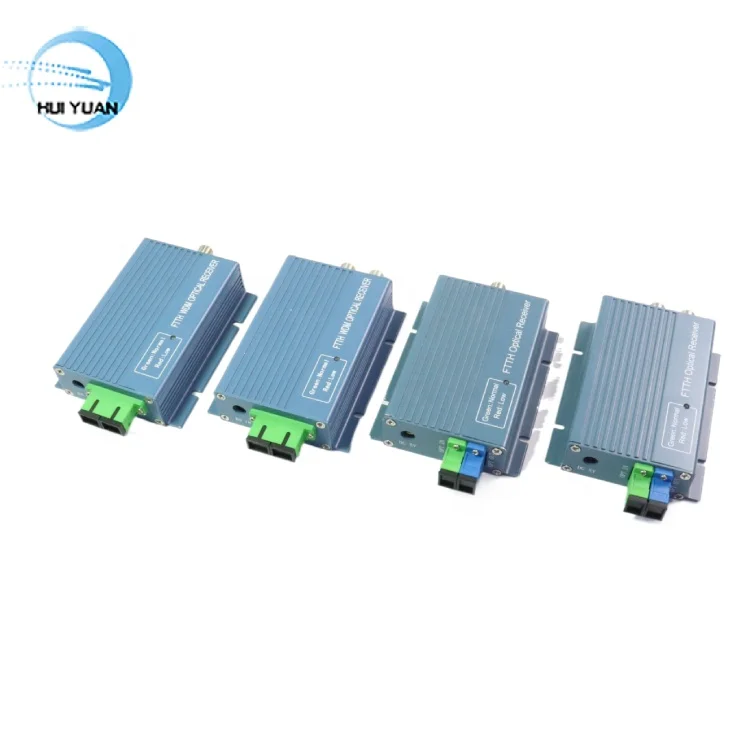

Details Images
Specification
Number | Item | Unit | Description | Remark | ||||
Optical Parameter (Forward Path) | ||||||||
1 | Operating Wavelength | nm | 1550 | 1540 ~ 1560 | ||||
2 | PON Pass Wavelength | nm | 1310/1490 | (1260 ~ 1360), (1480 ~ 1500) | ||||
3 | Isolation | dB | Pass band≥35 | λ = 1550nm | ||||
dB | Reflect band≥20 | λ = 1310nm, λ = 1490nm | ||||||
4 | Insert loss | dB | Pass band≤0.8 | λ = 1550nm | ||||
dB | Reflect band≤0.6 | λ = 1310nm, λ = 1490nm | ||||||
5 | Optical Return Loss | dB | ≥45 | |||||
6 | Optical Power Input Range | dBm | -18 ~ +2 | Recommended Range: -9 ~ 0 | ||||
AGC Range | dBm | 9 ~ 0 | ||||||
RF Parameter (Forward Path) | ||||||||
7 | Bandwidth | MHz | 45~1006 | |||||
8 | Flatness | dB | ±0.75 | At 25 ℃ | ||||
9 | RF Impedance | Ω | 75 | |||||
10 | Output Level | dBµV | >80 >76 >70 | @AGC(-9 ~ 0), RFsource = 80 dBuV @ -11dBm, RFsource = 80 dBuV @ -15dBm, RFsource = 80 dBuV | ||||
11 | Output Return Loss | dB | 16 | Typical | ||||
Analog TV Parameters | ||||||||
Test channel | CH(PAL-D) | 59 | 535.25MHz | |||||
12 | OMI | % | 3.8 | |||||
13 | CNR① | dB | =59 >57 >51.7 | @-9dBm,RFsource >90dBuV @-11dBm,RFsource >90dBuV @-17dBm,RFsource >90dBuV | ||||
14 | CSO | dB | ≤-65 | |||||
15 | CTB | dB | ≤-65 | |||||
Digital TV Parameters | ||||||||
16 | OMI | % | 4.3 | |||||
17 | MER | dB | >39.2 >36.2 >31 | @-9dBm,RFsource = 80dBuV @-11dBm,RFsource = 80dBuV @-17dBm,RFsource = 80dBuV | ||||
18 | BER | dB | <1.0E-9 | @-17dBm,RFsource = 80dBuV | ||||
Environmental Parameters | ||||||||
19 | Operating Temperature | ℃ | -25 ~ 85 | |||||
20 | Storage Temperature | ℃ | -40 ~ 85 | |||||
21 | Storage Humidity | % | ≤95 | Non- condensation | ||||
22 | Power consume | W | <1 | |||||
User Parameter | ||||||||
23 | Optical Connector Type | SC/APC or SC/UPC | Optional | |||||

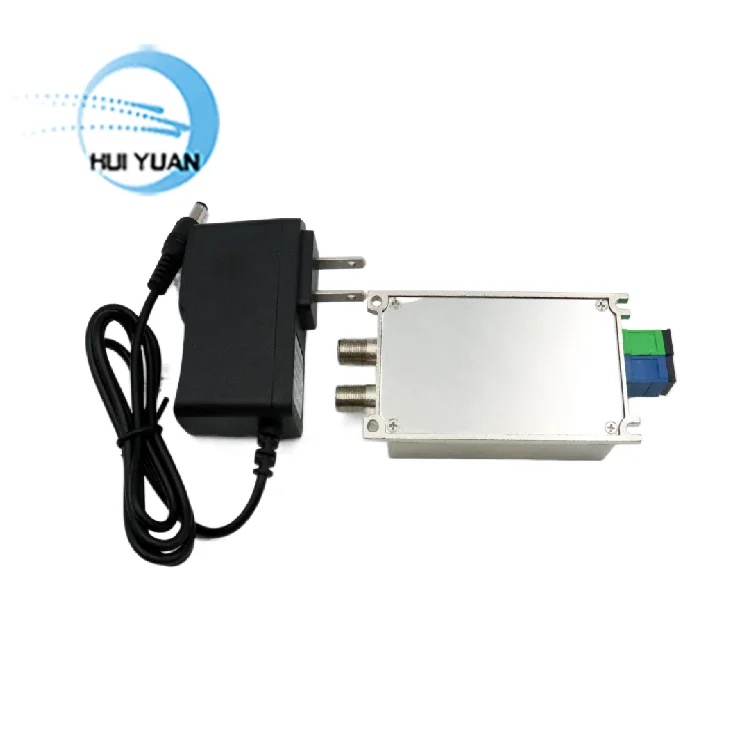

24 | Power interface | DC5V/1A | External adapter | |||||
25 | RF Output Connector | 1 or 2 | Optional | |||||
26 | Optical Power Indicator | Customer Interface -20 ~+55 | Red: > 0 dBm Green: 0 ~ -11 dBm Orange: <-11 dBm | |||||
27 | Net Weight | kg | 0.019 | |||||
28 | Dimensions | mm | 100x67x23 | |||||
Note: ①The max CNR is 59dB
