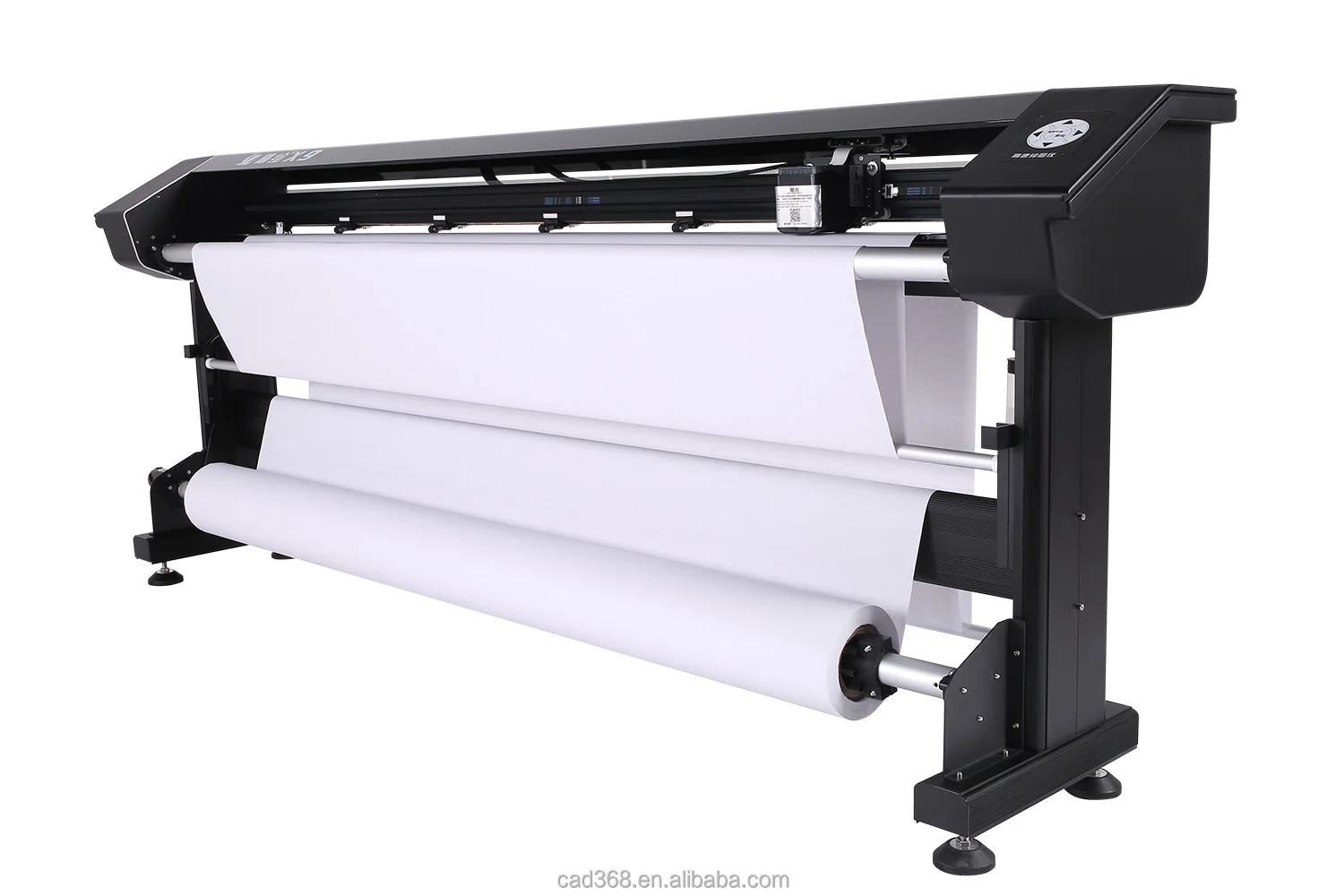

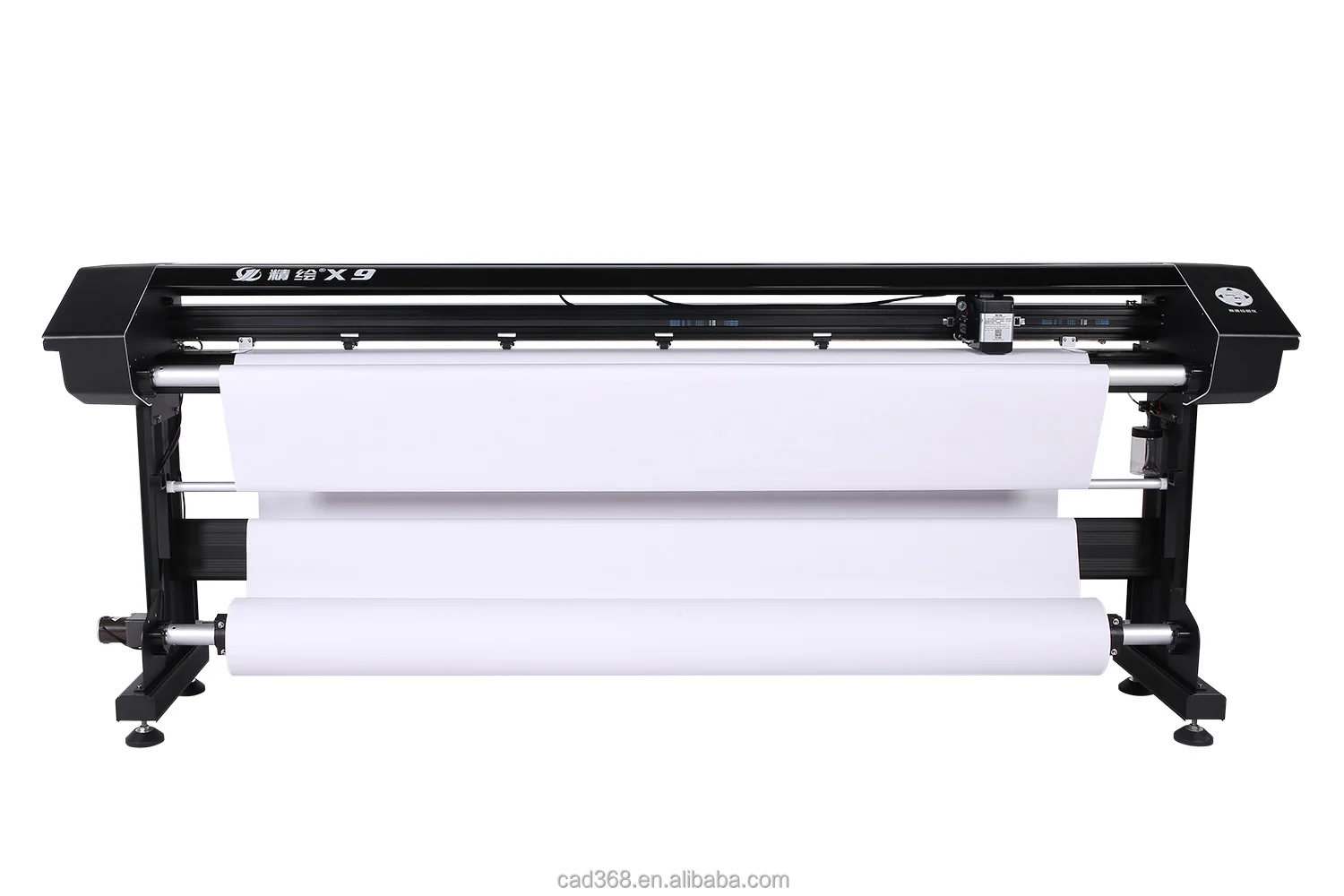

Auto Paper Feed High Speed Apparel CAD/CAM For Garment Pattern Inkjet Plotter Refillable big ink tank#JH801
- Category: >>>
- Supplier: Guangzhou Jinghui Electronic Technology Co. Ltd.
Share on (1600660428183):
Product Overview
Description
Product Description
Main Features
- Automatic and manual ink carriage cleaning
- High-speed, long-time working, excellent stability
- Well compatibility with other CAD systems by HPGL files
- Available for all types of paper (40kg-80kg)
- Electronic paper tension control insures precise plotting
Type | A-1650 | A-1850 | A-2050 | A-2250 | |||
Max Paper Loading Width | 1750mm(69 inch.) | 1950mm(77 inch.) | 2150mm(85 inch.) | 2350mm(93 inch.) | |||
Max Plot Width | 1650mm(64 inch.) | 1850mm(72 inch.) | 2050mm(80 inch.) | 2250mm(88 inch.) | |||
Plot head | Epson TX800 | ||||||
Ink cartridge | JH801 with 260 ml ink | ||||||
Plot speed | 90 M2/hour | ||||||
Line quality | Clear , smoothly , and adjustable line thickness | ||||||
Line thickness | Thin, normal, thick | ||||||
Feed roll position | Front floor-loading | ||||||
Keyboard Panel | English language | ||||||
Paper requirement | 35-100gsm | ||||||
Resolution | 300-600dpi | ||||||
Language format | HPGL,HPGL-2,DMPL | ||||||
PC interface | Network | ||||||
Power voltage | 110V / 220V | ||||||
Power frequency | 60Hz / 50Hz | ||||||
Packing dimension | 2460mm*480mm*50mm | 2660mm*480mm*50mm | 2860mm*480mm*50mm | 3060mm*480mm*50mm | |||
Compatibility with CAD software | Assyst® | Investronica® | AutoDesk® | Audaces | |||
Gerber® | Lectra® | Optitex® | Gemini | ||||
PAD | Polygon | Polytropon | Vetigraph® | ||||
BOK | RICHPEACE | WINDA | many other ... | ||||
Certifications
Detailed Images
Operation Panel
Panel with six buttons, is simple and easy for operation

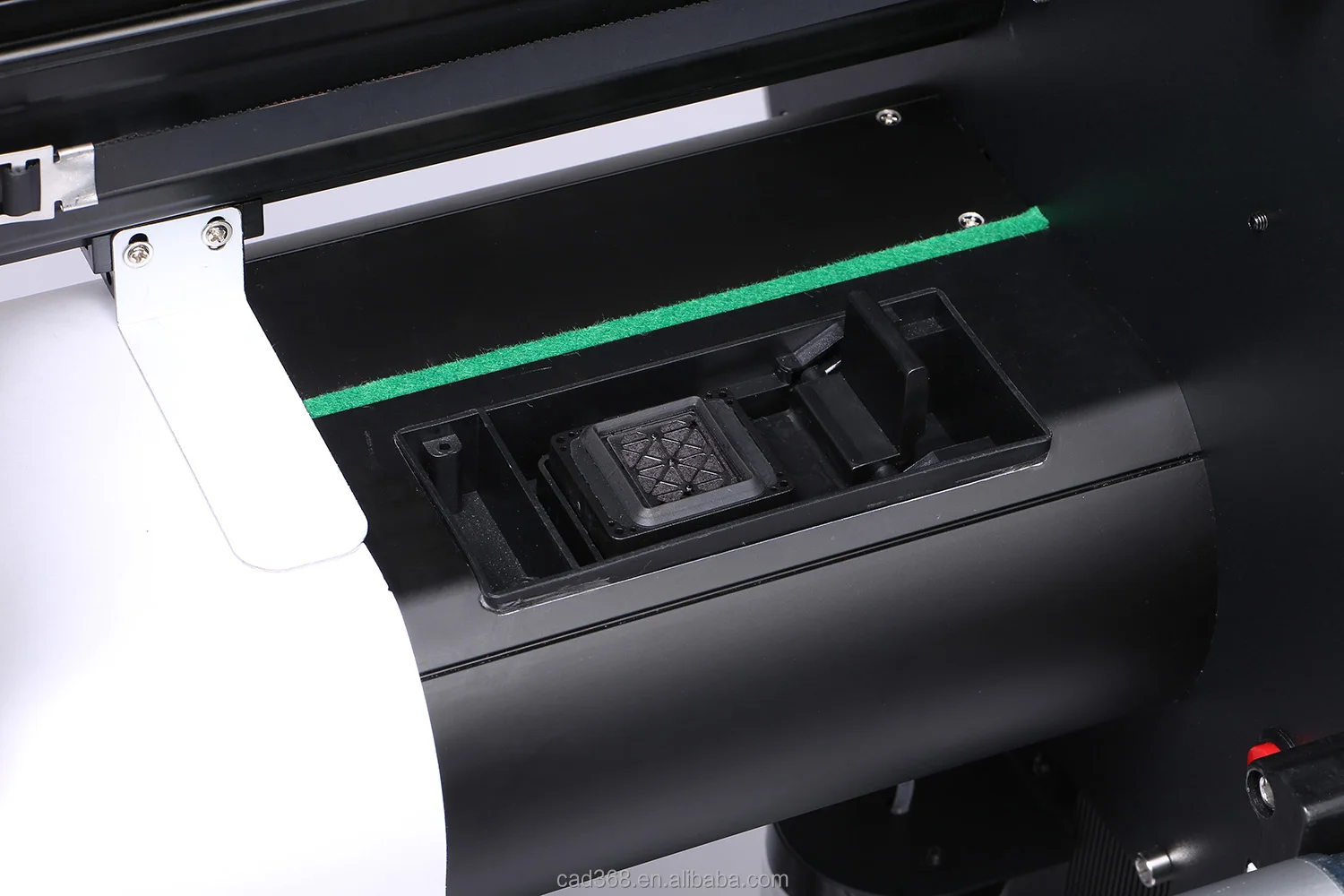

inkjet Heads
1. Adopt HP45 ink , the line is clear, smooth, no seams;
2. Standardized metal structure, is steady and durable;
3.Double inkjet heads, printing speed more than 95 M2 per hour
Network :
1.Support manual and automatic printing
2.Each computer control the printing process separately
3.Real-time display of print progress
4.Automatic paging
5.Support partial print when power is cut down

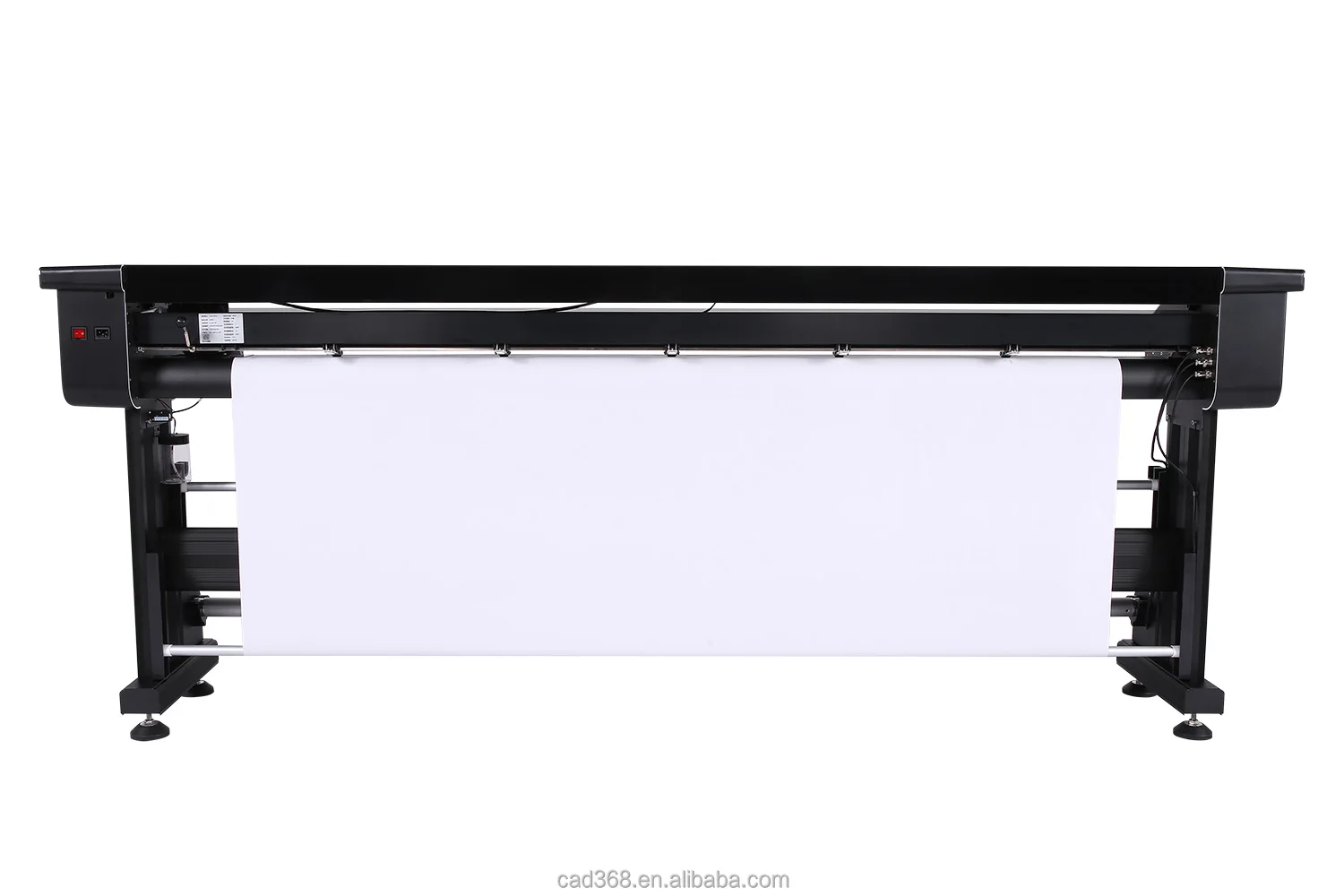

Roll Shaft
1.Support paper roll with diameter up to 28cm ,save more cost;
2.High precision metal, keeping working smoothly for years
Exhibiton
CISAM 2017 ( Shanghai, China )
Ehxibiton name:
China International Sewing Machinery & Accessories Show
Time:26-29 Sep, 2017
Addres:
Shanghai New International Expo Centre, Shanghai, China
VTG 2017 ( Ho Chiminh, Vietnam )
Ehxibiton name:
Vietnam Textile & Garment Exhibition
Time: 23-25 Nov, 2017
Addres:
Saigon Exhibition and Convention Center, Ho Chi Minh, Vietnam
TEXTILE ASIA 2018 ( Karachi, Pakistan)
Ehxibiton name:
Clothing Fabrics & Textiles Asia
Time: 27-29 Mar, 2018
Addres:
Karachi Expo Center, Karachi, Pakistan
Our Service
Pre-Sales Service
1. Inquiry and consulting
2. Sample testing
3. Visit our Factory
After-Sales Service
1.Training how to instal the machine
2.Training how to use the machine
3. All accessories are available
Packing & Delivery
