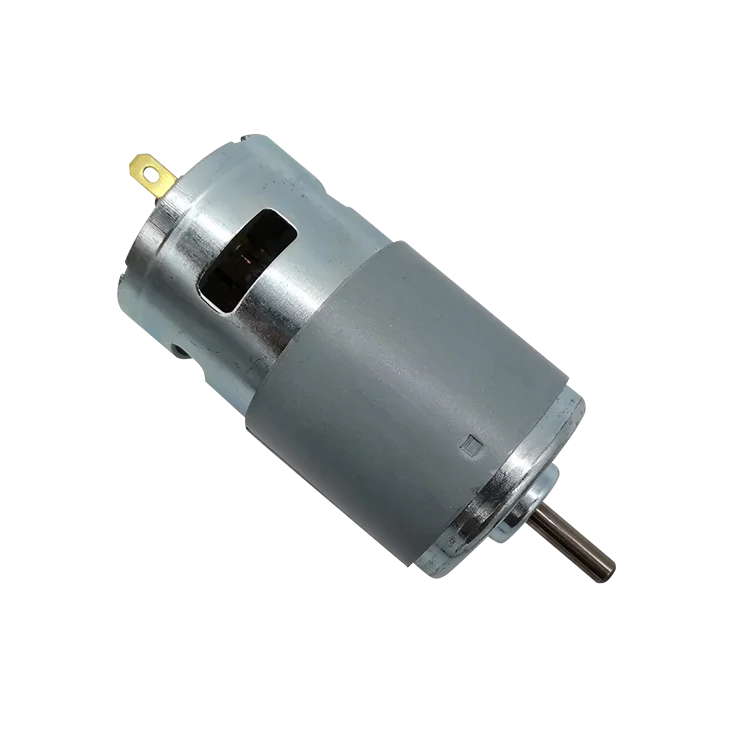

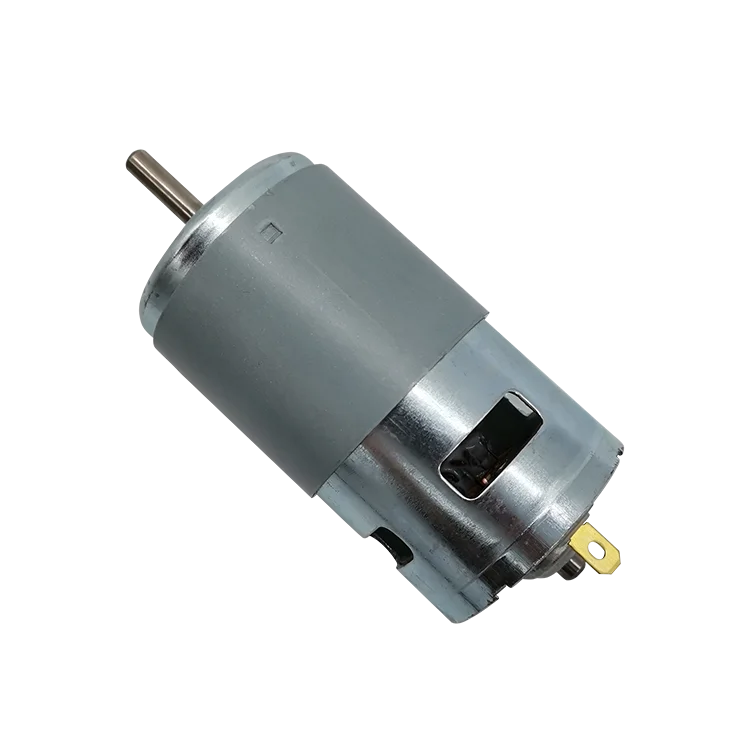

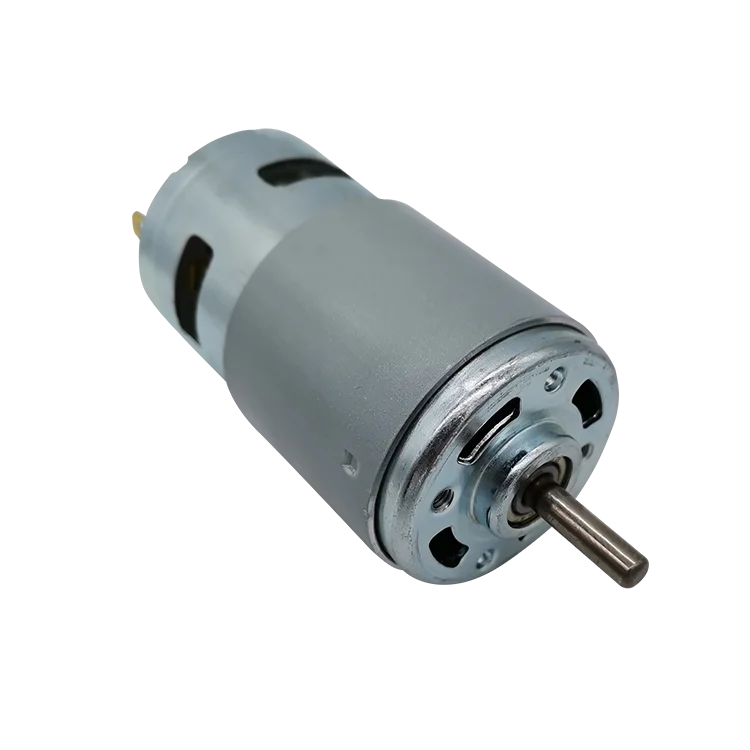

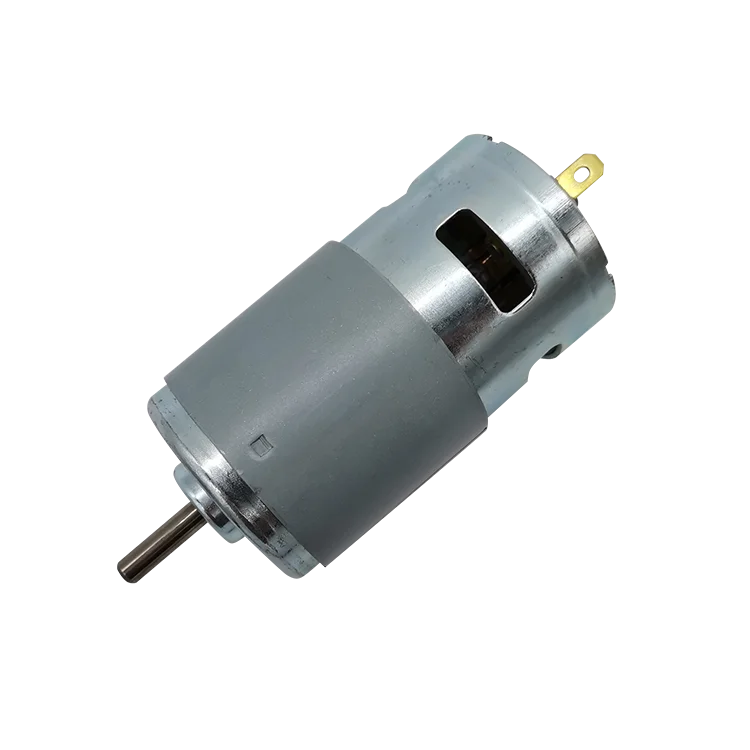

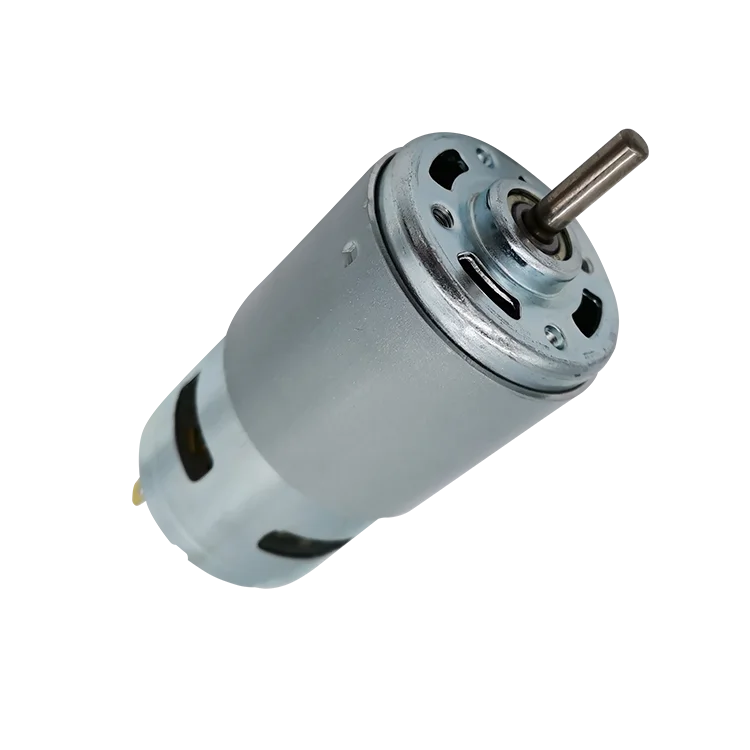

Best Factory Price 795 24v 5 200w Electric Brushed Micro Dc Motor
- Category: >>>
- Supplier: Shenzhen Dehe Motor Technology Co. Ltd.
Share on (1600660463129):
Product Overview
Description
PRODUCT SPECIFICATIONS

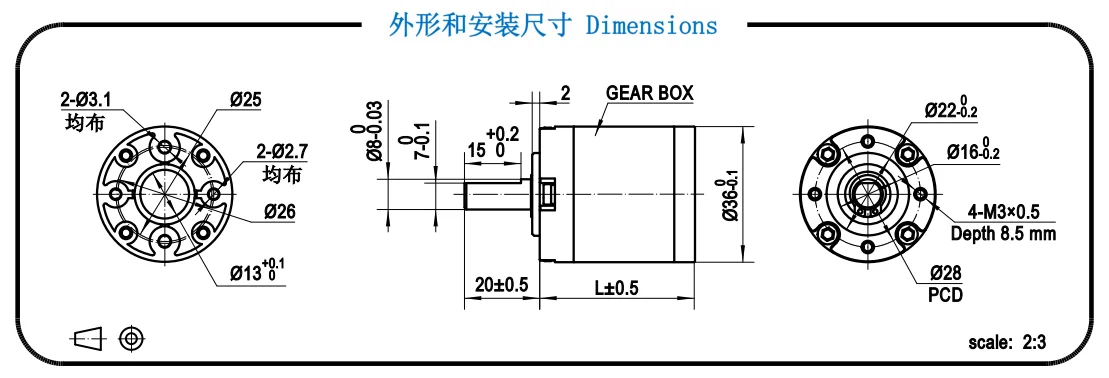

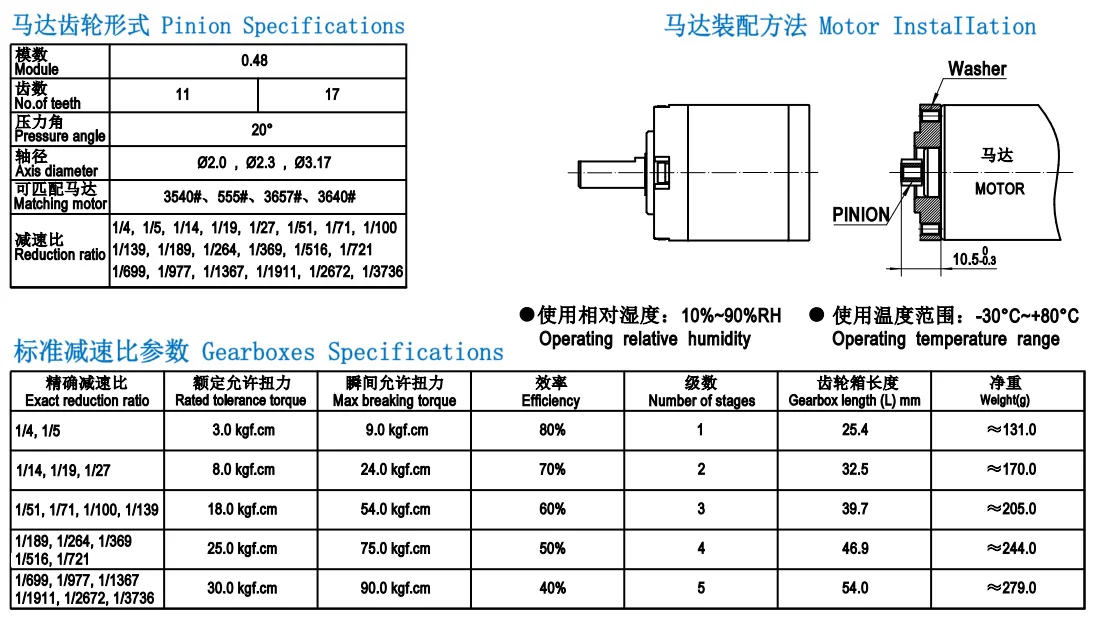

Planetary Gearbox Specification
Φ36
Φ36
外壳材质 Housing material | 金属 metal | |
背隙（无负荷时）Backlash, at no-load | ≤3° | |
输出轴承形式 Bearing at output | 含油轴承 Bushing | 滚珠轴承 Ball bearings |
径向负荷 Radial load | ≤5kgf | ≤8kgf |
轴向负荷 Shaft axial load | ≤3kgf | ≤3kgf |
主轴最大承受压入力 Shaft press fit force max | ≤15kgf | ≤15kgf |
径向间隙 Radial play of shaft | ≤0.08mm | ≤0.05mm |
轴向间隙 Thrust play of shaft | ≤0.3mm | ≤0.3mm |

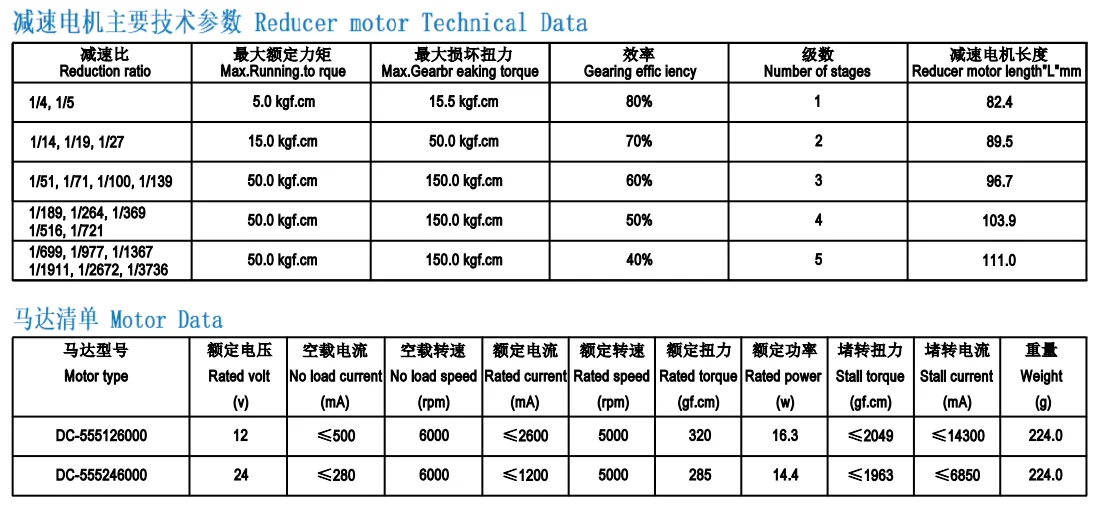

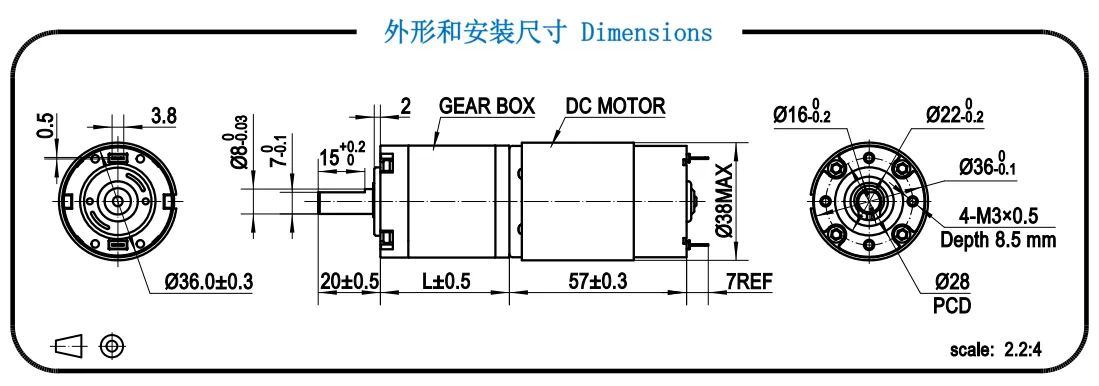

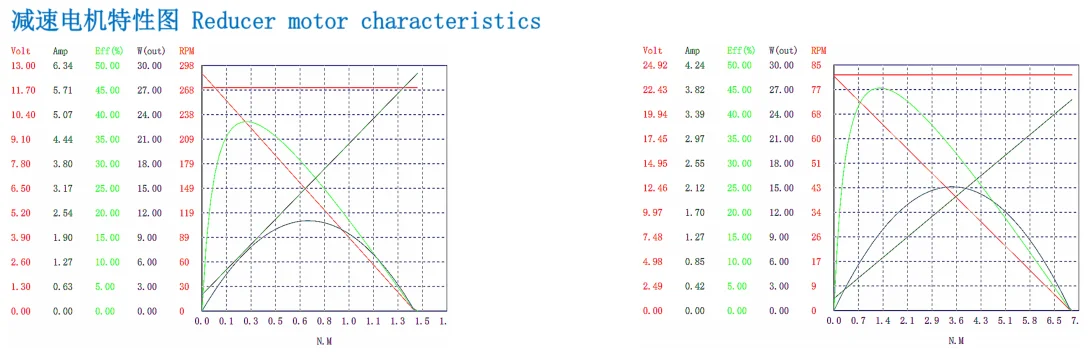

Planetary Gearbox + DC Motor Specification
36P555
36P555
Remark:
Shaft size,voltage,speed,rated torque,encoder can be customized.

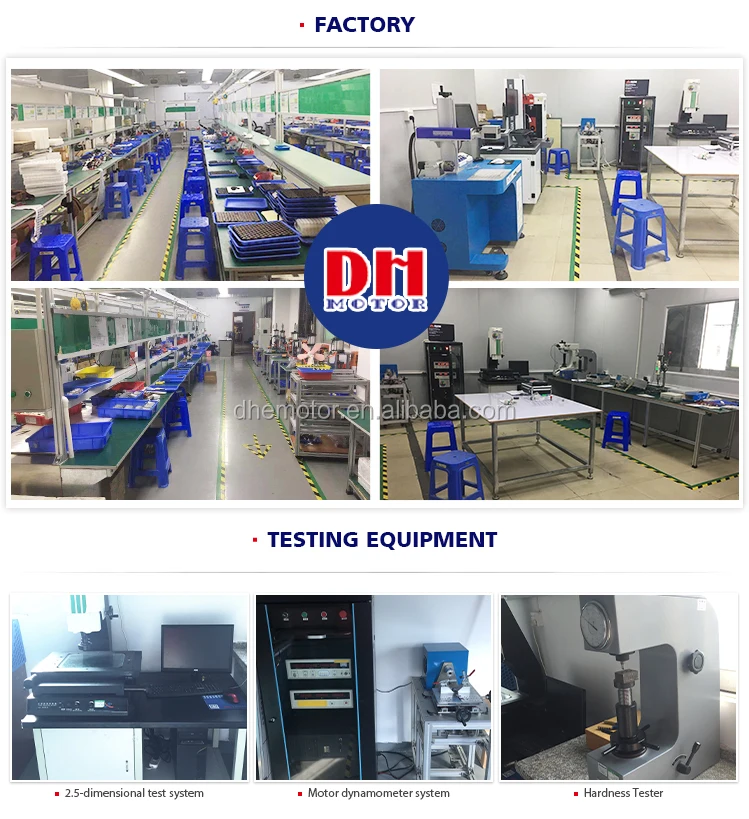

Company Profile
