Solar Regulator MPPT 12V/24V 36V 48V 60A Solar Charge Controller
- Category: >>>
- Supplier: Dongguan Tengyu New Tech Co. Ltd.
Share on (1600660495502):
Product Overview
Description
Product Description
Specification
Model No. | TY-SM-4860 | |
Charging mode | MPPT Maximum power point tracking automatically | |
Charging | 4-stage：constant current(MPPT), constant voltage(Absorption Voltage), floating charge, bulk charge | |
System type | DC12V/24V/36V/48V Recognition automatically | |
12V system (DC9V-DC15V) | ||
24V system (DC18V-DC29V) | ||
36V system (DC30V-DC39V) | ||
48V system (DC40V~DC60V) | ||
Soft Start Time | ≤1S | |
Dynamic response and recovery time | 100us | |
Max efficiency | ≥98.1% (Voc is 1.5 or 2 times than battery, then it’s best efficiency) | |
PV utilization | ≥99% | |
Input specification | ||
12V system (DC20V~DC80V) | ||
24V system (DC37V~DC105V) | ||
36V system (DC50V~DC160V) | ||
48V system (DC72V~DC160V) | ||
Maximum PV input voltage (Voc) | DC180V | |
12V system (720W) | ||
24V system (1440W) | ||
36V system (2100W) | ||
48V system (2800W) | ||
Output specification | 60A MPPT Solar Charge Controller | |
Selectabel battery type (default is Sealed) | Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user) | |
Absorption Charging Voltage | Refer to Batteries charging reference | |
Floating Charging Voltage | Refer to Batteries charging reference | |
Overcharging protection | 12V system (15V) 24V system (30V) 36V system (45V) 48V system (60V) | |
Rated output current | 60A | |
Temperature Coefficient | ±0.02%/ centi-degree | |
Automatic temperature compensation | 14.2V-（Max temperature-25 centi-degree）*0.3 | |
Output voltage ripple-peak | 100mV | |
Output voltage accuracy | ≤±1% | |

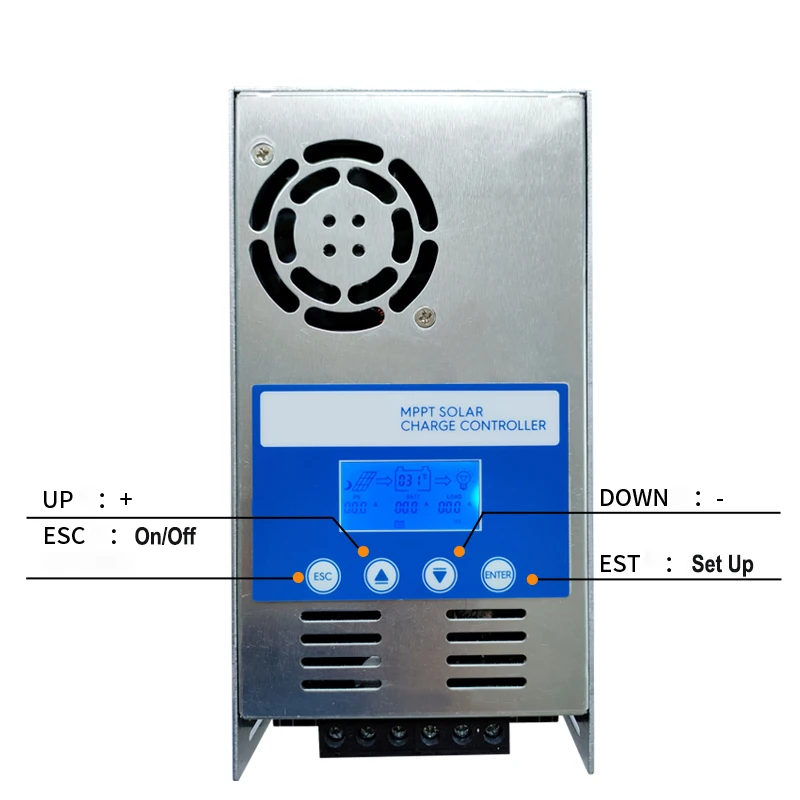

Indicating | ||
LCD display | See LCD display instruction | |
LED display | CPU working indicator | |
Protection function | ||
Output over-voltage protection | See output specification | |
Input Anti-intrusion protection | yes | |
Temperature Protection | 75 centi-degree | |
Temperature Increased protection | Output power will reduce when it’s more 70 | |
