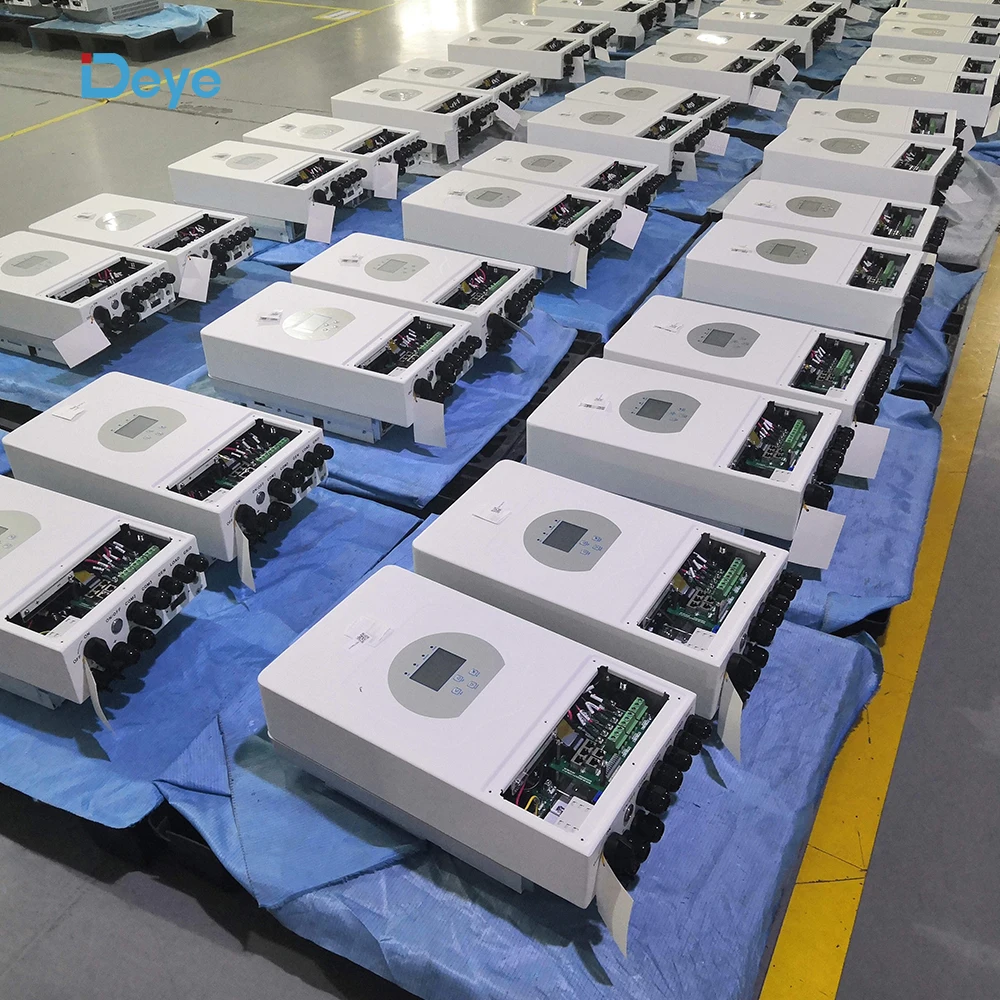

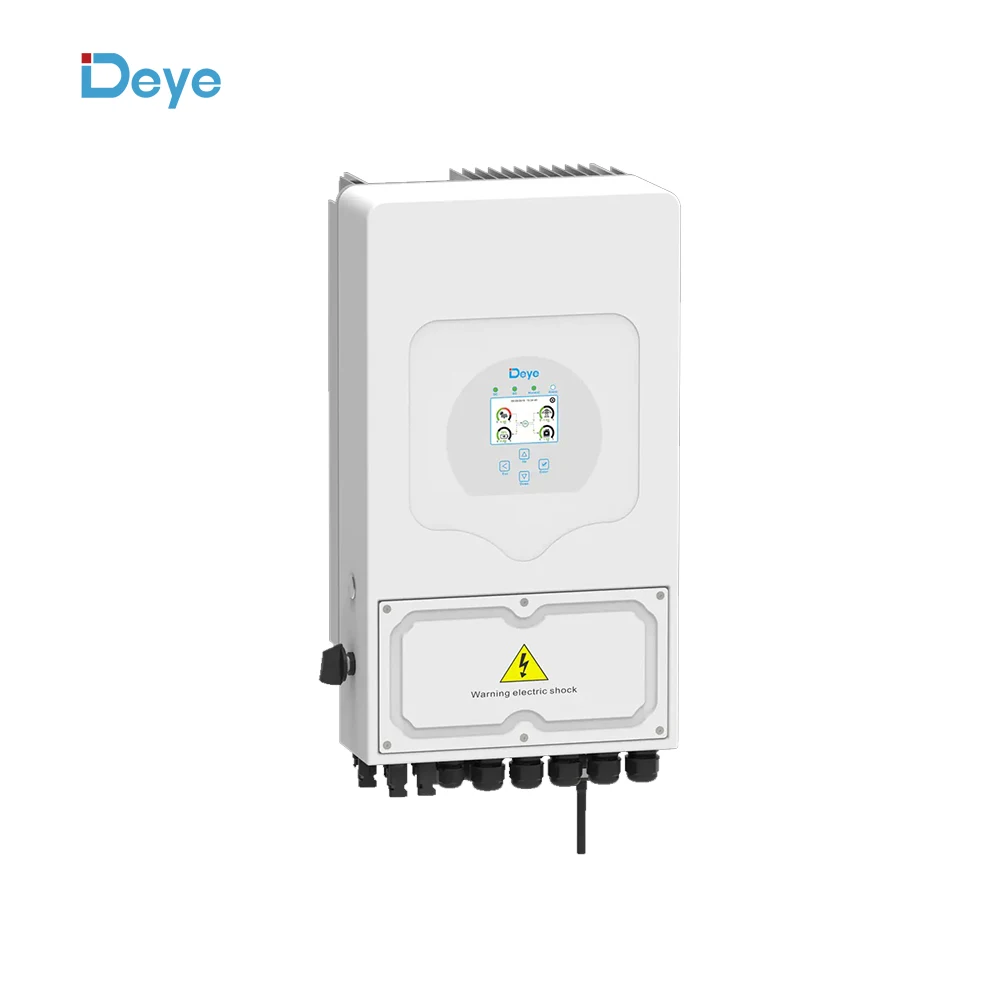

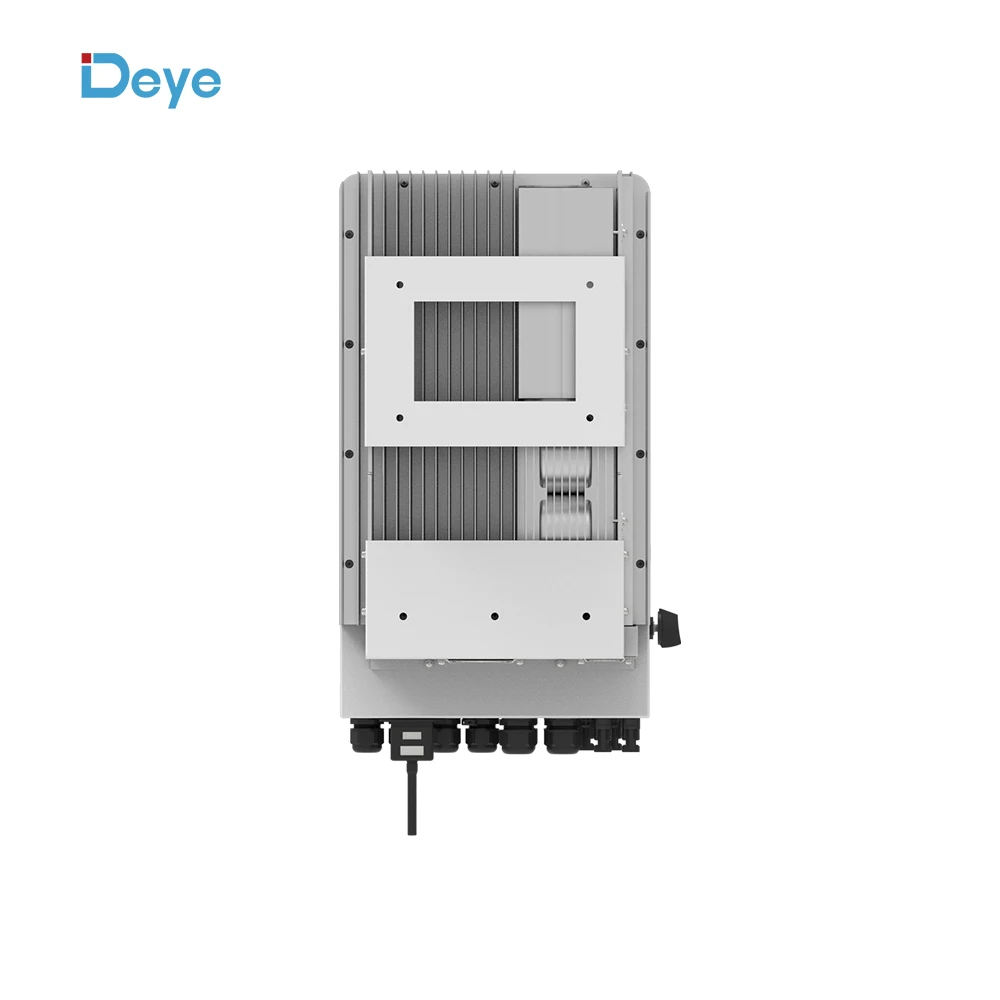

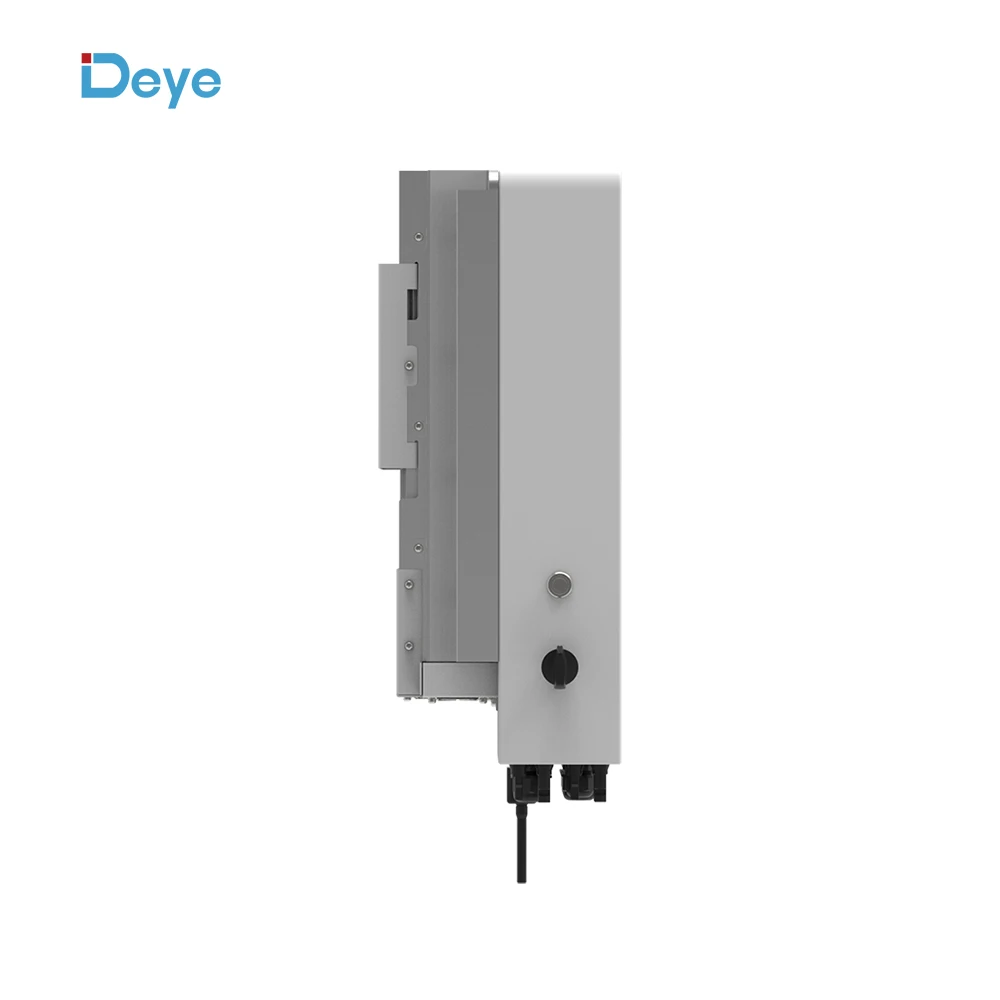

Hot Sell Single Phase Deye 3.6kw 5kw 6kw 7.6kw 8kw Hybrid Inverter Deye Hybrid Inverter
- Category: >>>
- Supplier: Nonivia Technology Co. Ltd.
Share on (1600660522080):
Product Overview
Description
Product Description
Specification
Model | SUN-3.6K-SG05LP1-EU | SUN-5K-SG05LP1-EU | SUN-6K-SG05LP1-EU | SUN-7.6K-SG05LP1-EU | SUN-8K-SG05LP1-EU | |||||
Battery Input Data | ||||||||||
Battery Type | Lead-acid or Lithium-ion | |||||||||
Battery Voltage Range (V) | 40~60 | |||||||||
Max. Charging Current (A) | 90A | 120A | 135A | 190A | 190A | |||||
Max. Discharging Current (A) | 90A | 120A | 135A | 190A | 190A | |||||
Charging Curve | 3 Stages / Equalization | |||||||||
External Temperature Sensor | Yes | |||||||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||||||
PV String Input Data | ||||||||||
Max. DC Input Power (W) | 4680W | 6500W | 7800W | 9880W | 10400W | |||||
PV Input Voltage (V) | 370V (125V~500V) | |||||||||
MPPT Voltage Range (V) | 150~425V | |||||||||
Start-up Voltage (V) | 125V | |||||||||
PV Input Current (A) | 13A+13A | 26A+26A | ||||||||
Max. PV ISC (A) | 17A+17A | 34A+34A | ||||||||
No.of MPPT Trackers | 2 | |||||||||
No.of Strings Per MPPT Tracker | 1 | 2 | ||||||||
AC Output Data | ||||||||||
Rated AC Output and UPS Power (W) | 3600W | 5000W | 6000W | 7600W | 8000W | |||||
Max. AC Output Power (W) | 3690W | 5500W | 6600W | 8360W | 8800W | |||||
Peak Power (off grid) | 2 times of rated power, 10 S | |||||||||
AC Output Rated Current (A) | 16.4/15.7 | 22.7/21.7 | 27.3/26.1 | 34.5/33 | 36.4/34.8 | |||||
Max. AC Current (A) | 18/17.2 | 25/23.9 | 30/28.7 | 38/36.3 | 40/38.3 | |||||
Max. Continuous AC Passthrough (A) | 35A | 40A | 50A | |||||||
Power Factor | 0.8 leading to 0.8 lagging | |||||||||
Output Frequency and Voltage | 50/60Hz; 220/230 / 240Vac (single phase) | |||||||||
Grid Type | Single Phase | |||||||||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) | |||||||||
Efficiency | ||||||||||
Max. Efficiency | 97.60% | |||||||||
Euro Effiffifficiency | 96.50% | |||||||||
MPPT Efficiency | 99.90% | |||||||||
Protection | ||||||||||
PV Input Lightning Protection | Integrated | |||||||||
Anti-islanding Protection | Integrated | |||||||||
PV String Input Reverse Polarity Protection | Integrated | |||||||||
Insulation Resistor Detection | Integrated | |||||||||
Residual Current Monitoring Unit | Integrated | |||||||||
Output Over Current Protection | Integrated | |||||||||
Output Shorted Protection | Integrated | |||||||||
Output Over Voltage Protection | Integrated | |||||||||
Surge protection | DC Type II / AC Type Ⅲ | |||||||||

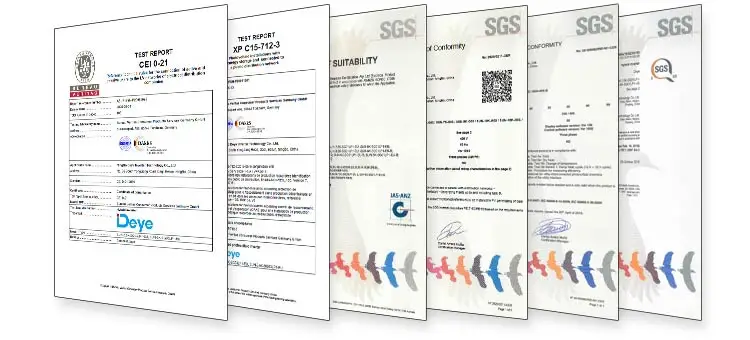

Certifications and Standards | ||||||||||
Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 | |||||||||
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||||||
General Data | ||||||||||
Operating Temperature Range (℃) | -40~60℃, >45℃ Derating | |||||||||
Cooling | Natural cooling | |||||||||
Noise (dB) | <30 dB | |||||||||
Communication with BMS | RS485; CAN | |||||||||
Weight (kg) | 24 | |||||||||
Size (mm) | 330W×580H×232D | |||||||||
Protection Degree | IP65 | |||||||||
Installation Style | Wall-mounted | |||||||||
Warranty | 5 years | |||||||||
Packing & Delivery

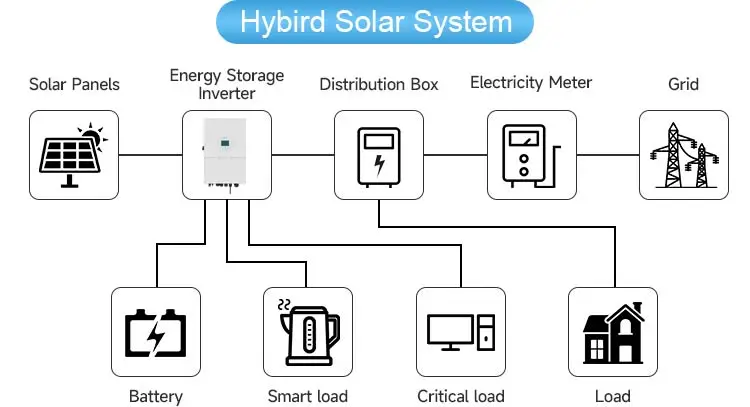

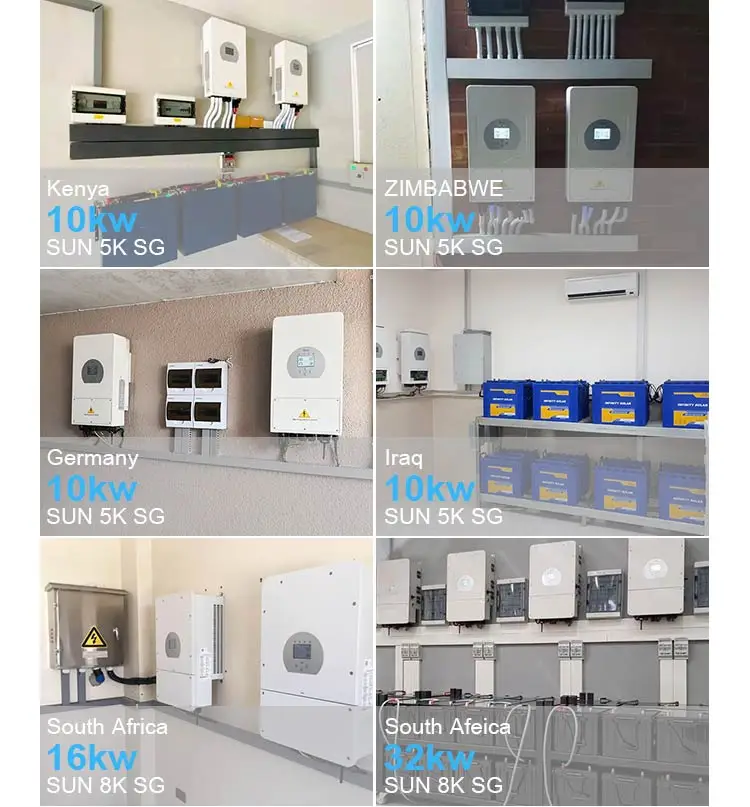

Application
