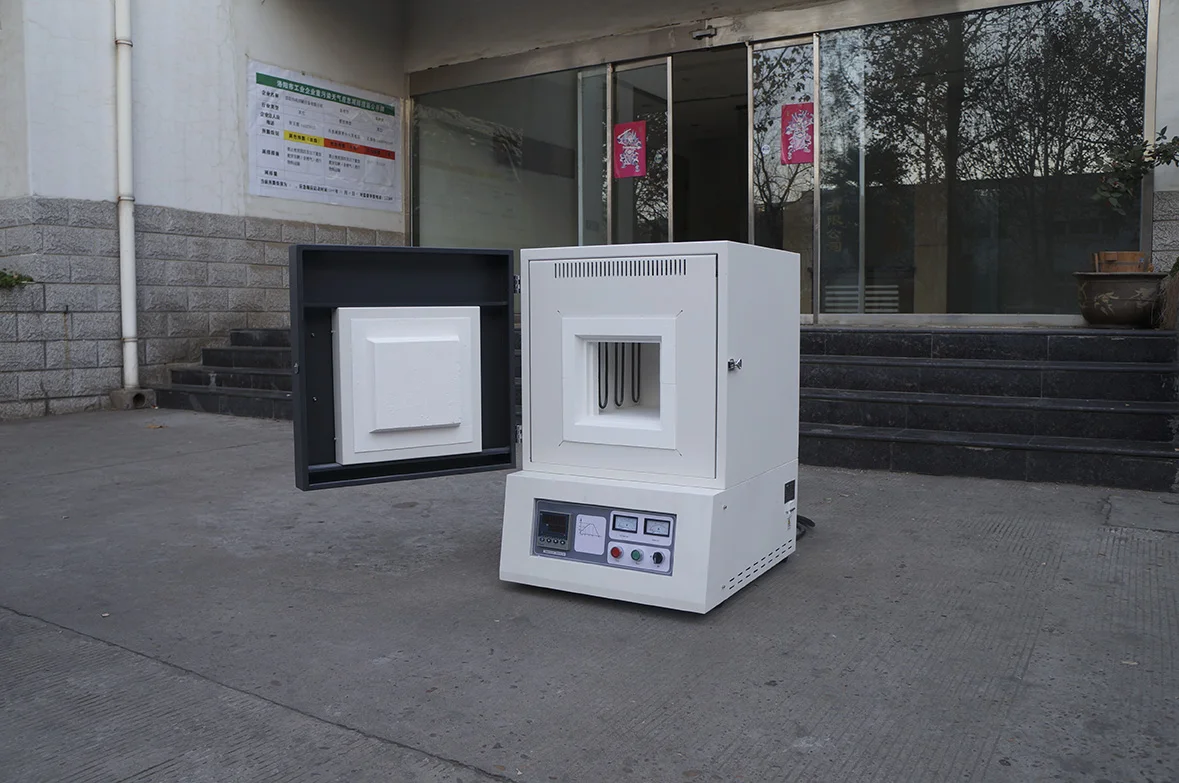

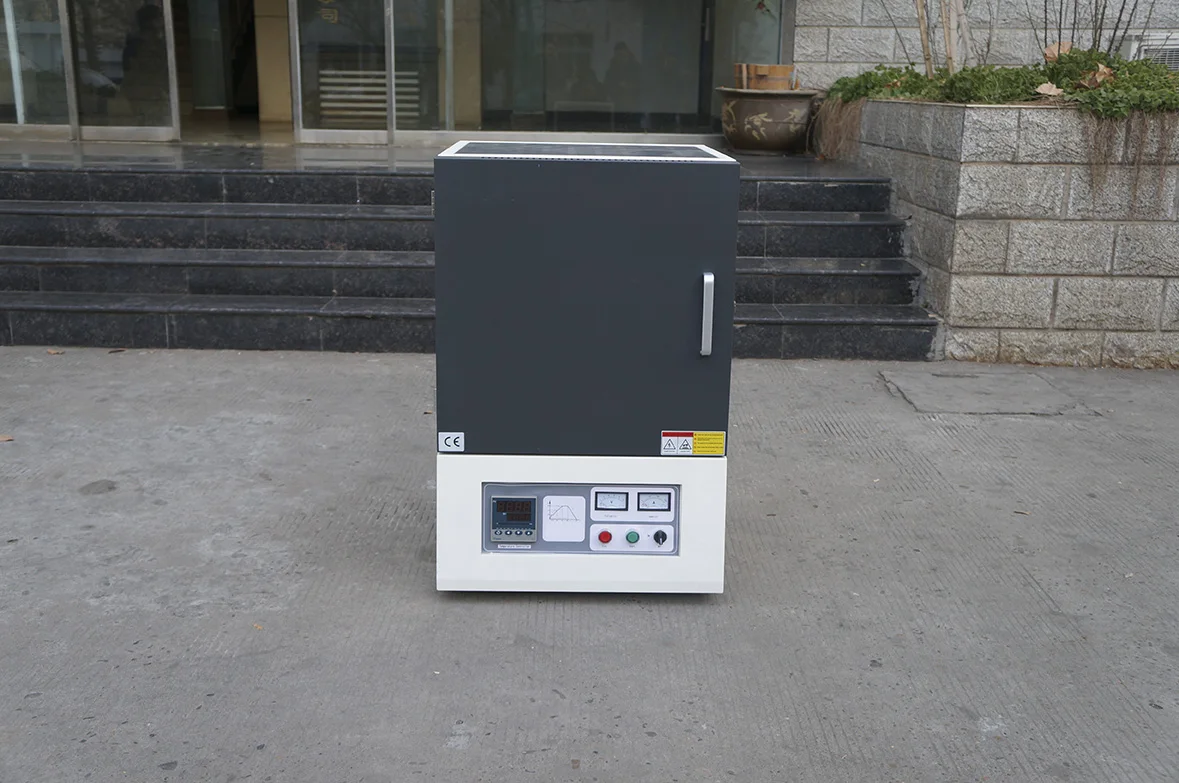

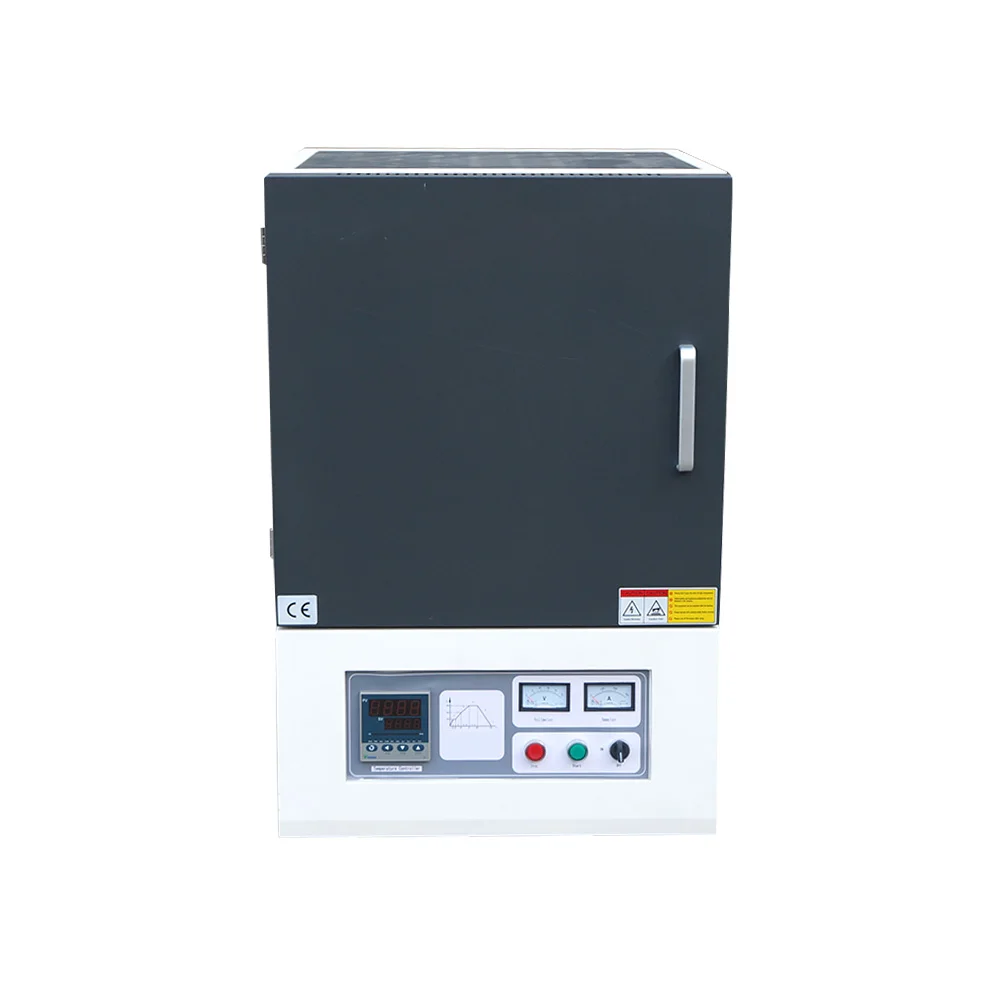

Drawell Laboratory Muffle Furnace For Aluminum 1200 1400 1700 Ceramic Fiber Muffle Furnace
- Category: >>>
- Supplier: Chongqing Drawell Instrument Co. Ltd.
Share on (1600660547653):
Product Overview
Description
Product Description
Main Features
* Integrated Structure with elegant design

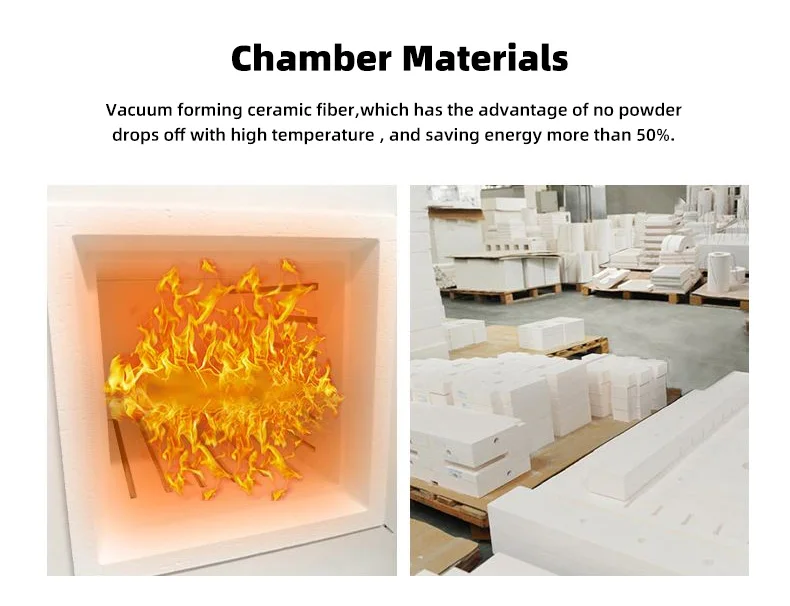

* Chamber Materials: Vacuum forming ceramic fiber,which has the advantage of no powder drops off with high temperature , and saving energy more than 50%.
* SHIMADEN (Japan) Microprocessor based self-tuning PID control provides optimum thermal
* Long life type N thermocouple.
* CE compliant
* Built-in RS485 port and USB adaptor as optional setting for computer control . it need to add extra fees .
* Integrated Structure with elegant design
* Chamber Materials: Vacuum forming ceramic fiber,which has the advantage of no powder drops off with high temperature , and saving energy more than 50%.
* SHIMADEN (Japan) Microprocessor based self-tuning PID control provides optimum thermal
* Long life type N thermocouple.
* CE compliant
* Built-in RS485 port and USB adaptor as optional setting for computer control . it need to add extra fees .

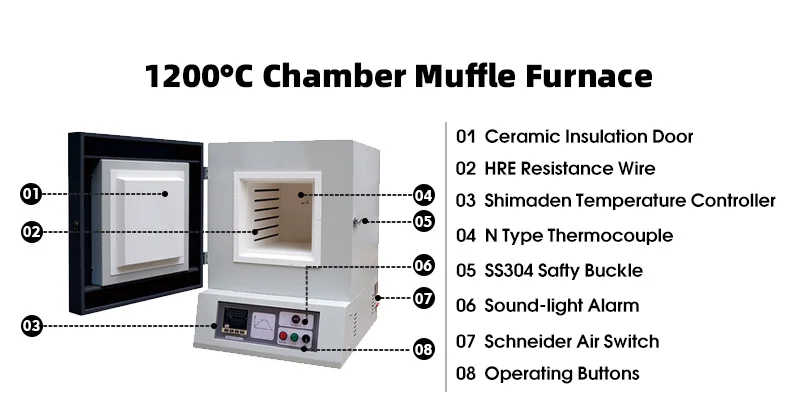

Model | STM-1-10 | STM-3-12 | STM-6-12 | STM-8-12 | STM-12-12 | STM-18-12 | STM-30-12 | OEM | |||||||
Cubage | 1L | 3L | 6L | 8L | 12L | 18L | 30L | ||||||||
Type | Benchtop | ||||||||||||||
Furnace structure | Alumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell ,Main Electric Parts and other relativeaccessories | ||||||||||||||
Max temperature | 1000℃ | 1200℃ | |||||||||||||
Continue Temp. | 950℃ | 1100℃ | |||||||||||||
Power Supply | 220V/1.2KW | 220V/2.5KW | 220V/3KW | 220V/3KW | 220V/4KW | 220V/6KW | 380V/7.5KW | ||||||||
Heating Element | High quality alloy resistance wire (HRE) | ||||||||||||||
Chamber Material | High temperature polycrystal alumina ceramic fiber plate | ||||||||||||||
Temp Precision | ±1℃ | ||||||||||||||
Thermocouple | N type | ||||||||||||||
Tempcontroller | SHIMADEN (Japan) brand intelligent microcomputer PID controller can program 4 groups 32 segments | ||||||||||||||
Electronic Parts | SCHNAIDER (France ) electronics brand | ||||||||||||||
Heating rate | ≤ 25℃/min ( suggest 15-20℃/min for longer life using of furnace ) | ||||||||||||||
Safety protection | Overheat and Thermocouple-break Alarm | ||||||||||||||
Certification | ISO9001 /CE/ SGS | ||||||||||||||
Furnace shell | High quality cold-rolled steel sheets CNC processing | ||||||||||||||
Insulation | High quality thermal insulation material to ensure a good uniformity | ||||||||||||||
Standard Packing | One pair of high temperature gloves , One pc crucible tong , one catalog and operation manual | ||||||||||||||
Optional | Paperless recorder , Stainless steel exhaust chimney , Quartz /Alumina crucible | ||||||||||||||

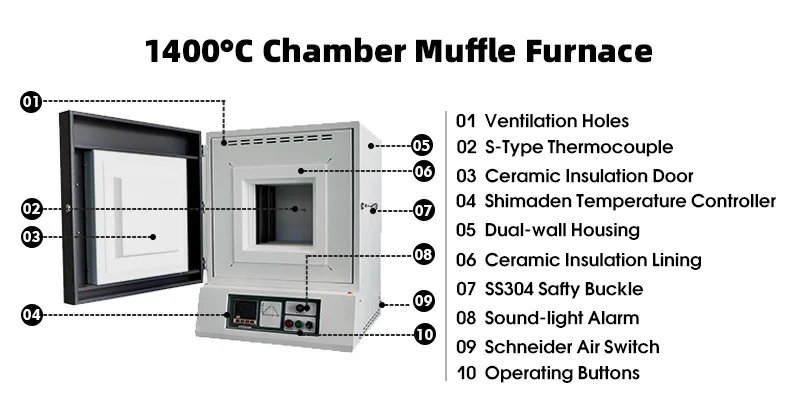

Model | STM-3-14 | STM-8-14 | STM-12-14 | STM-18-14 | STM-27-14 | STM-36-14 | OEM | ||||||
Inner Dimmensin （WxDxH）mm | 150x150x150 | 200x200x200 | 200x300x200 | 250x300x250 | 300*300*300 | 300x400x300 | Any size | ||||||
Outer Dimension （WxDxH）mm | 490x530x750 | 575x580x825 | 590x680x835 | 610x700x860 | 650*670*900 | 650x770x900 | |||||||
Type | Benchtop | ||||||||||||
Furnace structure | Alumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell ,Main Electric Parts and other relativeaccessories | ||||||||||||
Max temperature | 1400℃ | ||||||||||||
Continue Temp. | 1300℃ | ||||||||||||
Power supply | 220V/3KW | 220V/5KW | 220V/5KW | 220V/6KW | 380V/9KW | 380V/12KW | |||||||

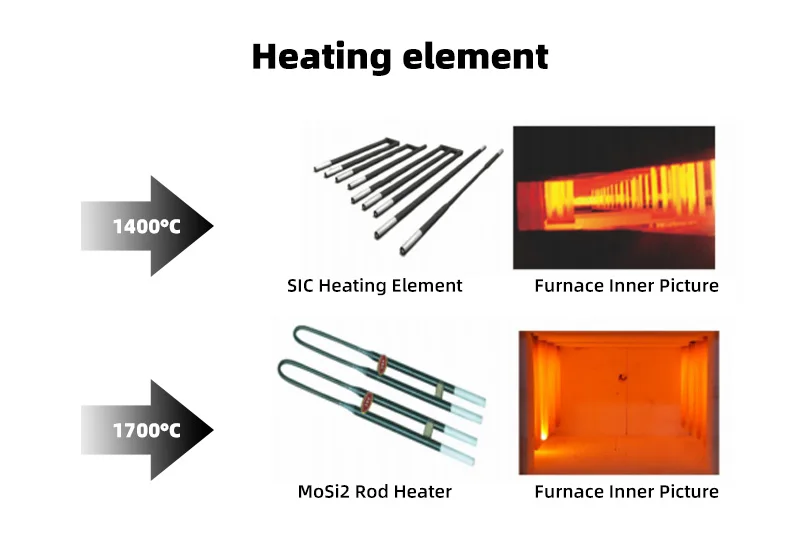

Heating element | High quality Silicon Carbide Rod ( SIC) heater | ||||||||||||
Chamber material | High temperature 1500 Type polycrystal alumina ceramic fiber material | ||||||||||||
Temp precision | ±1℃ | ||||||||||||
Thermocouple | S type | ||||||||||||
Tempcontroller | SHIMADEN (Japan) brand intelligent microcomputer PID controller can program 4 groups 32 segments | ||||||||||||
Electronic Parts | SCHNAIDER (France ) electronics brand | ||||||||||||
Heating rate | ≤ 25℃/min ( suggest 15℃/min for longer life using of furnace ) | ||||||||||||
Safety protection | Overheat and thermocouple-break alarm | ||||||||||||
Certification | ISO9001 CE SGS | ||||||||||||

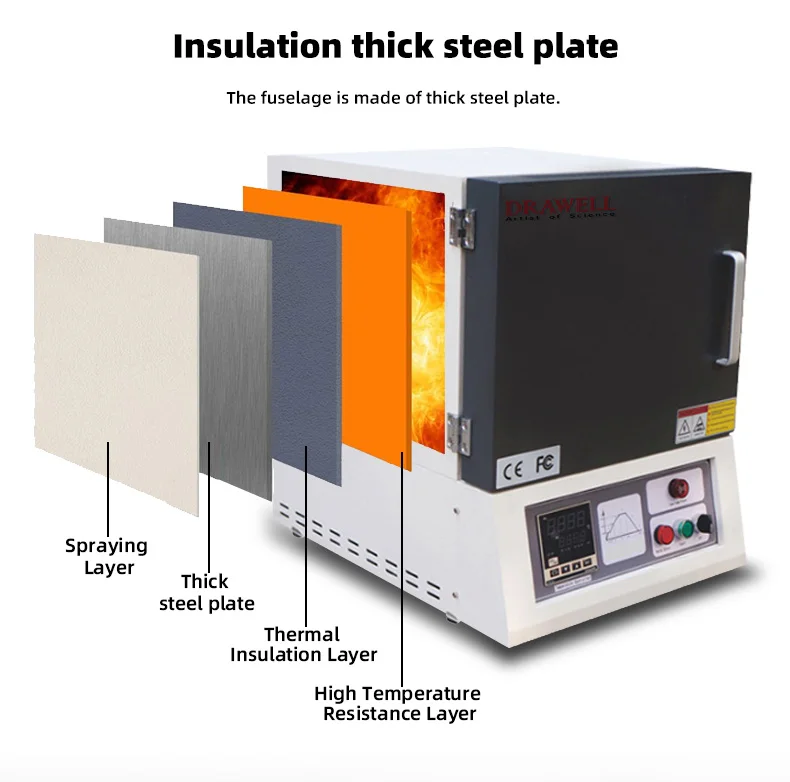

Furnace shell | High quality cold-rolled steel sheets CNC processing | ||||||||||||
Insulation | High quality thermal insulation material to ensure a good uniformity | ||||||||||||
Accessories | One pair of high temperature gloves , One pair of crucible tong , one catalog and operation manual | ||||||||||||
Optional | Paperless recorder , Stainless steelexhaust chimney , Quartz /Alumina crucible | ||||||||||||

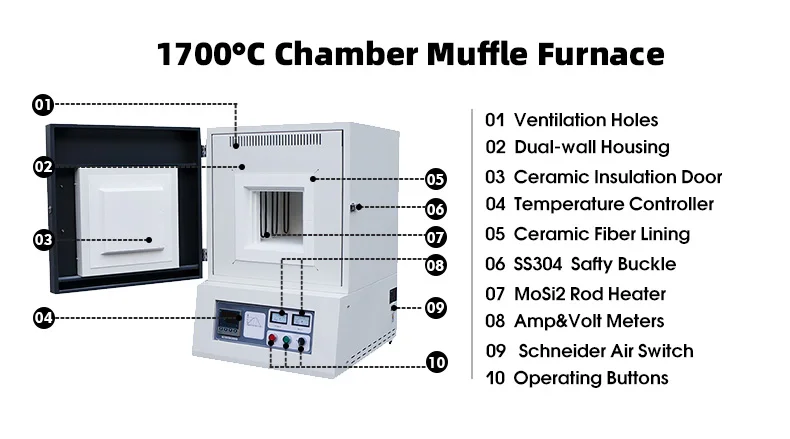

Model | STM-1-17 | STM-3-17 | STM-8-17 | STM-12-17 | STM-20-17 | STM-36-17 | OEM | ||||||
InnerDimmensin （WxDxH）mm | 100x120x100 | 150x150x150 | 200x200x200 | 200x300x200 | 250x300x250 | 300x400x300 | Any size | ||||||
Outer Dimension （WxDxH）mm | 383x432x660 | 510x560x870 | 600x620x920 | 600x693x920 | 610x730x970 | 1040x840x1250 | |||||||
Type | Benchtop | ||||||||||||
Furnace structure | Alumina Ceramic Chamber, Temperature control system, Heating element, Furnace shell ,Main Electric Parts and other relativeaccessories | ||||||||||||
Max temperature | 1700℃ | ||||||||||||
Continue Temp. | 1600℃ | ||||||||||||
Power supply | 220V/2KW | 220V/4KW | 220V/5KW | 220V/6KW | 220V/7KW | 380V/15KW | |||||||
Heating element | High quality Molybdenum Disilicide(Mosi2) Heaters | ||||||||||||
Chamber material | High temperature 1800 Type polycrystal alumina ceramic fiber material | ||||||||||||
Temp precision | ±1℃ | ||||||||||||
Thermocouple | B type | ||||||||||||
Tempcontroller | YUDIAN brand 518P microcomputer PID controller as standard or anyother brand as option | ||||||||||||
Electronic Parts | SCHNAIDER (France )main electronics parts/High qualityelectric transformer | ||||||||||||
Heating rate | ≤ 15℃/min ( suggest 10℃/min for longer life using of furnace ) | ||||||||||||
Safety protection | Overheat and thermocouple-break alarm | ||||||||||||
Certification | ISO9001 CE SGS | ||||||||||||
Furnace shell | high quality cold-rolled steel sheets CNC processing | ||||||||||||
Insulation | High quality thermal insulation material to ensure a good uniformity | ||||||||||||
Accessories | One pair of high temperature gloves , One pair of crucible tong , one catalog and operation manual | ||||||||||||
Optional | Paperless recorder , Stainless steel exhaust chimney , Quartz /Alumina crucible | ||||||||||||

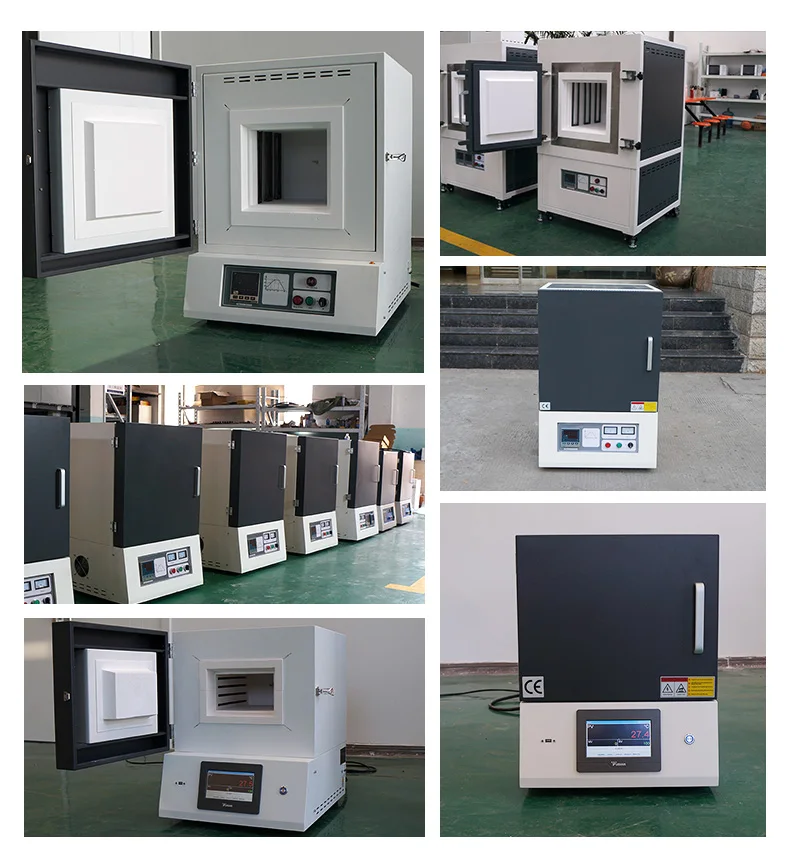

Details Images
Application Field
Company Profile
Drawell International Technology Limited is a leading company of manufacturing and exporting laboratory equipment and scientificinstruments, founded in 1999 in China, and has become an joint venture company after being invested by an US company since 2014.
DRAWELL is specialized in R&D laboratory instruments : Spectrophotometer, Incubator, Drying Oven, AAS, XRF, XRD, PCR,
Refratometer, Polarimeter, Centrifuge, Chromatography, Balance and etc. They are widely used in Pharmaceutical&food QC,educationalresearch, environmental science, chemical industry and many other areas. Meanwhile, we are committed to explore thedifferentmarket by attending overseas exhibitions, such as Arablab, PICCTON, Analytica Russia, Lab Africa, Analytica Munich ,AnalyticaLatin America, Thailand Lab etc . Now DRAWELL already has established business relationships with customers from morethan 50countries, and enjoyed the good reputation through reliable qualit ,reasonable price and good service
DRAWELL is specialized in R&D laboratory instruments : Spectrophotometer, Incubator, Drying Oven, AAS, XRF, XRD, PCR,
Refratometer, Polarimeter, Centrifuge, Chromatography, Balance and etc. They are widely used in Pharmaceutical&food QC,educationalresearch, environmental science, chemical industry and many other areas. Meanwhile, we are committed to explore thedifferentmarket by attending overseas exhibitions, such as Arablab, PICCTON, Analytica Russia, Lab Africa, Analytica Munich ,AnalyticaLatin America, Thailand Lab etc . Now DRAWELL already has established business relationships with customers from morethan 50countries, and enjoyed the good reputation through reliable qualit ,reasonable price and good service
Logistics & payment
FAQ
Q1. Are you a factory or a trading company?
We are a factory.
Q2. What's the MOQ ?
(1). Normally, MOQ is 1 piece. The quantity is depending on the clients’ needs.
Q3. What is your principle for the samples ?
Q4.Which payment can be acceptable ?
We could accept the payment by T/T, Paypal, Western Union,L/C, etc.
Q5. How about the lead time?
If no stocks, it takes 7 to 15 working days to manufacture after receiving the advance payment.
If in stock, 2-4 working days are possible. But it depends on the exact products and quantity.
Q6. What certificates will be offered?
CE and ISO are certified for most products.
Always high quality is offered to avoid any defective products. Also, protective packaging is offered to avoid destroy during delivery.
Q7. What language is offered?
Pure English for the operation panel, display and manuals.
Installation & operation videos will be provided as a guidance if necessary.
Q8. What service do you provide after sales?
We could provide Online instructions: Real-time support by video-call or voice-chat.
During the warranty time, we can send spare parts for free if any quality problems cause the products’ inactive. Technical guidance is free and ready forever.
Q9. Can you give a training?
Your technicians can come to our factory for a training. Drawell engineers can go to your place for local support( installation , training, debugging, maintenance ).
Q10. Can you do OEM?
Products can be customized according to your requirements. OEM service is available.
We are a factory.
Q2. What's the MOQ ?
(1). Normally, MOQ is 1 piece. The quantity is depending on the clients’ needs.
(2). If there is no stock, the general MOQ is in big difference due to the
Different products. But the quantity still can be negotiated.
Different products. But the quantity still can be negotiated.
Q3. What is your principle for the samples ?
No free samples. But we provide 1piece as a sample order for all items.
Q4.Which payment can be acceptable ?
We could accept the payment by T/T, Paypal, Western Union,L/C, etc.
Q5. How about the lead time?
If no stocks, it takes 7 to 15 working days to manufacture after receiving the advance payment.
If in stock, 2-4 working days are possible. But it depends on the exact products and quantity.
Q6. What certificates will be offered?
CE and ISO are certified for most products.
Always high quality is offered to avoid any defective products. Also, protective packaging is offered to avoid destroy during delivery.
Q7. What language is offered?
Pure English for the operation panel, display and manuals.
Installation & operation videos will be provided as a guidance if necessary.
Q8. What service do you provide after sales?
We could provide Online instructions: Real-time support by video-call or voice-chat.
During the warranty time, we can send spare parts for free if any quality problems cause the products’ inactive. Technical guidance is free and ready forever.
Q9. Can you give a training?
Your technicians can come to our factory for a training. Drawell engineers can go to your place for local support( installation , training, debugging, maintenance ).
Q10. Can you do OEM?
Products can be customized according to your requirements. OEM service is available.
