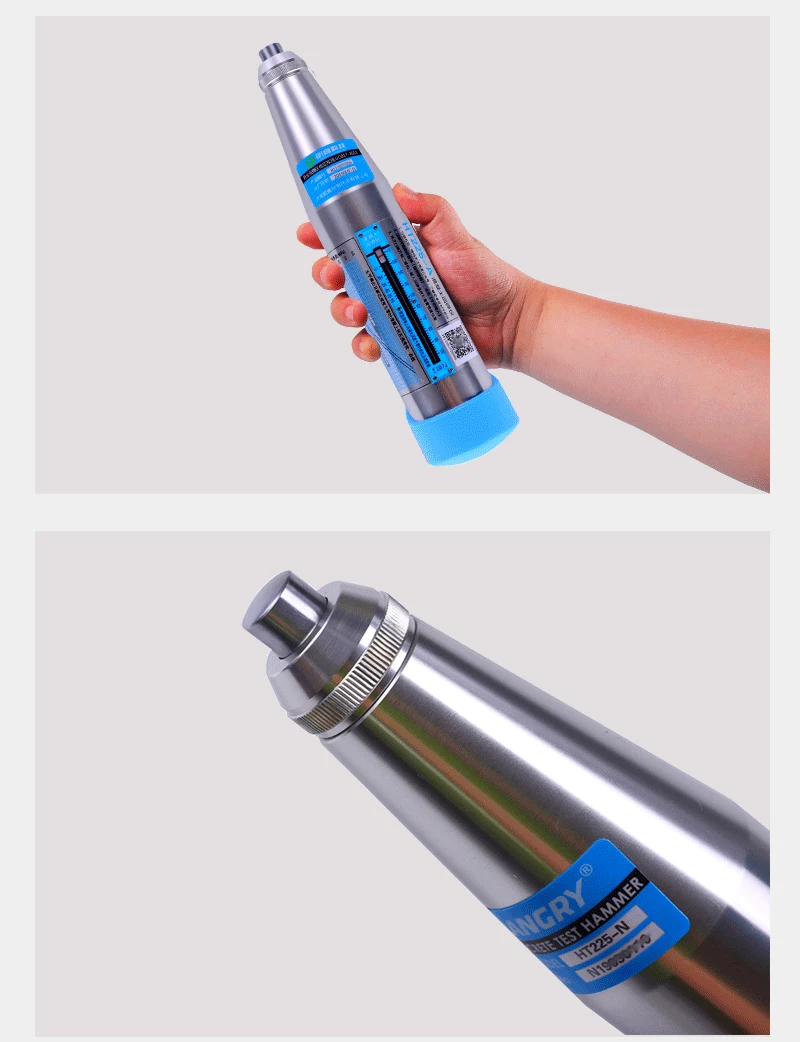

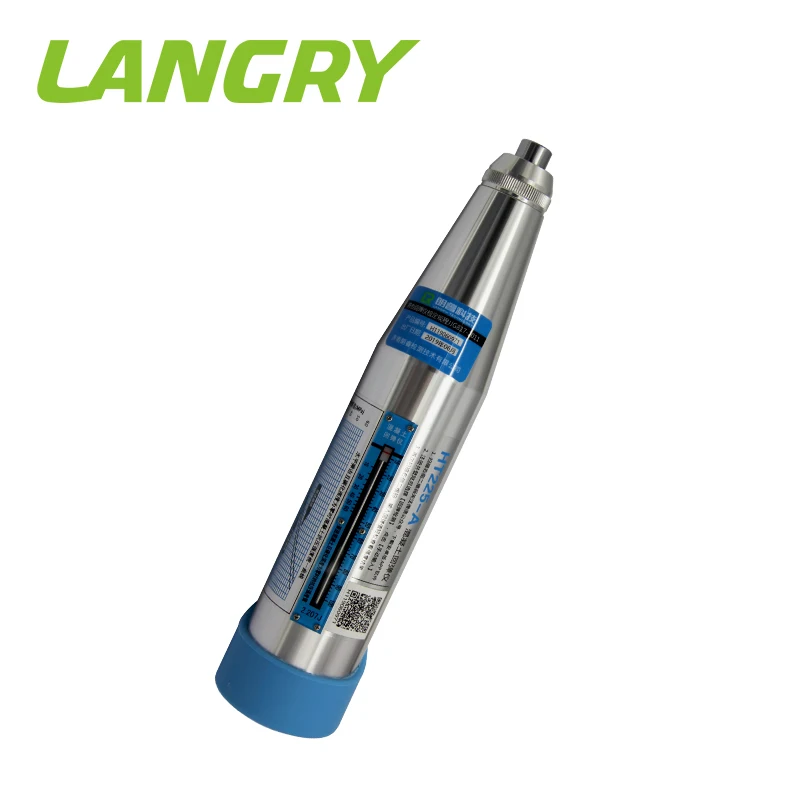

Швейцарский молоток, молоток для отбоя, тестовая цена, молоток для отбоя бетона
- Category: Other Physical Measuring Instruments >>>
- Supplier: Jinan,Langrui,Detection,Technology,Co.,Ltd
Share on:
Product Overview
Description
Standards and Regulations Applied
- ISO/DIS 8045 International
- EN 12 504-2 Europe
- ENV 206 Europe
- BS 1881, part 202 Great Britain
- DIN 1048, part 2 Germany
- ASTM C 805 USA
- NFP 18-417 France
- B 15-225 Belgium
- JGJ/ T 23-2001 China
- JJG 817-1993 China
Application field
Used for testing the compressive strength of ordinary concrete in the range of 10 to
70 N/mm² (1'450 to 10'152 psi) in structural engineering
1. Product features and advantages
(1) Imported high-quality springs are more fatigue-resistant, aluminum alloy spring
seat snap ring assembly
(2) Adopt CNC machining center and other machine tools to refine the movement,
and the rebound value is guaranteed.
(3) Silicone bracket for soft hand protection, more comfortable rebound operation.
(4) Finely grind the spherical zero-setting screws to make the rebound firing smoother
and smoother.
(5) Improved pointer design, easy to adjust friction and more stable.
(6) Beautiful label and ruler are easy to read, and the hard oxidation treatment of the
parts is beautiful and durable.
(7) High-precision aluminum alloy flange is not easy to be damaged, and
high-precision hook is not easy to be elastically empty due to abrasion.
(8) Multiple original imported dust-proof components, cleaner movement and
longermaintenance period(9) Abrasion resistance of super-hard 6061 aluminum alloy casing, and the button is
not easy to fall off by stretching process.
2. Technical parameters
Standard impact energy:2.207 J
Pointer length: 20.0 ± 0. 2mm
Friction of pointer: 0.65 ± 0. 15N
Spherical radius of bouncing rod: 25±1.0mm
Elastic tension spring stiffness: 785.0 ± 30. 0N/m
bounce hammer unhook position: Scale line "100" at the score line
Operating length of elastic tension spring: 61.5±0.3mm
Impact length of bounce hammer: 75±0.3mm
Bounce hammer take-off position: Scale "0"
Calibration value on testing anvil: 80 ± 2
